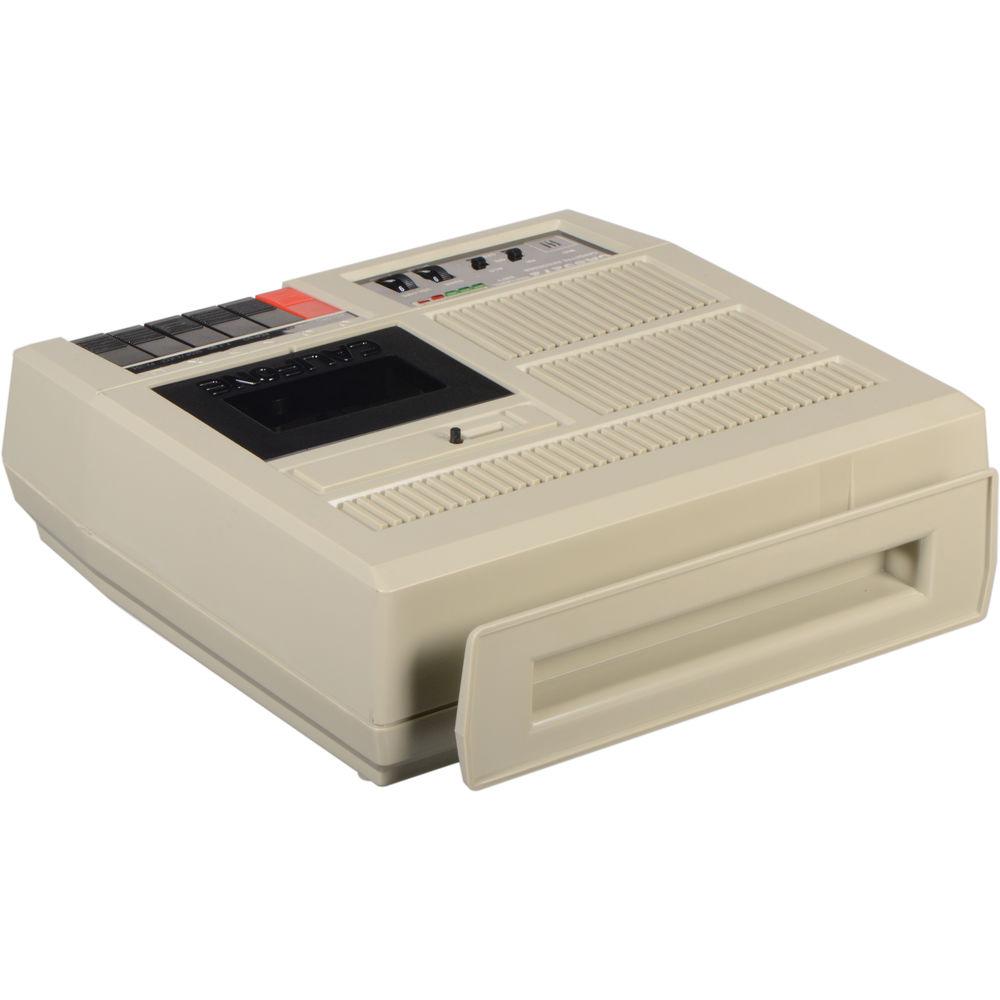

Product description The Califone CAS5272 is cassette recorder and player suitable for learning centers, language labs, ELL / ELD applications, and other similar situations. It features seven headphone jacks, ALLOWING multiple people to listen at once, as well as a "cue and review" option for going over audio.
An on-board speaker, sporting 10W of power, provides you the ability to listen directly from the recorder itself. A 2.5mm input for an optional stop/start remote will give you control from a distance, and plugging in a compatible dynamic microphone via the 3.5mm jack will let you to use the recorder for public addressing and other functions. You can also use its built-in electret condenser microphone to record straight to tape. - 10W RMS amplifier loud enough for use in classes with up to 75 to 100 people
- Can also be used with public address systems
- Suitable for school and business use
- Directional Sound feature projects sound out to the audience and not up at the ceiling
- 5-LED record level indicator
- Two 3-digit counters keep track of key lesson points on the tape
- Auto-stop extends the life of cassette tapes
- Separate tone and volume controls
- 3.5mm mic & 2.5mm remote dynamic mic inputs
- 1/4" auxiliary input connects other media players
- Total of seven 1/4" headphone jacks
- Input for optional remote start/stop dynamic mic (4805AV, available separately)
- ALC (Auto Logic Control) feature which automatically adjusts the volume level while recording to reduce distortion and overloading
- Runs on AC / DC power for indoor / outdoor use and also on four D alkaline batteries
UPC: 610356830659 In the Box Califone CAS5272 Deluxe Cassette Player & Recorder 15 VDC / 1.5 A Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Califone CAS5272 Deluxe Cassette Player & Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCalifone CAS5272 Specs | Power Output | 10 W RMS into 4 Ohms | | Wow & Flutter | <0.35% | | FF/REW Time | 120 sec (C-60 recommended tape) | | S/N Ratio | 45 dB unweighted | | Speaker | 5" (127 mm) round | | Microphone | Built-in electret | | Record Level | Record Level Indicator: 5 LEDs | | Mechanism | Full auto stop (all modes) | | Controls | Record, Play, Cue, Review, Eject, Pause, Volume, Tone, Public Address, Switchable ALC | | Tape Counter | 2 x 3-digit ICIA standard | | Speed | 1.8 ips | | Output | Jacks:
6 x 1/4" headphone
1 x 1/4" headphone / external speaker | | Input | Jacks:
1 x 1/4" AUX In
1 x 3.5 mm mic
1 x 2.5 mm remote | | Power Requirements | 120 to 240 VAC, 50 to 60 Hz or separately sold 4 x D-size alkaline batteries
15 VDC / 1.5 A power adapter (included) | | Case | Rugged ABS plastic for durability | | Cord | Detachable | | Dimensions (L x W x H) | 11.0 x 10.8 x 3.4" / 279.4 x 274.3 x 86.3 mm | | Weight | Including Power Adapter: 6.0 lb / 2.7 kg | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 14.2 x 12.9 x 5.4" |
