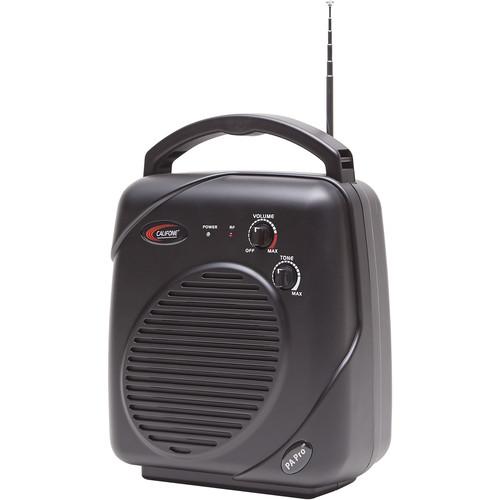

User Manual for Califone PA11 PA Pro Wireless PA System Click to enlarge the picture
Contents of the user manual for the Califone PA11 PA Pro Wireless PA
- Product category: Portable PA Systems Califone
- Brand: Califone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Califone Portable PA Systems
 |
User manual for the Califone PA11 PA Pro Wireless PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Califone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Califone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Califone product will considerably shorten its lifespan!
|

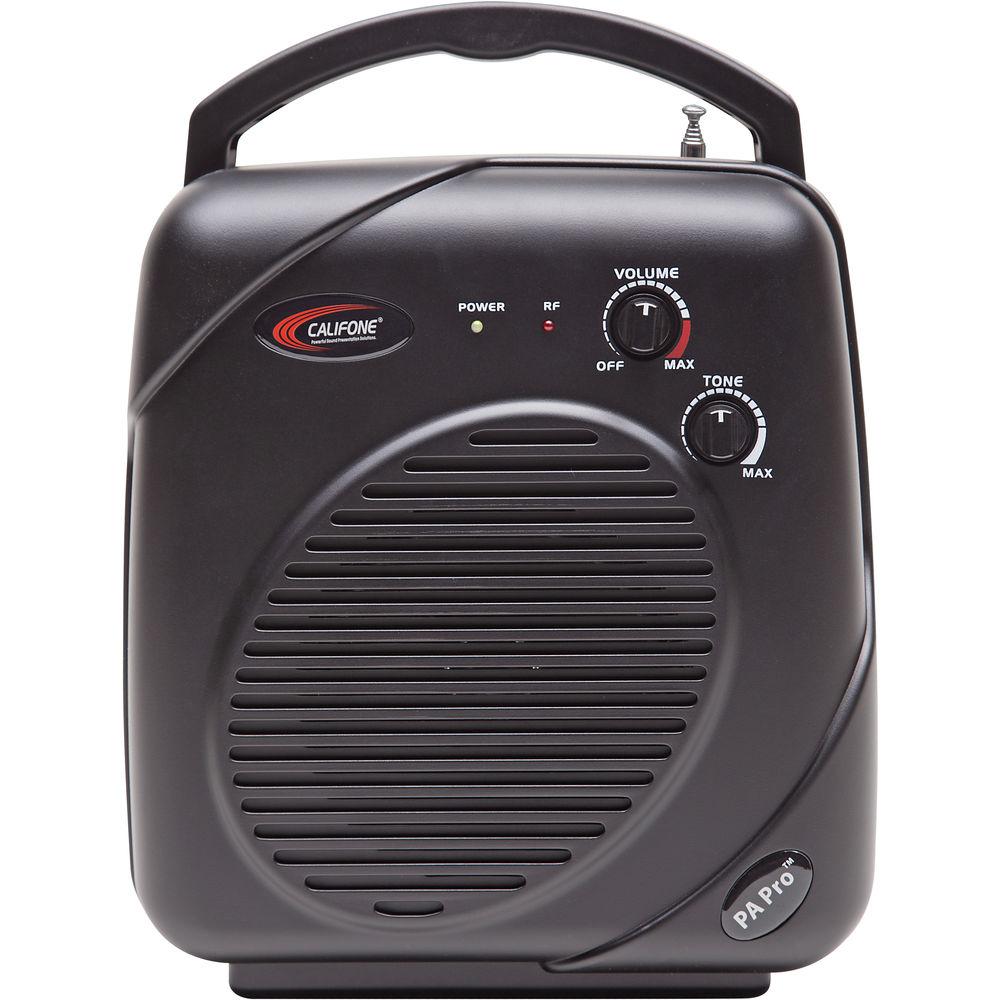

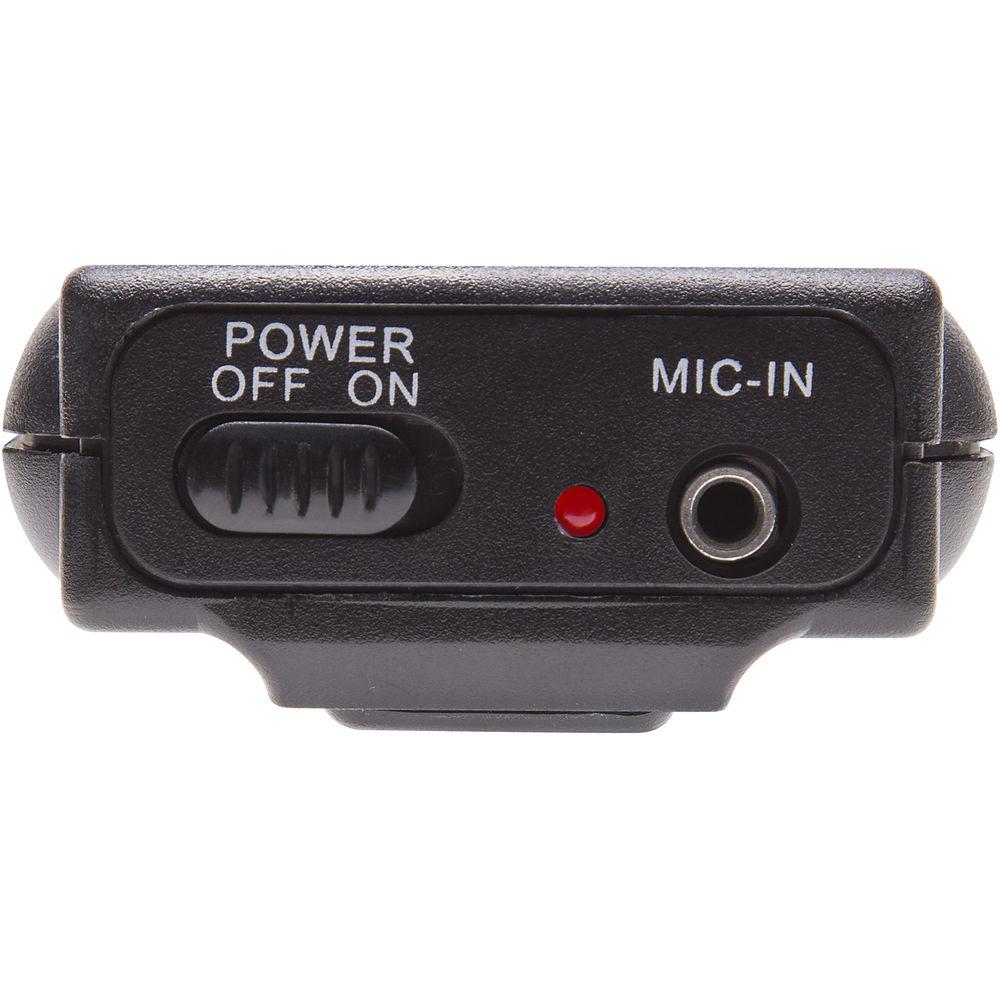

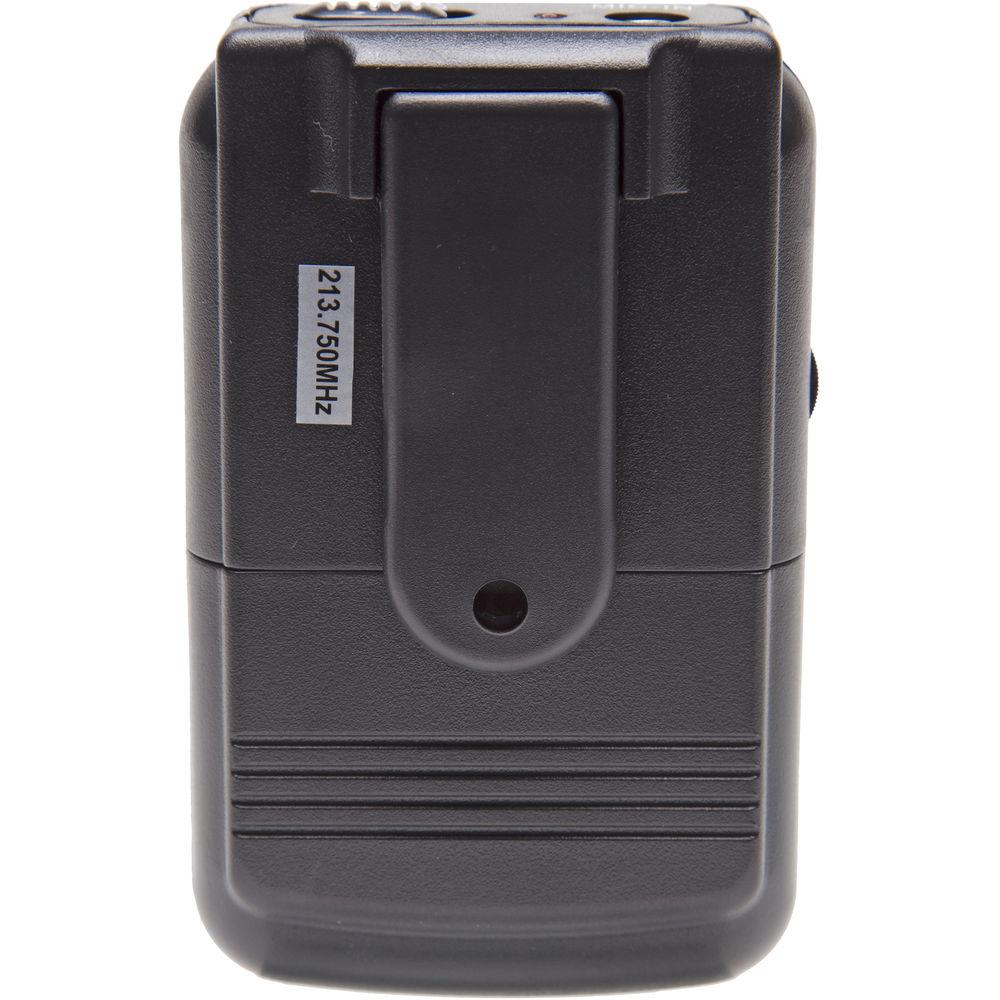

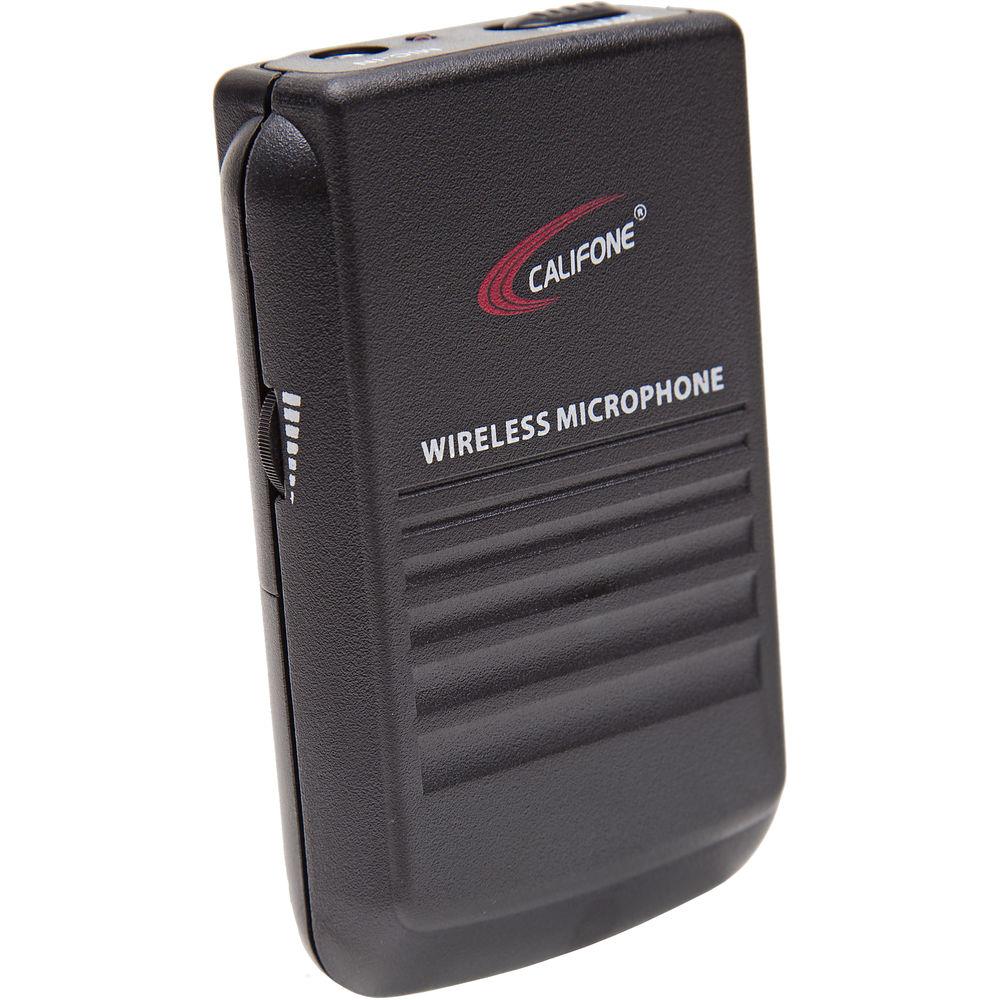

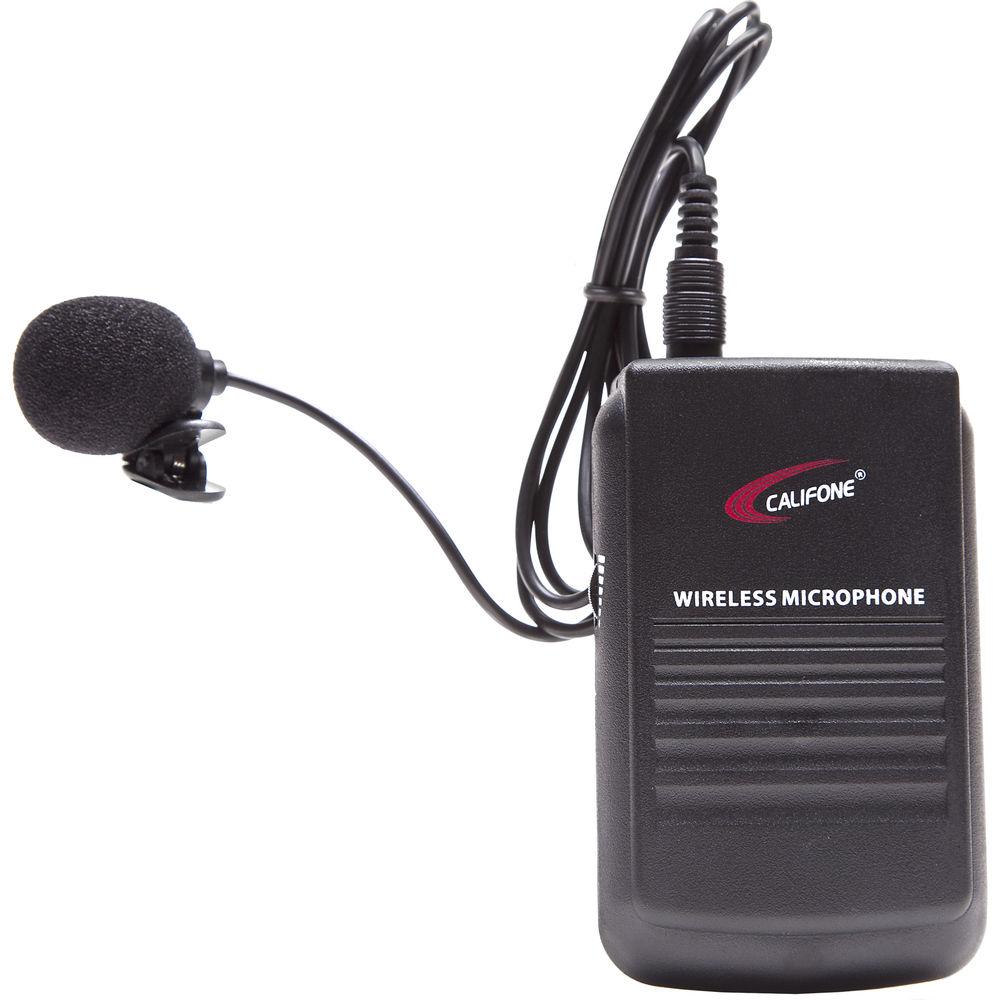

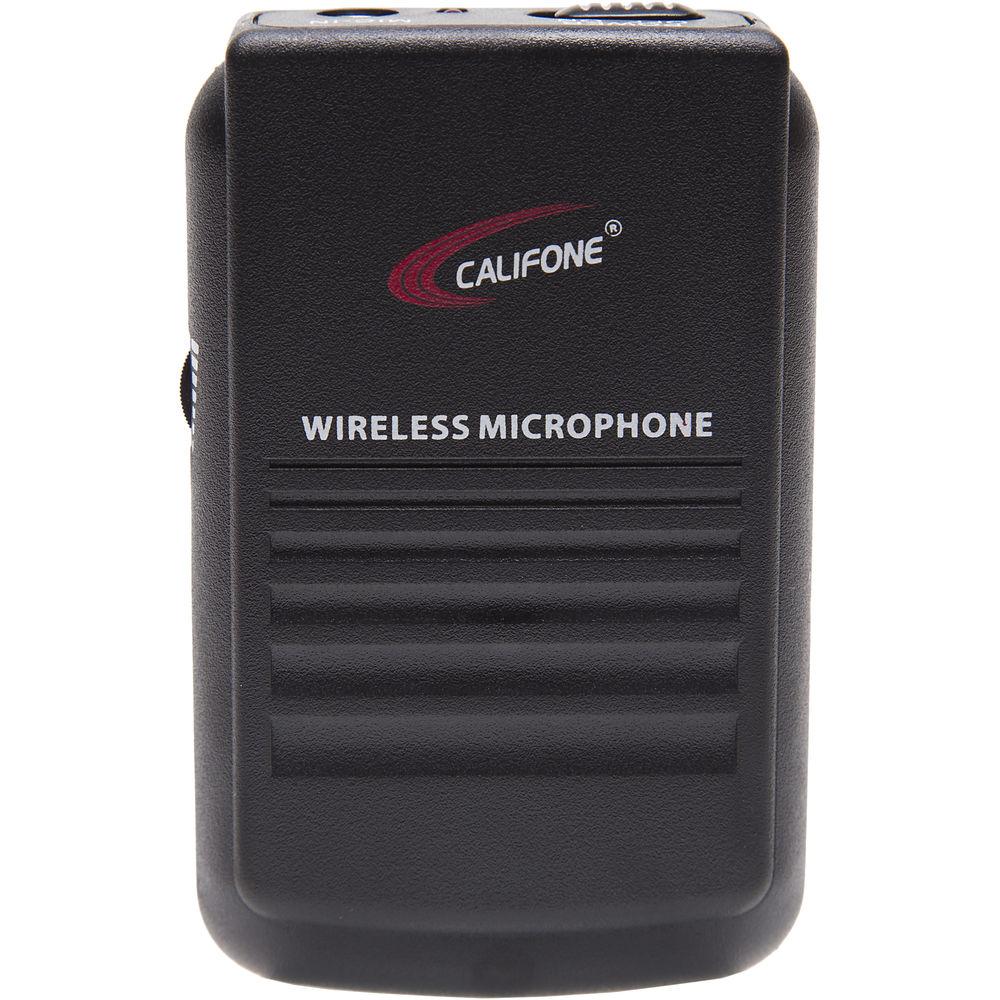

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The PA11 PA Pro Wireless PA System from Califone is a portable wireless PA system designed to address indoor and outdoor audiences of up to 150 people. The system consists of a 213.75 MHz receiver/amplifier, a lapel microphone, and a beltpack transmitter with a wireless range of up to 100'. Powered by an internal battery, the PA Pro runs for up to six hours on one charge and can be recharged via the included adapter, even while operating. An internal compartment on the receiver/amplifier offers storage space for the adapter, transmitter, and microphone. - Rugged ABS plastic casing
- Separate tone and volume controls
- 6.3mm jack for connecting wired microphone (available separately)
- Recommended for use in school yards, tours, meetings, and emergency situations that call for crowd control

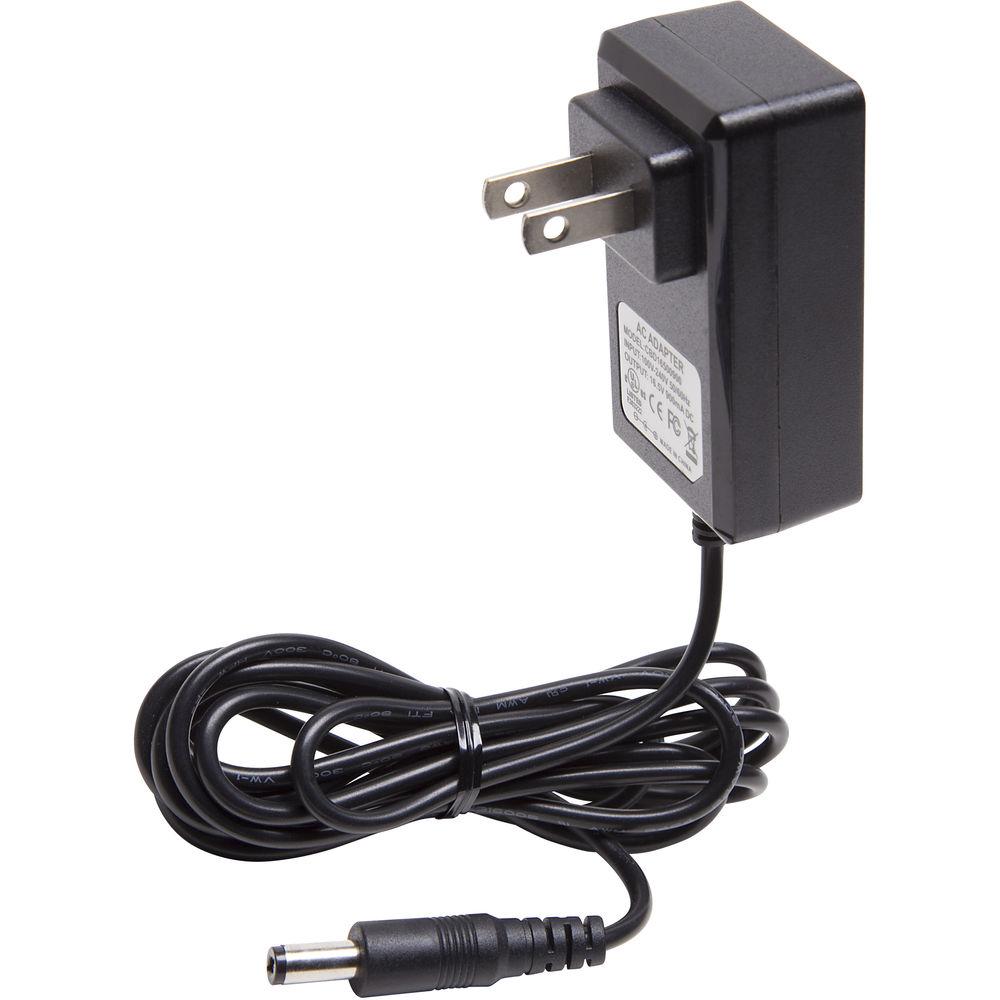

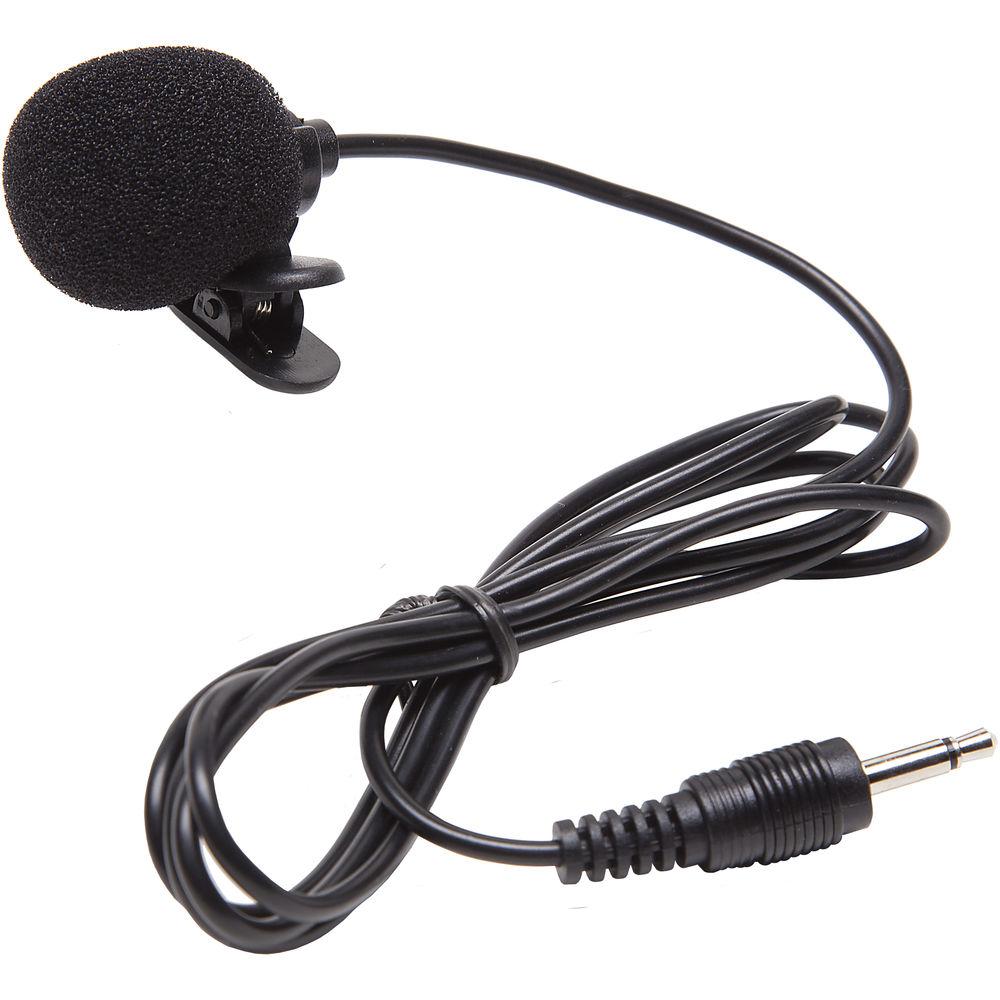

UPC: 610356000014 In the Box Califone PA11 PA Pro Wireless PA System Lapel Microphone Beltpack Transmitter AC Wall Adapter Limited 1-Year Warranty for Use in Schools, Businesses & Government Facilities Table of Contents
|
Upload User Manual
Have you got an user manual for the Califone PA11 PA Pro Wireless PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCalifone PA11 Specs | | | Frequency | 213.750 MHz, crystal-controlled | | Power Output | 10 mW | | Indicators | LED low-battery indicator | | Input | 3.5 mm microphone jack | | Power Requirements | 2 x AA batteries (included) | | | | Frequency | 213.750 MHz, crystal-controlled | | Antenna | Telescoping | | Indicators | LED power indicator | | Power Output | 20 W, RMS | | Distortion | <10% THD | | Controls | Power on / volume, tone | | Inputs | 3.5 mm AUX input jack
1/4" / 6.3 mm microphone jack | | Output | 3.5 mm audio jack | | Speaker | 4.5" diameter, 15 W at 4 Ohms | | Power Source | 100-240 VAC, 50-60 Hz switching power adapter with 16.5 VDC, 0.9 A output
Internal rechargeable battery | | Battery Run Time | 6 hours at 50% duty cycle | | Battery Recharge Time | 7 hours with included wall adapter | | Safety Approvals | CE-approved for school use | | Dimensions | 7.1 x 4.0 x 9.8" (18.0 x 10.2 x 24.9 cm) | | Weight | 5 lb (2 kg), without batteries |
