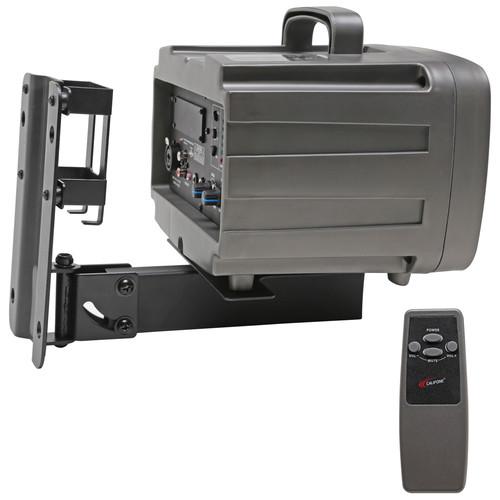

User Manual for Califone PA310W PresentationPro Speaker and Mounting Bracket Kit Click to enlarge the picture
Contents of the user manual for the Califone PA310W PresentationPro Speaker and Mounting
- Product category: Components & Accessories Califone
- Brand: Califone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Califone Components & Accessories
|
User manual for the Califone PA310W PresentationPro Speaker and Mounting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Califone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Califone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Califone product will considerably shorten its lifespan!
|
Product description The PA310W PresentationPro Speaker and Mounting Bracket Kit from Califone provides audio support while connected to LCD projectors, interactive whiteboards, or computers. The speaker features a volume indicator, power switch, and LED indicator and DC power input jack. The separate bass and treble controls are designed to provide quality sound which can be controlled using the included volume remote control. The speaker has the appropriate inputs and jacks for connecting external audio sources, microphones, and visual equipment. The top of the speaker features a steel handle for carrying and magnetically attracts to the remote control for safekeeping. The top of the bracket mounts directly into the underside of the speaker for support in addition to the three other connection points. The vertical and horizontal directionality on the bracket allows the speaker's positioning to be adjusted for audio projection. - PA310 Portable Sound System The Califone PA310 Portable Sound System is designed for portable and installed sound applications such as for vocal reinforcement in school classrooms and corporate boardrooms. The speaker utilizes a 30-watt integrated amplifier and the largest magnet in its speaker class to deliver sound to upwards of 350 people.
For I/O the unit's back panel features a combination XLR and 1/4" microphone input, an AUX RCA input pair, an 1/8" stereo AUX input, a 1/4" line input, and a 1/4" line output for connecting to additional speakers. The I/O allows you to connect devices such as projectors, computers, and interactive whiteboards. The back panel also features separate control knobs for bass and treble as well as volume up, volume down, and mute buttons. The included infrared remote control has a line of sight operating range of approximately 20 feet and can be magnetically connected to the top of the speaker to help prevent it from being misplaced.
A rugged steel-reinforced top handle allows you to carry the speaker and use it in portable applications. The speaker also includes a recessed underside pole mount for mounting on a speaker stand or the optional Califone TP-30 tripod (sold separately). Alternatively, the speaker can be wall-mounted with the optional MB-PA3W two-piece speaker bracket that provides 180° of horizontal pivot and 90° of vertical adjustments (sold separately). UPC: 610356832646 - PresentationPro Wall Mounting Bracket The PresentationPro Wall Mounting Bracket from Califone is designed for use with the Califone PresentationPro 310 portable sound system and the PA329 wireless speakers. The mounting bracket delivers 180° horizontal rotation and 90° vertical movement and includes a holder for the speaker's external power. Items are secured to the mounting bracket via three contact points including a 4" pole extrusion up from the bracket into the recess in the speaker.
- 90° vertical movement - 180° horizontal movement
- Bracket has 3 contact points for securing the item including a bracket tube which secures into the speaker
- Features a holder for speaker's external power
UPC: 610356832684 In the Box Bundle Items PA310 Portable Sound System dqbuatcdcx - PI-RC Infrared Remote Control Unit
PresentationPro Wall Mounting Bracket
Also Includes - Volume Remote Control
- Limited 6-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Califone PA310W PresentationPro Speaker and Mounting Bracket Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PA310 Portable Sound System
| Rated Power Output | 30 W RMS | | Sensitivity | Line: 125 mV RMS
Microphone: 4 mV RMS
Auxiliary: 250 mV RMS | | Frequency Response | 60 to 20,000 Hz ±3 dB | | Dispersion | 90° H x 120° V | | Speaker | 6.5" Full-range speaker | | Distortion | 1% (at 10 W) | | Crossover | L/C - 6 dB/Octave at 4 kHz | | Inputs | Line Inputs (2): HI-Z, RCA (summing L+R)
Balanced Mic: Hi or Lo-Z with phantom power (+15 VDC)
Unbalanced Mic: Lo - Z, 1/4" - phone
Auxiliary: Hi-Z mono 1/4" - phone | | Line Output | 250 mV constant | | Remote Control | 20' range with 45° operating field in front of the speaker | | AC Power Requirements | 110 to 125 VAC, 50/60 Hz
208 to 240 VAC, 50/60 Hz | | Dimensions (HxWxD) | 6.25 x 10.00 x 8.50" (15.9 x 25.4 x 21.6 cm) | | Weight | 10.00 lb (4.54 kg) | | | | Box Dimensions (LxWxH) | 13.228 x 12.913 x 11.496" | - PresentationPro Wall Mounting Bracket
| Material | Carbon Steel | | Weight | 5.0 lb (2.3 kg) | | | | Box Dimensions (LxWxH) | 16.0 x 12.0 x 8.0" |
