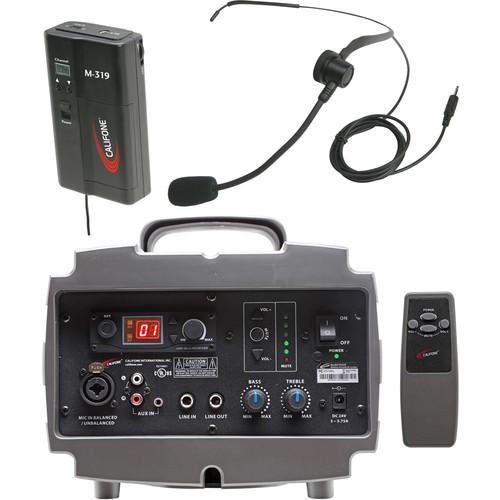

User Manual for Califone PA329M Wireless PresentationPro PA System with M319 Beltpack Transmitter & HBM319 Headset Microphone Click to enlarge the picture
Contents of the user manual for the Califone PA329M Wireless PresentationPro PA System
- Product category: Components & Accessories Califone
- Brand: Califone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Califone Components & Accessories
|
User manual for the Califone PA329M Wireless PresentationPro PA System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Califone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Califone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Califone product will considerably shorten its lifespan!
|
Product description The PA329M Wireless PresentationPro PA System from Califone is a PA system which provides provides you with audio support for vocal reinforcement. You can connect it to mobile devices, LCD projectors, netbooks, notebooks, laptop & desktop computers for enhanced audio learning. It can be used in classrooms, labs, cafeterias, auditoriums, meeting rooms, hotel & conference rooms, and outdoor events. The PA329M includes the M319 beltpack transmitter and the HBM319 headset microphone. - PA329 Wireless Presentation Pro Speaker with PI-RC Remote Control The PA329 Wireless PresentationPro PA System from Califone is a PA system which provides you with audio support for vocal reinforcement. You can connect it to mobile devices, LCD projectors, netbooks, notebooks, laptop & desktop computers for enhanced audio learning. It can be used in classrooms, labs, cafeterias, auditoriums, meeting rooms, hotel & conference rooms, and outdoor events. The PA329 includes the PI-RC remote control. UPC: 610356832653
- M-319 Belt Pack UHF Transmitter The Califone M-319 is a wireless UHF beltpack transmitter for compatible Califone lavalier and head-worn microphones. The transmitter is intended to transmit microphone signal to the PA-300+ and PA-319 public address systems. UPC: 610356687000
- HBM319 Headset Microphone for M319 The HBM319 from Califone is a lightweight headset microphone designed for use with the M319 beltpack. The mic fits snugly around your head and has an adjustable boom arm for precise positioning and clear vocal pickup. It has a standard 3.5mm plug for connection to the beltpack.
- Lightweight headset design for hands-free use
- Adjustable boom for precise positioning
UPC: 610356696002 In the Box Bundle Items PA329 Wireless Presentation Pro Speaker with PI-RC Remote Control fwfytszwufewbuzvuebwustdey M-319 Belt Pack UHF Transmitter HBM319 Headset Microphone for M319
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Califone PA329M Wireless PresentationPro PA System with M319 Beltpack Transmitter & HBM319 Headset Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PA329 Wireless Presentation Pro Speaker with PI-RC Remote Control
| Rated Power Output | 30 W RMS | | Sensitivity | For Rated Output:
Line: 125 mV RMS
Auxiliary: 250 mV RMS | | Frequency Response | 60 Hz to 20 kHz, +/- 3 dB | | Dispersion | 90° H x 120° V | | Speaker | 6.5" full-range speaker | | Distortion | 1% (@ 10 W) | | Crossover | L/C - 6 dB/Octave @ 4 kHz | | Inputs | Line Inputs: Hi-Z, RCA (summing L+R)
Balanced Mic: Hi or Lo-Z, with phantom power (+15 V D.C.)
Unbalanced Mic: Lo -Z, 1/4" (6.3 mm) phone
Aux In: Hi-Z Mono 1/4" (6.3 mm) phone and single 1/8" (3.5 mm) stereo | | Carrier Frequency | 904 to 925 MHz | | Channels | #1 904.85
#2 905.75
#3 906.85
#4 908.15
#5 909.65
#6 911.35
#7 913.45
#8 914.85
#9 915.75
#10 916.85
#11 918.15
#12 919.65
#13 921.35
#14 923.25
#15 924.15
#16 925.3 | | Line Output | 250 mV constant | | Remote Control | 20' (6 m) range with 45° operating field in front of speaker | | AC Power Requirements | 110 - 125 VAC, 50/60 Hz or
208 - 240 VAC, 50/60 Hz | | Dimensions (H x W x D) | 6.25 x 10 x 8.5" (158.75 x 254 x 215.9 mm) | | Weight | 10 lb (4.5 kg) | | | | Box Dimensions (LxWxH) | 13.3 x 12.9 x 11.6" | - M-319 Belt Pack UHF Transmitter
| | | Box Dimensions (LxWxH) | 4.5 x 2.0 x 1.5" | - HBM319 Headset Microphone for M319
| | | Box Dimensions (LxWxH) | 9.3 x 9.1 x 4.8" |
