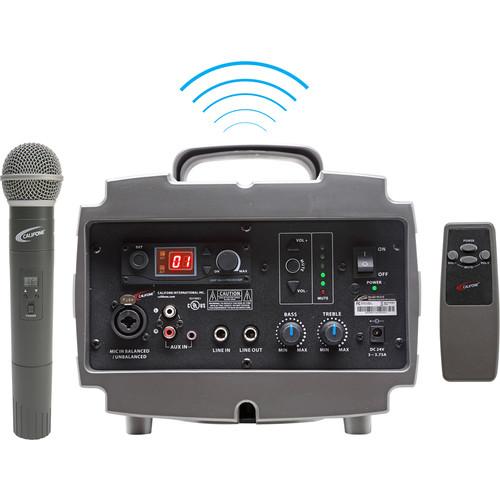

User Manual for Califone PA329Q Wireless PresentationPro PA System with Q319 Handheld Wireless Microphone Click to enlarge the picture
Contents of the user manual for the Califone PA329Q Wireless PresentationPro PA System
- Product category: Components & Accessories Califone
- Brand: Califone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Califone Components & Accessories
|
User manual for the Califone PA329Q Wireless PresentationPro PA System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Califone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Califone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Califone product will considerably shorten its lifespan!
|
Product description The PA329Q Wireless PresentationPro PA System from Califone is a PA system which provides provides you with audio support for vocal reinforcement. You can connect it to mobile devices, LCD projectors, netbooks, notebooks, laptop & desktop computers for enhanced audio learning. It can be used in classrooms, labs, cafeterias, auditoriums, meeting rooms, hotel & conference rooms, and outdoor events. The PA329Q includes the Q319 handheld wireless microphone. - PA329 Wireless Presentation Pro Speaker with PI-RC Remote Control The PA329 Wireless PresentationPro PA System from Califone is a PA system which provides you with audio support for vocal reinforcement. You can connect it to mobile devices, LCD projectors, netbooks, notebooks, laptop & desktop computers for enhanced audio learning. It can be used in classrooms, labs, cafeterias, auditoriums, meeting rooms, hotel & conference rooms, and outdoor events. The PA329 includes the PI-RC remote control. UPC: 610356832653
- Q319 Handheld Wireless Mic for PA319 and PA919 The Q319 Wireless Handheld Microphone from Califone delivers crisp clear audio to the line of PowerPro, iPod Wireless, and Wireless Array portable PA speaker systems. The dynamic mic features a unidirectional pattern which provides solid performance with good off-axis rejection. The unit offers an LCD display screen for 16 selectable frequencies for optimal sound choice and quality. The Q319 has a range of up to 150'.
-
- Speaker Compatibility: PA919SD, PA919, PA919PS, PA319, PI39
- Up to 150' of wireless transmission range to speaker
- 4 hours of continuous operation from 9V battery (battery not included)
- Channel LCD display
- Channel up and down buttons
- On/off power switch
In the Box Bundle Items PA329 Wireless Presentation Pro Speaker with PI-RC Remote Control fwfytszwufewbuzvuebwustdey Q319 Handheld Wireless Mic for PA319 and PA919
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Califone PA329Q Wireless PresentationPro PA System with Q319 Handheld Wireless Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PA329 Wireless Presentation Pro Speaker with PI-RC Remote Control
| Rated Power Output | 30 W RMS | | Sensitivity | For Rated Output:
Line: 125 mV RMS
Auxiliary: 250 mV RMS | | Frequency Response | 60 Hz to 20 kHz, +/- 3 dB | | Dispersion | 90° H x 120° V | | Speaker | 6.5" full-range speaker | | Distortion | 1% (@ 10 W) | | Crossover | L/C - 6 dB/Octave @ 4 kHz | | Inputs | Line Inputs: Hi-Z, RCA (summing L+R)
Balanced Mic: Hi or Lo-Z, with phantom power (+15 V D.C.)
Unbalanced Mic: Lo -Z, 1/4" (6.3 mm) phone
Aux In: Hi-Z Mono 1/4" (6.3 mm) phone and single 1/8" (3.5 mm) stereo | | Carrier Frequency | 904 to 925 MHz | | Channels | #1 904.85
#2 905.75
#3 906.85
#4 908.15
#5 909.65
#6 911.35
#7 913.45
#8 914.85
#9 915.75
#10 916.85
#11 918.15
#12 919.65
#13 921.35
#14 923.25
#15 924.15
#16 925.3 | | Line Output | 250 mV constant | | Remote Control | 20' (6 m) range with 45° operating field in front of speaker | | AC Power Requirements | 110 - 125 VAC, 50/60 Hz or
208 - 240 VAC, 50/60 Hz | | Dimensions (H x W x D) | 6.25 x 10 x 8.5" (158.75 x 254 x 215.9 mm) | | Weight | 10 lb (4.5 kg) | | | | Box Dimensions (LxWxH) | 13.3 x 12.9 x 11.6" | - Q319 Handheld Wireless Mic for PA319 and PA919
| Type | Dynamic | | Pattern | Unidirectional | | Carrier Frequency Range | 904 to 925 MHz (16 Channels) | | Channels | #1: 904.85, #2: 905.75, #3: 906.85, #4: 908.15, #5: 909.65, #6: 911.35, #7: 913.45, #8: 914.85, #9: 915.75, #10: 916.85, #11: 918.15, #12: 919.65, #13: 921.35, #14: 923.25, #15: 924.15, #16: 925.35 | | Frequency Response | 90 Hz to 17 kHz | | Frequency Stability | ±5 kHz | | Oscillator | PLL Synthesized | | Modulation | FM | | Transmission Power | 10 dBm | | Spurious Rejection | 55 dB | | THD | > 1% | | Dynamic Range | 90 dB | | Range | Up to 150.0' / 45.7 m | | Current Consumption | 42 mA | | Audio Input Jack | 1/8" / 3.5 mm | | Signal / Noise | 90 dB | | Modulation Depth | AF Modulation Depth: 20 kHz (1 kHz 50 MV)
Volume Code Modulation Depth: 3.5 kHz ±0.5 kHz | | Audio Frequency Response | AF Frequency Response: 80 Hz to 18 kHz (±3 dB) | | Battery Type | 9 V | | Safety Compliance | CE, FCC, and RoHS | | Dimensions (L x Diam) | 9.0 x 2.0" / 22.9 x 5.1 cm | | Weight | Weight with Battery: 10.0 oz / 283.5 g | | | | Box Dimensions (LxWxH) | 10.7 x 2.3 x 1.9" |
