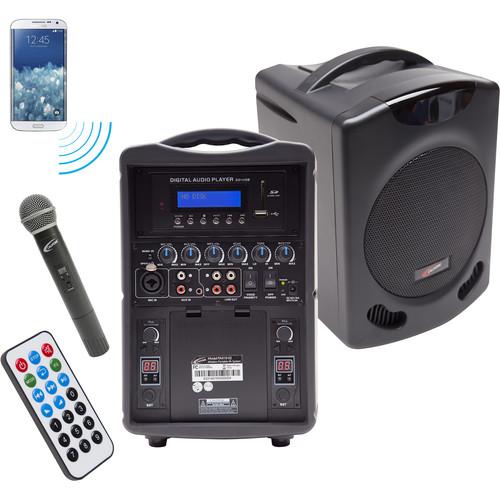

User Manual for Califone PA419Q Portable Bluetooth PA with Handheld Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Califone PA419Q Portable Bluetooth PA with
- Product category: Portable PA Systems Califone
- Brand: Califone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Califone Portable PA Systems
|
User manual for the Califone PA419Q Portable Bluetooth PA with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Califone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Califone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Califone product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More - Product Demo 1
- Product Demo 2
- Product Demo 3
Designed for multiple presenters, the Califone PA419Q Portable Bluetooth PA with Handheld Wireless Microphone System features two wireless microphone receivers with support for a third presenter via wired microphone. The wireless microphone has a transmission range of 150 feet. Intended for applications such as in schools and churches, the unit includes both Bluetooth and NFC (Near Field Communication) for quick and easy wireless audio streaming from a Bluetooth-enabled device.
The unit can provide voice or music amplification out to groups up to 300 people (or in rooms up to 2,000 sq ft). A voice priority feature automatically mutes any music being played back while a connected voice is making announcements. Three seconds after the speaking stops, the music will return to its previous level. Each microphone receiver includes a channel selector, a volume control, as well as audio and RF indicator lights.
The PA system can run on AC power or its rechargeable lithium battery, which is 20% lighter than a comparable lead-acid battery. It can play for at least 2.5 hours on a single charge, and will recharge while playing when connected to an AC power supply.
Additional connectivity includes a digital display with a USB/SD card slot, a combination XLR and 1/4" microphone input, as well as an RCA input pair, and a stereo 1/8" (3.5 mm) auxiliary input for connecting smartphones and other media devices.
The rear panel also includes a music/speech button, mic/aux/MP3/master volume controls, an RCA line level output, and a set of composite RCA video outputs. The bottom of the device includes a standard 1-3/8" tripod mounting hole for placement on a stand. The included remote control allows you to adjust the pitch of digital audio by up to ±20% in 3% increments, which can be useful for dance and music teachers. UPC: 610356831496 In the Box Califone PA419Q Portable Bluetooth PA with Handheld Wireless Microphone System Q319 Handheld Wireless Mic for PA319 and PA919 Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Califone PA419Q Portable Bluetooth PA with Handheld Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCalifone PA419-Q Specs | I/O | 1x combo XLR and 1/4" (6.35 mm) input
2x RCA aux input
1x 1/8" (3.5 mm) aux input
1x SD card input
1x USB drive input
1x Bluetooth with NFC
2x RCA line outputs
2x composite RCA video outputs | | | | NFC | 13.56 MHz on ISO/IEC 18000-3 air interface and at rates ranging from 106 kbit/s to 424 kbit/s | | Range | Up to 150.0' (45.7 m) | | Frequency | 902 to 928 MHz | | Channels | 2x 16 | | Receiver Sensitivity | -95 dBm | | Receiver Type | FM | | Wireless Microphone Type | 2 | | | | Speaker | 6.5" (16.5 cm) full-range driver | | Impedance (Ohms) | 4 ohms | | Power Adapter | 100 to 240 V at 50 to 60 Hz, switching-type with DC 18 V/3.33 A output | | Working Voltage | 12 to 18 VDC | | Working Current | 5 A (max) | | Battery Recharge Time | < 10 hours | | Battery Run Time | > 2.5 to 3.5 hours (max power) | | Battery Capacity | 6 AH (Lithium) | | Sensitivity | Mic: 7.4 mV
Aux: 190 mV | | Power Output | 30 W RMS | | Safety | Approved safe for use in schools, daycare centers, churches, business, and government facilities | | Weight | 13.2 lb (6.0 kg) | | | | Package Weight | 14.6 lb | | Box Dimensions (LxWxH) | 19.2 x 14.1 x 13.1" |
