User Manual for Califone PA419Q2 Portable Bluetooth PA with 2 Handheld Wireless Microphones Click to enlarge the picture
Contents of the user manual for the Califone PA419Q2 Portable Bluetooth PA with
- Product category: Portable PA Systems Califone
- Brand: Califone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Califone Portable PA Systems
 |
User manual for the Califone PA419Q2 Portable Bluetooth PA with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Califone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Califone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Califone product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More - Product Demo 1
- Product Demo 2
- Product Demo 3

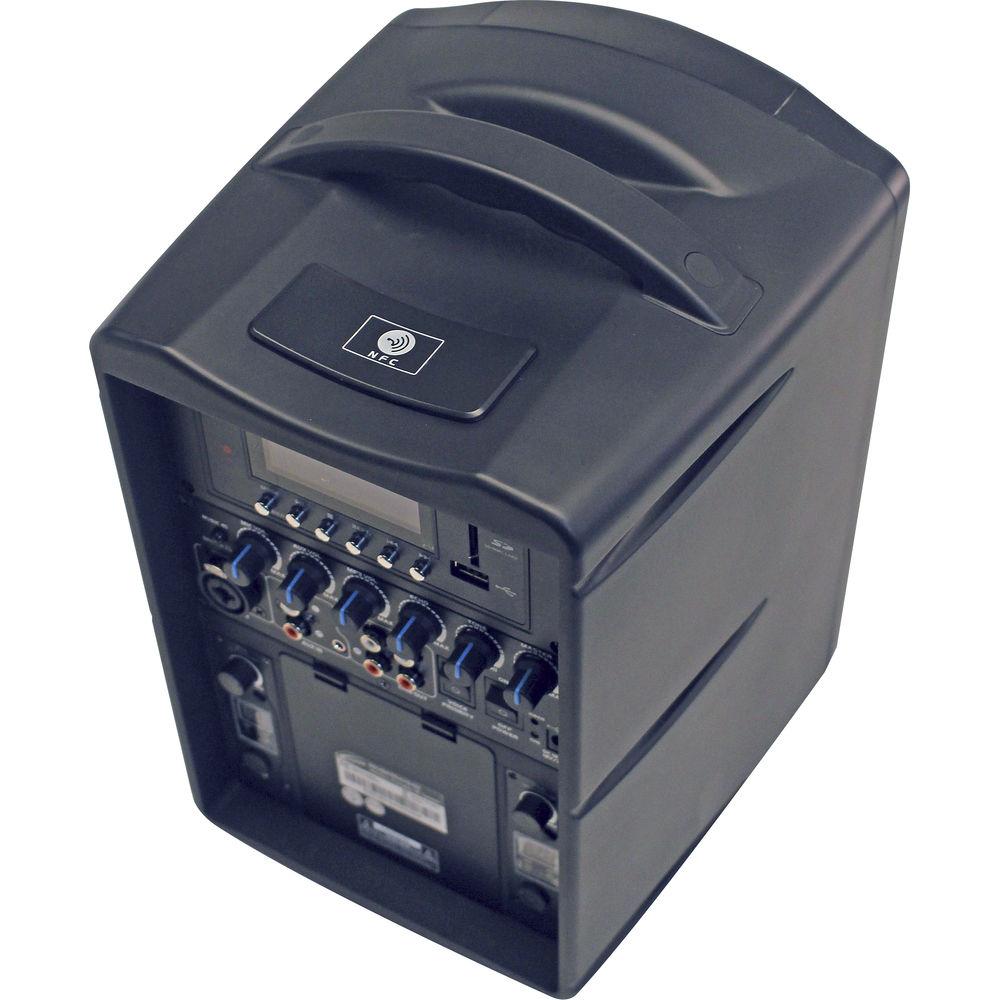

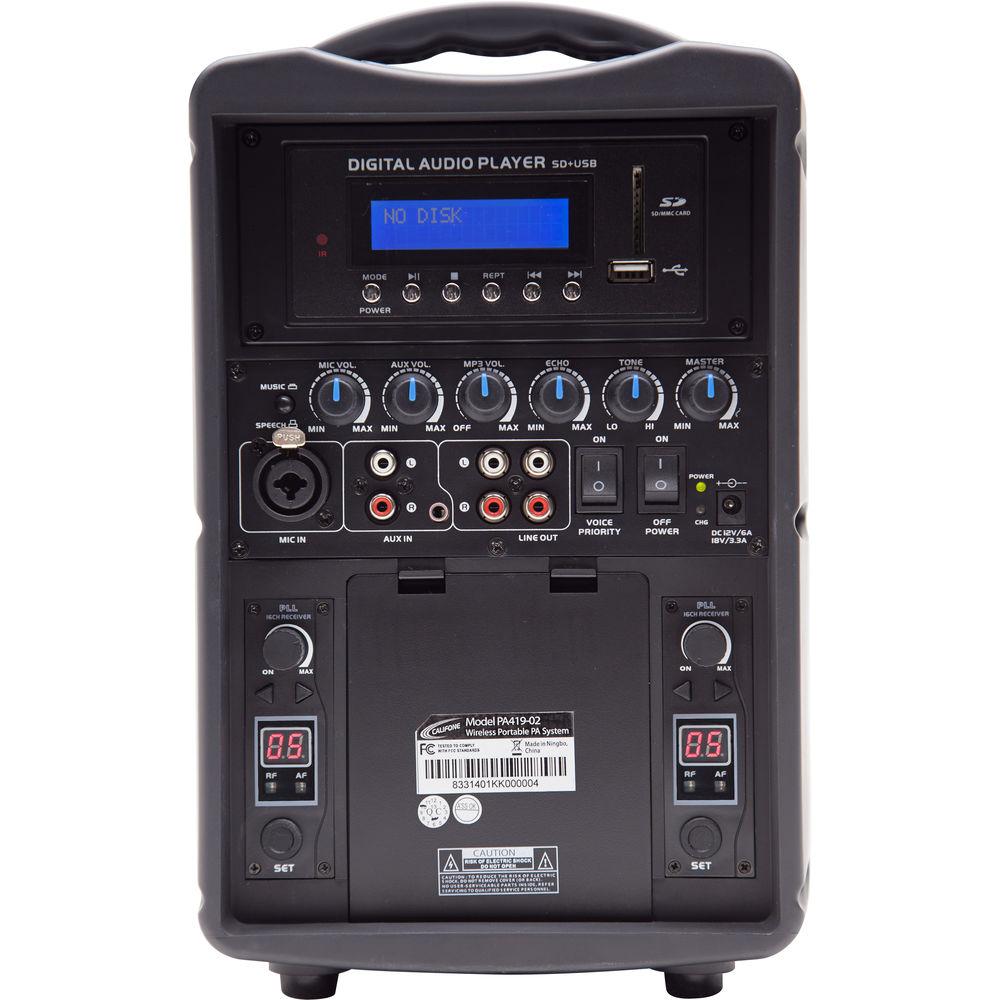

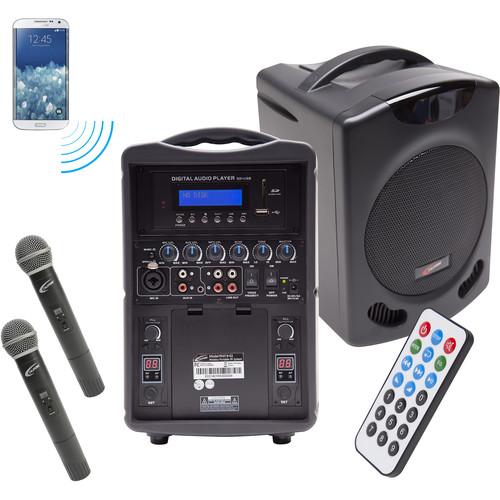

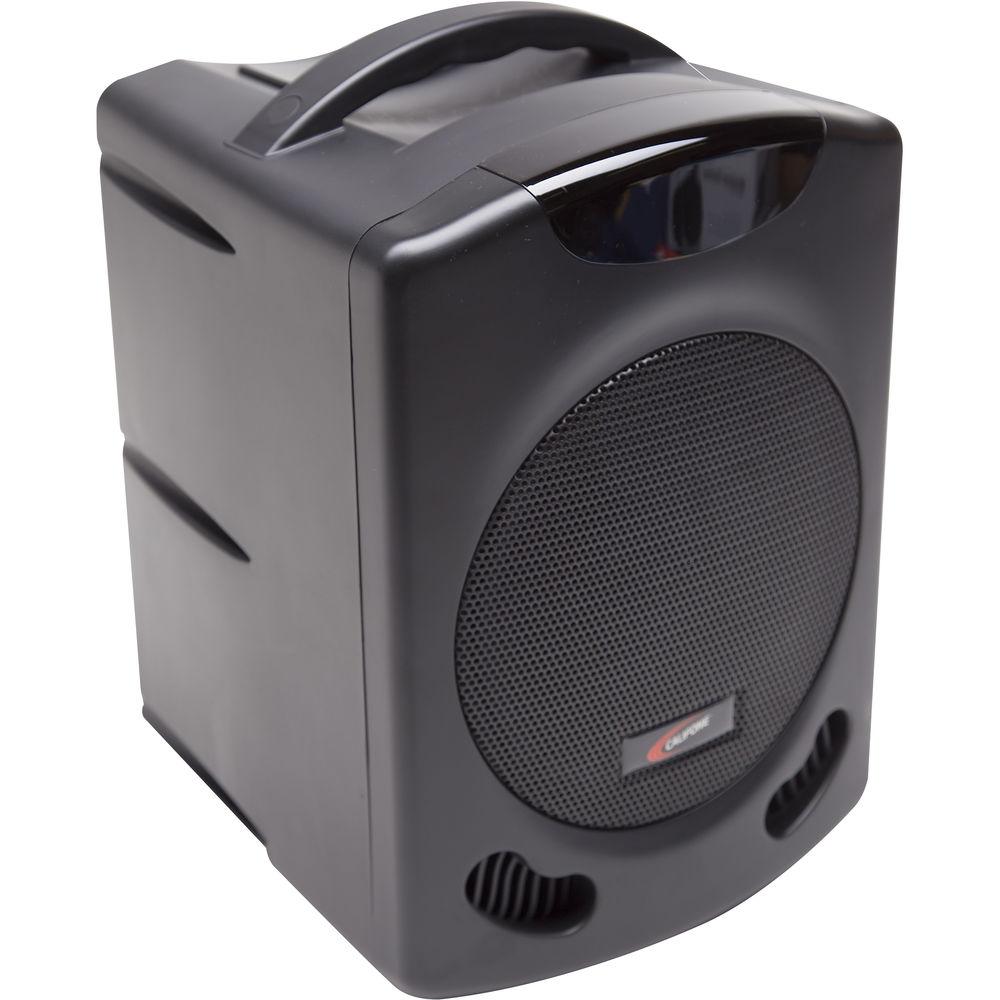

Designed for multiple presenters, the Califone PA419Q2 Portable Bluetooth PA provides a 6.5” speaker, two wireless microphone receivers, and two handheld wireless microphones. Each microphone sports a transmission range of 150’. Intended for applications such as in schools and churches, the unit includes both Bluetooth and NFC (Near Field Communication) for quick and easy wireless audio streaming from a Bluetooth-enabled device. It can also accept wired-microphone signals over an XLR-1/4” input.The unit can provide voice or music amplification out to groups up to 300 people, or in rooms up to 2,000 sq ft. A voice priority feature automatically mutes any music being played back while a connected voice is making announcements. Three seconds after the speaking stops, the music will return to its previous level. Each microphone receiver includes a channel selector, a volume control, as well as audio and RF indicator lights.The PA system can run on AC power or its rechargeable lithium battery, which is 20% lighter than a comparable lead-acid battery. It can play for at least 2.5 hours on a single charge, and will recharge while playing when connected to an AC power supply.Additional connectivity includes a digital display with a USB/SD card slot, an RCA input pair, and a stereo 3.5 mm auxiliary input for connecting smartphones and other media devices.The rear panel also includes a music/speech button, mic/aux/MP3/master volume controls, an RCA line-level output, and a set of composite RCA video outputs. The bottom of the device includes a standard 1-3/8" tripod mounting hole for placement on a stand. The included remote control allows you to adjust the pitch of digital audio by up to ±20% in 3% increments, which can be useful for dance and music teachers. The built-in handle facilitates ease in transportation. UPC: 610356831458 In the Box Califone PA419Q2 Portable Bluetooth PA with 2 Handheld Wireless Microphones Limited 1-Year Warranty 2 x Q319 Handheld Wireless Mic for PA319 and PA919 Remote Control Table of Contents
|
Upload User Manual
Have you got an user manual for the Califone PA419Q2 Portable Bluetooth PA with 2 Handheld Wireless Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCalifone PA419Q2 Specs | I/O | 1 x combo XLR and 1/4" input
2 x RCA aux input
1 x 3.5 mm aux input
1 x SD card input
1 x USB drive input
1 x Bluetooth with NFC
2 x RCA line outputs
2 x composite RCA video outputs | | | | NFC | 13.56 MHz on ISO/IEC 18000-3 air interface and at rates ranging from 106 kbit/s to 424 kbit/s | | Frequency | 902 to 928 MHz | | Channels | 2 x 16 | | Receiver Sensitivity | -95 dBm | | Receiver Type | FM | | | | Quantity | 2 x wireless handheld | | Range | Up to 150' / 45.7 m | | | | Speaker | 6.5" / 16.5 cm full-range driver | | Impedance | 4 Ohms | | Power Adapter | 100 to 240 VAC at 50 to 60 Hz, switching-type with 18 VDC 3.33 A output | | Working Voltage | 12 to 18 VDC | | Working Current | 5 A (max) | | Battery Recharge Time | < 10 hours | | Battery Run Time | > 2.5 to 3.5 hours (max power) | | Battery Capacity | 6 AH (Lithium) | | Sensitivity | Mic: 7.4 mV
Aux: 190 mV | | Power Output | 30 W RMS | | Safety | Approved safe for use in schools, daycare centers, churches, business, and government facilities | | Weight | 13.2 lb / 6.0 kg | | | | Package Weight | 15.35 lb | | Box Dimensions (LxWxH) | 18.8 x 14.1 x 13.1" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
