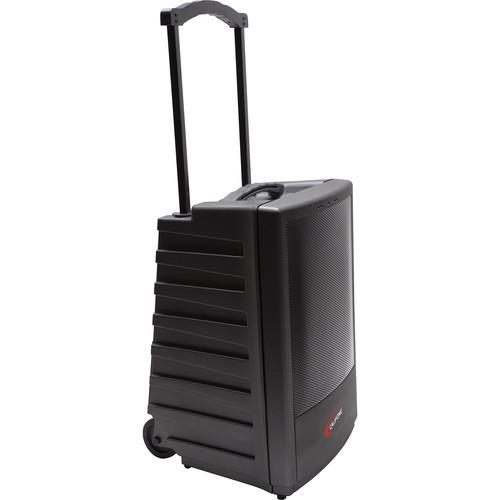

User Manual for Califone PowerPro Portable PA System Click to enlarge the picture
Contents of the user manual for the Califone PowerPro Portable PA System
- Product category: Portable PA Systems Califone
- Brand: Califone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Califone Portable PA Systems
 |
User manual for the Califone PowerPro Portable PA System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Califone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Califone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Califone product will considerably shorten its lifespan!
|

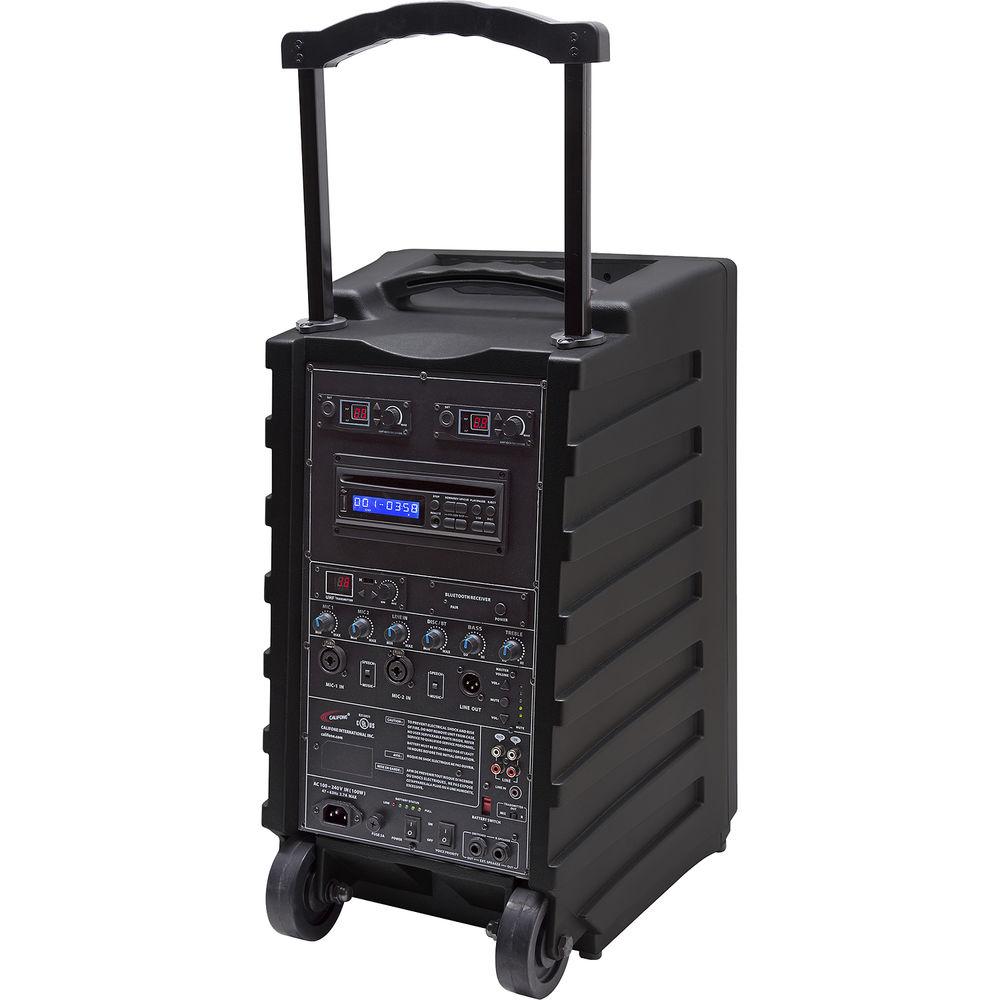

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More fyefeevcsx The PowerPro Portable PA System from Califone is a self-contained sound system with two built-in wireless microphone receivers, a CD/USB media player, and a Bluetooth receiver for wireless connectivity to Bluetooth-enabled mobile devices. Equipped with a 90W RMS amplifier, the PowerPro is designed to cover crowds up to 1000 people. Wireless PowerPro companion speakers (available separately) can be added to the system to handle even larger audiences.
In addition to a 300' wireless transmission range to an unlimited number of powered companion speakers, the PowerPro offers an active bus circuit for connecting to speakers in a conventional wired fashion. Simply connect an XLR cord from the line-out jack of the PowerPro to the line-in jack of the companion speaker. The first unit in the chain is the master with each unit retaining independent volume control.

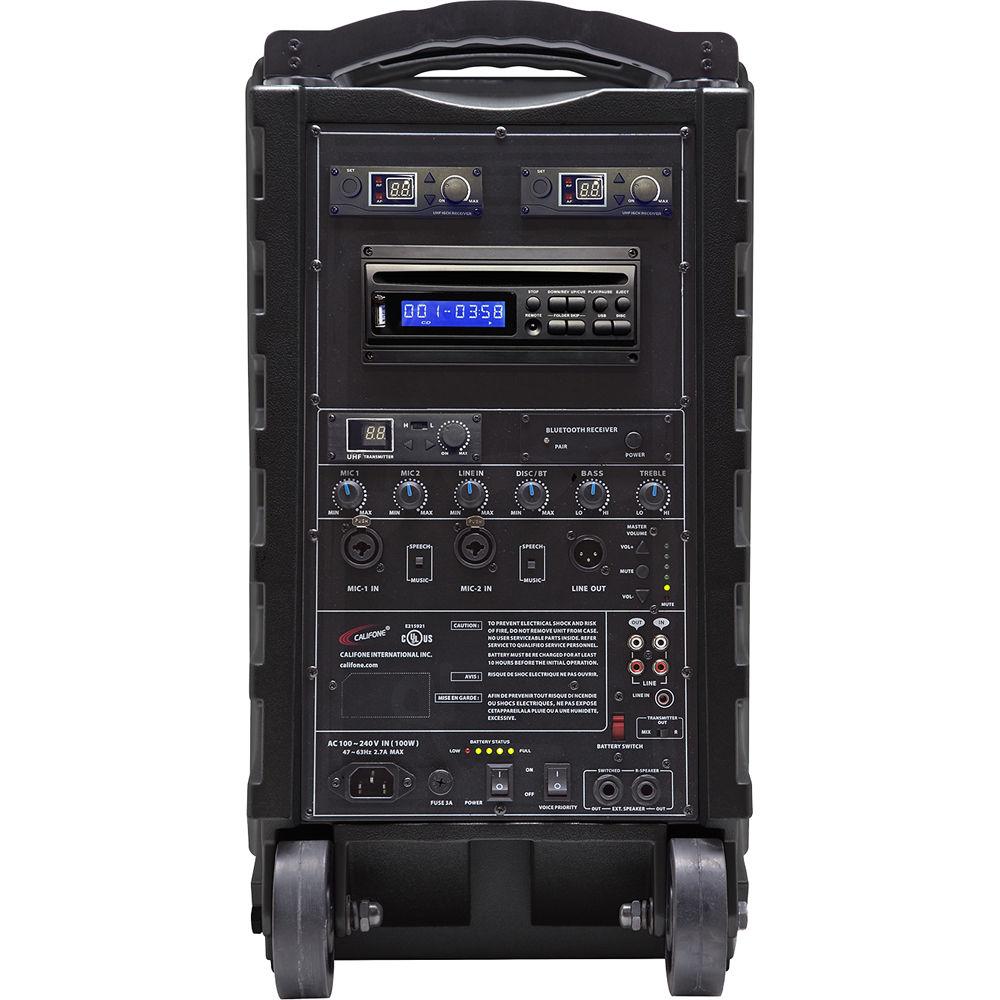

The PowerPro has two combination XLR-1/4" jacks for use with wired microphones (available separately), as well as a set of stereo RCA jacks for connecting external audio sources. A set of LED lights on each receiver provides visual confirmation of power, radio frequency, and audio reception. The integrated 10" speaker is equipped with independent bass and treble controls, digital master volume control, and battery status indicators, plus a universal power supply. - Powerful 90W RMS with weather-resistant speaker cones
- Dual 16-channel UHF receivers for two wireless microphones
- Blue and amber LED lights on each wireless microphone receiver for visual confirmation of power, wireless reception, and audio signal
- CD/USB media player with integrated USB 2.0 port plays CD and CD-R/RW discs
- 16-channel UHF transmitter for wireless transmission to companion speakers (available separately)
- Separate volume, bass, and treble controls
- Two combo XLR-1/4" mic inputs, each with volume control
- Aux in and line inputs to connect with other media players
- Master volume and battery status LED indicators
- Wireless mono/stereo selectable link out
- Two rechargeable batteries — 12V, 7Ah
- Switched/unswitched speaker out
- True AC/DC 110/220 universal power supply
- Fiberglass-reinforced polypropylene enclosure
- Rugged steel skid guards for protection and durability
- Four-position telescoping steel handle for easy mobility
- CE and C-UL approved for use in schools and public facilities
- CD remote control & master remote with volume and mute included
UPC: 885634300050 In the Box Califone PowerPro Portable PA System Power Cord Master Volume Remote CD Remote Limited 6-Year Warranty on Amplifier Limited 1-Year Warranty on Batteries, Wireless Transmitters/Receivers, CD Mechanism & Bluetooth Receiver Table of Contents
|
Upload User Manual
Have you got an user manual for the Califone PowerPro Portable PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCalifone PA920 Specs | | | Speaker | Bass reflex design tuned to 50 Hz | | Woofer | 10" / 25.4 cm, 2" / 5.1 cm voice coil, 40 oz / 1.13 kg magnet, moisture-resistant cone
120 W capacity | | Tweeter | 4.25" / 10.8 cm, 1" / 2.5 cm diameter voice coil, 12 oz / 340 g magnet, 8 Ohms | | Amplifier Power | 90 W RMS | | Sound Pressure Level | 94 dB, 1 W at 3.3' (1 m) | | | | Batteries | 2 x 12 V, 7 Ah rechargeable batteries | | Charging Time | Full charge in 8-10 hours | | Operating Time | 6 hours at max power output, approximately | | Power Supply | 320 W single-output switching power supply with cooling fan | | DC Output | 36 VDC / 8.8 A | | AC Input | 85-264 VAC | | LED Indicators | Battery status and master volume | | Power Management | Power control for each component to maximize working time on battery mode | | Power Cord | Detachable 6' (1.8 m), 3-wire | | | | Mic Input | 2 x combo XLR-1/4" phone jacks, with volume control | | Switch | Speech/music | | Line In | 2 x RCA jacks (white & red), 3.5 mm jack with volume level control | | Line Out | 2 x RCA jacks (white & red), XLR jack | | Voice Priority Switch | Mic override of background music (ducking) | | Speaker Out | Switched 1/4" jack disengages main speaker, unswitched 1/4" jack divides power between main speaker and passive companion speakers | | Mute Function | Mutes main speaker and connected speakers (wired speakers only) | | Mono/Stereo | Mixed or stereo wireless transmission | | Audio Controls | Separate treble & bass controls | | Volume Control | Digital master volume control with LED level indicators | | Audio Line In | Line-level capable bus to connect 1 wired unit | | | | CD Player | Built-in anti-shock mechanism
CD/MP3 media player with USB portand remote control
File/Disc Compatibility: CD, CD-R, CD-RW,MP3, USB (16 GB) | | | | Receiver | 2 x 16-channel UHF wireless 904-925 MHz, internal antenna, on/off volume control, audio & radio frequency receiving LED, 150' (45.7 m) reception range from microphones | | Receiver Sensitivity | -95 dBm | | Transmitter | 16-channel UHF wireless 904-925 MHz, PLL diversity, 300' (91.4 m) range | | Bluetooth | Yes | | Volume Control | Volume up, volume down, and mute | | | | Rear Panel | Angled | | Enclosure | Fiberglass-reinforced polypropylene | | Grille | 1.5 mm steel with powder-coated finish | | Battery Configuration | Front-accessible compartment with removal of 2 service screws | | Tripod Mount | Recessed, molded, at center of gravity | | Dimensions | 22 x 14 x 14" (55.9 x 35.6 x 35.6 cm) | | Weight | 47 lb (21.3 kg) |
