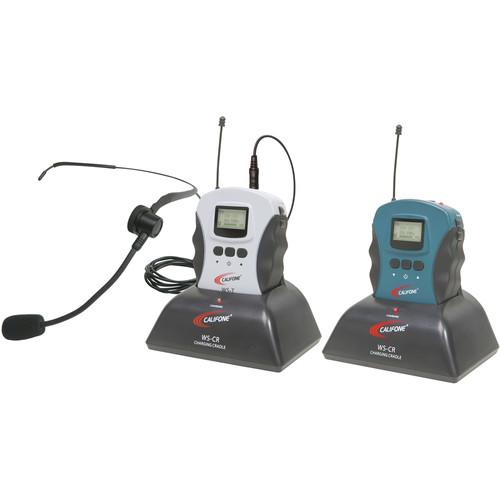

User Manual for Califone WS-CK1 Wireless Upgrade Package for PA System Click to enlarge the picture
Contents of the user manual for the Califone WS-CK1 Wireless Upgrade Package for
- Product category: Add-On Wireless & Components Califone
- Brand: Califone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Califone Add-On Wireless & Components
|
User manual for the Califone WS-CK1 Wireless Upgrade Package for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Califone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Califone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Califone product will considerably shorten its lifespan!
|
Product description The WS-CK1 Wireless Upgrade Package from Califone enables you to upgrade your existing wired PA system into a wireless system and change the frequency range of a 700 MHz system to the FCC mandated 900 MHz frequency range. The package includes a HBM319 headset microphone, a WS-T wireless transmitter, a WS-R wireless receiver, and two WS-CR charging cradles with power adapters. You can plug an anchored audio source such as an MP3 player or computer into the system and wirelessly transmit it to your existing wired PA system. The transmitter provides an adjustable range of up to 300' within line of sight; it has a 3.5mm mic input to which the included HBM319 headset can be connected, and can be either worn on the hip or around the neck with a lanyard.
To upgrade your existing wired PA, simply connect the included headset mic to the transmitter and then match one of the 16 frequency channels on the transmitter to the same one used on the included wireless receiver. The final step is to connect the receiver to the "aux" or "line in" on your existing PA (connecting cable is not included). - Upgrade your existing wired PA system to wireless
- Upgrade the frequency range on an old PA to the 900 MHz FCC mandated frequency range
- Up to 300' range within line of sight
UPC: 610356830772 In the Box Califone WS-CK1 Wireless Upgrade Package for PA System HBM319 Headset Microphone for M319 ccwxaadyrbze WS-T Wireless Transmitter WS-R Wireless Receiver 2 x WS-CR Charging Cradle 2 x Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Califone WS-CK1 Wireless Upgrade Package for PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCalifone WS-CK1 Specs | Operational Range | Low TX Power / Low RX Sensitivity: > 100' (30.5 m)
Low TX Power / High RX Sensitivity: > 200' (61.0 m)
High TX Power / Low RX Sensitivity: > 200' (61.0 m)
High TX Power / High RX Sensitivity: > 300' (91.4 m) Line of sight required. Range may be lower due to obstructions / interference. | | Frequency Response | 100 Hz - 8 kHz ± 3 dB (Mic/Line inputs) | | THD + N | < 3% (Mic/Line inputs) | | Channels | 16 x Transmitter channels
1 x Mono, Transmit channel | | Frequency Range | 902 - 928 MHz | | Power Requirements | 3.7 V / 1800 mAh Li-ion battery | | Output Power | Low: 5 mW
High: 10 mW | | Sensitivity | Mic Input: 50 mV
Line Input: 250 mV | | Battery Run Time | Receiver: > 11 hours
Transmitter: > 7 hours | | Battery Recharge Time | Transmitter & Receiver:< 13 hours | | S/N Ratio | > 60 dB | | Weight | 2 lb (0.91 kg) | | | | Box Dimensions (LxWxH) | 12.0 x 9.0 x 7.0" |
