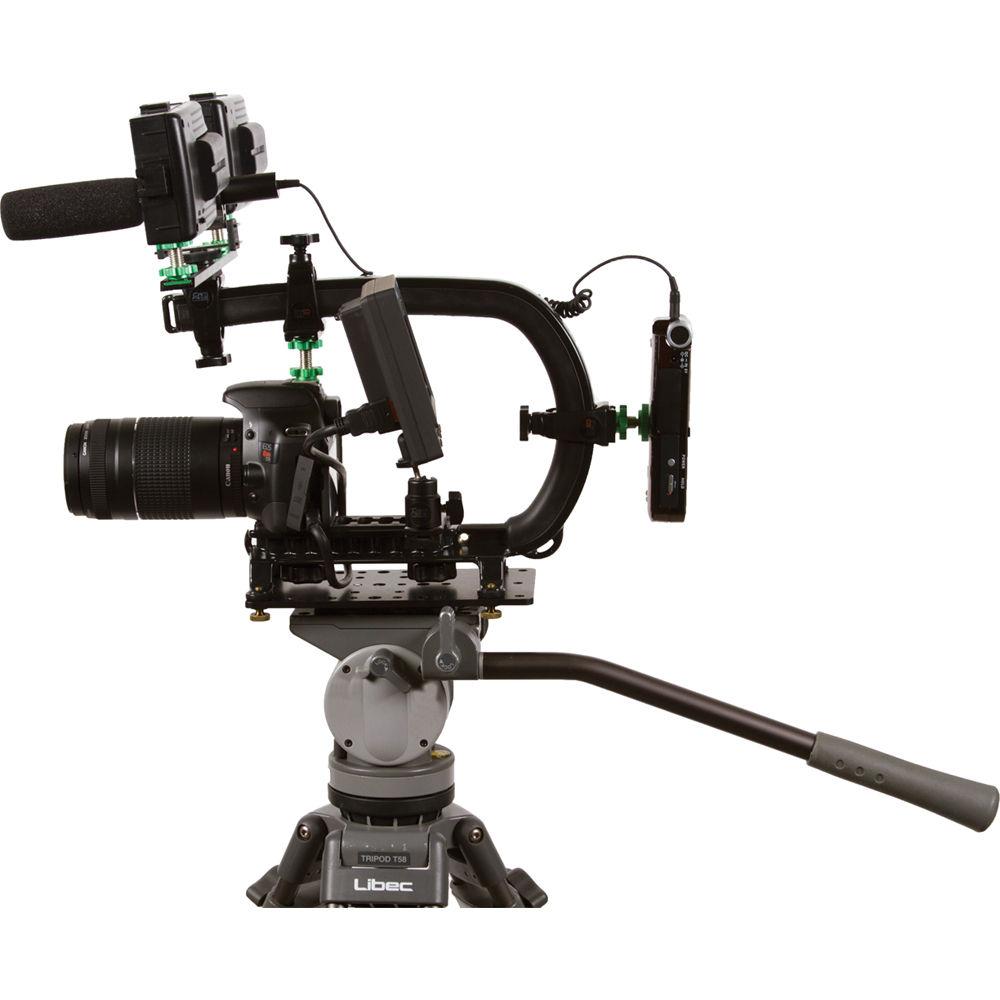

User Manual for Cam Caddie Scorpion EX Pro Kit Click to enlarge the picture
Contents of the user manual for the Cam Caddie Scorpion EX Pro Kit
- Product category: DSLR Video Supports & Rigs Cam Caddie
- Brand: Cam Caddie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cam Caddie DSLR Video Supports & Rigs
 |
User manual for the Cam Caddie Scorpion EX Pro Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cam Caddie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cam Caddie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cam Caddie product will considerably shorten its lifespan!
|
Product description The Cam Caddie Scorpion EX Pro Kit pairs a versatile camera handle and stabilizer with an accessory bundle that allows you to build-up and configure the support system in numerous ways. The kit includes the Scorpion EX, Scorpion EX Cheese Plate/Tripod mount, two additional Accessory Shoes, Accessory Wing, 1/4"-20 Flashner/Converter, two Mounting Knobs, and one Lockout Kit.

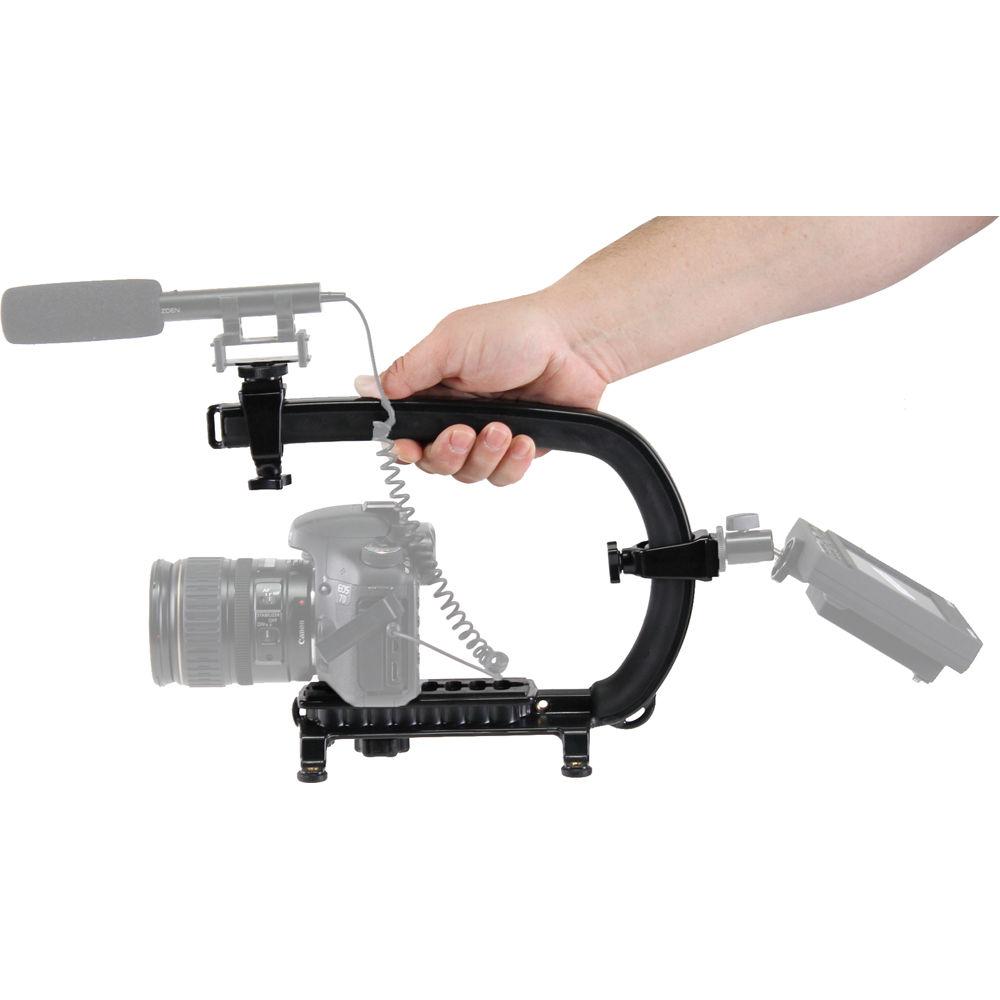

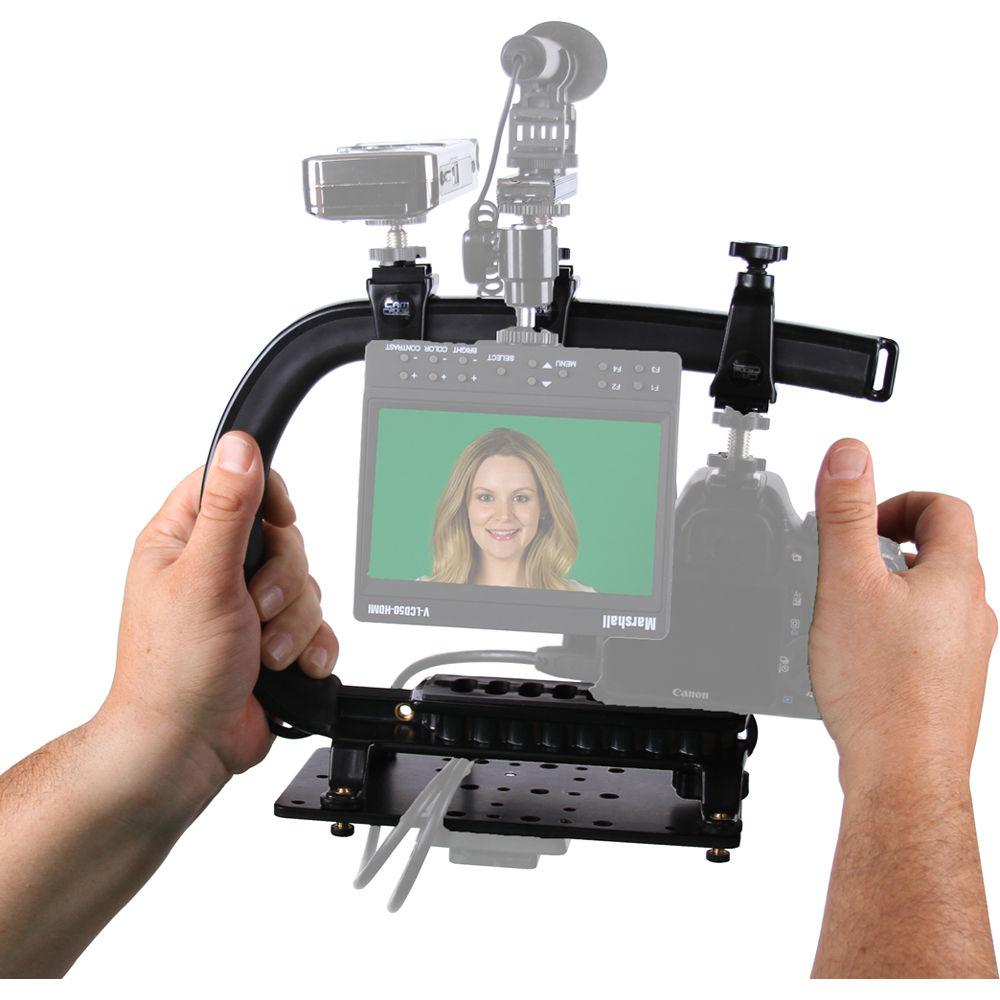

The Cam Caddie Scorpion EX is a versatile universal camera handle and stabilizer that allows you to maneuver compact cameras such as DSLRs, point-and-shoots, and action cameras the same way as you would a traditional video camcorder. The ergonomic handle is constructed from a lightweight composite and a custom formulated polymer grip, providing a stable and solid platform to comfortably hold and maneuver the camera. You can even mount a DSLR camera perpendicular to the top handle, which positions the back portion of the handle on the side of your camera for two-handed shooting.

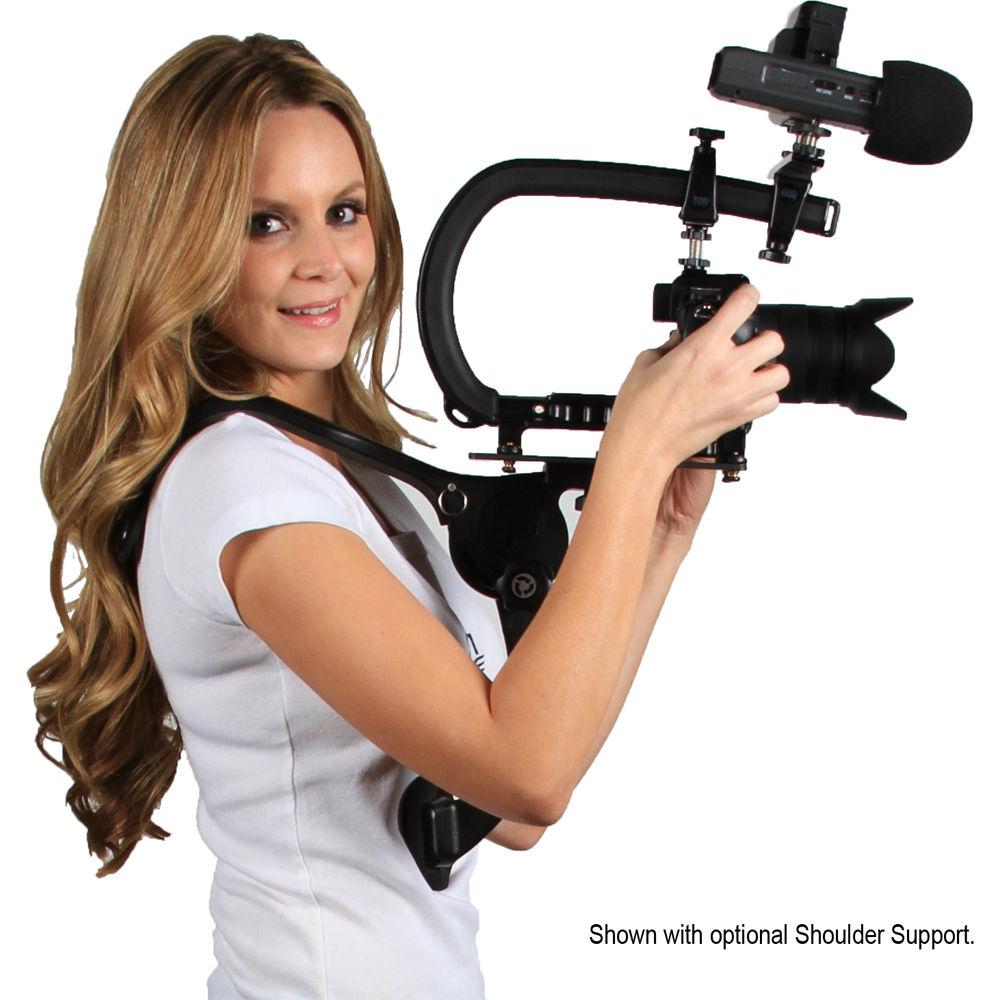

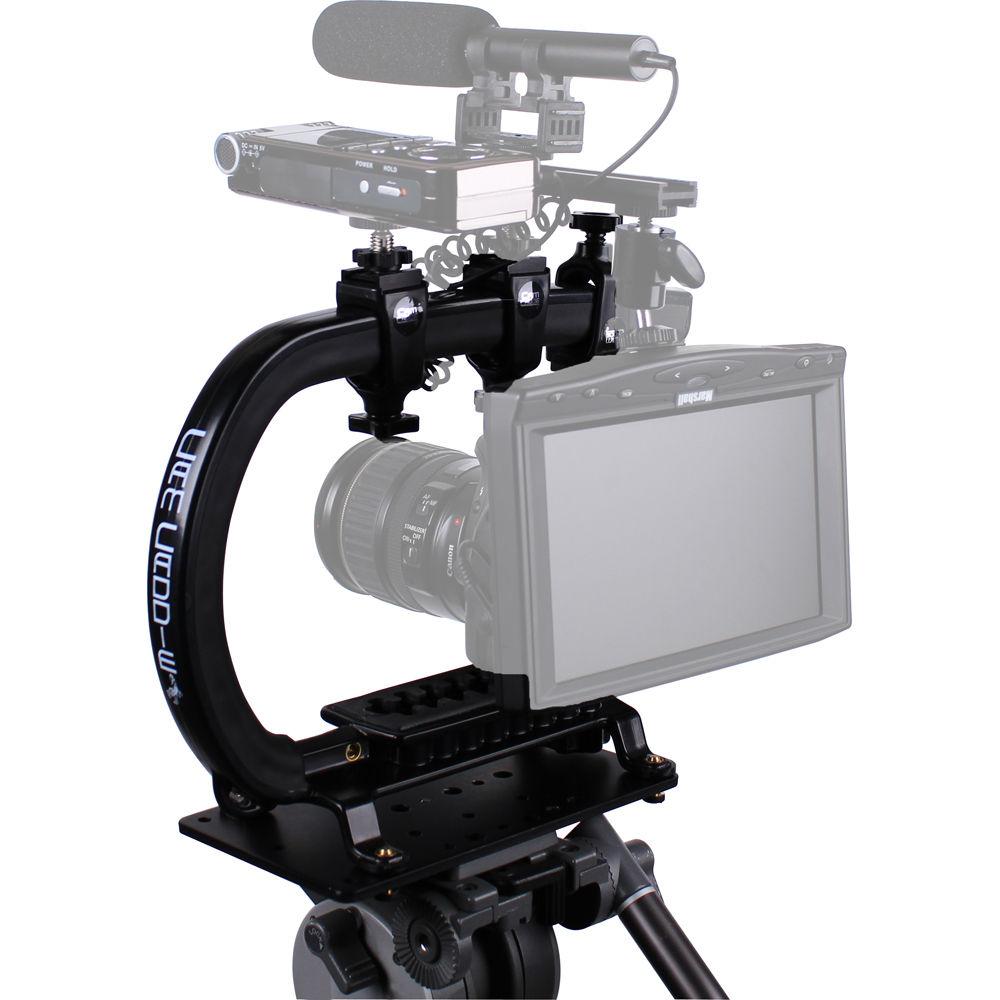

For shoulder-mounted shooting, the feet of the Scorpion EX have standard 1/4"-20 threading, allowing you to attach the included cheese plate. The cheese plate facilitates mounting to the tripods and the optional Scorpion EX Shoulder Support. Two Accessory Shoes are included that attach to the handle, allowing you to mount accessories such as a recorder, microphone, LED light, or external monitor. Additional Accessory Shoes are available separately to expand the system further.

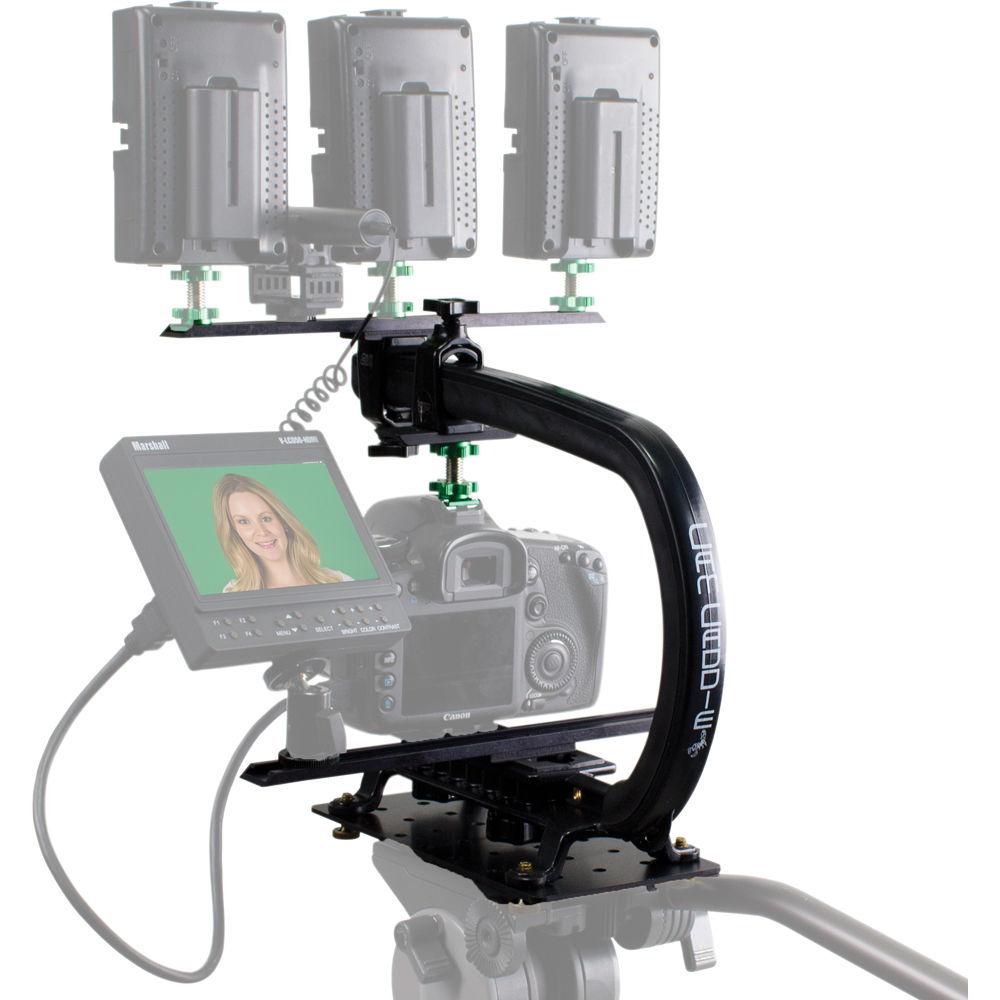

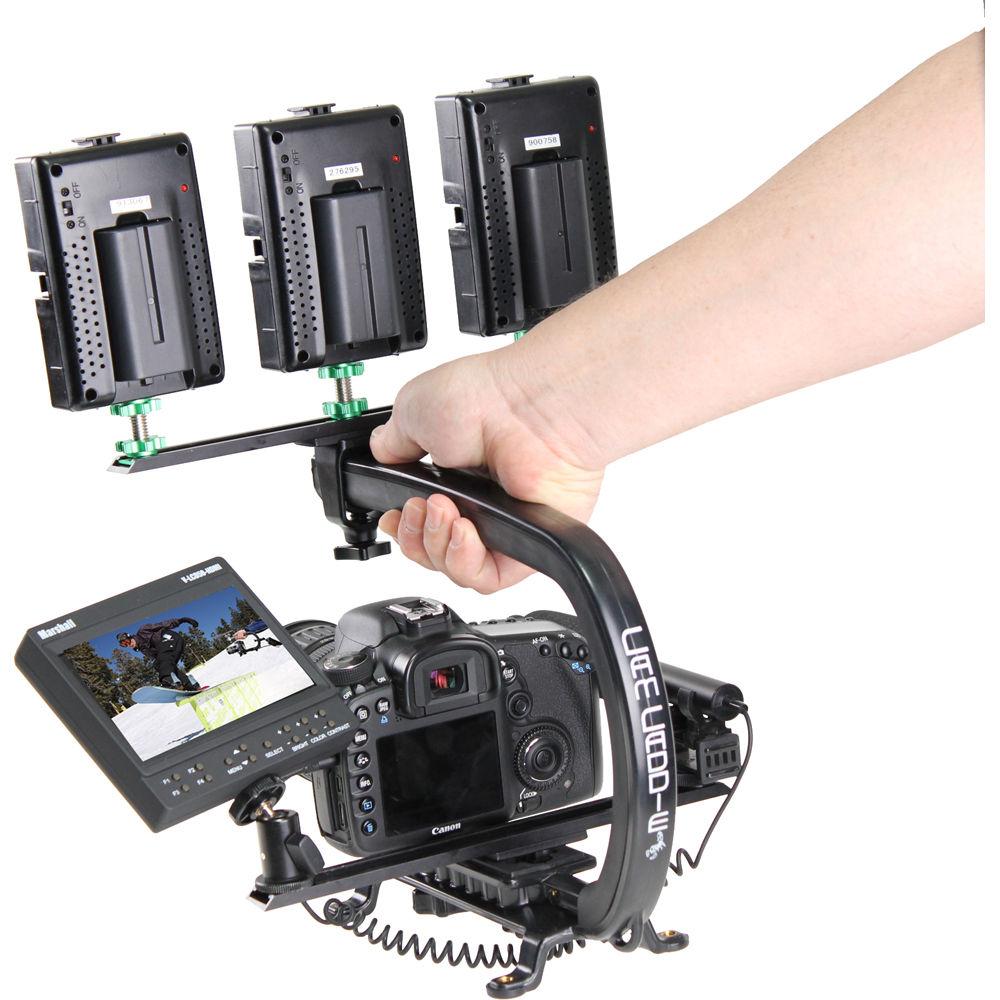

The Accessory Wing is a 10" flat bar that is used with the Accessory Shoe to offer extra spacing on the camera support for mounting camera accessories or used with the Mounting Screw to connect to the base of the Scorpion. It can be mounted onto any 1/4"-20 thread or a tripod top plate to attach multiple accessories. You can also attach the wing directly to your camera's hot shoe using the the 1/4"-20 Flashner/Converter. The Flashner/Converter is also suitable for attaching any accessory with a 1/4"-20 threaded hole directly to a Scorpion Accessory Shoe or Accessory Wing. The included 1/4"-20 threaded mounting knobs/screws are used to attach the camera to the base of the Scorpion or an Accessory Wing to the base of the Scorpion.
When shooting with heavier cameras and configurations, the Lockout Kit creates a solid platform that helps eliminates the dampening effect that is designed into the Scorpion EX. This is achieved by connecting the camera's built-in hot shoe with the bottom side of the Scorpion handle. This eliminates the dampening action and allows you to attach multiple heavy accessories for a variety of configurations. Primarily designed to work with DSLRs, the Lockout Kit also works with many video cameras. - Scorpion EX Universal Stabilizing Camera Handle
- Product Overview
- Demo reel
The Cam Caddie Scorpion EX is a versatile universal camera handle and stabilizer that allows you to maneuver compact cameras such as DSLRs, point-and-shoots, and action cameras the same way as you would a traditional video camcorder. The ergonomic handle is constructed from a lightweight composite and a custom formulated polymer grip, providing a stable and solid platform to comfortably hold and maneuver the camera. You can even mount a DSLR camera perpendicular to the top handle, which positions the back portion of the handle on the side of your camera for two-handed shooting.
For shoulder-mounted shooting, the feet of the Scorpion EX have standard 1/4"-20 threading, allowing you to attach an optional cheese plate. The cheese plate facilitates mounting to the tripods and the optional Scorpion EX Shoulder Support. Included with the Scorpion EX is an Accessory Shoe that attaches to the handle and allows you to mount an accessory such as a recorder, microphone, LED light, or external monitor. Additional Accessories Shoes are available purchased to expanded the system further. - Versatile camera support system for DSLRs, point-and-shoots, action cameras, and compact camcorders
- Composite thermoplastic with a custom polymer grip
- Offers stable support and helps dampen jerky movements
- Included accessory shoe allows you mount an accessories such as an LED, recorder, microphone, or external monitor
- The shoe's quick release attachment eases setting up your support system
- 1/4"-20 threaded feet can attach the Scorpion EX to the cheese plate (not included), which facilitates easy switching between handheld and tripod-mounted shots, as well as attachment to the optional Scorpion EX Shoulder Support.
UPC: 736211559883 - Scorpion Accessory Shoe The Scorpion Accessory Shoe from Cam Caddie is a removable cold shoe adapter designed to attach any video accessory with a standard ISO shoe mount to the Scorpion video supports. The adapter is constructed from a composite plastic and uses a basic clamp to tighten onto the Scorpion handle. The shoe itself is constructed from anodized aluminum alloy, making it extremely durable, and can be mounted in two orientations. Multiple accessory shoes can be mounted at once allowing for the simultaneous use of microphones, LED lights, LCD screens, and more. Cam Caddie products are made in the USA. UPC: 094922009456
- Scorpion Accessory Wing The Scorpion Accessory Wing from Cam Caddie is a 10" aluminum accessory bar designed to accept most standard hot or cold shoe mount accessories. The bar's width allows the user to add monitors, lights, microphones, and other accessories to an existing Scorpion, video rig, tripod, or directly to the camera's hot shoe with a shoe mount adapter.
The bar also features an adjustable 1/4"-20 threaded plate which may be repositioned to offset the weight or size of an accessory. For those looking to mount the Accessory Wing to the top handle of their Scorpion rig, the Scorpion Accessory Shoe may be used in conjunction with the Accessory Wing for seamless compatibility. UPC: 094922017284 - Scorpion EX Cheese Plate The Scorpion EX Cheese Plate from Cam Caddie allows you to mount a Scorpion EX camera stabilizer directly onto a tripod or similar support. It enables the user to easily switch from handheld shooting to tripod-mounted videography without making any adjustments to the setup. Equipped with twenty-one 1/4"-20 and nine 3/8"-16 mounting threads, it also has the ability to be used as a DSLR cage for attachment of camera accessories such as lights, microphones, monitors, lavalier receivers, XLR input boxes, and more. UPC: 736211560087

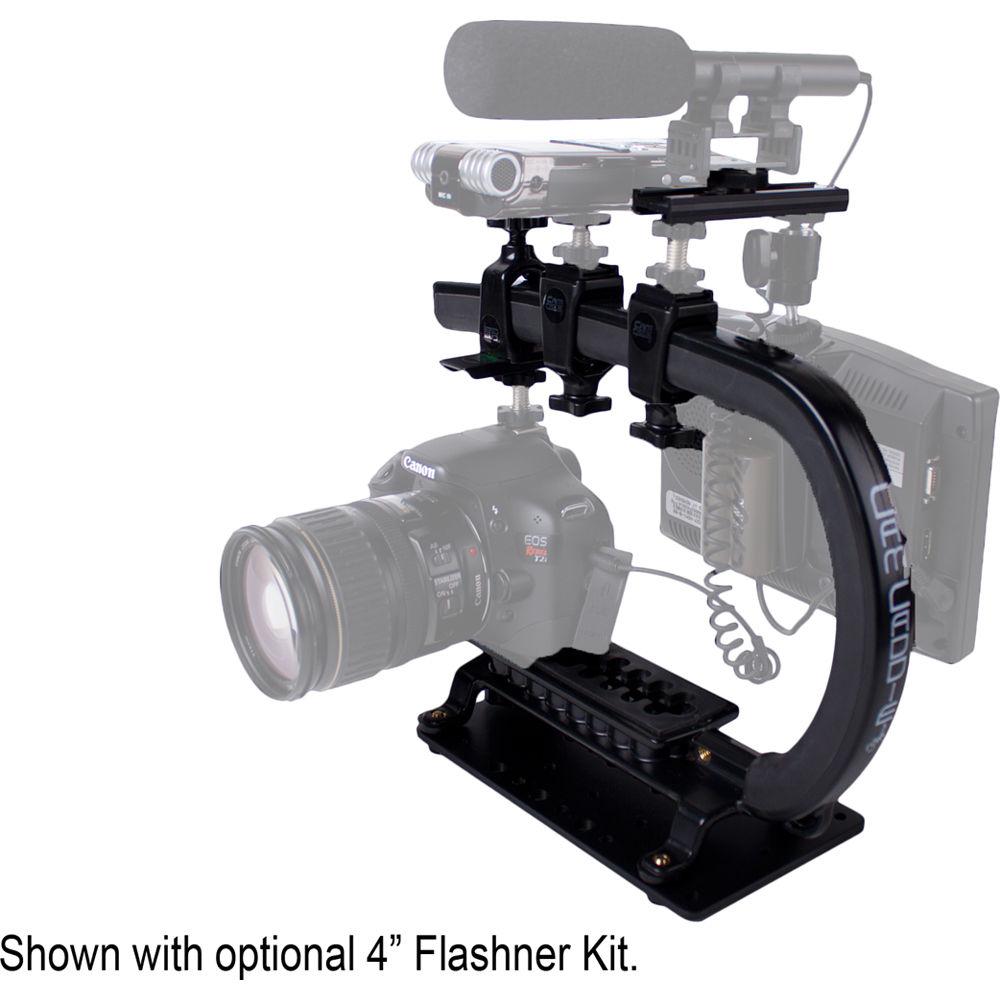

- 1/4"-20 Flashner (Green) The green 1/4"-20 Flashner from Cam Caddie converts a standard 1/4"-20 tripod mount to a flash shoe. Attach any accessory that has a tripod mount directly to the Scorpion Accessory Shoe, Accessory Wing, or camera. The 1/4"-20 Flashner also works in combination with the Flashner kits ensuring you can mount everything you need for your next shoot. UPC: 094922020949
- Scorpion Lockout Kit for Scorpion and Scorpion EX Rigs The Scorpion Lockout Kit from Cam Caddie is designed to remove the natural dampening effect of the Scorpion rig and create a solid platform for heavier cameras and accessory configurations. This process is achieved by connecting the camera's built-in flash shoe with the bottom side of the Scorpion handle via the use of all three kit components. The stability achieved allows the user to mount multiple heavy accessories to the Scorpion—or mount a heavier camera body without the risk of the Scorpion rig flexing under additional strain. Although primarily designed to work with DSLRs, the Lockout Kit also works with many camcorders. UPC: 736211992512
In the Box Bundle Items Scorpion EX Universal Stabilizing Camera Handle rqbwdsrr - Limited Lifetime Warranty
Scorpion Accessory Shoe 2 x Scorpion Accessory Wing Scorpion EX Cheese Plate 1/4"-20 Flashner (Green) rqbwdsrr Scorpion Lockout Kit for Scorpion and Scorpion EX Rigs
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Cam Caddie Scorpion EX Pro Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Scorpion EX Universal Stabilizing Camera Handle
| Construction | Composite thermoplastic & custom polymer | | Load Capacity | 11.2 lb (5 kg) | | Mounting Screw | 1/4"-20 | | Mounting Threads | 4 x 1/4"-20 | | Clearance | Vertical: 5.75" (14.6 cm) of clearance from the mounting plate to the bottom of the handle
Horizontal: 7.5" (19 cm) from the back of the handle to the front | | Dimensions (LxWxH) | Scorpion EX: 12 x 4.25 x 8.5" (304.8 x 101.6 x 215.9 mm)
Mounting Knob: 2 x 1.5 x 1.5" (50.8 x 38.1 x 38.1 mm) | | Weight | 1 lb (0.45 kg) | | | | Box Dimensions (LxWxH) | 11.3 x 8.2 x 3.1" | - Scorpion Accessory Shoe
| Construction | Composite thermoplastic & aluminum alloy | | Dimensions (LxWxH) | 2.5 x 1.3 x 1.0" (63 x 31 x 25 mm) | | Weight | 2 oz (56.7 g) | | | | Box Dimensions (LxWxH) | 5.0 x 3.6 x 1.1" | - Scorpion Accessory Wing
| Material of Construction | Aluminum | | Mounting Thread | 1/4"-20 | | Length | 10" (25.4 cm) | | Weight | Not specified by the manufacturer | | | | Box Dimensions (LxWxH) | 10.0 x 1.0 x 0.5" | - Scorpion EX Cheese Plate
| Construction | Aluminum alloy | | Dimensions (LxWxH) | 7.1 x 4.0 x 0.2" (179.4 x 1880.2 x 4.8 mm) | | Weight | 10 oz (283 g) | | | | Box Dimensions (LxWxH) | 7.6 x 4.5 x 0.7" | - 1/4"-20 Flashner (Green)
| Bottom Mount | 1 x Accessory Foot | | Top Mount | 1 x 1/4"-20 Male | | | | Box Dimensions (LxWxH) | 5.1 x 3.7 x 1.1" | - Scorpion Lockout Kit for Scorpion and Scorpion EX Rigs
| | | Material of Construction | Composite plastic & aluminum | | Dimensions | 2.5 x 1.2 x 1.0" (63 x 31 x 25 mm) | | | | Length | 3" (76 mm) | | Weight | 2 oz (56 g) | | | | Dimensions | 1.5 x 1.0 x 1.0" (38 x 25 x 24 mm) | | | | Box Dimensions (LxWxH) | 5.0 x 3.7 x 1.1" |
