User Manual for Cambo ACTAR-24 24mm f 3.5 Lens for ACTUS-B Click to enlarge the picture
Contents of the user manual for the Cambo ACTAR-24 24mm f 3.5 Lens
- Product category: Large Format Lenses Cambo
- Brand: Cambo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cambo Large Format Lenses
 |
User manual for the Cambo ACTAR-24 24mm f 3.5 Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cambo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cambo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cambo product will considerably shorten its lifespan!
|

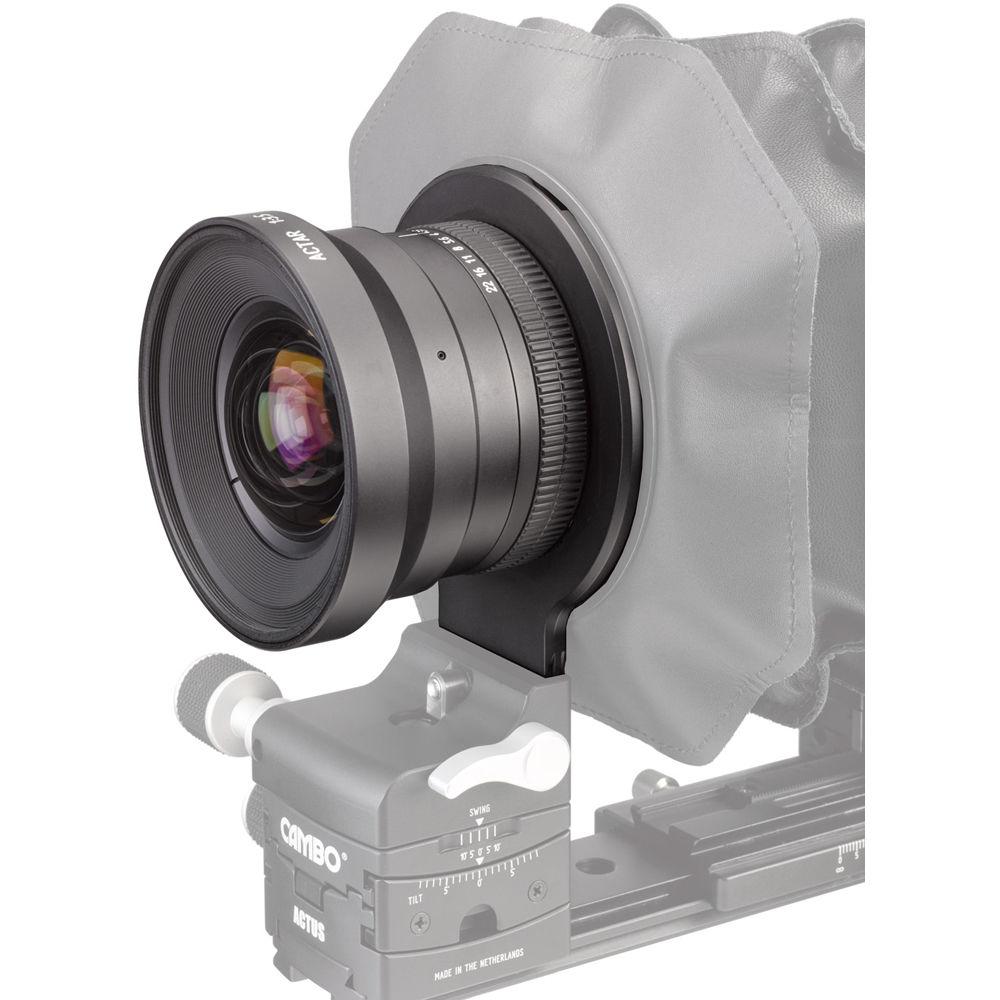

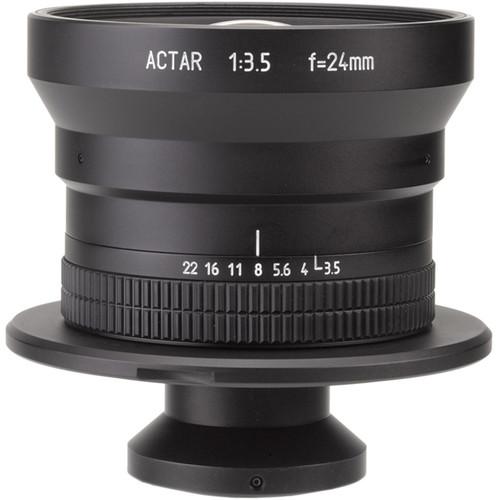

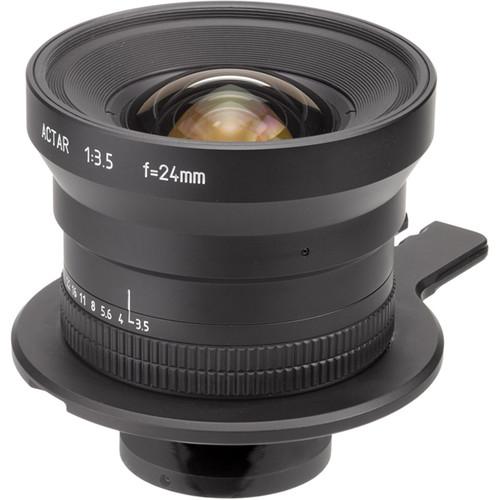

Product description Dedicated to the Cambo ACTUS-B-series of view cameras, the ACTAR-24 is a 24mm f/3.5 lens that provides a 60mm image circle to facilitate both shift and rise/fall movements with sensor sizes up to 24 x 36mm. This wide-angle lens is permanently mounted in an ACTUS lensplate for seamless use with the view camera system and features a manual aperture ring for adjustment from f/3.5 to f/22, in half-stop increments. A 16 element in 11 groups optical design is employed to produce clean, sharp imagery with low distortion, making it well-suited to architectural and landscape applications. Each of the elements is also multi-coated to suppress surface reflections and flare for improved contrast and color fidelity when working in bright lighting conditions. - Designed specifically for the ACTUS-B view camera, this wide-angle lens is permanently mounted in an ACTUS lensplate and maintains infinity focus with both DSLRs and mirrorless cameras. It is not compatible with the ACTUS-DB system.
- Featuring an image circle of 60mm, this lens covers full-frame, 24 x 36mm sensors and allows for approximately 10mm of shift per side when working in the horizontal orientation, or 12mm of shift in vertical orientation. When working with APS-C-sized sensors, approximately 15mm and 17mm of shift is available, respectively.
- A 16 element in 11 groups optical design affords a high degree of sharpness and resolution, and each individual element is multi-coated to suppress flare and ghosting for maintained contrast when working in strong lighting conditions.
- Manual aperture ring affords control from f/3.5 to f/22 in half-stop increments.
In the Box Cambo ACTAR-24 24mm f/3.5 Lens for ACTUS-B Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo ACTAR-24 24mm f 3.5 Lens for ACTUS-B in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambo 99070792 Specs | Focal Length | 24 mm | | Aperture | f/3.5 - 22 | | Nominal Format | 24 x 36 mm | | Optical Configuration | Groups: 11 Elements: 16 | | Image Circle | 60 mm @ f/8 | | Filter Thread | Front: 82 mm | | Dimensions (D x L) | 3.86 x 5.118" / 98 x 130 mm | | Weight | 1.45 lb / 660 g | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 10.2 x 8.0 x 6.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
