User Manual for Cambo ACTUS-DB2 View Camera Body Click to enlarge the picture
Contents of the user manual for the Cambo ACTUS-DB2 View Camera Body
- Product category: View Camera Bodies Cambo
- Brand: Cambo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cambo View Camera Bodies
|
User manual for the Cambo ACTUS-DB2 View Camera Body contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cambo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cambo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cambo product will considerably shorten its lifespan!
|

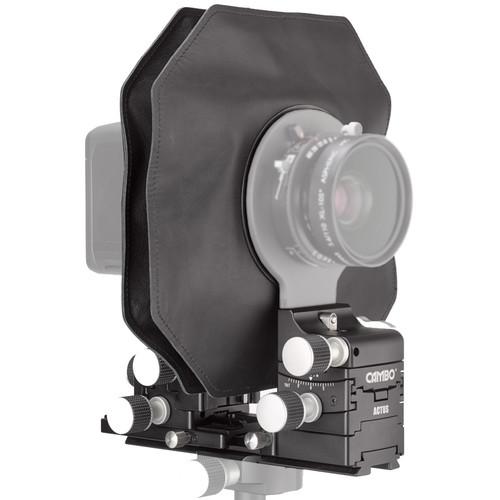

Product description Offering extensive perspective and focus control with medium format digital backs, the ACTUS-DB2 View Camera Body from Cambo effectively transforms your digital back into a digital view camera. As the core component within a modular system, this view camera body serves as the primary piece from which you can pair a variety of digital back types and large format lenses to reap the benefits of geared camera movements for correcting perspective distortions, achieving an extended depth of field, or producing creative selective focus effects. While resembling traditional large format view cameras in function, the ACTUS system also echoes the compact, contemporary form factor of the digital backs it is designed to be paired with and is optimized for use in both the studio as well as on location.
This view camera body is delivered with a 6.9" monorail as well as a 5.9" bellows to permit working with a variety of focal lengths. The monorail is designed to fit within the Arca-Swiss style quick release system for easy mounting to a tripod, and is also fitted with both 3/8"-16 and 1/4"-20 mounts for attaching quick release plates. Optional lensplates and interface plates can be added depending on your desired lens and back combination, and the monorail and bellows are also interchangeable with optional wide-angle and longer versions of each. - Camera Movements
- A full system of movements offers extensive control over perspective and focusing settings. Geared on-axis tilt and swing movements are performed on the front standard and the rear standard permits geared rise/fall and lateral shift movements:
- Rear Rise/Fall: +0.5", -0.6" / +12mm, -15mm
- Rear Shift: ± 0.8" / 20mm
- Front Swing: 360°
- Front Tilt: +10°, -9°
The swing and tilt movements of the front standard rotate about the optical axis in order to avoid having to re-compose or re-focus after each movement is applied. - Camera Features
-
- Both fine geared and quick-slide focusing adjustment types are available.
- Bellows and monorail focusing allows you to achieve closer focusing distances without the use of extension tubes or other macro attachments.
- Zero-position clicks are incorporated into each movement type for more intuitive handling.
- Infinity marks are engraved into the monorail for quick focus setting of various Schneider and Rodenstock lenses.
- Monorail is compatible with the Arca-Swiss-style quick release system and also features both 3/8"-16 and 1/4"-20 mounts.
- Front tilts and swings allow you to alter the plane of focus for employing selective focus techniques or Scheimpflug settings for extensive depth of field. Additionally, these tilt and swing movements are used to correct for convergence and other perspective distortions.
- Rear horizontal and vertical shifts allow you to move the back's position while retaining the same lens position, making this configuration especially ideal for stitching multiple exposures without having to adjust the lens.
- The optional digital back interface plates allow you to rotate between horizontal and vertical shooting orientations without having to adjust the actual orientation of the view camera body.
- This black finish body is anodized for greater durability and scratch resistance.
- Compact overall form factor is relative to the size of medium format digital backs.
- ACTUS-DB System
- As the central component within the modular ACTUS-DB system, the DB2 view camera body serves as the means to which you can attach a variety of optional interface plates and lensplates:
Lensplates:
- Copal #0
- Copal #1
- Alpa
- Cambo WRS
Interface Plates:
- SLW-80 for Hasselblad V
- SLW-89 for Hasselblad H
- SLW-87 for Contax 645
- SLW-83 for Phase One IQ3 (XF/DF)
- SLW-88 Mamiya 645 AFD
- SLW-81 for Leaf Afi or Sinar/Rollei Hy6
- Also compatible with WRS-1068 Rear Plate for Mamiya RB film backs and WDS-619 Ground Glass Frame
Additionally, besides the standard included bellows and monorail, a variety of optional bellows and monorails are available for wide-angle and close-focusing/macro shooting applications. In the Box Cambo ACTUS-DB2 View Camera Body ACDB-250 Standard Bellows for ACTUS-DB yqtsyvfycdbrsqxxyffvad ACTUS-DB2 Monorail (6.9" / 175mm) AC-389 Infinity Lock Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo ACTUS-DB2 View Camera Body in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambo ACTUS-DB2 Specs | Camera Type | View camera body for digital back capture | | Lens Mount | Compatible with optional ACB-0, ACB-1, ACB-ALP, and ACB-WRS lensplates | | Compatible Digital Backs | Compatible with optional SLW digital back interface plates and WRS/WDS rear plates | | Monorail Length | 6.9" / 175 mm | | Bellows Extension | 5.9" / 150 mm (standard ACDB-250 bellows) | | Camera Movements | Rear Rise/Fall: +0.5", -0.6" / +12 mm, -15 mm
Rear Shift: ± 0.8" / 20 mm
Front Swing: 360°
Front Tilt: +10°, -9° | | Focusing System | Quick-slide adjustment, geared fine-focus adjustment | | Mounting | Monorail is Arca-Swiss-compatible
1/4" and 3/8" mounts also integrated into monorail | | Dimensions | 7.1 x 3.9 x 8.3" / 18 x 10 x 21 cm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 10.2 x 7.9 x 6.3" |
