User Manual for Cambo ACTUS-XCD View Camera Body with Hasselblad XCD Bayonet Mount Click to enlarge the picture
Contents of the user manual for the Cambo ACTUS-XCD View Camera Body with
- Product category: View Camera Bodies Cambo
- Brand: Cambo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cambo View Camera Bodies
|
User manual for the Cambo ACTUS-XCD View Camera Body with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cambo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cambo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cambo product will considerably shorten its lifespan!
|

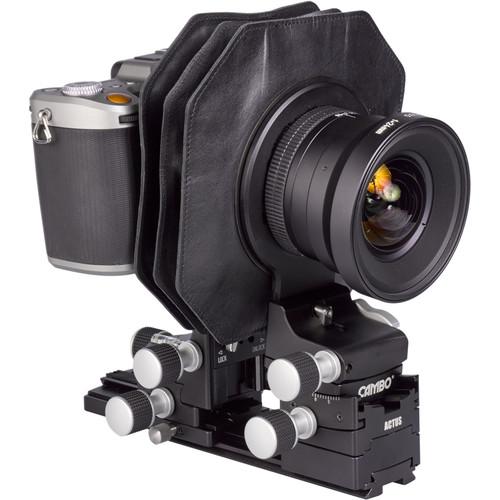

Product description Offering extensive perspective and focus control along with the convenience of working with your digital camera, the black ACTUS-XCD View Camera Body from Cambo effectively transforms your medium format mirrorless camera into a digital view camera. As the core component within a modular system, this view camera body serves as the primary piece from which you can pair a Hasselblad X1D with a variety of lenses to reap the benefits of geared camera movements for correcting perspective distortions, achieving an extended depth of field, or producing creative selective focus effects. While resembling traditional large format view cameras in function, the ACTUS system also echoes the compact form factor of the digital cameras it is designed to be paired with and is optimized for use in both the studio as well as on location.
This view camera body is delivered with a 6.1" monorail as well as a 4.9" bellows to permit working with a variety of lens and camera types. The monorail is designed to fit within the Arca-Swiss style quick release system for easy mounting to a tripod, and is also fitted with both 3/8"-16 and 1/4"-20 mounts for attaching quick release plates. Optional lensplates can be added depending on your desired lens type, and the monorail and bellows is also interchangeable with optional wide-angle and longer versions of each. Additionally, besides the included XCD bayonet mount, other optional smaller format camera bayonet mounts can be used in conjunction with the optional AC-78E Bayonet Holder. - Camera Movements
- A full system of movements offers extensive control over perspective and focusing settings. Geared on-axis tilt and swing movements are performed on the front standard and the rear standard permits geared rise/fall and horizontal shift movements:
- Rear Rise/Fall: +0.5", -0.6" / +12mm, -15mm
- Rear Shift: +/- 0.8" / 20mm
- Front Swing: 360°
- Front Tilt: +10°, -9°
The swing and tilt movements of the front standard rotate about the optical axis in order to avoid having to re-compose or re-focus after each movement is applied. - Camera Features
-
- Revised rear standard features geared horizontal shift along with a removable bayonet holder that has been specifically designed for the physically larger mount size of the X1D camera system.
- Both fine geared and quick-slide focusing adjustment types are available.
- Bellows and monorail focusing allows you to achieve closer focusing distances without the use of extension tubes or other macro attachments.
- Zero-position clicks are incorporated into each movement type for more intuitive handling.
- Monorail is compatible with the Arca-Swiss-style quick release system and also features both 3/8"-16 and 1/4"-20 mounts.
- Front tilts and swings allow you to alter the plane of focus for employing selective focus techniques or Scheimpflug settings for extensive depth of field. Additionally, these tilt and swing movements are used to correct for convergence and other perspective distortions.
- Rear horizontal and vertical shifts allow you to move the camera position while retaining the same lens position, making this configuration especially ideal for stitching multiple exposures without having to adjust the lens.
- The included Hasselblad XCD camera bayonet mount allows you to rotate between horizontal and vertical shooting orientations without having to adjust the actual orientation of the view camera body.
- This black finish body is anodized for greater durability and scratch resistance.
- Compact overall form factor is relative to the size of DSLR and mirrorless cameras.
- ACTUS System
- As the central component within the modular ACTUS system, this view camera body serves as the means to which you can attach a variety of optional lens plates as well as other camera bayonet mounts via the optional AC-78E Bayonet Holder. Additionally, besides the standard included bellows and monorail, a variety of optional bellows and monorails are available for wide-angle and close-focusing/macro shooting applications.
In the Box Cambo ACTUS-XCD View Camera Body with Hasselblad XCD Bayonet Mount (Black) AC-210 Standard Bellows for ACTUS sbsdryxdydcwrfscftwwwf AC-315 Standard Monorail for ACTUS Cameras (6.1") AC-793 Bayonet Holder for Hasselblad X Limited 1-Year Warranty, Extendable to 2 Years with Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo ACTUS-XCD View Camera Body with Hasselblad XCD Bayonet Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambo Actus-XCD Specs | Camera Type | View camera body for DSLR or mirrorless capture | | Lens Mount | Compatible with optional ACTUS-B lensplates | | Camera Mount | Hasselblad XCD camera bayonet mount
Compatible with additional optional ACTUS camera bayonet mounts via optional AC-78E Bayonet Holder | | Monorail Length | 6.1" / 155 mm (standard AC-315 monorail) | | Bellows Extension | 4.9" / 125 mm (standard AC-210 bellows) | | Focusing System | Quick slide adjustment, geared fine-focus adjustment
Up to 4.9" / 125 mm travel with Hasselblad XCD mount | | Mounting | Monorail is Arca-Swiss-compatible
1/4" and 3/8" mounts also integrated into monorail | | Dimensions | 6.0 x 4.5 x 6.7" / 152 x 115 x 171 mm | | Weight | 2.5 lb / 1150 g | | | | Package Weight | 3.8 lb | | Box Dimensions (LxWxH) | 10.1 x 7.9 x 6.3" |
