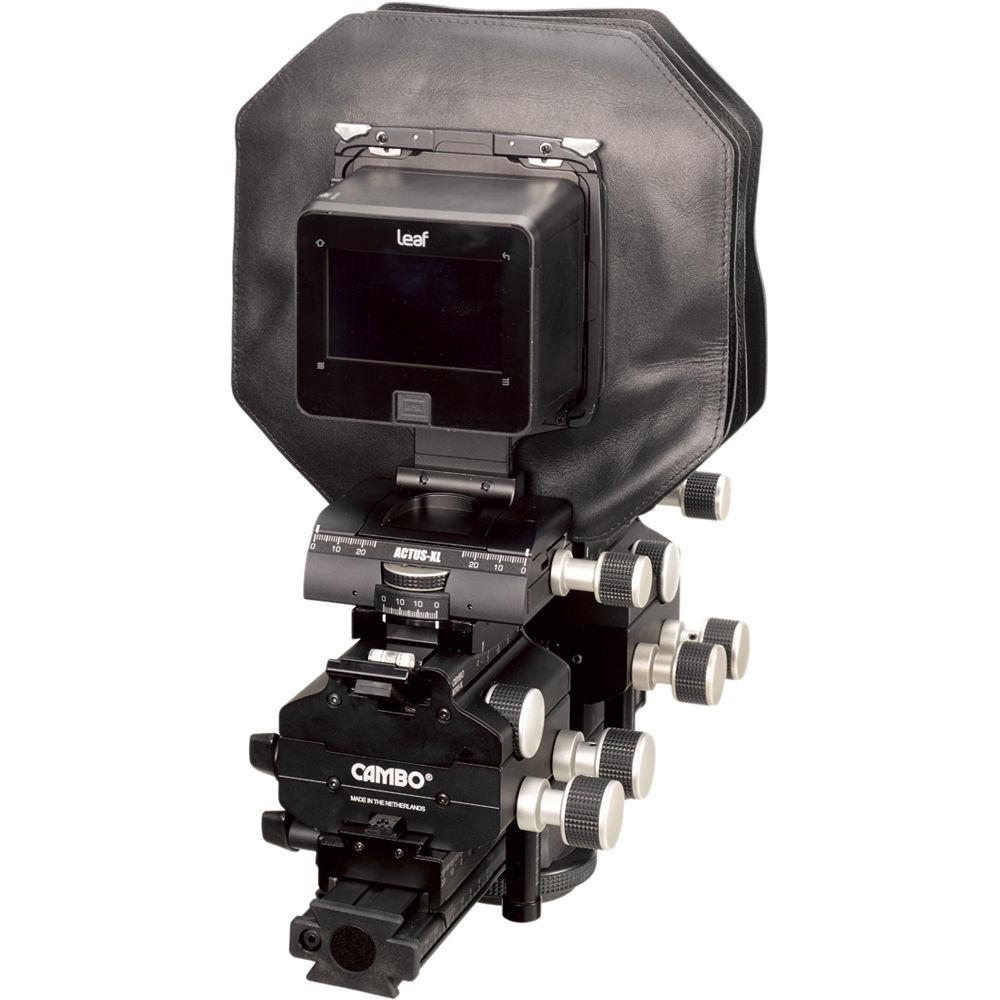

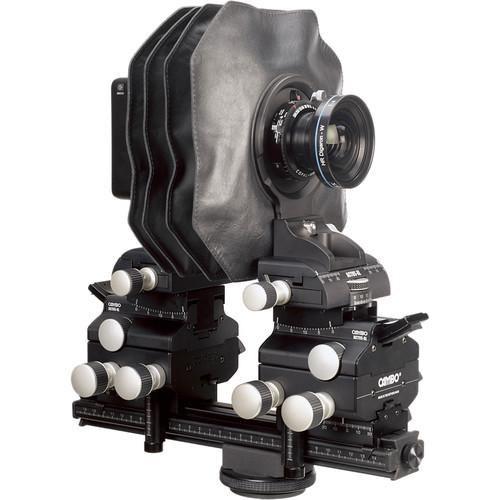

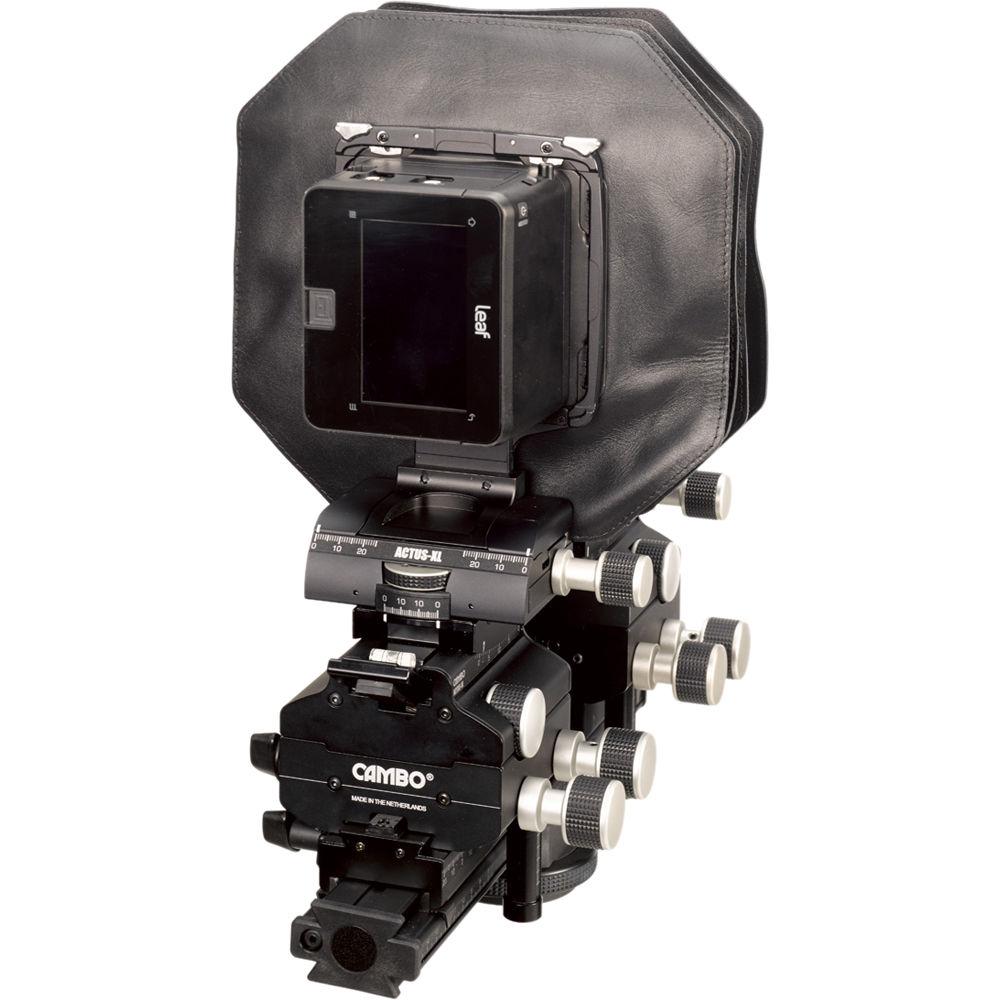

Product description Fusing Cambo's ACTUS and Ultima lines, the ACTUS-XL-DB View Camera pairs the sleeker form factor of the ACTUS cameras along with the extensive full range of movements from the Ultima cameras. In addition to the versatility afforded by the camera movements, this camera system has also been designed as fully modular with its ability to accept all existing ACTUS lens plates, various digital backs by swapping the interface plates, and even DSLR or mirrorless cameras by swapping the rear frame. As a view camera, this system offers geared movements on both the rear and front standards for correcting perspective distortions, achieving an extended depth of field, or producing creative selective focus effects. The 11.8"-long monorail design permits both quick-slide and fine-tuned geared focusing movements, and the monorail can be exchanged for optional longer rails for macro applications. Reaping the benefits of both a complete view camera system along with the versatility and adaptability of a system designed for digital photographers, the ACTUS-XL-DB is a flexible solution for precise image-making needs. - Camera Movements
- A full system of geared movements is available for fine-tuned control over the positioning of both standards:
- Tilt: +/- 20° on both standards
- Swing: +/- 20° on both standards
- Shift: +/- 25mm on both standards
- Rise/Fall: +/- 20mm on both standards
Additionally, both fine (up to 1.6" / 40mm) and coarse/quick-slide (4.7" / 120mm) focusing movements are possible, with a maximum extension of 6.3" / 160mm possible. - Camera Features
-
- Compatible with optional extended ULM monorails and bellows for macro applications.
- Tripod mounting block is fitted with a 3/8"-16 mount for attaching to a tripod or stand.
- Monorail and standards feature scales for making precise and repeatable movements.
- Zero-position clicks are incorporated into each movement type for more intuitive handling.
- Tilts and swings allow you to alter the plane of focus for employing selective focus techniques or Scheimpflug settings for extensive depth of field. Additionally, these tilt and swing movements are used to correct for convergence and other perspective distortions.
- Shift and rise/fall allow you to move the camera or lens position without affecting focus, making this configuration especially ideal for stitching multiple exposures or adjusting composition after applying tilt or swing.
- Rear interface can be rotated between vertical and horizontal orientations without having to remove the digital back or bellows.
- Optional sliding back can be used when working with digital backs without live view.
- Black anodized for greater durability and scratch resistance.
- Modular Design
- As the central component within the camera system, a series of lens plates and rear interface plates can be used to configure this camera to specific digital back and lens combinations:
Lens Plates:
- Copal 0
- Copal 1
- Copal 3
- Short-barrel Alpa lens panels
- Short-barrel Wide RS lens panels
- Cambo ACTAR lenses in ACTUS plates
Lens Adapting Plates:
- M39
- Hasselblad V
- Mamiya RB/RZ
- Canon EF
- Nikon F
- Leica R
- Mamiya 645 Pro TL
- Pentax 645
Digital Back Interface Adapters:
- SLW-80 Hasselblad-V
- SLW-89 Hasselblad-H
- SLW-81 Leaf Afi/Sinar Hy6
- SLW-83 Phase One XF/DF /Mamiya AFd
- SLW-87 Contax 645
Additionally, the bellows can be replaced with the optional AC-214 Bellows and the rear frame can be exchanged with the optional ACXL-965 Bayonet Holder for attaching DSLR and mirrorless cameras to the view camera system. In the Box Cambo ACTUS-XL-DB View Camera UL-30 Monorail (30cm) ACXL-970 ACTUS-DB SLW Frame Holder for Ultima Cameras ACXL-960 ACTUS Lens Plate Holder for Ultima Cameras ACDB-254 Long Bellows for ACTUS-DB xbastwcdyrvbxdcdsdtewefaxfea Limited 1-Year Warranty, Extendable to 2 Years with Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo ACTUS-XL-DB View Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambo ACTUS-XL-DB Specs | Camera Type | View camera body for digital back capture | | Lens Mount | Compatible with optional ACB-0, ACB-1, ACB-ALP, and ACB-WRS lensplates | | Compatible Digital Backs | Compatible with optional SLW digital back interface plates for Hasselblad V, Hasselblad H, Leaf Afi/Sinar Hy6, Phase One XF/DF/Mamiya 645, or Contax 645 | | Monorail Length | 11.8" / 300 mm | | Bellows Extension | 11.8" / 300 mm (ACDB-254 Long Bellows) | | Focusing System | Coarse: 4.7" / 120 mm (max extension: 6.3" / 160 mm)
Fine: 1.6" / 40 mm (both front and rear standards) | | Mounting | Tripod block with integrated 3/8"-16 mount | | Dimensions | 12.2 x 5.7 x 13.4" / 310 x 145 x 340 mm (with lens plate and frame holders) | | Weight | 10.6 lb / 4.8 kg (with lens plate and frame holders) |
