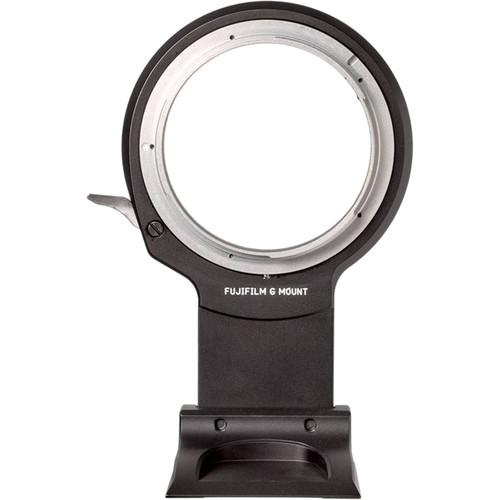

Product description Offering the flexibility of the ACTUS system with your Ultima 23 or 35 view camera, the ACXL-366 Upgrade Package from Cambo includes the necessary components for using a Fujifilm GFX medium format digital camera with a variety of lens systems in conjunction with full view camera movements. This package comprises the ACXL-966 GFX bayonet holder, which replaces the Ultima's rear standard; the ACXL-960 lens plate holder, which replaces the Ultima's front standard; and the 7.9"-long AC-214 Long Bellows, which connects to the bayonet holder and lens plates with matching extension for the Ultima's monorail length. - ACXL-966 ACTUS-GFX Bayonet Holder for Ultima Cameras Extending the versatility of your Cambo Ultima 23 or 35 view camera, the ACXL-966 is an ACTUS-style rear standard fitted with a Fujifilm GFX bayonet. By using this rear standard, you are afforded direct mounting of the medium format digital camera to the view camera body, as well as the ability to quickly rotate the camera from vertical to horizontal orientation without removing it from the bellows. This item is a component of the ACXL-366 conversion package.

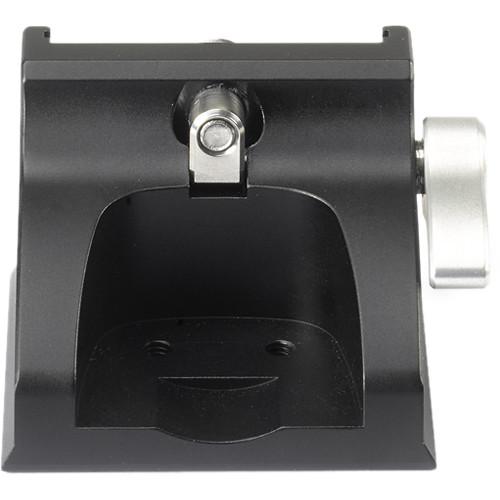

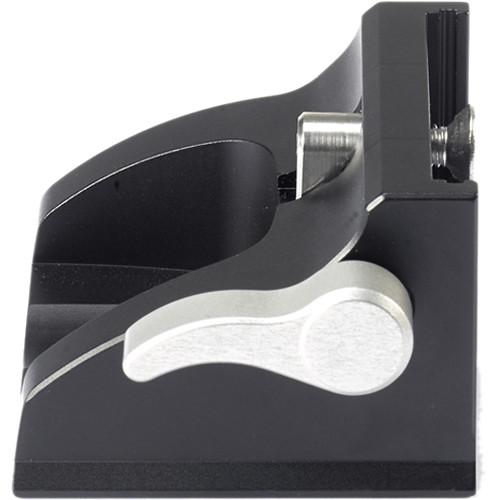

- ACXL-960 ACTUS Lens Plate Holder for Ultima Cameras Extending the versatility of your Cambo Ultima 23 or 35 view camera, the ACXL-960 replaces the Ultima's front standard in order to accept ACTUS-style lens plates for working with a variety of SLR, mirrorless, and large format lenses. Additionally, the ACXL-960 retains full compatibility with the UL-343 Compendium Shade to prevent lens flare and ghosting on any subsequently mounted lenses. This item is a component of the ACXL-365 and ACXL-370 conversion packages, and requires an additional ACTUS lens plate for use.
- AC-214 Long Bellows for ACTUS Dedicated to the Cambo ACTUS view camera, the AC-214 Long Bellows offers a 7.9" extension and has five pleated folds to benefit working with longer focal length lenses. It is designed for use with the 11.8"-long AC-330 Longer Monorail and can be used to achieve a 1:1 magnification ratio with a 120mm macro lens.
In the Box Bundle Items ACXL-966 ACTUS-GFX Bayonet Holder for Ultima Cameras - Limited 1-Year Warranty, Extendable to 2 Years with Online Registration
ACXL-960 ACTUS Lens Plate Holder for Ultima Cameras - Limited 1-Year Warranty, Extendable to 2 Years with Online Registration
AC-214 Long Bellows for ACTUS Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo ACXL-366 Upgrade Package from Ultima for Use with Fujifilm GFX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AC-214 Long Bellows for ACTUS
| Format | 35mm/Full-Frame or Smaller | | Bellows Type | Long Bellows | | Extension | 7.9" / 200 mm | | Number of Folds | 5 | | | | Box Dimensions (LxWxH) | 6.3 x 6.3 x 0.8" | - ACXL-966 ACTUS-GFX Bayonet Holder for Ultima Cameras
- ACXL-960 ACTUS Lens Plate Holder for Ultima Cameras
