User Manual for Cambo ACXL-370 Upgrade Package from Ultima for Use with Digital Backs Click to enlarge the picture
Contents of the user manual for the Cambo ACXL-370 Upgrade Package from Ultima
- Product category: Format Sets & Reducing Backs Cambo
- Brand: Cambo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cambo Format Sets & Reducing Backs
 |
User manual for the Cambo ACXL-370 Upgrade Package from Ultima contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cambo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cambo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cambo product will considerably shorten its lifespan!
|

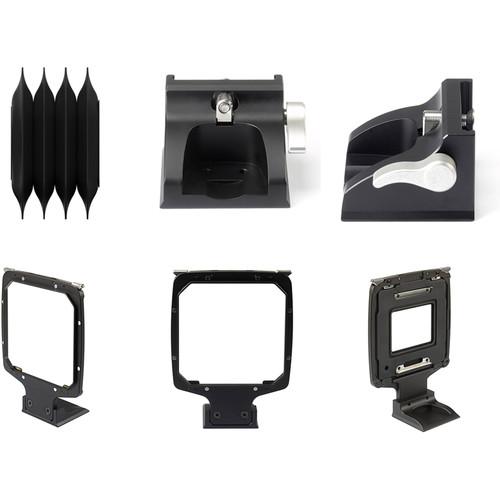

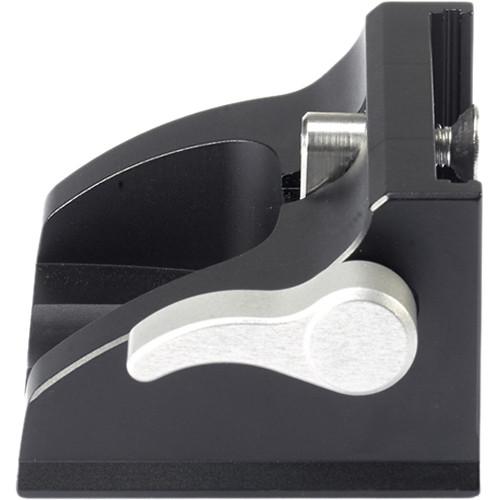

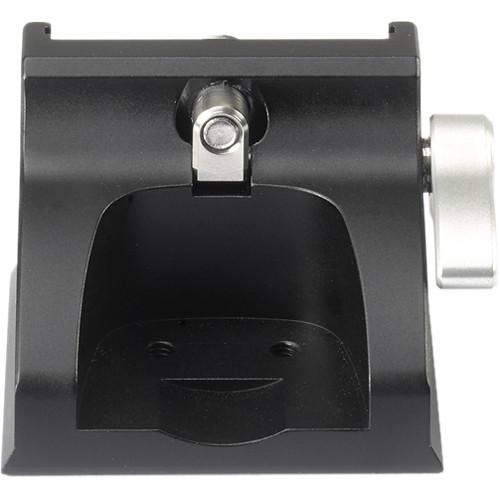

Product description Offering the flexibility of the ACTUS system with your Ultima 23 or 35 view camera, the ACXL-370 Upgrade Package from Cambo includes the necessary components for using digital backs with a variety of lens systems in conjunction with full view camera movements. This package comprises the ACXL-970 ACTUS-DB SLW Frame Holder, which replaces the Ultima's rear standard; the ACXL-960 lens plate holder, which replaces the Ultima's front standard; and the 11.8"-long ACDB-254 Long Bellows, which connects to the SLW frame holder and lens plates with matching extension for the Ultima's monorail length. - ACXL-960 ACTUS Lens Plate Holder for Ultima Cameras Extending the versatility of your Cambo Ultima 23 or 35 view camera, the ACXL-960 replaces the Ultima's front standard in order to accept ACTUS-style lens plates for working with a variety of SLR, mirrorless, and large format lenses. Additionally, the ACXL-960 retains full compatibility with the UL-343 Compendium Shade to prevent lens flare and ghosting on any subsequently mounted lenses. This item is a component of the ACXL-365 and ACXL-370 conversion packages, and requires an additional ACTUS lens plate for use.

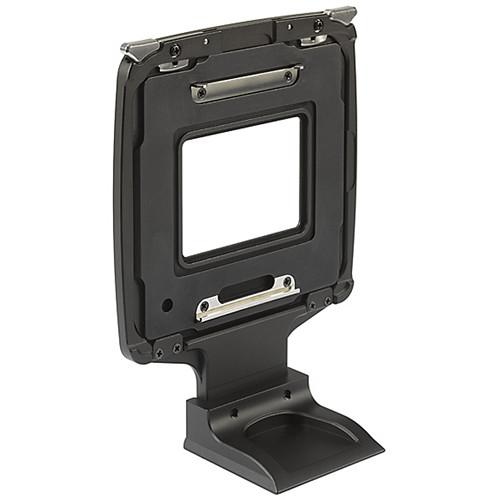

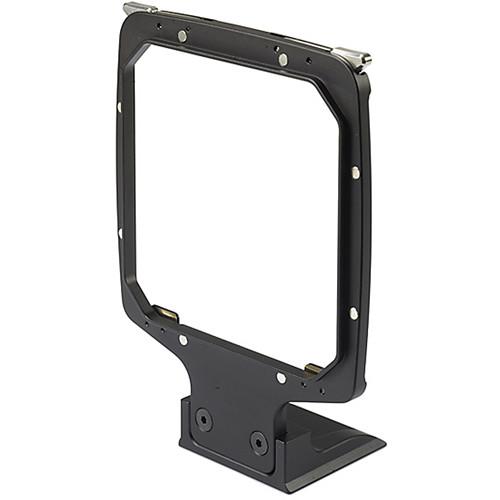

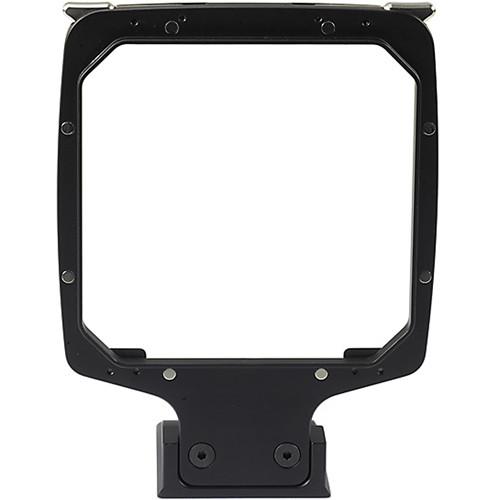

- ACXL-970 ACTUS-DB SLW Frame Holder for Ultima Cameras Extending the versatility of your Cambo Ultima 23 or 35 view camera, the ACXL-970 is an ACTUS-DB/DB2-style rear standard to accept SLW digital back interface adapters for working with a variety of digital back types. Additionally, it also accepts ACTUS-style magnetic bellows for quickly assembling the camera system. This item is a component of the ACXL-370 conversion package, and requires an additional SLW adapter for use.

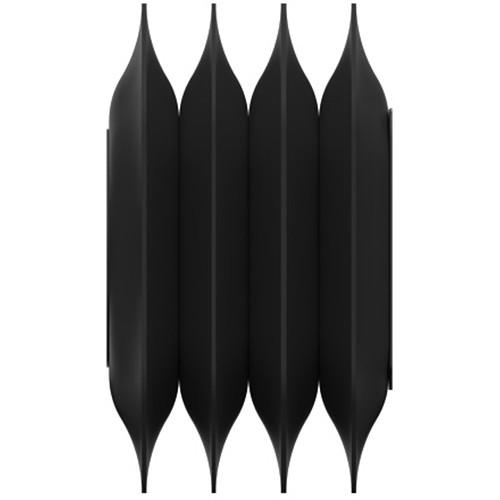

- ACDB-254 Long Bellows for ACTUS-DB Dedicated to the Cambo ACTUS-DB view camera, the ACDB-254 Long Bellows offers an 11.8" extension and has four pleated folds to benefit working with longer focal length lenses. It is designed for use with the AC-330 Longer Monorail and can be used to achieve a 1:1 magnification ratio with a 120mm macro lens.
In the Box Bundle Items ACXL-960 ACTUS Lens Plate Holder for Ultima Cameras xdvdcsbcyfezey - Limited 1-Year Warranty, Extendable to 2 Years with Online Registration
ACXL-970 ACTUS-DB SLW Frame Holder for Ultima Cameras - Limited 1-Year Warranty, Extendable to 2 Years with Online Registration
ACDB-254 Long Bellows for ACTUS-DB Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo ACXL-370 Upgrade Package from Ultima for Use with Digital Backs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ACDB-254 Long Bellows for ACTUS-DB
| Format | 35mm/Full-Frame or Smaller | | Bellows Type | Long Bellows | | Extension | 11.8" / 300 mm | | Number of Folds | 4 | | | | Box Dimensions (LxWxH) | 9.6 x 8.5 x 0.6" | - ACXL-960 ACTUS Lens Plate Holder for Ultima Cameras
- ACXL-970 ACTUS-DB SLW Frame Holder for Ultima Cameras
