User Manual for Cambo Cilix 2-Grip Handgrip Rig for HDSLR Cameras Click to enlarge the picture
Contents of the user manual for the Cambo Cilix 2-Grip Handgrip Rig for
- Product category: DSLR Video Supports & Rigs Cambo
- Brand: Cambo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cambo DSLR Video Supports & Rigs
|
User manual for the Cambo Cilix 2-Grip Handgrip Rig for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cambo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cambo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cambo product will considerably shorten its lifespan!
|

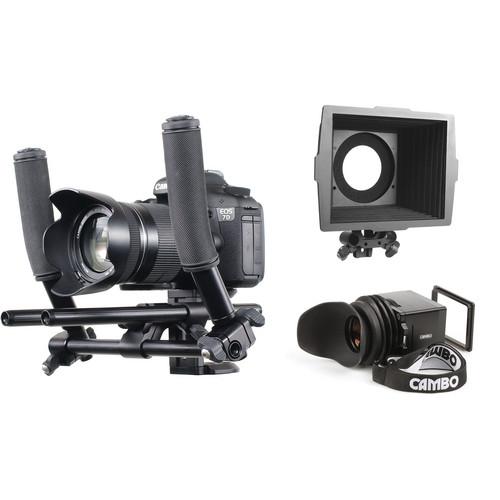

Product description The Cambo Cilix 2-Grip Handgrip Rig for HDSLR Cameras consists of a CS-M1 compact camera/tripod mount, 2 CS-H1 grip handles, a CS-153 triple rod clamp, and 3 CS-1522 220mm iris rods. It allows you to adjust the weight of the Cilix Rig on the handle axis and ensures stable shooting.
You can adjust the distance between the optical center of the lens and the iris rods, and accommodate different types of cameras. Compatible with all matte box and follow focus systems, the Cilix Rig is ideal for handheld cameras and can be extended to any rig configuration.
The compact camera tripod mount allows you to adjust the height of the camera and capture videos at any height. Made of aluminum, the mount has a black anodized finish to prevent damage due to varying weather conditions. It can also be mounted to the CS-152, CS-153, and CS-154 clamp units.
With a slight bend for easy handling, the 2 CS-H1 grip handles offer firm support for efficient shooting. On the top of the handle, it has a 3/8” thread that allows you to mount accessories like monitor microphone or lamp. It is connected to the 15mm iris rods through the CS-151 clamp. The grip has a high grade aluminum construction and a black anodized finish.
The CS-153 triple rod clamp elevates the camera rig to accommodate the HDSLR camera with a battery pack while the 3 iris rods allow you to extend the length of the support rig.
Unwanted lens flare is blocked and prevented from reaching the lens via the CS-M100 Matte Box. Integrating an adjustable design, the matte box provides optimum shading for any focal length. You can attach the hood directly to the bars system at the front of the lens. Supporting wide angle lenses with 4:3 and 16:9 aspect ratios, the hood features a wide design that eliminates unnecessary vignettes. You can fold the hood, thereby minimizing space during transportation.
Integrating Schneider Kreuznach optics, the CS-30 Loupe features a 3x magnification capability. You are also provided with an adjustable diopter setting to suit your comfort level. The CS-30 attaches to the Cilix Rig via a stick-on frame. - Allows you to adjust the weight of the rig on the handle axis and ensures stable shooting
- Comes with a CS-M1 compact camera/tripod mount, 2 CS-H1grip handle, a CS-153 triple rod clamp, and 3 CS-1522 220mm iris rods
- Can adjust the distance between the optical center of the lens and the iris rods, and accommodate different types of cameras
- Ideal for handheld cameras and can be extended to any rig configuration
- Compact camera tripod mount allows you to adjust the height of the camera and capture videos at any height
- Black anodized finish of the camera tripod mount prevents damage due to varying weather conditions
- Can also be mounted to the CS-152, CS-153, and CS-154 clamp units
- 2 CS-H1 grip handles offer firm support for efficient shooting
- 3/8" thread allows you to mount accessories like monitor microphone or lamp
- Connected to the 15mm iris rods through the CS-151 clamp
- Elevates the camera rig to accommodate the HDSLR camera with a battery pack
- 3 iris rods allow you to extend the length of the support rig
- CS-M100 Matte Box - integrates an adjustable design that provides optimum shading for any focal length
- CS-M100 Matte Box - attaches directly to the bars system at the front of the lens
- CS-M100 Matte Box - supports wide angle lenses with 4:3 and 16:9 aspect ratios
- CS-M100 Matte Box - features a wide design that eliminates unnecessary vignettes
- CS-30 Loupe - integrates Schneider Kreuznach optics and offers a 3x magnification capability
- CS-30 Loupe - provides an adjustable diopter setting to suit your comfort level
- CS-30 Loupe - attaches to the rig via a stick-on frame
In the Box Cambo Cilix 2-Grip Handgrip Rig for HDSLR Cameras CS-M1 Compact Camera / Tripod Mount dwqcvsbcwbywte CS-H1 Compact Grip Handle CS-153 Rod Clamp Triple Dual/Perpendicular (15mm) 3 x CS-1522 Iris Rod (10", 250mm) Matte Box Flexible Hood CS-30 HDSLR Viewing Loupe 3 (Universal) dwqcvsbcwbywte 6-months Warranty User Manual PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo Cilix 2-Grip Handgrip Rig for HDSLR Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambo CS-BS-CILIX Specs | Compatibility | CSMFC-1 Follow Focus / CS-30 Loupe | | Matte Box | - Aspect ratio - 4:3 and 16:9
- Weight - 0.81 lb (0.37kg)
|
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
