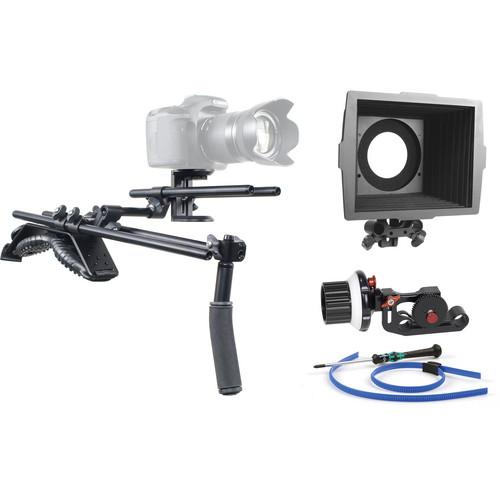

User Manual for Cambo Cirus HDSLR Offset Rig Click to enlarge the picture
Contents of the user manual for the Cambo Cirus HDSLR Offset Rig
- Product category: DSLR Video Supports & Rigs Cambo
- Brand: Cambo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cambo DSLR Video Supports & Rigs
|
User manual for the Cambo Cirus HDSLR Offset Rig contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cambo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cambo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cambo product will considerably shorten its lifespan!
|
Product description The Cambo Cirus HDSLR Offset Rig is fully customizable, owing to the presence of individual Cambo video components. You can easily modify the rig configuration to suit your application.
With an adjustable camera position along the x and y axes, you can achieve an optimum viewing position irrespective of whether you are using a loupe or a direct view on the DSLR monitor. You can also enhance the capabilities of the Cirus rig by using it with any follow focus unit or matte box. In these configurations stability of the rig is ensured by centering its weight on the handle axis.
Included with the rig is the CSMFC-1 Follow Focus that attaches directly to the 15mm Lightweight Support via a quick-lock clamper. A flexible gear ring supports any lens with a 1.57 - 3.93" (40 - 500 mm) diameter focus barrel. You can reverse the rotation direction of the CSMFC-1 to accommodate the inverse focus direction of the DSLR lenses.
Unwanted lens flares are blocked and prevented from reaching the lens via the CS-M100 Matte Box. Integrating an adjustable design, the matte box provides optimum shading for any focal length. You can attach the hood directly to the bars system at the front of the lens. Supporting wide angle lenses with 4:3 and 16:9 aspect ratios, the hood features a wide design that eliminates unnecessary vignettes. You can fold the hood, thereby minimizing space during transportation.
You can easily adjust the distance between the optical center of the lens and the iris rods, thereby rendering the Cirus rig suitable for use with different cameras. By turning the CS-153 clamp upside down, you can lower the camera mount and use it with a battery pack. - Provides a fully customizable design owing to the presence of individual Cambo components
- Allows easy configuration to suit your application
- Offers adjustable camera position along the x and y axes
- Achieves optimum viewing position irrespective of whether you are using a loupe or a direct view on the DSLR monitor
- Provides enhanced capabilities by using it with any follow focus unit or matte box
- Ensures rig stability when used with follow focus or matte box by centering its weight on the handle axis
- CSMFC-1 Follow Focus - attaches directly to the 15mm Lightweight Support via a quick-lock clamper
- CSMFC-1 Follow Focus - supports any lens with a 1.57 - 3.93" (40 - 500 mm) diameter focus barrel
- CSMFC-1 Follow Focus - allows rotation direction reversal to accommodate the inverse focus direction of the DSLR lenses
- CS-M100 Matte Box - integrates an adjustable design that provides optimum shading for any focal length
- CS-M100 Matte Box - attaches directly to the bars system at the front of the lens
- CS-M100 Matte Box - supports wide angle lenses with 4:3 and 16:9 aspect ratios
- CS-M100 Matte Box - features a wide design that eliminates unnecessary vignettes
- Allows easy adjustments between the optical center of the lens and the iris rods, thereby rendering the rig suitable for use with different cameras
- Supports battery pack via CS-153 clamp reversal that lowers the camera mount
In the Box Cambo Cirus HDSLR Offset Rig (CSMFC-1 Follow Focus, CS-M100 Matte Box) CS-M1 Compact Camera / Tripod Mount 99211152 Rod Clamp 15mm Dual Parallel CS-H1 Compact Grip Handle 2 x CS-153 Rod Clamp Triple Dual/Perpendicular (15mm) CS-P1 Ergonomic Adjustable Shoulder Pad CS-1512 Iris Rod (5", 120mm) 2 x CS-1522 Iris Rod (10", 250mm) CS-1522 Iris Rod (10", 250mm) CSMFC-1 Follow Focus Kit Matte Box Flexible Hood wwxyxqrrazrbtqewdtfdvvcq 6-month Warranty User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo Cirus HDSLR Offset Rig in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambo CS-BS-CIRUS Specs | Compatibility | CSMFC-1 Follow Focus / CS-M100 Matte Box | | Follow Focus | 40mm to 100mm Diameter Focus Barrel Support | | Matte Box | - Aspect ratio - 4:3 and 16:9
- Weight - 0.81 lb (0.37kg)
| | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 19.5 x 15.5 x 4.9" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
