User Manual for Cambo CS-AS-TRIBASE Tripod Based Support with Follow Focus & Matte Box Click to enlarge the picture
Contents of the user manual for the Cambo CS-AS-TRIBASE Tripod Based Support with
- Product category: DSLR Video Supports & Rigs Cambo
- Brand: Cambo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cambo DSLR Video Supports & Rigs
|
User manual for the Cambo CS-AS-TRIBASE Tripod Based Support with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cambo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cambo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cambo product will considerably shorten its lifespan!
|

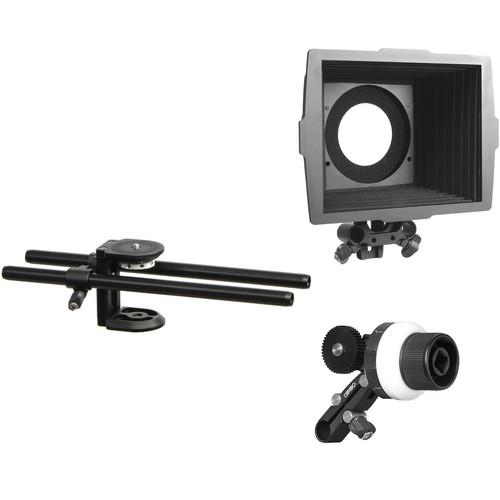

Product description The Cambo CS-AS-TRIBASE Tripod Based Support with Follow Focus & Matte Box is ideal for shooting video from a tripod or pedestal unit. The distance between the optical center of the lens and the iris rods is adjustable, making this rig applicable to different types of cameras. The Tripod Based HDSLR Support comes with the Tribase Rig, CS-MFC-3 Follow Focus, & CS-M100 Matte box.
The Tribase Rig can also be used with any other follow-focus and/or matte box and this basic rig can be further extended to any configuration. The Tripod Rig assembly consists of the CS-M1 Compact Camera/Tripod Mount, the CS-152 Dual Parallel Rod Clamp, and 2 CS-1530 Iris Rods (300mm).
The compact CS-MFC-3 Follow Focus system enables you to precisely control the focus. Made from machined aluminum, this follow focus is up to the level of the most demanding cameraman. This unit is mounted to a single bar of the support system, which has several advantages. While changing lenses, you can simply release one knob with a simple twist and hinge the follow focus unit aside to access the lens without any obstruction. If the new lens has a different diameter, the CS-MFC-3 Follow Focus can be easily hinged in place to accommodate the new diameter of the lens with a one hand operation. Also, when the gear is not at the same distance, the unit can be shifted forward or backwards. It also features a flexible gear-ring and drive gear m0.8x46. Thanks to the uniquely profiled support bars, the unit locks very secure and positive with the correct amount of contact with the gear rack of the lens in order to operate the focus movements without any play in the mechanism. This follow focus is also able to reverse its rotation direction to accommodate the inverse focus direction of DSLR lenses.
The CS-M100 Matte box attaches directly to the bar system in front of the lens. It features a flexible hood that allows for adjustments for optimum shading with any focal length. The Matte box works with most cameras with wide-angle lenses for both 4:3 and 16:9 aspect ratios without causing vignetting. The flexible hood can be folded flat for transportation, taking up a minimum of space. - Tribase Rig
-
- Distance between the optical center of the lens and the iris rods is adjustable to accommodate different types of cameras
- CS-MFC-3 Follow Focus
-
- Exchangeable gears
- Gears mount on front or back end
- Unit can be rotated for reverse rotation of gears
- Double hinge allows for angled position of the knob
- Fits to any diameter lens without any modification of configuration
- One removable gear strip for lens included
- Accepts Starknob and Flexible Knob extension
- CS-M100 Matte Box
-
- Attaches directly to the bars system at the front of the lens
- Supports wide-angle lenses with 4:3 and 16:9 aspect ratios
- Wide design accommodates most cameras and eliminates vignetting
- Folds flat, thereby minimizing space during transportation
In the Box Cambo CS-AS-TRIBASE Tripod Based Support with Follow Focus & Matte Box CS-TRIBASE Tripod Based HDSLR Support vwxxttyftq CSMFC-3 Manual Follow Focus Controller (Single Bar) Matte Box Flexible Hood 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo CS-AS-TRIBASE Tripod Based Support with Follow Focus & Matte Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambo 99210061 Specs | Weight | 0.81 lb (0.37 kg) including bars adapter |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
