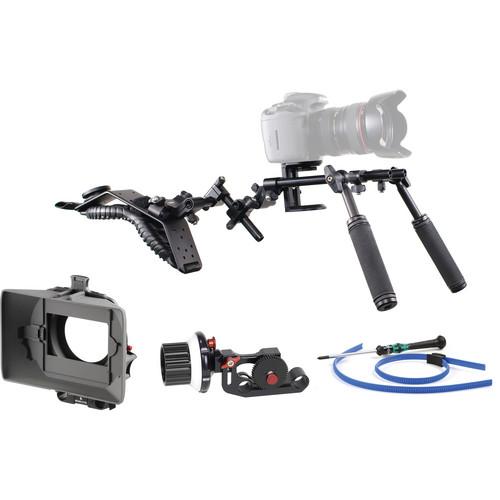

User Manual for Cambo CS-LS-ERIS Fully Adjustable HDSLR Support Click to enlarge the picture
Contents of the user manual for the Cambo CS-LS-ERIS Fully Adjustable HDSLR Support
- Product category: DSLR Video Supports & Rigs Cambo
- Brand: Cambo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cambo DSLR Video Supports & Rigs
|
User manual for the Cambo CS-LS-ERIS Fully Adjustable HDSLR Support contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cambo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cambo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cambo product will considerably shorten its lifespan!
|
Product description The Cambo CS-LS-ERIS Fully Adjustable HDSLR Support (Follow Focus, CS-M210) is a completely customizable HDSLR rig that provides DSLR offset adjustments along x, y, and z axes. You can achieve an optimum viewing position, when using a loupe or a direct view on the DSLR monitor.
An intelligent memory setting stores the rotation angle of the CS-151 Clamp bearing corresponding to the slot of the CS-15 Rod, allowing you to quickly reassemble the rig after transportation. Dual CS-H2 telescopic handle grips provide a stable grip and full control over the rig during shooting.
Included with the rig is the CSMFC-1 Follow Focus that attaches directly to the 15mm Lightweight Support via a quick-lock clamper. A flexible gear ring supports any lens with a 1.57 - 3.93" (40 - 500 mm) diameter focus barrel. You can reverse the rotation direction of the CSMFC-1 to accommodate the inverse focus direction of the DSLR lenses.
The included CSM-210 Matte Box uses a quick-lock mounting system to directly attach itself to the front lens barrel. Preventing unwanted light flares from reaching the lens of the DSLR, the matte box supports filter from 3 x 3" to 4 x 6" (7.6 x 7.6 cm to 10.2 x 15.2 cm) and works with lenses in 4:3 and 16:9 aspect ratios.
You can customize the rig according to your requirement, owing to the modular nature of the CS-ERIS that incorporates individual Cambo video components. You can also use the rig with any follow focus system or matte box, during which the weight of the rig is centered on the handle axis. - Completely customizable HDSLR rig that provides DSLR offset adjustments along x, y, and z axes
- Achieves optimum viewing position, when using a loupe or a direct view on the DSLR monitor
- Allows quick reassembly after transportation via an intelligent memory setting that stores the rotation angle of the CS-151 Clamp bearing corresponding to the slot of the CS-15 Rod
- CSMFC-1 Follow Focus - attaches directly to the 15mm Lightweight Support via a quick-lock clamper
- CSMFC-1 Follow Focus - supports any lens with a 1.57 - 3.93" (40 - 500 mm) diameter focus barrel
- CSMFC-1 Follow Focus - allows rotation direction reversal to accommodate the inverse focus direction of the DSLR lenses
- CSM-210 Matte Box - uses a quick-lock mounting system to directly attach itself to the front lens barrel
- CSM-210 Matte Box - prevents unwanted light flares from reaching the lens of the DSLR
- CSM-210 Matte Box - supports filter from 3 x 3" to 4 x 6" (7.6 x 7.6 cm to 10.2 x 15.2 cm) and works with lenses in 4:3 and 16:9 aspect ratios
- Integrates dual CS-H2 telescopic handle grips that provide a stable grip and full control over the rig during shooting
- Allows customization according to your requirement via a modular design that incorporates individual Cambo video components
- Supports any follow focus and matte box
- Centers the weight on the handle axis during operation with follow focus and matte box
In the Box Cambo CS-LS-ERIS Fully Adjustable HDSLR Support (Follow Focus, CS-M210) CS-M1 Compact Camera / Tripod Mount 2 x CS-H2 Telescopic Grip Handles CSMFC-1 Follow Focus Kit CSM-210 Matte Box Kit 2 x CS-151 Rod Clamp (15mm, Perpendicular) 2 x CS-153 Rod Clamp Triple Dual/Perpendicular (15mm) CS-P1 Ergonomic Adjustable Shoulder Pad CS-1509 Iris Rod (3.5", 90mm) 2 x CS-1512 Iris Rod (5", 120mm) fwuywxdbbcerecxrrte 2 x CS-1522 Iris Rod (10", 250mm) 6-month Warranty User Manual PDF 1.9mbfwuywxdbbcerecxrrte Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo CS-LS-ERIS Fully Adjustable HDSLR Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambo CS-LS-ERIS Specs | Compatibility | CSMFC-1 Follow Focus / CSM-210 Matte Box | | Follow Focus | Flexible Gear Ring supports 40mm to 100mm diameter focus barrel | | Matte Box | - Accommodates 3x3" (7.6 x 7.6 cm) to 4x6" (10.2 x 15.2 cm) Filters
- Supports 4:3 and 16:9 Aspect Ratios
| | | | Package Weight | 7.55 lb | | Box Dimensions (LxWxH) | 19.5 x 15.6 x 4.9" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
