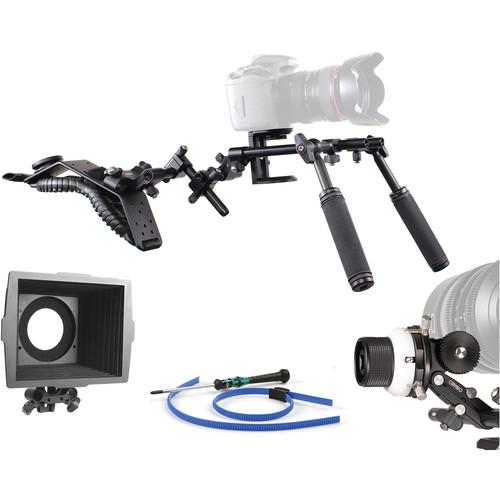

User Manual for Cambo Eris Fully Adjustable DSLR Support Kit Click to enlarge the picture
Contents of the user manual for the Cambo Eris Fully Adjustable DSLR Support
- Product category: DSLR Video Supports & Rigs Cambo
- Brand: Cambo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cambo DSLR Video Supports & Rigs
|
User manual for the Cambo Eris Fully Adjustable DSLR Support contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cambo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cambo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cambo product will considerably shorten its lifespan!
|
Product description The Cambo Eris Fully Adjustable DSLR Support Kit consists of the CS-ERIS rig, the CS-M100 matte box, and the CSMFC-2 follow focus. This completely customizable rig provides DSLR offset adjustments along x, y, and z axes. You can achieve an optimum viewing position when using a loupe or when using the DSLR screen.
An intelligent memory setting stores the rotation angle of the CS-151 clamp bearing corresponding to the slot of the CS-15 rod, allowing you to quickly reassemble the rig after transportation. Dual CS-H2 telescopic handgrips provide a stable grip and full control over the rig during shooting.
The CSMFC-2 follow focus attaches directly to the 15mm lightweight support via a quick-lock clamp. A flexible gear ring supports any lens with a 40 to 500mm diameter focus barrel. You can reverse the rotation direction of the CSMFC-2 to accommodate the inverse focus direction of the DSLR lenses.
Unwanted lens flares are blocked and prevented from reaching the lens thanks to the CS-M100 matte box. Integrating an adjustable design, the matte box provides optimum shading for any focal length. You can attach the hood directly to the bar system at the front of the lens. Supporting wide angle lenses with 4:3 and 16:9 aspect ratios, the hood features a wide design that eliminates unnecessary vignettes. You can fold the hood, minimizing space during transportation.
You can customize the rig as per your requirement, owing to the modular nature of the Eris that incorporates individual Cambo video components. - Completely customizable rig that provides DSLR offset adjustments along x, y, and z axes
- Achieves optimum viewing position either when using a loupe or viewing on the DSLR screen
- Allows quick reassembly via an intelligent memory setting that stores the rotation angle of the CS-151 Clamp bearing corresponding to the slot of the CS-15 Rod
- Integrates dual CS-H2 telescopic handgrips that provide a stable grip and full control over the rig during shooting
- Allows customization via a modular design that incorporates individual Cambo video components
- CSMFC-2 Follow Focus
-
- Attaches directly to the 15mm lightweight support via a quick-lock clamp
- Supports any lens with a 40 to 500mm diameter focus barrel
- Allows rotation direction reversal to accommodate the inverse focus direction of DSLR lens
- CS-M100 Matte Box
-
- Integrates an adjustable design that provides optimum shading for any focal length
- Attaches directly to the bar system at the front of the lens
- Supports wide angle lenses with 4:3 and 16:9 aspect ratios
- Features a wide design that eliminates unnecessary vignettes
In the Box Cambo Eris Fully Adjustable DSLR Support Kit CS-M1 Compact Camera / Tripod Mount 2 x CS-H2 Telescopic Handgrips 2 x CS-151 Rod Clamp (15mm, Perpendicular) 2 x CS-153 Rod Clamp Triple Dual/Perpendicular (15mm) CS-P1 Ergonomic Adjustable Shoulder Pad CS-1509 Iris Rod (3.5", 90mm) 2 x CS-1512 Iris Rod (5", 120mm) 2 x CS-1522 Iris Rod (10", 250mm) CSMFC-2 Follow Focus Kit Matte Box Flexible Hood Limited 6-month Warranty User Manual PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo Eris Fully Adjustable DSLR Support Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambo CS-BS-ERIS Specs | Compatibility | CSMFC-2 Follow Focus
CS-M100 Matte Box | | Follow Focus | 40 to 100 mm diameter focus barrel support | | Matte Box | Aspect Ratio: 4:3 and 16:9
Weight: 0.81 lb / 0.37 kg | | | | Package Weight | 7.8 lb | | Box Dimensions (LxWxH) | 18.5 x 15.5 x 5.0" |
