User Manual for Cambo PCH Precision Controlled Geared Head Click to enlarge the picture
Contents of the user manual for the Cambo PCH Precision Controlled Geared Head
- Product category: Tripod Heads Cambo
- Brand: Cambo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cambo Tripod Heads
|
User manual for the Cambo PCH Precision Controlled Geared Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cambo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cambo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cambo product will considerably shorten its lifespan!
|

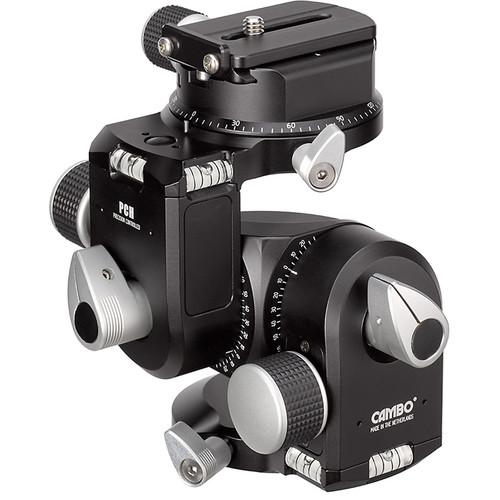

Product description The PCH Precision Controlled Geared Head from Cambo is a 2.7 lb Arca-type head that has a load capacity of 8.8 lb. Each individual movement has its own locking knob, which allows manual movement when unlocked. The tilt (X-axis) has a lateral tilt of -30° and +110°, which can be moved accurately via the geared knob; and the pivot (Y-axis) can be moved with the same geared accuracy. At the same time, the geared knobs do not move because the gears are self-locking, and all the axes, including the panning Z-axis, rotate over the same point. The 5.1"-tall head can rotate a full 360° at the base, and at the top you will find a secondary rotating base for panoramas. Two spirit levels at the bottom, and two at the top ensure that the head is level when you are photographing a panorama or a virtual reality image. - The geared head has a load capacity of 8.8 lb, a maximum height of 5.1", and a weight of 2.7 lb
- Geared and manual movements on the X-axis with a lateral-tilt of -30° and +110°
- Geared and manual movements on the Y-axis with a pivot of -30° and +110°
- Full 360° panning at the base and at the top of the head for panoramas
- Precise and self-locking geared movements, and all axes rotate over the same point
- Arca-type compatible clamp and four large spirit levels located on the head
In the Box Cambo PCH Precision Controlled Geared Head Quick Release Plate Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo PCH Precision Controlled Geared Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambo 99121810 Specs | Load Capacity | 8.8 lb / 4 kg | | Quick Release | Arca-type | | Spirit Level | 4 | | Tension Control | Yes | | Separate Panning Lock | Yes | | Tripod Mount Thread Size | 1/4"-20 and 3/8"-16 | | Height | 5.1" / 13 cm | | Maximum Diameter | 4.3" / 10.9 cm | | Weight | 2.7 lb / 1.2 kg | | | | Package Weight | 3.355 lb | | Box Dimensions (LxWxH) | 9.05 x 7.4 x 5.15" |
