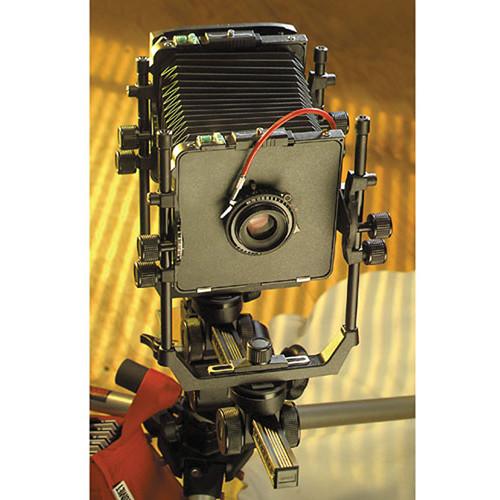

User Manual for Cambo SC-2 Basic 4 x 5" Monorail View Camera Click to enlarge the picture
Contents of the user manual for the Cambo SC-2 Basic 4 x 5"
- Product category: Large Format Cameras Cambo
- Brand: Cambo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cambo Large Format Cameras
|
User manual for the Cambo SC-2 Basic 4 x 5" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cambo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cambo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cambo product will considerably shorten its lifespan!
|
Product description Traditional yet versatile, Cambo's SC-2 Basic is a 4 x 5" monorail-style view camera that affords a full range of camera movements along with a simple interface for precise control. Based upon a 21.3"-long indexed monorail, this camera includes a standard length bellows, with a maximum draw of 18.9", to accommodate working with a variety of focal lengths and subject types. 4.7" of rise and fall, 2" of shift, and 30° of tilt and swing enable an extensive amount of perspective and focus correction, which is aided by dual-axis spirit levels on both the front and rear standards. Each of the movements are set upon zero-reference scales for repeatable precision, and large, knurled locking knobs and a friction focusing mechanism further contribute to intuitive handling. Reminiscent of historical 4 x 5" view cameras, but refined for greater accessibility and precision, the SC-2 Basic is a straight-forward camera well-suited for both studio and field applications.
Complementing the range of movements and controls afforded by the simple interface is a robust construction comprising of an all-metal monorail, standards, and controls. The SC-2 Basic includes both the C-6 Standard Bellows as well as the C-168 International 4 x 5" Ground Glass Back, which features a rotating design and accepts all Graflok-type accessories. Additionally, this camera fits within a modular system of a variety of accessories, which enable you to pair optional components, such as extended bellows, monorails, and more, to better suit different individual shooting applications. - Conventional 4 x 5" monorail view camera affords a full range of camera movements for precise control of focusing and perspective movements.
- Set on a 21.3"-long monorail, the included standard length bellows permits working with an array of different focal lengths, subject sizes, and working distances.
- Both front and rear standards have full rise/fall, lateral shift, tilt, and swing movements, each of which is complemented by zero-reference scales for repeatable accuracy.
- Both standards incorporate independent dual-axis spirit levels for maintaining consistently level horizons and plumb verticals.
- A quick release mounting block is fitted to the monorail and permits easy attachment to tripods.
- The monorail, both standards, and all camera controls are constructed from metal for enhanced durability and accuracy.
- A friction focusing method enables fast focus setting and large, knurled locking rings enable precise tuning and setting of camera movements.
- The C-6 Normal Bellows and C-168 International 4 x 5" Ground Glass Back are both included. Additionally, the SC-2 Basic is designed within a modular system and is compatible with a wide array of other optional accessories.
In the Box Cambo SC-2 Basic 4 x 5" Monorail View Camera C-6 Standard Bellows for Ultima 45 Camera C-168 International 4 x 5" Ground Glass Back Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo SC-2 Basic 4 x 5" Monorail View Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambo SC-2 Specs | Camera Type | 4 x 5" monorail view camera | | Monorail Length | 21.3" / 54 cm | | Bellows Extension | Minimum: 1.8" / 4.6 cm
Maximum: 18.9" / 48 cm | | Focus Type | Friction | | Camera Movements | Rise/Fall: 4.7" / 12 cm
Lateral Shift: 2" / 5 cm
Swing: +/- 30°
Tilt: +/- 30° | | Film Back | 360° revolving Graflok-type | | Dimensions | Not specified by manufacturer | | Weight | 8.8 lb / 4 kg | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 24.2 x 20.1 x 7.2" |
