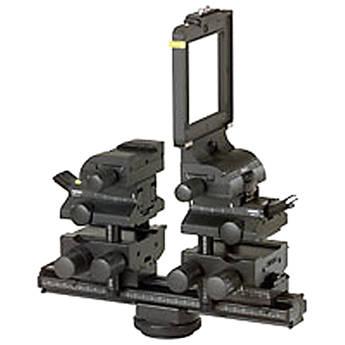

User Manual for Cambo Ultima 35 View Camera Click to enlarge the picture
Contents of the user manual for the Cambo Ultima 35 View Camera
- Product category: View Camera Bodies Cambo
- Brand: Cambo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cambo View Camera Bodies
|
User manual for the Cambo Ultima 35 View Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cambo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cambo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cambo product will considerably shorten its lifespan!
|
Product description Residing within an extensively modular system, the Cambo Ultima 35 is a view camera base dedicated to use with DSLR cameras. Through the use of optional camera-dedicated mounting blocks and bellows, this camera enables the use of perspective control movements to gain greater control over focus, depth of field, and perspective corrections with a DSLR. Based upon the same foundation system as Ultima large format cameras, the Ultima 35 features an 11.8"-long monorail along with a front standard capable of accepting both medium format and large format lenses. The foundation itself provides a full system of geared movements, including yaw-free variable-axis tilt and swing to enable quick setup with a minimized need for re-composing or re-focusing. The design of the camera also incorporates zero-position detents, dual-range focusing, and clearly demarcated focusing, depth of field, and movement scales to further contribute to an intuitive and fast working method. Constructed from aluminum alloy, yet taking on a portable form factor, the Ultima 35 is at home in both the studio as well as on location. - Camera Movements
- Both front and rear blocks offer a full range of camera movements:
- Tilt: +/- 20°
- Swing: +/- 30°
- Rise/Fall: +/- 20mm
- Shift: +/- 25mm
- Camera Features
-
- The Ultima system is comprised of a rigid base structure, monorail, and tripod mounting block, along with highly configurable front and rear blocks, for ensured precision and extensive control.
- Geared rise/fall, lateral shift, swing, and tilt movements offer a high degree of precision and self-locking swing and tilt mechanisms ensure greater stability.
- Benefitting working with a variety of sensor sizes, variable focal plane control permits adjusting of tilt and swing axis points to match the different sensor sizes of various digital backs.
- The front standard incorporates a safety lock to prevent accidental opening in order to protect lenses.
- Dual-range focusing control offers both coarse and fine-tuned focusing methods for greater control.
- The rear block incorporates a depth of field scale for quickly checking where the field of focus begins and ends without having to stop-down the lens prior to exposure.
- Utilizing a virtual pivot design, yaw-free variable-axis tilts and swings can be utilized for easier and faster composition and focusing when employing movements.
- A symmetrical design on both blocks, along with zero-position detents, help to expedite setting up and positioning the camera.
- The front standard incorporates a spirit level for maintaining consistently level horizons and plumb verticals.
- An 11.8"-long monorail pairs with optional camera-dedicated bellows for working with large or medium format lenses of a variety of focal lengths.
- An aluminum alloy body construction is both durable and portable for use in the studio as well as on location.
- Modular System and Digital Interface Options
- Designed within a modular system, the Ultima 35 utilizes the central components of all Ultima-series cameras and distinguishes itself through the ability to accept a wide variety of camera mounting blocks and vertical brackets. Lens-mount-dedicated bellows are available for a variety of DSLR types, and the bellows are compatible with lens boards for both medium format and large format lenses. The camera's live view can be used for real-time image composition and focus checking.
This camera is comprised of the Ultima base foundation, an 11.8"-long monorail, the front standard, rear block, and a tripod mounting block. In the Box Cambo Ultima 35 View Camera Front Standard Rear Block Tripod Mounting Block Monorail Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo Ultima 35 View Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambo Ultima-35 Specs | Camera Type | Monorail view camera designed for use with DSLR cameras | | Monorail Length | 11.8" / 30 cm | | Bellows Extension | Maximum: 7.9" / 20 cm with optional camera-dedicated bellows | | Focus Type | Dual-range (coarse and fine) geared movement | | Dimensions | Not specified by manufacturer | | Weight | 11 lb / 5 kg |
