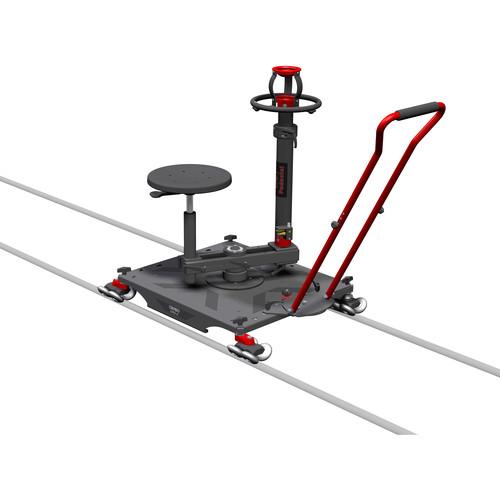

User Manual for Cambo VPD-4 Multipurpose 4-Wheel Dolly Kit with Flight Case Click to enlarge the picture
Contents of the user manual for the Cambo VPD-4 Multipurpose 4-Wheel Dolly Kit
- Product category: Platform Dolly Systems Cambo
- Brand: Cambo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cambo Platform Dolly Systems
|
User manual for the Cambo VPD-4 Multipurpose 4-Wheel Dolly Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cambo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cambo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cambo product will considerably shorten its lifespan!
|
Product description The VPD-4 Multipurpose 4-Wheel Dolly Kit from Cambo can be used as either an on or off-track dolly by just changing the wheels. The VPD-4 Dolly includes a detachable rotating seat, and the specially designed track wheels deliver good performance on any universal 24.4" track. This kit consists of the VPD-44 Platform, VPD-33 Push Bar, VPD-55 Rotating Seat Unit, VPD-77 Tracking Wheel Set, and VPS-1 Pneumatic Pedestal. For storing and transporting the dolly, the kit includes the Cambo VPD-444 Flight Case, which is a heavy-duty case with roller wheels and two carrying handles. - 99132970 VPD-4 Multipurpose 4 Wheel Dolly Kit The Cambo VPD-4 Multipurpose 4 Wheel Dolly Kit is a high-quality system that can be used as an on-track or off-track dolly just by changing the wheels. The VPD-4 Dolly System includes a detachable rotating seat. The specially designed track wheels deliver excellent performance on any universal 24.4" (62 cm) track. This kit consists of the VPD-44 Platform, VPD-33 Push Bar, VPD-55 Rotating Seat-Unit, VPD-77 Tracking Wheel Set, and VPS-1 Pneumatic Pedestal.
- Seat adjustable in height and distance to pedestal
- Low-friction rotating unit with locking lever
- Interchangeable wheel sets for different applications
- Tracking wheels designed for universal 24.4" (62 cm) tracks
- VPD-444 Flightcase for VPD-4 Dolly System The Cambo VPD-444 Flightcase for VPD-4 Dolly System is a heavy-duty transport case for the VPD-4, featuring roller wheels and two carrying handles.
In the Box Bundle Items 99132970 VPD-4 Multipurpose 4 Wheel Dolly Kit xecwufebrxatzcsqcvtteedf - VPD-44 Platform for VPD-4 Dolly System
- VPD-55 Rotating Seat Unit
- VPD-77 On-Track Wheel Set
VPD-444 Flightcase for VPD-4 Dolly System Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo VPD-4 Multipurpose 4-Wheel Dolly Kit with Flight Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 99132970 VPD-4 Multipurpose 4 Wheel Dolly Kit
| Height | Seat: 16.92 to 24" (43 to 61 cm) | | Width | Track width: 24.4" (62 cm) | | Load Capacity | 462.97 lb (210 kg) | | Total Weight | 79.36 lb (36 kg) | | | | Dimensions | 30.7 x 27.16" (780 x 690 mm) | | Height | 4.92" (125 mm) | | Weight | 24.25 lb (11 Kg) | | | | Grip Width | 13.77" (350 mm) | | Bar Length | 40.55" (1030 mm) | | Collapsed Size | 22.04 x 13.77 x 3.14" (560 x 350 x 80 mm) | | Weight | 6.61 lb (3 Kg) | | | | Height | Minimum: 16.92" (430 mm) above platform
Maximum: 24.21" (615 mm) above platform | | Diameter | Seat: 14.17" (360 mm) | | Weight | 22.04 lb (10 kg) | | | | Wheel Diameter | 2.99" (76 mm) | | Weight | 11 lb (5 kg) | | | | Bowl Diameter | 3.93" (100 mm) | | Maximum Load | 66.13 lb (30 kg) | | Length | Maximum length: 40.94" (1040 mm)
Minimum length: 27.16" (690 mm) | | Vertical Reach | 31.88 to 45.66" (81 to 116 cm) when mounted on a Cambo VPD-9 Pedestal | | Weight | 11 lb (5 kg) | | | | Box Dimensions (LxWxH) | 34.0 x 29.5 x 23.0" | - VPD-444 Flightcase for VPD-4 Dolly System
| | | Box Dimensions (LxWxH) | 38.0 x 29.0 x 29.0" |
