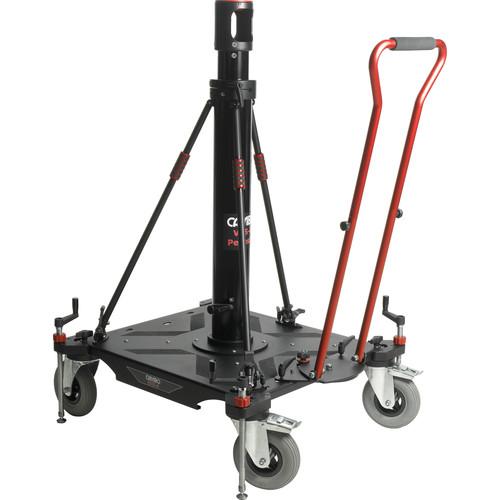

Product description The Cambo VPHD-KIT Heavy Duty Pedestal Kit combines all the components necessary to support optional cranes weighing up to 440 lb. The included Floor Fixation Kit will allow you to fix the dolly to the ground and securely maneuver your crane.
The Dolly Platform measures approximately 31" x 27". With the Floor Fixation Kit attached, the center column of the Heavy Duty Pedestal is height-adjustable from 50" to 71" above the ground. The Pedestal features three spider legs and a 100mm bowl. The Off-Track Wheel Set includes two swiveling wheels and pneumatic tires on all four wheels. - VPS-4 Heavy Duty Pedestal The Cambo VPS-4 Heavy Duty Pedestal mounts on Cambo's VPD-4 Dolly and allows you to attach large and heavy cranes. The dolly and pedestal together support loads up to 440 lb. The pedestal center column is height-adjustable from 50" to 71" above the ground when the dolly is outfitted with pneumatic tires. The VPD-4 Dolly is sold separately.
- Additional Features
-
- 100mm bowl
- Three spider legs
- Height-adjustable via a geared mechanism
VPD-44 Platform for VPD-4 Dolly System The Cambo VPD-44 Platform is the base platform of the VPD-4 Dolly System. VPD-33 Push Bar The Cambo VPD-33 Push Bar is designed for the VPD-4 Dolly System. It can easily be mounted to the platform with 2 handles and offers 3-dimensional movement. For storage and transport purposes, the long bars can be split in 2 sections. VPD-78 Off-Track Wheel Set The Cambo VPD-78 Off-Track Wheel Set is designed for use with the VPD-4 Dolly System. Each corner of the VPD-44 Platform runs on a pneumatic tire; 2 of these tires swivel. VPD-75 Floor Fixation Kit for VPD-4 Dolly System The Cambo VPD-75 Floor Fixation Kit for VPD-4 Dolly System is a set of four leveling assemblies that attach to the corners of the VPD-4 platform to fix the dolly to the ground for use with the VPS-4 Pedestal. The assemblies consist of brackets, bars, and handles. The brackets attach to the platforms using included screws, and the bars and handles make up the levelers. The levelers can easily be pulled up to allow the dolly to be moved. In the Box Bundle Items VPS-4 Heavy Duty Pedestal yvwwzsssceftvxcuqcubdcqszxz VPD-44 Platform for VPD-4 Dolly System VPD-33 Push Bar VPD-78 Off-Track Wheel Set VPD-75 Floor Fixation Kit for VPD-4 Dolly System - 4 x Sets of Mounting Brackets, Leveling Bars, and Handles
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo VPHD-KIT Heavy Duty Pedestal Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - VPS-4 Heavy Duty Pedestal
| Height Adjustment | 50-71" (128-182 cm) above the ground when the dolly is outfitted with pneumatic tires | | Payload | Pedestal and dolly together support up to 440 lb (200 kg) | | Bowl Diameter | 100 mm | - VPD-44 Platform for VPD-4 Dolly System
| Size | 30.70 x 27.16" (77.98 x 69.00 cm) | | Height | 4.92" (12.50 cm) | | Weight | 24.25 lb (11.00 kg) | - VPD-33 Push Bar
| Grip Width | 13.77" (350 mm) | | Bar Length | 40.55" (1030 mm) | | Collapsed Size | 22.04 x 13.77 x 3.14" (560 x 350 x 80 mm) | | Weight | 6.61 lb (3 Kg) | - VPD-78 Off-Track Wheel Set
| Wheel Diameter | 7.87" (200 mm) | | Weight | Set: 22 lb (10 kg) | | | | Box Dimensions (LxWxH) | 13.3 x 10.6 x 9.8" | - VPD-75 Floor Fixation Kit for VPD-4 Dolly System
| Total Weight | 13 lb (6 kg) |
