Product description

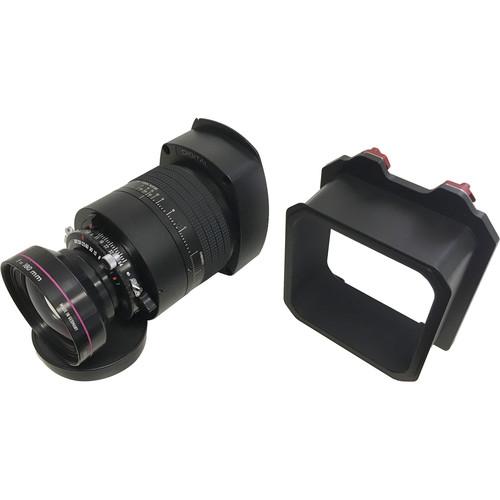

WDS-180L Lens Panel
• The dedicated WDS-180L Lens Panel enables the attachment of the included 180mm f/5.6 lens to Cambo WDS and WRS camera systems along with a medium format digital back. This lens panel features a unique split design that reduces the thickness of the lens plate and pairs it with a rear extension unit in order to allow for greater amounts of shift movement without vignetting from the lens barrel.

Movements
• Optical Movements:

  • 37 x 37mm sensor size: 17mm/17mm
  • 33 x 44mm sensor size: 17mm/14mm
  • 36 x 48mm sensor size: 14mm/12mm
  • 37 x 49mm sensor size: 13mm/11mm
  • 40 x 54mm sensor size: 9mm/8mm
  • 36 x 56mm sensor size: 13mm/7mm

  Camera Movements:

  • WDS: 34mm up, 26mm down, 20mm left and right
  • WRS: 25mm up, 15mm down, 20mm left and right

Rodenstock HR Digaron-S 180mm f/5.6 Lens
• • High-resolution lens specifically designed for use with digital backs featuring image sensors as large as 40 x 54mm.
  • Produces extremely fine, uniform 80mm image circle with a 25° angle of coverage.
  • Taking into account the optical effect of sensors' cover glass, the optical design of this lens has been developed to nearly eliminate chromatic and spherical aberrations, as well as astigmatism.
  • Ideal working aperture range of f/5.6 to f/8.
  • Copal #0 shutter affords a range of shutter speeds from 1 sec up to 1/500 sec, as well as bulb and time settings.
  • Helical focusing mount enables critical manual focusing on subjects as close as 5.6' away.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Cambo 99163180 Specs

Focal Length	180mm
Maximum Aperture	f/5.6
Minimum Aperture	f/45
Image Circle	80mm at f/11
Image Angle	25 Rating 100% users recommend this product to others. And what about you? This product has already been rated by 95 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
