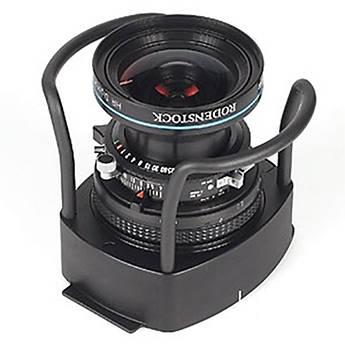

Product description The Cambo WDS-557 Lens Panel is dedicated for use with the included Rodenstock HR Digaron-W 50mm f/4 lens, and facilitates the attachment of the lens to Cambo WDS- and WRS-series cameras for working with a digital back. Cambo has modified this Rodenstock lens, set in a Copal #0 shutter, by mounting it within a helical focusing mount and attaching to the dedicated lens panel. This combination permits a minimum focusing distance of 1.8' along with a range of perspective control movements dependent on differently-sized digital backs. - Lens Panel
- The dedicated WDS-557 Lens Panel enables the attachment of the included 50mm f/4 lens to Cambo WDS and WRS camera systems along with a medium format digital back.
- Movements
- Optical Movements:
- 37 x 37mm sensor size: 23mm/23mm
- 33 x 44mm sensor size: 23mm/20mm
- 36 x 48mm sensor size: 20mm/17mm
- 37 x 49mm sensor size: 19mm/17mm
- 40 x 54mm sensor size: 15mm/13mm
- 36 x 56mm sensor size: 17mm/13mm
Camera Movements:
- WRS: 34mm up, 26mm down, 20mm left and right
- WDS: 25mm up, 15mm down, 20mm left and right
- Rodenstock HR Digaron-W 50mm f/4 Lens
-
- High resolution lens specifically designed for use with digital backs featuring image sensors as large as 40 x 54mm.
- Produces extremely fine, uniform 90mm image circle with an 84° angle of coverage.
- Taking into account the optical effect of sensors' cover glass, the optical design of this lens has been developed to nearly eliminate chromatic and spherical aberrations, as well as astigmatism.
- Ideal working aperture range of f/5.6 to f/8.
- Copal #0 shutter affords a range of shutter speeds up to 1/500 sec., as well as bulb and time settings.
- Helical focusing mount enables critical manual focusing on subjects as close as 1.8' away.
In the Box Cambo WDS-557 Lens Panel with Rodenstock HR Digaron-W 50mm f/4 Lens Rodenstock HR Digaron-W 50mm f/4 Lens Front and Rear Caps Lens Protection Bars Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo WDS-557 Lens Panel with Rodenstock HR Digaron-W 50mm f 4 Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambo WDS-557 Specs | Focal Length | 50mm | | Maximum Aperture | f/4 | | Minimum Aperture | f/32 | | Image Circle | 90mm at f/8 | | Image Angle | 84
