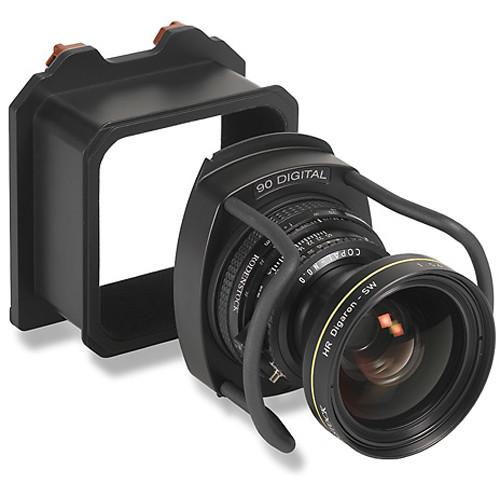

User Manual for Cambo WDS-572 Lens Panel with Rodenstock HR Digaron-SW 90mm f 5.6 Lens Click to enlarge the picture
Contents of the user manual for the Cambo WDS-572 Lens Panel with Rodenstock
- Product category: Large Format Lenses Cambo
- Brand: Cambo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cambo Large Format Lenses
|
User manual for the Cambo WDS-572 Lens Panel with Rodenstock contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cambo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cambo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cambo product will considerably shorten its lifespan!
|
Product description Dedicated to use with the included Rodenstock HR Digaron-SW 90mm f/5.6 lens, the WDS-572 Lens Panel facilitates the attachment of the lens to Cambo WDS- and WRS-series cameras. This lens panel has a unique split back, short barrel design to prevent vignetting, and the lens has also been mounted in a helical focusing system for working with subjects as close as 4.1' away. This design permits its use on technical view cameras in conjunction with a variety of perspective control movements and various sized digital backs. - WDS-572 Lens Panel
- The dedicated WDS-572 Lens Panel enables the attachment of the included 90mm f/5.6 lens to Cambo WDS and WRS camera systems along with a medium format digital back. This lens panel features a unique split design that reduces the thickness of the lens plate and pairs it with a rear extension unit in order to allow for greater amounts of shift movement without vignetting from the lens barrel.
- Movements
- Optical Movements:
- 37 x 37mm sensor size: 33mm/33mm
- 33 x 44mm sensor size: 29mm/26mm
- 36 x 48mm sensor size: 26mm/23mm
- 37 x 49mm sensor size: 25mm/22mm
- 40 x 54mm sensor size: 23mm/21mm
- 36 x 56mm sensor size: 25mm/21mm
Camera Movements:
- WRS: 34mm up, 26mm down, 20mm left and right
- WDS: 25mm up, 15mm down, 20mm left and right
- Rodenstock HR Digaron-SW 90mm f/5.6 Lens
-
- High resolution lens specifically designed for use with digital backs featuring image sensors as large as 40 x 54mm.
- Produces extremely fine, uniform 120mm image circle with a 67° angle of coverage.
- Taking into account the optical effect of sensors' cover glass, the optical design of this lens has been developed to nearly eliminate chromatic and spherical aberrations, as well as astigmatism.
- Ideal working aperture range of f/5.6 to f/11.
- Copal #0 shutter affords a range of shutter speeds from 1 sec up to 1/500 sec, as well as bulb and time settings.
- Helical focusing mount enables critical manual focusing on subjects as close as 4.1' away.
In the Box Cambo WDS-572 Lens Panel with Rodenstock HR Digaron-SW 90mm f/5.6 Lens Rodenstock HR Digaron-SW 90mm f/5.6 Lens Front and Rear Caps Lens Protection Bars Limited 1-Year Warranty, Extendable to 2 Years with Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo WDS-572 Lens Panel with Rodenstock HR Digaron-SW 90mm f 5.6 Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambo Wide-DS Specs | Focal Length | 90mm | | Maximum Aperture | f/5.6 | | Minimum Aperture | f/45 | | Image Circle | 120mm at f/11 | | Image Angle | 67
