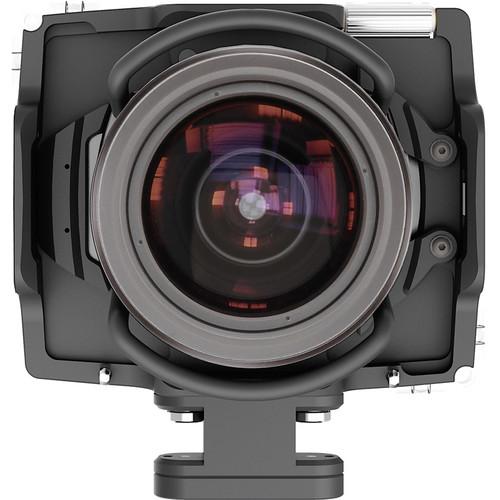

User Manual for Cambo WRC-400 Technical Camera Click to enlarge the picture
Contents of the user manual for the Cambo WRC-400 Technical Camera
- Product category: View Camera Bodies Cambo
- Brand: Cambo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cambo View Camera Bodies
|
User manual for the Cambo WRC-400 Technical Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cambo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cambo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cambo product will considerably shorten its lifespan!
|
Product description Characterized by its sleek form factor, the Wide Compact WRC-400 from Cambo is a technical view camera designed for use with WTS/WDS lens panels as well as SLW rear digital back interface adapters. While portability is the main asset of this camera, it also retains several functions of the larger Wide-series of cameras, including geared shift on one axis, six built-in spirit levels, and accessory mounts on all four sides for mounting optional handgrips, viewfinders, a compendium shade, or an iPhone holder. A removable tripod mount is also included, which incorporates both a 3/8"-16 and 1/4"-20 mounts for versatility. Blending small size with functionality, this camera offers both the opportunity to use perspective control movements along with a portable form factor for travel and location use. - Camera Movements
- Up to +/- 20mm of rise/fall or shift is possible depending on the orientation of the camera.
This single axis movement is controlled via an accelerated gear drive and an index scale in millimeters is printed on the side of the camera for precise, repeatable movements. By limiting the movement range to a single axis, the overall camera weight and size can be reduced compared to other Wide-series cameras.
Additionally, the Wide Compact is also compatible with WTS lens panels to gain tilt and swing adjustment on the lens plane for more control over focus and depth of field. - Camera Features
-
- Compact, lightweight body is constructed from aluminum alloy.
- All four sides of the camera body support the Wide accessory system, allowing for the attachment of one or two optional handgrips, an optical viewfinder, an iPhone holder, or a compendium shade. The included tripod mount can also be re-positioned on any of the four sides for shooting and mounting versatility.
- Six built-in spirit levels are featured to help achieve level images regardless of the shooting orientation.
- Removable cable release is included.
- Compatible with SLW rear interface places for working with a range of digital back types. Also compatible with the WRS-1068 Roll Film Adapter for working with a Mamiya RB67 roll film back.
- Supports both WTS and WDS lens plate types.
In the Box Cambo WRC-400 Technical Camera Tripod Mount Cable Release Limited 1-Year Warranty, Extendable to 2 Years with Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo WRC-400 Technical Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambo WRC-400 Specs | Camera Type | Technical view camera | | Lens Mount | Compatible with WTS and WDS lens panels | | Compatible Digital/Film Backs | Compatible with SLW-type interface adapters for digital back use
Compatible with WRS-1068 Roll Film Adapter for Mamiya RB67 film back use | | Focusing System | Lens-based helical | | Mounting | Removable mount with 1/4"-20 and 3/8"-16 mounts | | Dimensions | 4.9 x 5.7 x 1.8" / 125 x 145 x 45 mm | | Weight | 1.2 lb / 540 g | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 10.2 x 8.0 x 6.4" |
