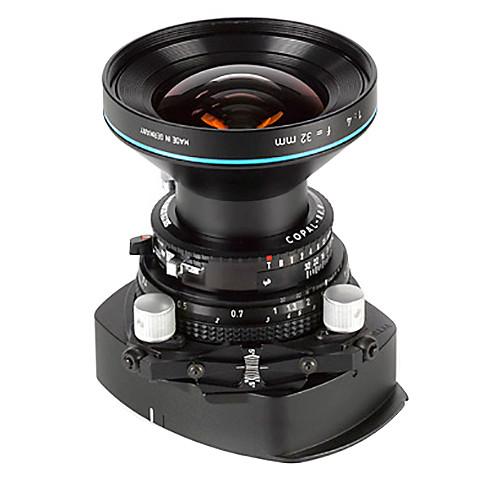

Product description The Cambo WTS-832 Tilt-Swing Lens Panel is dedicated for use with the included Rodenstock HR Digaron-W 32mm f/4 lens, and facilitates the attachment of the lens to Cambo WDS- and WRS-series cameras for working with a digital back. This tilt-swing panel incorporates geared tilt and swing mechanisms to offer +/- 5° of movement in both directions for increased control over perspective distortions and focus. Cambo has modified this Rodenstock lens, set in a Copal #0 shutter, by mounting it within a helical focusing mount and attaching it to the dedicated tilt-swing lens panel. This combination permits a minimum focusing distance of 1.3' along with a range of integrated perspective control movements dependent on differently-sized digital backs. - Lens Panel
- The dedicated WTS-832 Tilt-Swing Lens Panel enables the attachment of the included 32mm f/4 lens to Cambo WDS and WRS camera systems along with a medium format digital back.
- Movements
- Lens Panel Movements:
- The panel incorporates knob-driven, geared mechanisms for +/-5° of both tilt and swing movements. Both of these movements can be controlled independently, or together, and the center rotation is close to the optical axis in order to avoid unintentional image shifts. On the side of the panel are index scales for repeatable performance along with a hard zero stop for quickly returning to parallel positioning.
Optical Movements:
- 37 x 37mm sensor size: 23mm/23mm
- 33 x 44mm sensor size: 23mm/20mm
- 36 x 48mm sensor size: 20mm/17mm
- 37 x 49mm sensor size: 19mm/17mm
- 40 x 54mm sensor size: 15mm/13mm
- 36 x 56mm sensor size: 17mm/13mm
Camera Movements:
- WRS: 34mm up, 26mm down, 20mm left and right
- WDS: 25mm up, 15mm down, 20mm left and right
- Rodenstock HR Digaron-W 32mm f/4 Lens
-
- High resolution lens specifically designed for use with digital backs featuring image sensors as large as 40 x 54mm.
- Produces extremely fine, uniform 90mm image circle with a 107° angle of coverage.
- A retro-focus design is employed to produce a steeper angle of incidence for more consistent edge-to-edge illumination.
- Taking into account the optical effect of sensors' cover glass, the optical design of this lens has been developed to nearly eliminate chromatic and spherical aberrations, as well as astigmatism.
- A multi-coating has been applied to lens elements to suppress lens flare and ghosting for increased contrast and color neutrality. Ideal working aperture range of f/5.6 to f/8.
- Copal #0 shutter affords a range of shutter speeds up to 1/500 sec., as well as bulb and time settings.
- Helical focusing mount enables critical manual focusing on subjects as close as 1.3' away.
In the Box Cambo WTS-832 Tilt-Swing Lens Panel with Rodenstock HR Digaron-W 32mm f/4 Lens Rodenstock HR Digaron-W 32mm f/4 Lens Front and Rear Caps Lens Protection Bars Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambo WTS-832 Tilt-Swing Lens Panel with Rodenstock HR Digaron-W 32mm f 4 Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambo WTS-832 Specs | Focal Length | 32 mm | | Aperture | f/4 - 32 | | Covering Power | 107° | | Flange Focal Distance | 69.2 mm | | Image Circle | 90 mm @ f/8 | | Shutter | Copal #0 | | Shutter Speeds | 1 / 500 to 1 second B, T | | Slip-On Cap Size | Front: 90 mm | | Filter Thread | Front: 86 mm | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 10.1 x 7.8 x 6.5" |
