User Manual for Cambridge Audio CXA60 Stereo 120W Integrated Amplifier Click to enlarge the picture
Contents of the user manual for the Cambridge Audio CXA60 Stereo 120W Integrated
- Product category: Amplifiers Cambridge Audio
- Brand: Cambridge Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cambridge Audio Amplifiers
|
User manual for the Cambridge Audio CXA60 Stereo 120W Integrated contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cambridge Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cambridge Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cambridge Audio product will considerably shorten its lifespan!
|

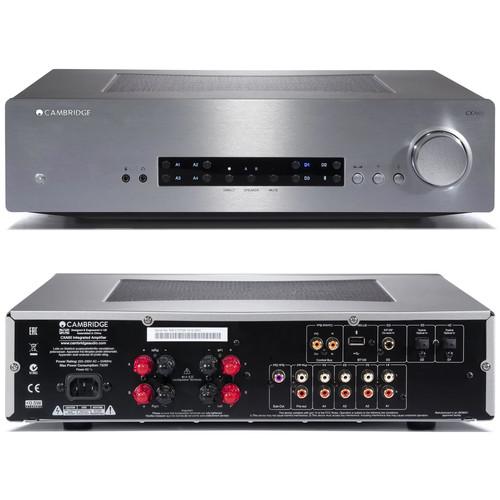

Product description Enjoy stereo sound with your favorite pair of speakers and the silver Cambridge Audio CXA60 Stereo 120W Integrated Amplifier. It outputs up to 60W per channel at 8 Ohms and features a chassis designed for resonance control. Four stereo RCA inputs let you connect analog devices, and the digital coaxial and two optical inputs allow you to connect your favorite digital sources. The CXA60 includes a remote control as an added convenience. -
- Designed to produce musical, energetic sound
- Centrally mounted low-flux toroidal transformer for reduced interference and distortion
- ALPs film-type volume potentiometer for accurate, controlled volume and balance
- 24-bit Wolfson WM8740 DAC for enhanced highs and lows
- Separate heat sinks for the left and right channel and symmetrical separate circuit paths help ensure augmented stereo separation with minimal cross-channel interference
- CAP5 protection technology
- Switchable A and B speaker outputs
- Metal casework with brushed-aluminum front panel and acoustically damped metal chassis for enhanced resonance control
- Supports the optional BT100 Bluetooth receiver
UPC: 813371023741 In the Box Cambridge Audio CXA60 Stereo 120W Integrated Amplifier (Silver) Remote Control AC Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambridge Audio CXA60 Stereo 120W Integrated Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambridge Audio CXA60 Specs | | | Configuration | Stereo | | A/B | A, B, A+B | | Power Output | Up to 60 W per channel RMS @ 8 Ohms
Up to 90 W per channel RMS @ 4 Ohms | | Total Harmonic Distortion | <0.02%, 20 Hz to 20 kHz, 80% of rated power, unweighted
<0.0002%, 1 kHz, 80% of rated power, unweighted | | Frequency Response | 5 Hz to 60 kHz, ±1 dB | | | | Analog Inputs | 4 x stereo RCA
1 x 1/8" / 3.5 mm aux (front) | | Digital Inputs | 2 x optical TOSLINK
1 x digital coaxial | | Outputs | 1 x stereo RCA
1 x 1/8" / 3.5 mm headphone (front) | | Speaker Connectors | 4 x binding post pairs | | Other Connectors | 1 x RCA subwoofer out
1 x RCA control bus in
1 x RCA control bus out
1 x USB Type-A for optional BT100 Bluetooth module | | | | Power Requirements | Not specified by manufacturer | | Power Consumption (Maximum) | 600 W | | Power Consumption (Standby) | <0.5 W | | Dimensions (W x H x D) | 16.9 x 4.5 x 13.4" / 430 x 115 x 341 mm | | Weight | 18.3 lb / 8.3 kg | | | | Package Weight | 22.185 lb | | Box Dimensions (LxWxH) | 20.9 x 16.2 x 7.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
