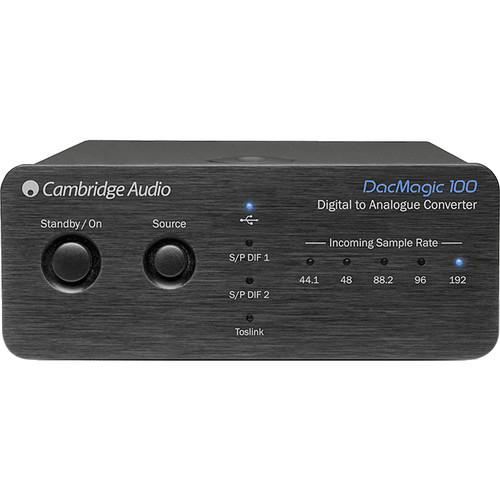

User Manual for Cambridge Audio DacMagic 100 Digital-to-Analog Audio Converter Click to enlarge the picture
Contents of the user manual for the Cambridge Audio DacMagic 100 Digital-to-Analog Audio
- Product category: DACs Cambridge Audio
- Brand: Cambridge Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cambridge Audio DACs
|
User manual for the Cambridge Audio DacMagic 100 Digital-to-Analog Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cambridge Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cambridge Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cambridge Audio product will considerably shorten its lifespan!
|
Product description The silver Cambridge Audio DacMagic 100 Digital-to-Analog Audio Converter offers high-fidelity playback for digital audio signals from your computer, TV, and other devices, so you can enjoy the most out of your sound system. It employs a Wolfson WM8742 24-bit chip and asynchronous USB transfer technology to reduce digital jitter and distortion, allowing you to stream 24-bit / 192 kHz audio from your Windows or Mac computer with a clear and natural sound, and extended bass.In addition to the USB digital audio input, the DacMagic 100 is equipped with two S/PDIF coaxial inputs and one TOSLINK optical input, which enable you to connect up to four devices simultaneously. A pair of gold-plated RCA phono connectors provides analog outputs to your power amp or powered speakers.The DacMagic 100 features a full-metal enclosure and a thick, brushed-aluminum front plate. It ships with a USB cable, power adapter, US/UK/EU power plugs, and four rubber feet. - Key Features
-
- Accepts digital audio signals from your computer, TV, and other devices
- Connect up to four devices simultaneously
- Wolfson WM8742 24-bit digital-to-analog converter
- Asynchronous USB transfer for low jitter
- Supports digital music in virtually all formats
- Three 24-bit digital inputs—2 x S/PDIF coaxial and 1 x TOSLINK optical
- USB audio input—compatible with Mac and Windows computers
- Unbalanced RCA stereo audio outputs
- 24-bit / 96 kHz driverless USB Audio 1.0 input
- 24-bit / 192 kHz USB Audio 2.0 input with ASIO or kernel streaming modes
- Full-metal enclosure with thick brushed-aluminum front panel
UPC: 813371024212 In the Box Cambridge Audio DacMagic 100 Digital-to-Analog Audio Converter (Silver) USB Cable Power Adapter US/UK/EU Power Plugs 4 x Rubber Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambridge Audio DacMagic 100 Digital-to-Analog Audio Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambridge Audio DacMagic 100 Specs | D/A Converter | Wolfson WM8742 24-bit DAC | | Digital Inputs | 2 x S/PDIF coaxial (75 Ohms)
1 x TOSLINK optical | | USB Audio Input | USB Type-B
Conforms to Audio profile 1.0 or USB Audio profile 2.0 (user-selectable) | | Analog Audio Outputs | 1 x pair of gold-plated RCA phono | | Word Width | Digital Inputs: 16- / 24-bit | | Digital Input Sampling | 32, 44.1, 48, 88.2, 96, 192 kHz
USB 1.0: 44.1, 48, 96 kHz (24-bit)
USB 2.0: 44.1, 48, 88.2, 96, 192 kHz (24-bit) | | Frequency Response | 20 Hz to 20 kHz, ±0.1 dB | | THD | <0.0025% 24-bit (at 1 kHz, 0 dBFS)
<0.0025% 24-bit (at 1 kHz, -10 dBFS)
<0.0025% (at 20 kHz, 0 dBFS) | | Signal to Noise Ratio | -113 dBr | | Jitter | Total Correlated Jitter: <130 ps | | Crosstalk | < -130 dB (at 1 kHz)
< -112 dB (at 20 kHz) | | Output Impedance | <50 Ohms | | Output Level | Unbalanced: 2.3 Vrms (maximum) | | Power | 12 VDC, 2 A | | Power Consumption | 5 W (maximum) | | Color | Silver | | Dimensions (W x H x D) | 4.1 x 1.8 x 5.1" / 106 x 46 x 130 mm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.6 x 6.0 x 2.7" |
