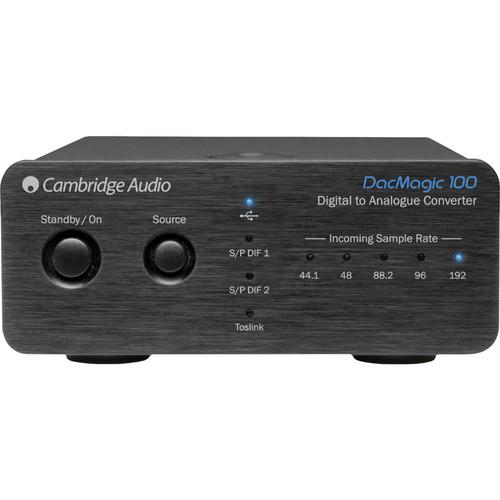

User Manual for Cambridge Audio DacMagic 100 - Digital to Analog Converter Click to enlarge the picture
Contents of the user manual for the Cambridge Audio DacMagic 100 - Digital
- Product category: AD/DA Converters Cambridge Audio
- Brand: Cambridge Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cambridge Audio AD/DA Converters
|
User manual for the Cambridge Audio DacMagic 100 - Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cambridge Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cambridge Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cambridge Audio product will considerably shorten its lifespan!
|
Product description Many home entertainment products these days provide an abundance of features, be they Blu-ray players, TVs and set top boxes, or computers. What they often lack is a high end converter when decoding audio signals. For music devices that have a digital output, the DacMagic 100 from Cambridge Audio significantly improves the sound quality of these units by providing two channels of high end digital to analog conversion. The result is audio with greater detail, sparkling clarity, and reduced distortion.
The unit features the very latest digital to analog converter that delivers studio-master-quality audio from sources up to 24-bit/192 kHz. USB implementation also means high-resolution digital audio files stored on a computer can be shared with a Hi-fi for a level of sound quality far in excess of CD. Three different digital connectivity options are available (coaxial and optical S/PDIF and USB) providing the ability to connect four devices simultaneously. An easy set-up makes the DacMagic 100 a true digital music enhancement hub. - Digital to analog converter featuring S/PDIF and TOSLink digital inputs and USB audio input (all 24-bit compatible)
- Wolfson WM8742 24-bit DAC
- 24-bit/96 kHz driverless USB Audio 1.0 input
- 24-bit/192 kHz USB Audio 2.0 input with ASIO or kernel streaming modes
- Asynchronous USB transfer for very low jitter
- USB audio input allows streaming of up to 24-bit/192 kHz audio from computer
- USB audio input allows the DacMagic 100 to act as a high quality DAC/soundcard for a computer
- Full metal casework design with thick brushed aluminum front panel
In the Box Cambridge Audio DacMagic 100 - Digital to Analog Converter (Black) External Power Supply One (1) Year Warranty User Manual PDF 695.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambridge Audio DacMagic 100 - Digital to Analog Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambridge Audio DacMagic 100 Specs | Converter | Wolfson WM8742 24-bit DAC | | Bit Depth | 16- and 24-bit | | Sample Rates | 32, 44.1, 48, 88.2, 96 and 192 kHz | | Inputs | 2 x RCA coaxial S/PDIF
1 x TOSLink optical S/PDIF
1 x USB Type B | | Outputs | 2 x RCA phono | | Output Impedance | <50Ω | | Maximum Output Level | 2.3 VRMS (unbalanced) | | Jitter | <130 pS | | Frequency Response | 20 Hz to 20 kHz, +/-0.1 dB | | THD | <0.0025% | | SNR | -113 dBr | | Crosstalk | <-130 db @ 1 khz
<-112 dB @ 20 kHz | | Power Requirements | 12VDC via included power adapter
5 W power consumption | | Dimensions (WxDxH) | 4.1 x 5.1 x 1.8" (106 x 130 x 46 mm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 10.5 x 6.0 x 2.8" |
