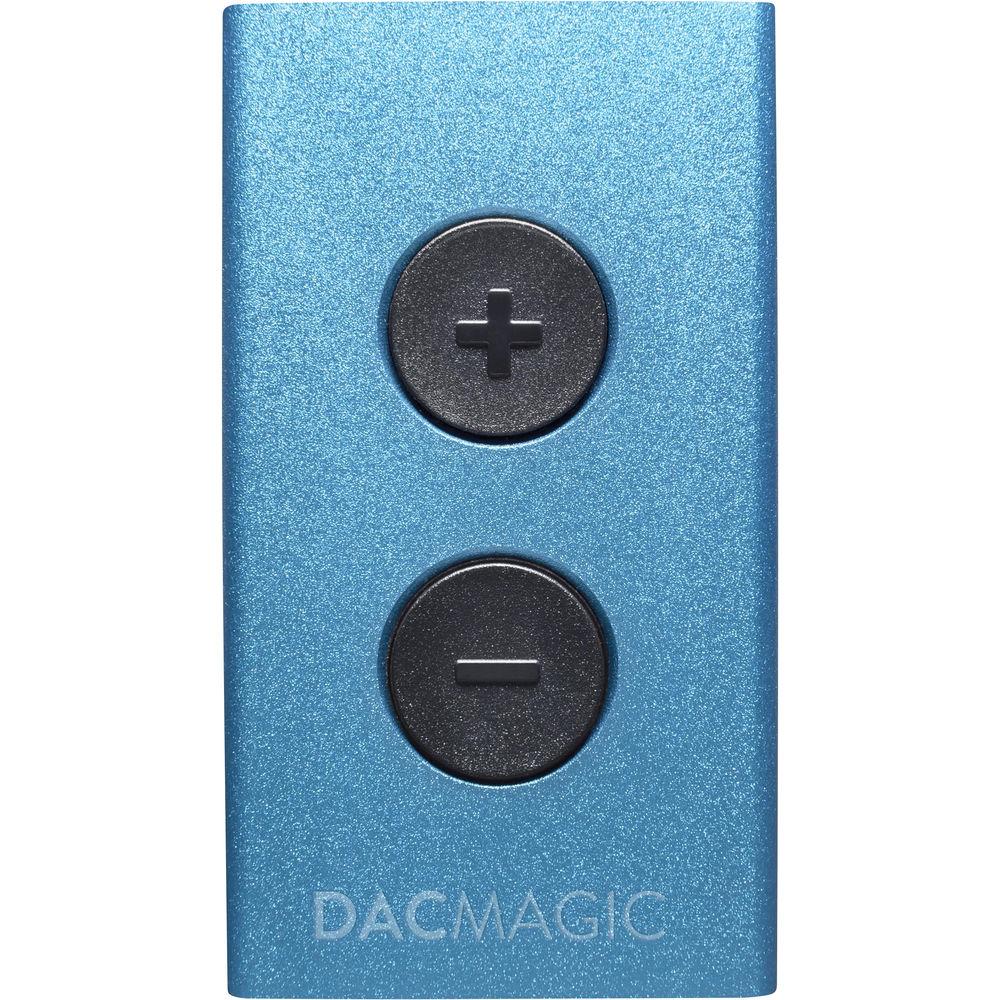

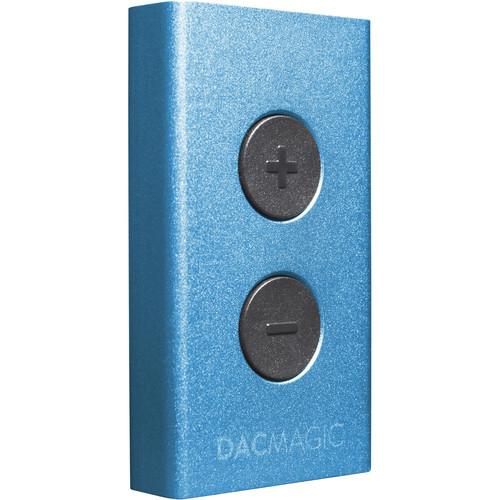

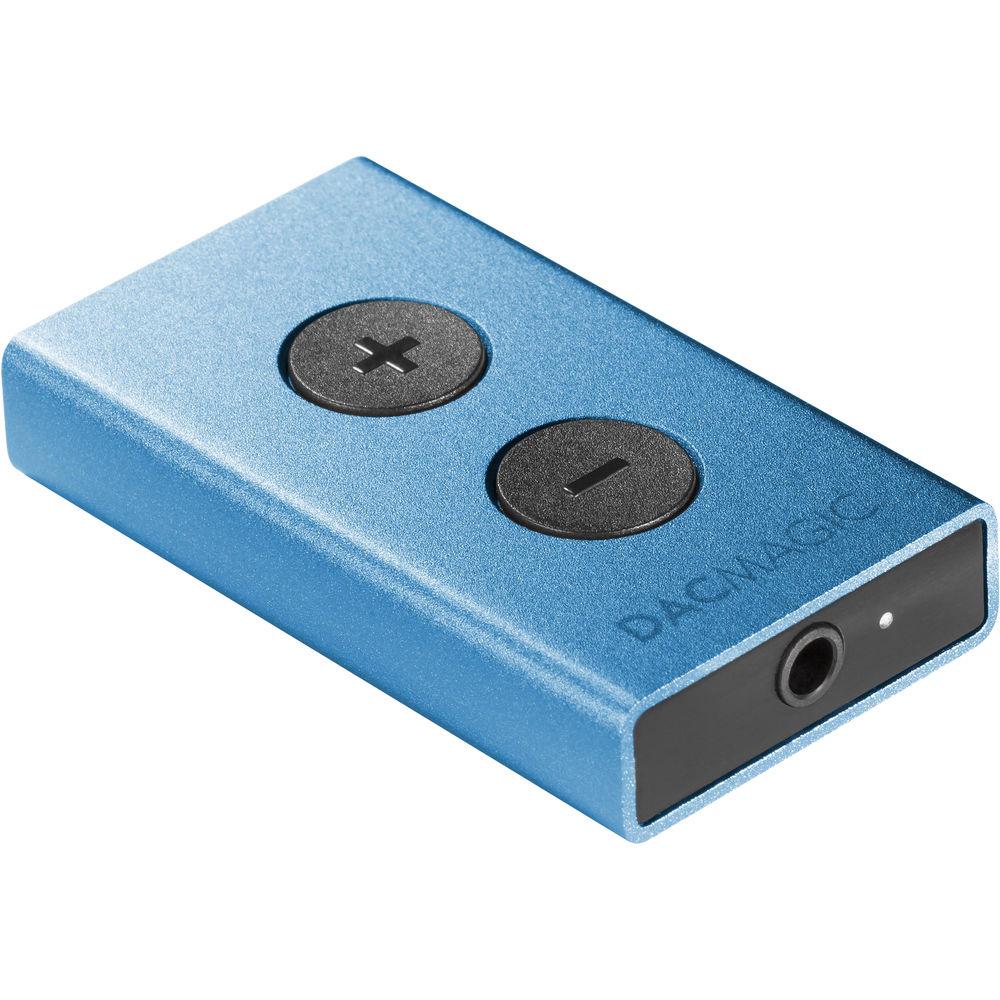

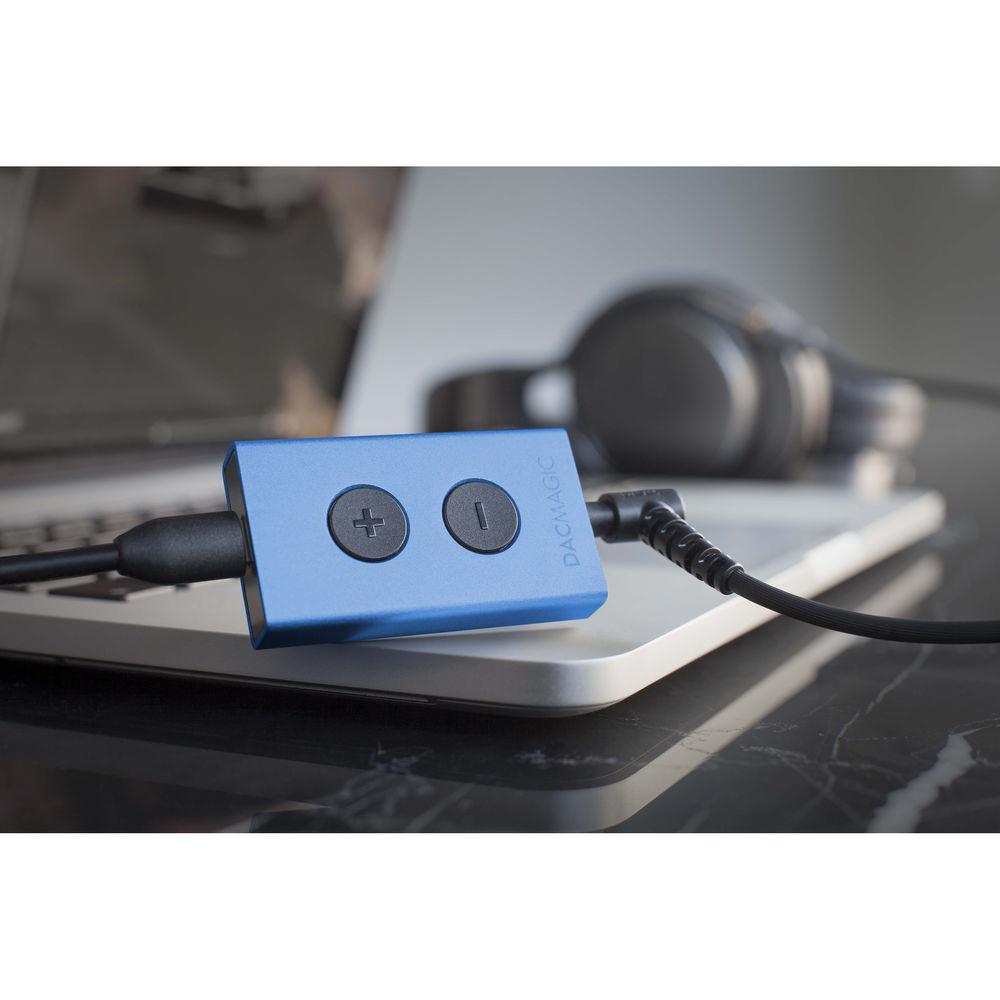

Product description The blue Cambridge Audio DacMagic XS is a portable USB DAC and headphone amplifier designed to enhance the sound of your desktop or laptop computer when monitoring with headphones at home or on the go. It features a 24-bit D/A converter and a high-output headphone amplifier, which deliver clear and detailed audio with deep bass at ten times the volume of a typical computer headphone output, ideal for listening to your favorite music, films, streaming services, games, and more. The DacMagic XS quickly connects to your computer's USB port via the included micro-USB cable, while the headphones connect to the 3.5mm headphone jack. The volume is easily adjusted with the simple fingertip controls. Alternatively, you can also use the unit to connect your computer to a Hi-Fi amplifier and listen to your music on speakers. For maximum audio quality, the DacMagic XS can run in USB Class 2 mode to bypass the computer operating system's audio path and avoid unwanted interference and re-sampling artifacts. - Key Features
-
- High-quality DAC/soundcard enhances the sound of your desktop computer or laptop computer when on the go
- Delivers clear and detailed audio with deep bass for music, films, streaming services, and games
- Drives headphones with 10 times more power than a typical computer headphone output

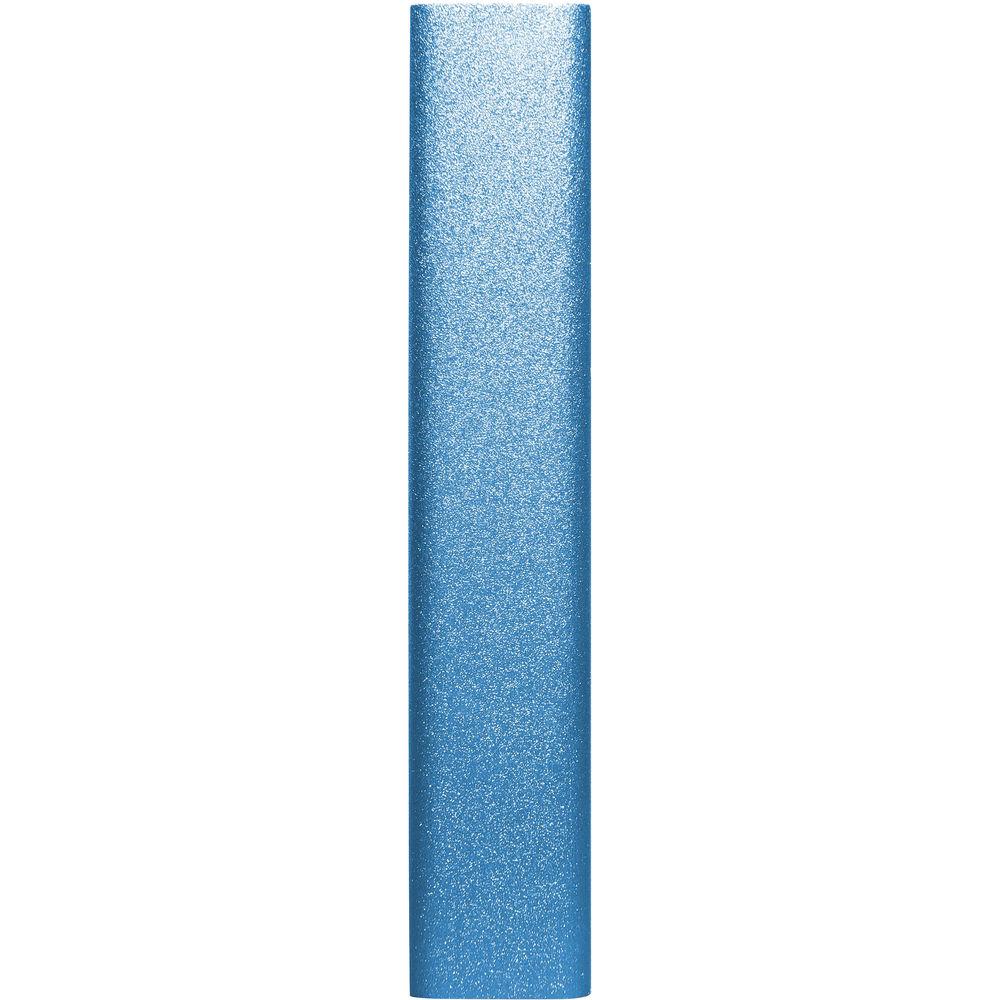

- Lightweight and portable design with sturdy brushed-aluminum chassis

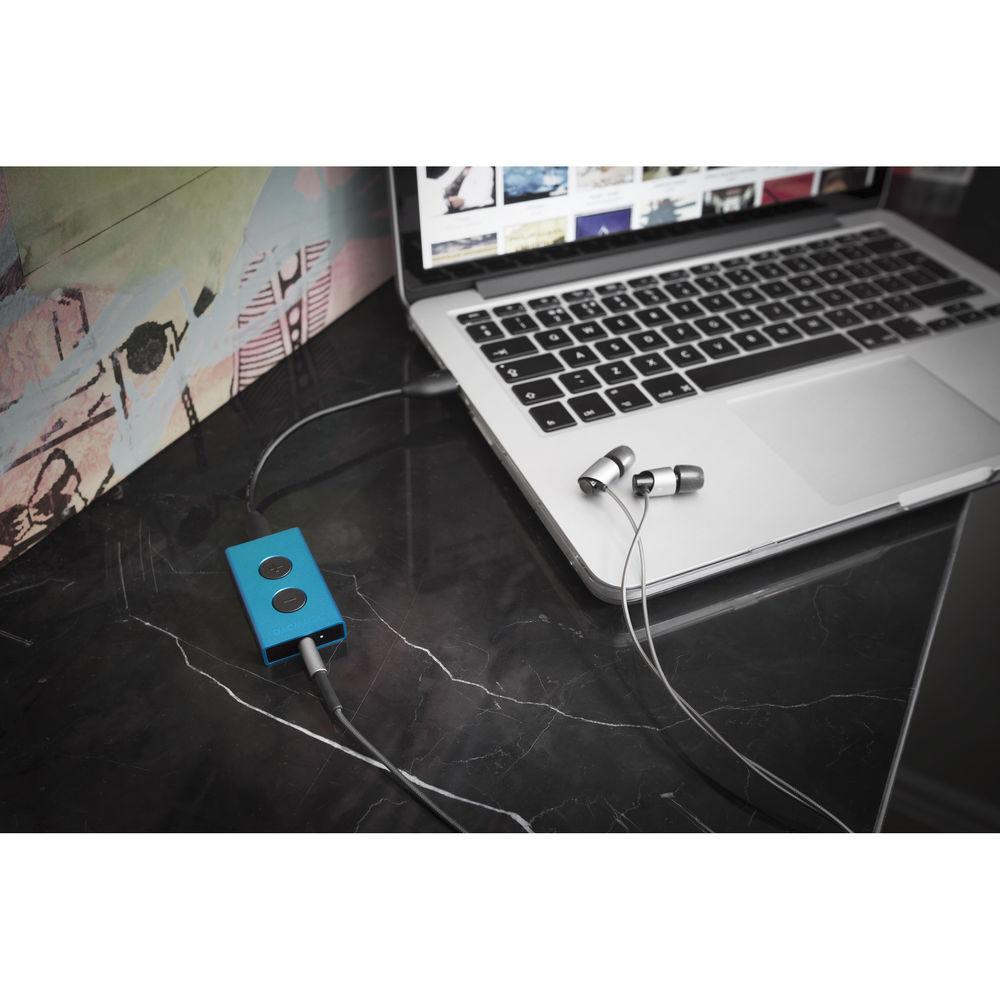

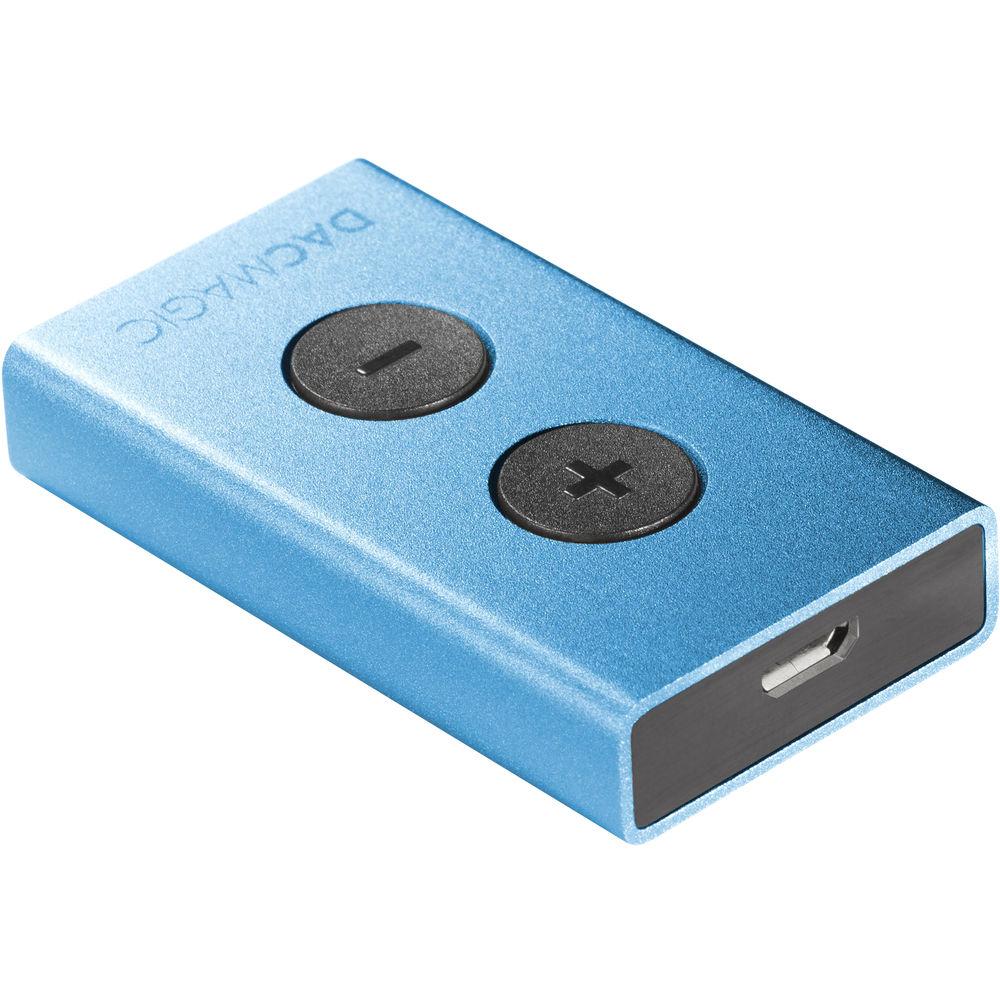

- Connects quickly and easily via computer USB port
- Can be used as a DAC to listen to your computer audio through your home sound system
- Up to 24-bit/192 kHz audio resolution
- LED to indicate incoming sample rate quality
- Analog volume control with fingertip control
- Support for USB audio Class 1 and 2 modes
- Asynchronous USB transfer for low jitter
- Compatible with Mac and Windows
UPC: 813371024250 In the Box Cambridge Audio DacMagic XS Portable USB DAC and Headphone Amplifier (Blue) Micro-USB Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambridge Audio DacMagic XS Portable USB DAC and Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambridge Audio DacMagic XS Specs | D/A Converter | ESS9023, 24-bit DAC | | Sample Rates | USB 1.0 Mode: 44.1, 48, 88.2, 96 kHz
USB 2.0 Mode: 44.1, 48, 88.2, 96, 176.4, 192 kHz | | Bit Depth | 16-/24-bit | | Connectors | Input: Micro-USB input
Headphone Output: 1/8" / 3.5 mm | | Output Voltage | 2 V RMS | | Power Consumption | 150 mW (maximum) | | Headphone Impedance | 12 Ohms (minimum) | | Frequency Response | 20 Hz to 20 kHz, +/-0.2 dB | | THD | <0.004% (unweighted) | | Signal to Noise Ratio | 103 dBr (unweighted) | | Crosstalk | 66 dB, at 1 kHz | | Output Impedance | 0.5 Ohms | | Volume Steps | 53 steps (54 different volume levels) | | Color | Blue | | Dimensions (W x H x D) | 1.2 x 0.4 x 2.1" / 30.0 x 10.0 x 53.5 mm | | Weight | 3.5 oz / 100 g | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 9.0 x 3.25 x 1.0" |
