User Manual for Cambridge Audio DacMagic XS Portable USB DAC and Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the Cambridge Audio DacMagic XS Portable USB
- Product category: Headphone Amplifiers Cambridge Audio
- Brand: Cambridge Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cambridge Audio Headphone Amplifiers
|
User manual for the Cambridge Audio DacMagic XS Portable USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cambridge Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cambridge Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cambridge Audio product will considerably shorten its lifespan!
|

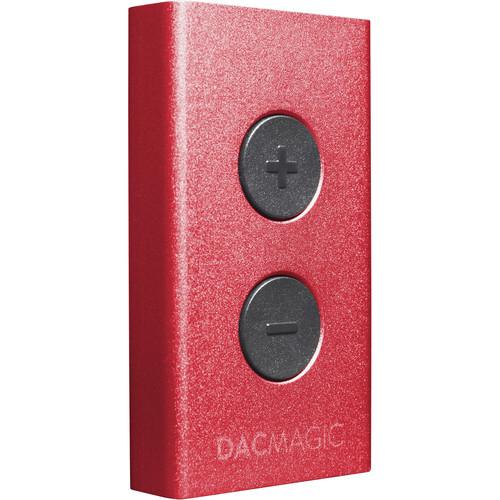

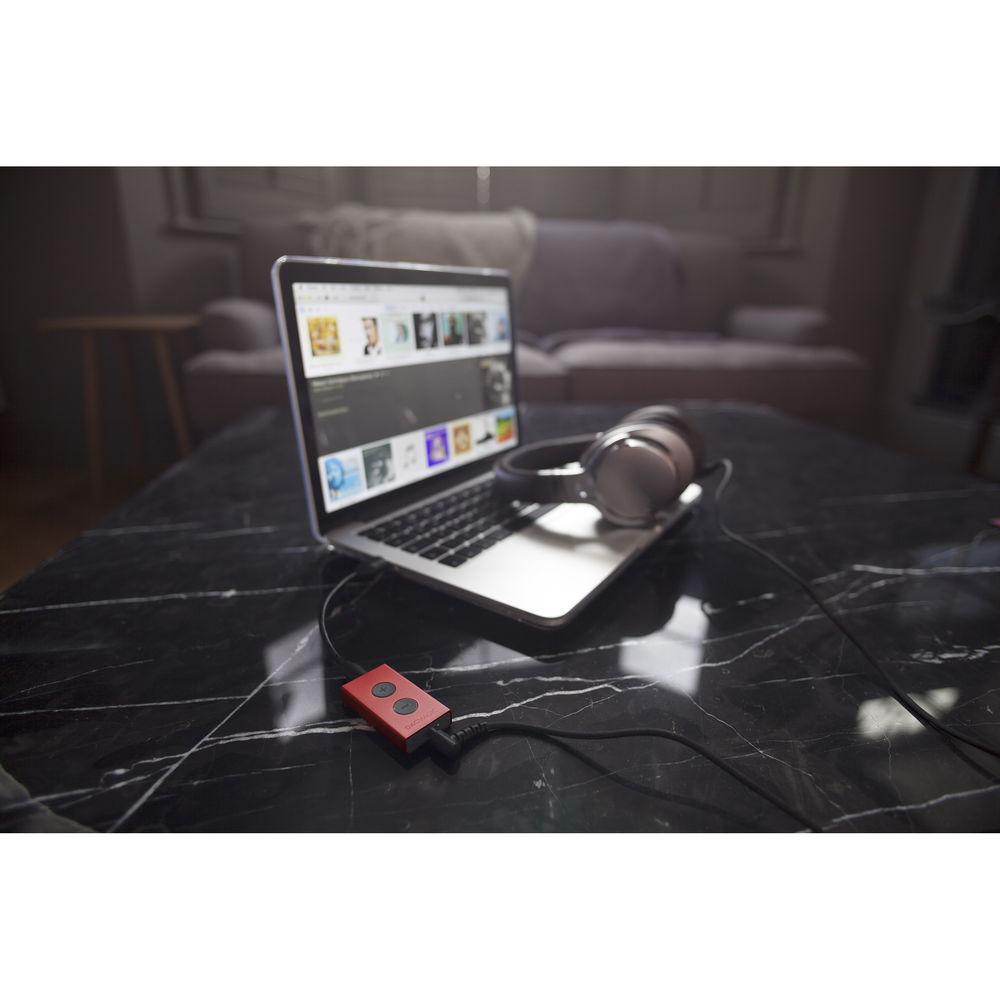

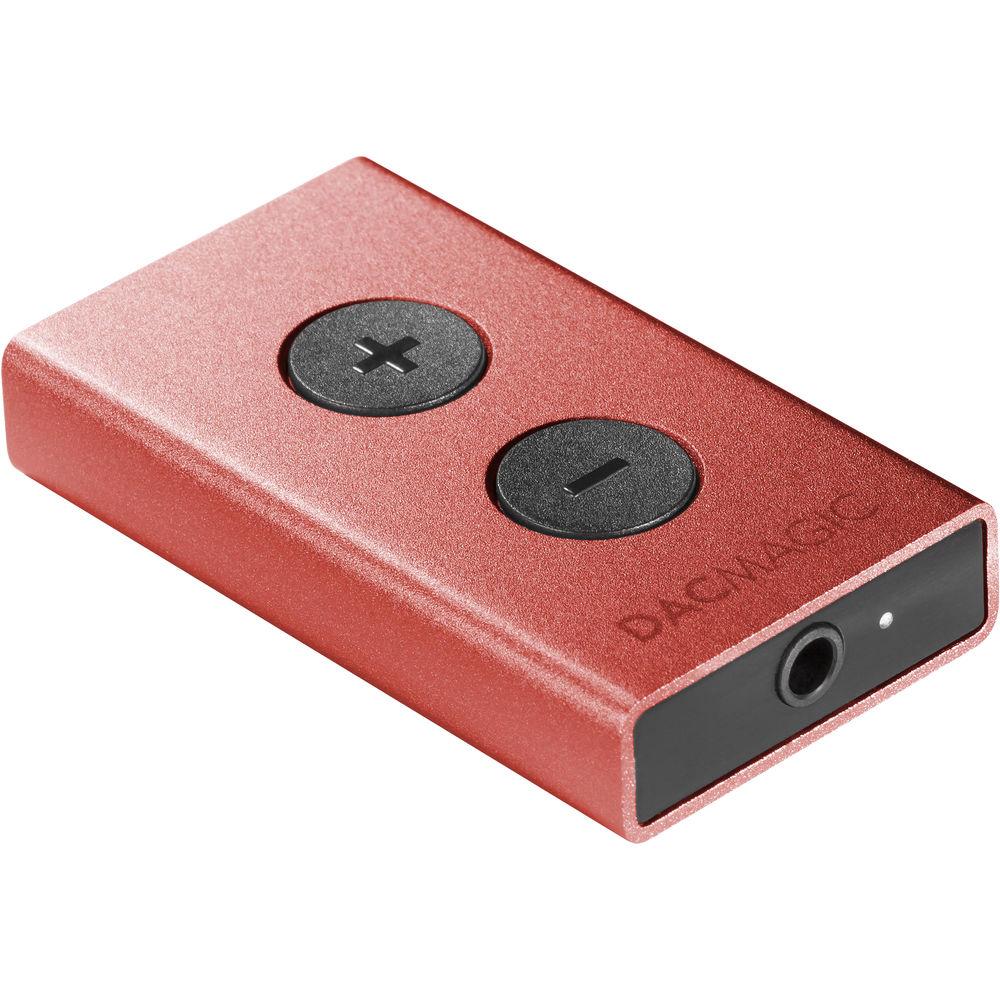

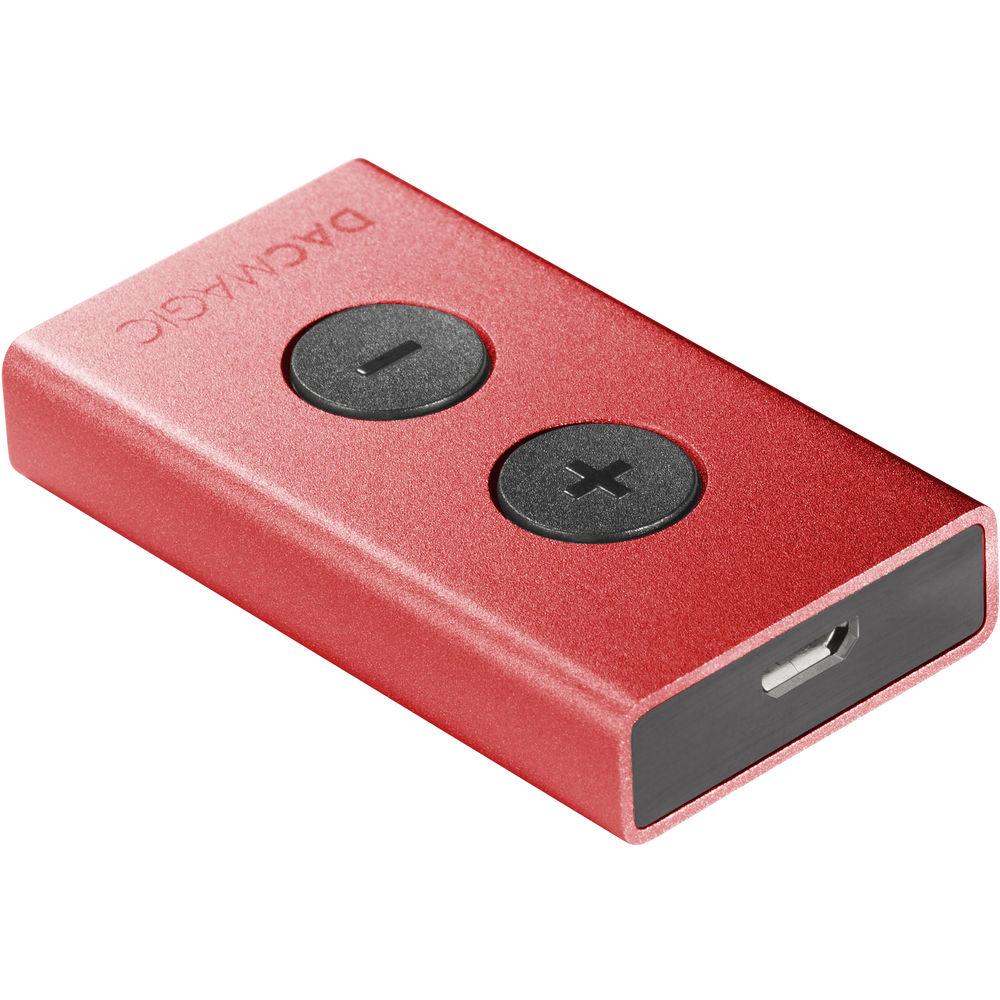

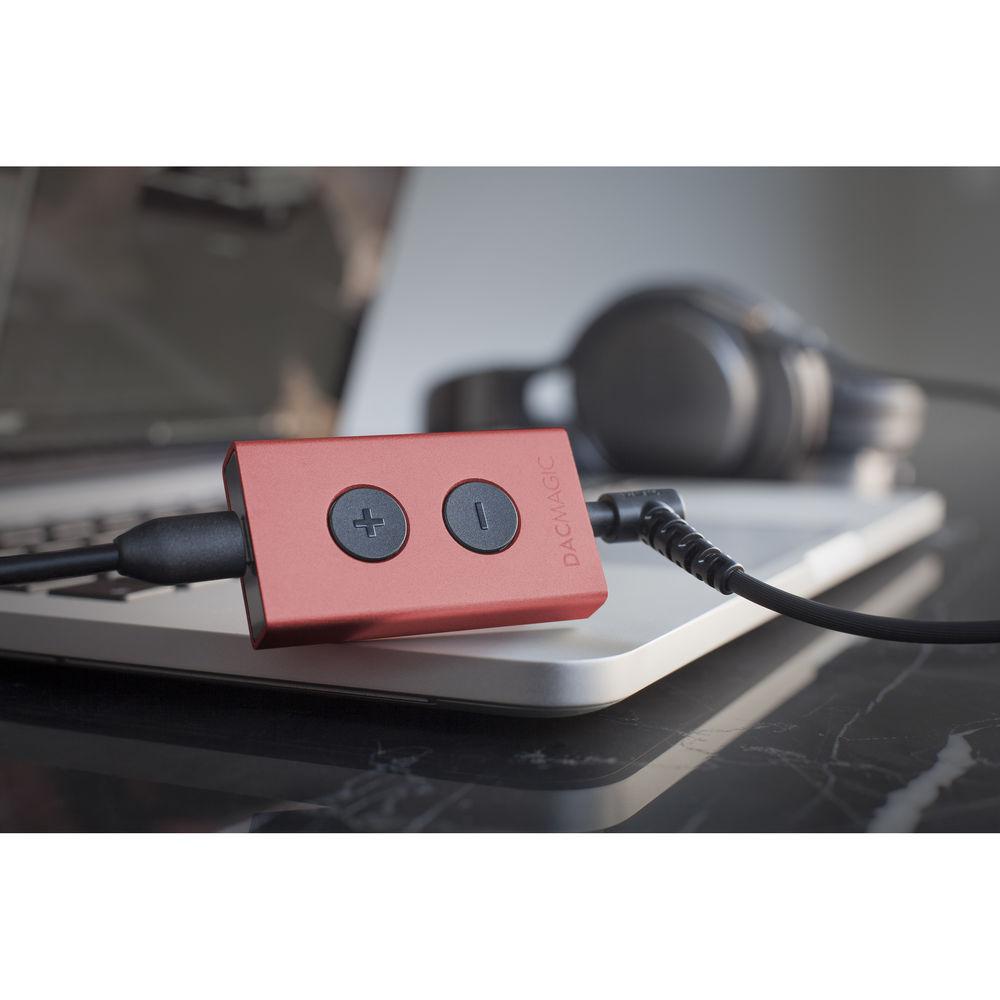

Product description The red Cambridge Audio DacMagic XS is a portable USB DAC and headphone amplifier designed to enhance the sound of your desktop or laptop computer when monitoring with headphones at home or on the go. It features a 24-bit D/A converter and a high-output headphone amplifier, which deliver clear and detailed audio with deep bass at ten times the volume of a typical computer headphone output, ideal for listening to your favorite music, films, streaming services, games, and more. The DacMagic XS quickly connects to your computer's USB port via the included micro-USB cable, while the headphones connect to the 3.5mm headphone jack. The volume is easily adjusted with the simple fingertip controls. Alternatively, you can also use the unit to connect your computer to a Hi-Fi amplifier and listen to your music on speakers. For maximum audio quality, the DacMagic XS can run in USB Class 2 mode to bypass the computer operating system's audio path and avoid unwanted interference and re-sampling artifacts. - Key Features
-
- High-quality DAC/soundcard enhances the sound of your desktop computer or laptop computer when on the go
- Delivers clear and detailed audio with deep bass for music, films, streaming services, and games
- Drives headphones with 10 times more power than a typical computer headphone output

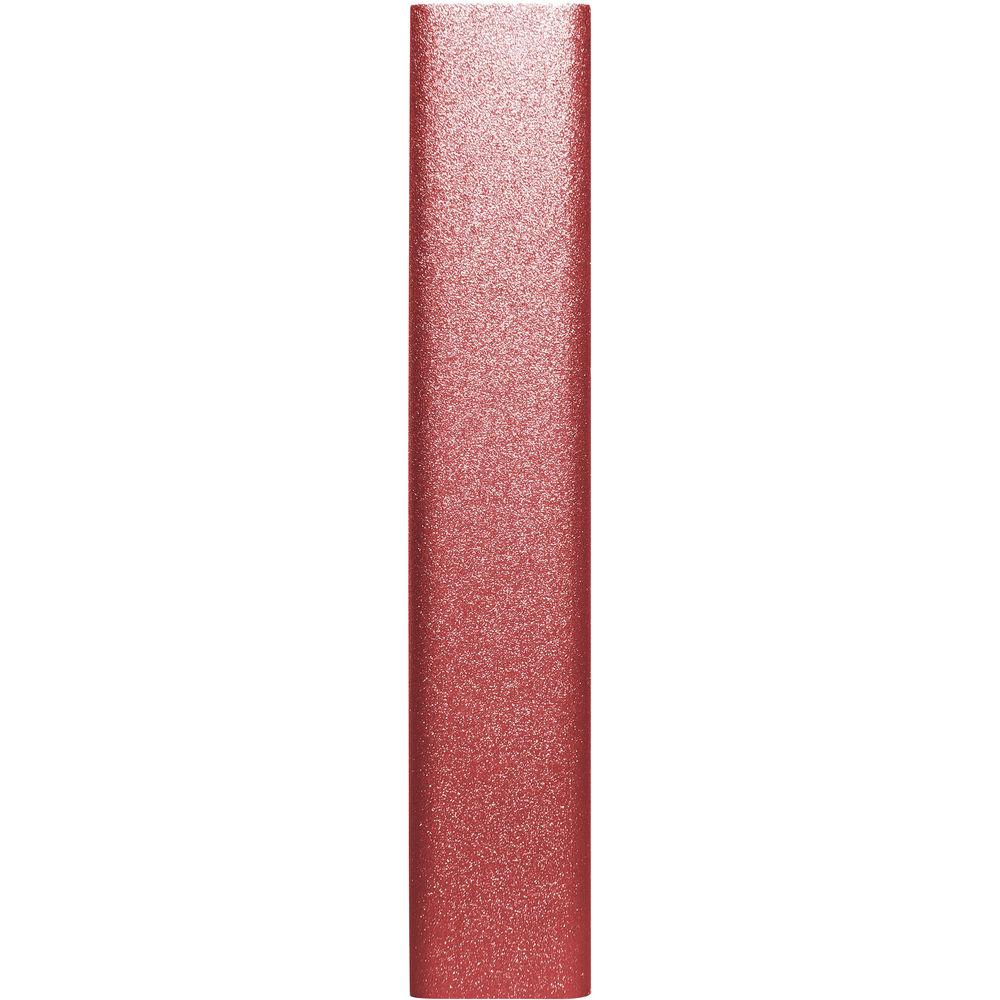

- Lightweight and portable design with sturdy brushed-aluminum chassis
- Connects quickly and easily via computer USB port
- Can be used as a DAC to listen to your computer audio through your home sound system
- Up to 24-bit/192 kHz audio resolution
- LED to indicate incoming sample rate quality

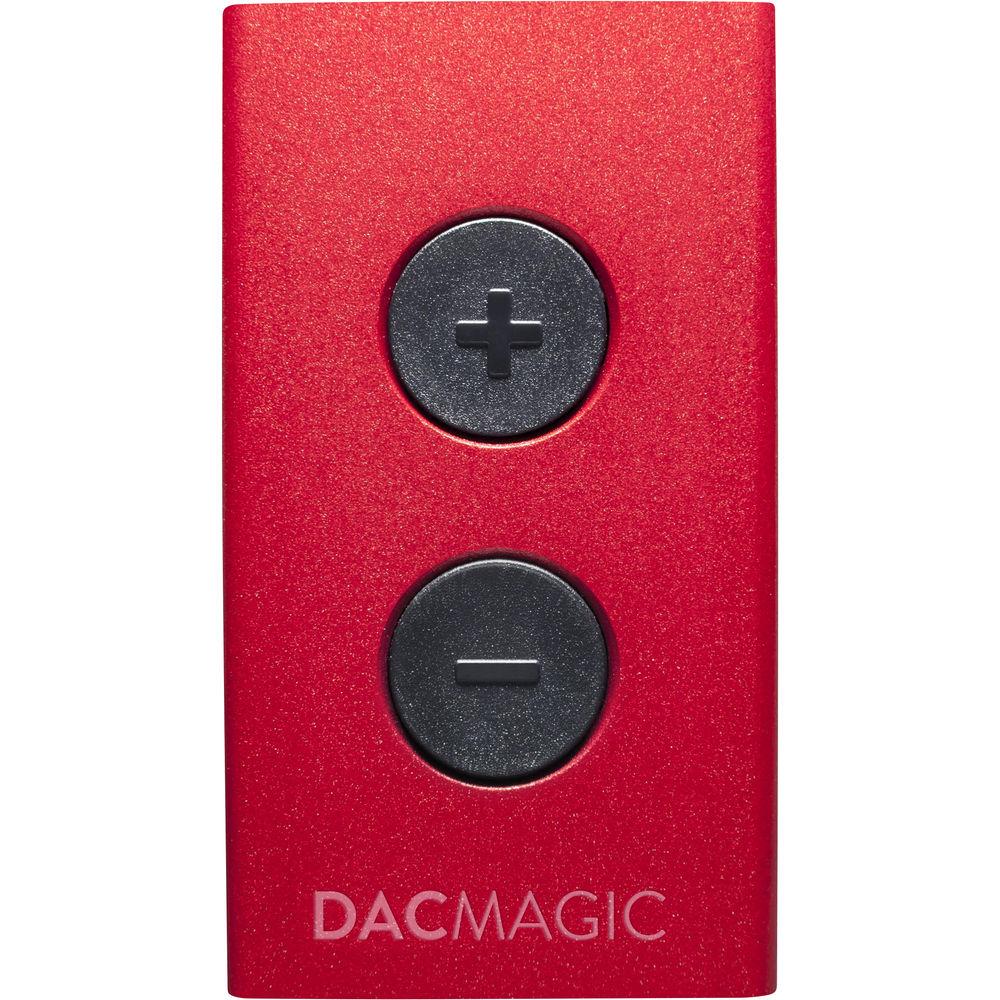

- Analog volume control with fingertip control
- Support for USB audio Class 1 and 2 modes
- Asynchronous USB transfer for low jitter
- Compatible with Mac and Windows
In the Box Cambridge Audio DacMagic XS Portable USB DAC and Headphone Amplifier (Red) Micro-USB Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cambridge Audio DacMagic XS Portable USB DAC and Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCambridge Audio DacMagic XS Specs D/A Converter | ESS9023, 24-bit DAC | Sample Rates | USB 1.0 Mode: 44.1, 48, 88.2, 96 kHz USB 2.0 Mode: 44.1, 48, 88.2, 96, 176.4, 192 kHz | Bit Depth | 16-/24-bit | Connectors | Input: Micro-USB input Headphone Output: 1/8" / 3.5 mm | Output Voltage | 2 V RMS | Power Consumption | 150 mW (maximum) | Headphone Impedance | 12 Ohms (minimum) | Frequency Response | 20 Hz to 20 kHz, +/-0.2 dB | THD | <0.004% (unweighted) | Signal to Noise Ratio | 103 dBr (unweighted) | Crosstalk | 66 dB, at 1 kHz | Output Impedance | 0.5 Ohms | Volume Steps | 53 steps (54 different volume levels) | Color | Red | Dimensions (W x H x D) | 1.2 x 0.4 x 2.1" / 30.0 x 10.0 x 53.5 mm | Weight | 3.5 oz / 100 g |
