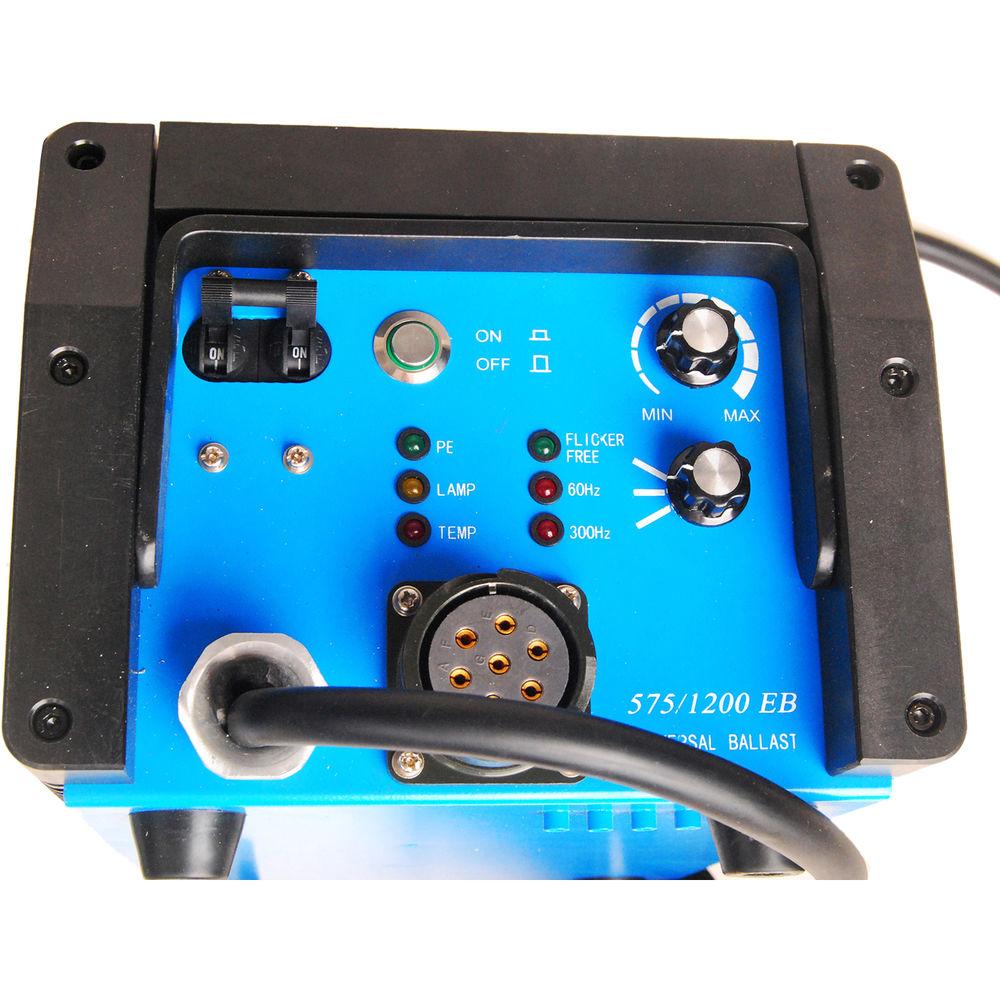

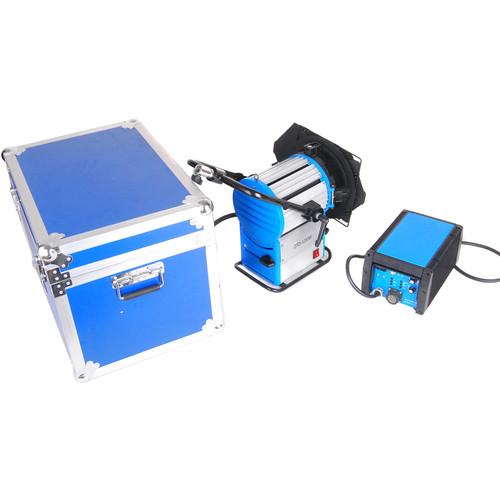

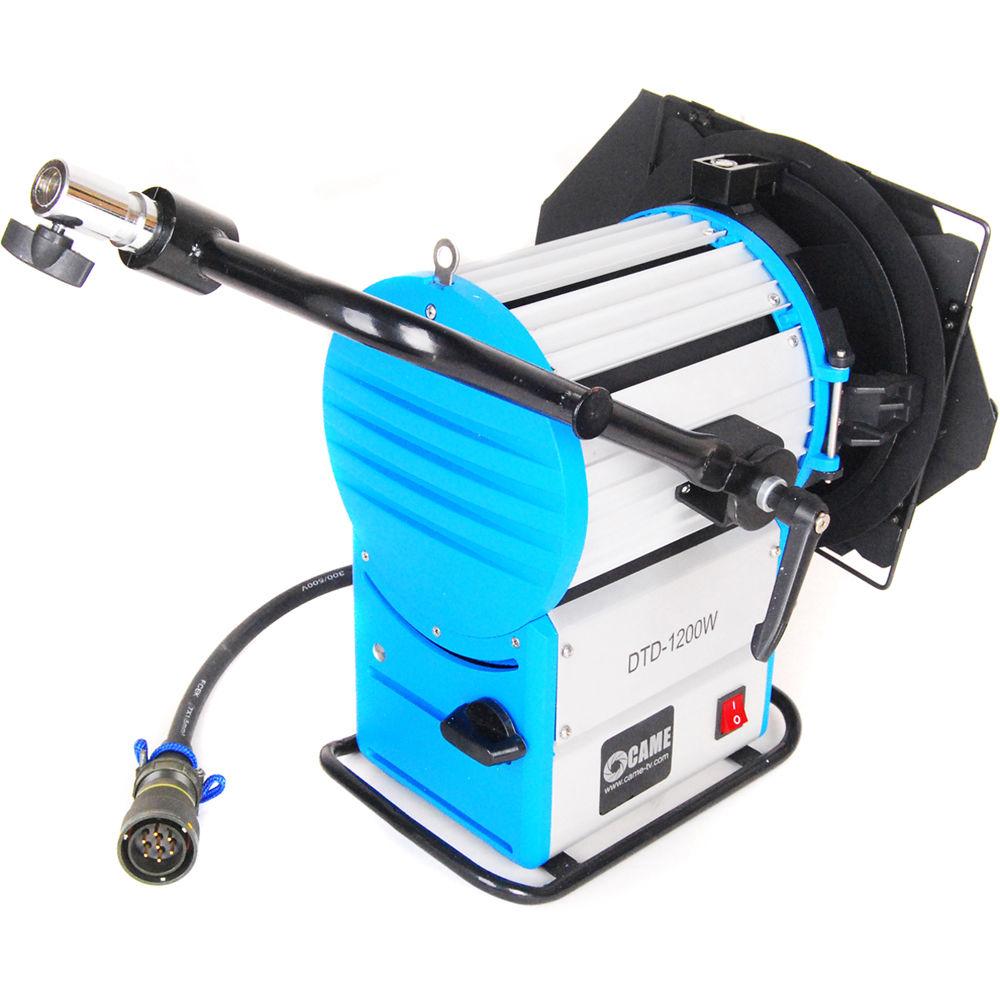

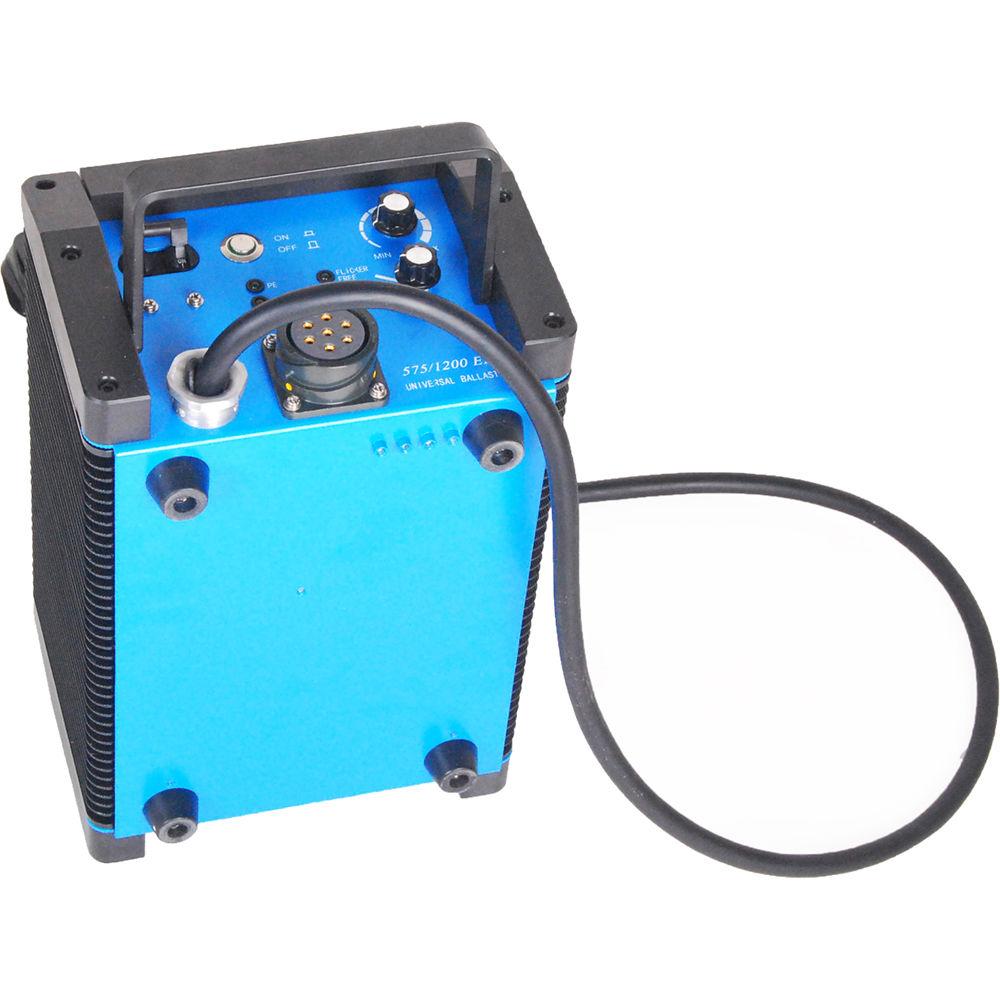

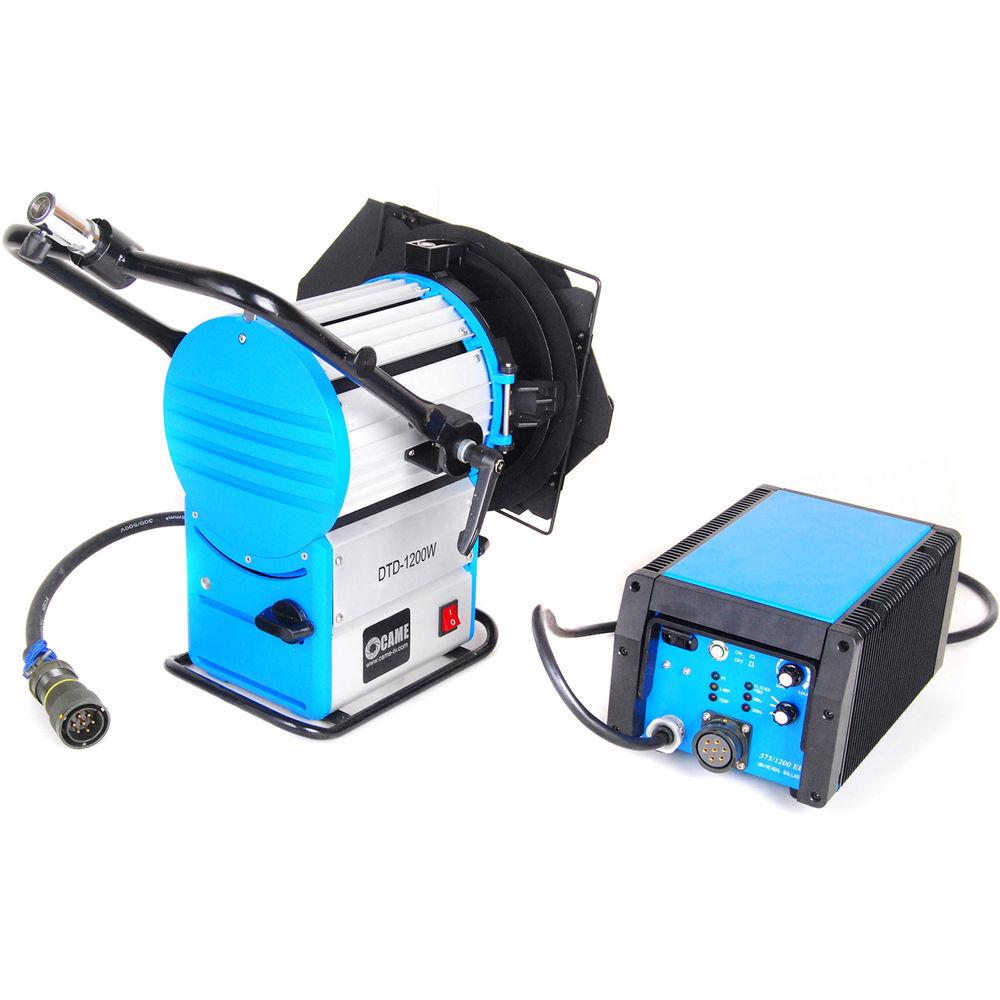

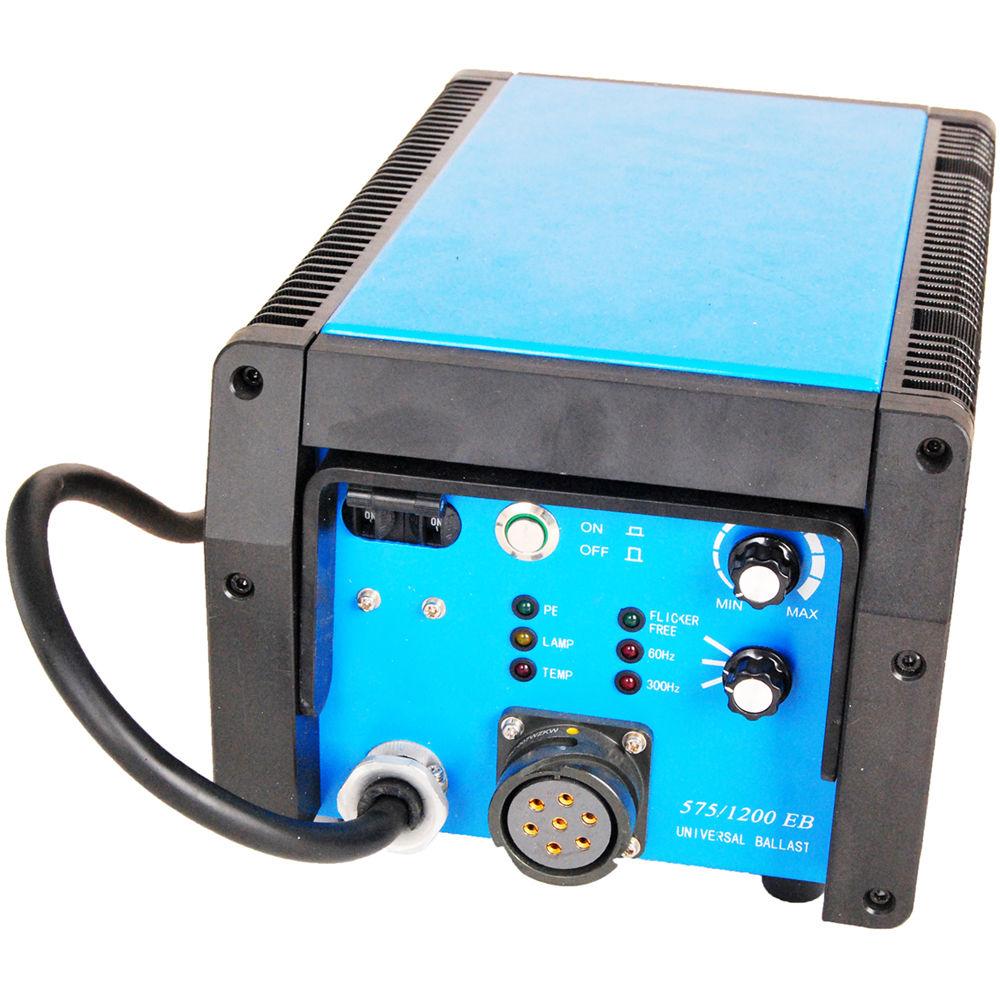

Product description The 1,200W HMI Fresnel Light Kit with Electronic Ballast and Case from Came-TV is a go-to workhorse on set when you need a lot of light and great performance in a small lightweight form factor. The kit includes the Fresnel head, 1,200W HMI lamp, 4-way barndoors, 30' head cable, 5' power cable and an aluminum travel case. The aluminum alloy head has a 6.9" Fresnel lens with an adjustable 6 to 58-degree spot-to-flood beam spread that outputs 30,000 lux at 16.4' in spot mode. It comes with 4-way barndoors and a yoke with a 1-1/8" spigot. Color temperature is 6000K. The ballast is rated 575/1200W, is dimmable from 0-50% and has a Flicker-Free Mode. A host of technologies like over-voltage, over-temperature and short-circuit protection provide safe and reliable operation and Active Line Correction and Power Factor Correction ensure stable color. The ballast's 90-250 VAC power supply make it ready for worldwide use. UPC: 603629357595 In the Box CAME-TV 1,200W HMI Fresnel Light Kit with Electronic Ballast and Case 6.9" HMI Fresnel Head (1200W) Four-Leaf Barndoor Set Yoke Bar with 1-1/8" (28mm) Spigot 575W / 1200W Universal Electronic Ballast Lamp Head Cable (30') Power Cable (5') 1,200W Osram Bulb Aluminum Travel Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV 1,200W HMI Fresnel Light Kit with Electronic Ballast and Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV AR1200FRESNEL Specs | | | Material | Aluminum alloy | | Rating | 1,200 W | | Socket (Lampholder) | G38 | | Lens (Condenser) | 6.9" (175 mm) | | Beam Angle | 6 - 58° | | Photometrics | Spot Mode
30,000 lux @ 16.4' (5.0 m)
7,500 lux @ 33' (10 m)
3,340 lux @ 50' (15 m)
Flood Mode
2,000 lux @ 16.4' (5.0 m)
500 lux @ 33' (10 m)
220 lux @ 50' (15 m) | | Mounting | 1-1/8" (28 mm) Spigot | | IP Rating | IP23 | | Dimensions | 12.8 x 13 x 15" (326 x 330 x 385 mm) without yoke | | | | Rating | 575 W / 1200 W | | Dimming | 0-50% | | Voltage | 90-250 VAC, 50/60 Hz | | Cable | Head cable: 30' (7.0 m)
Power cable: 5.0' (1.5 m) | | IP Rating | IP23 | | Kit Weight | 44 lb (20 kg) | | | | Package Weight | 74.0 lb | | Box Dimensions (LxWxH) | 26.5 x 21.0 x 18.0" |
