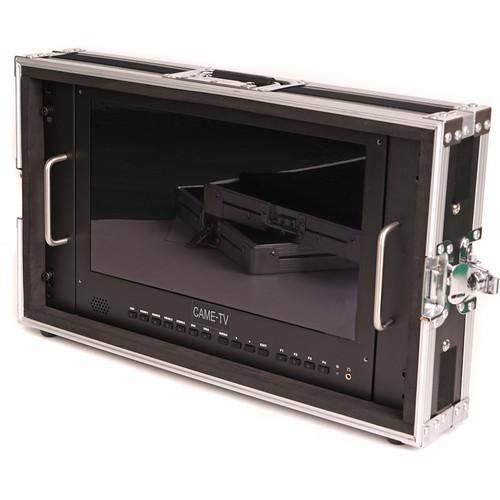

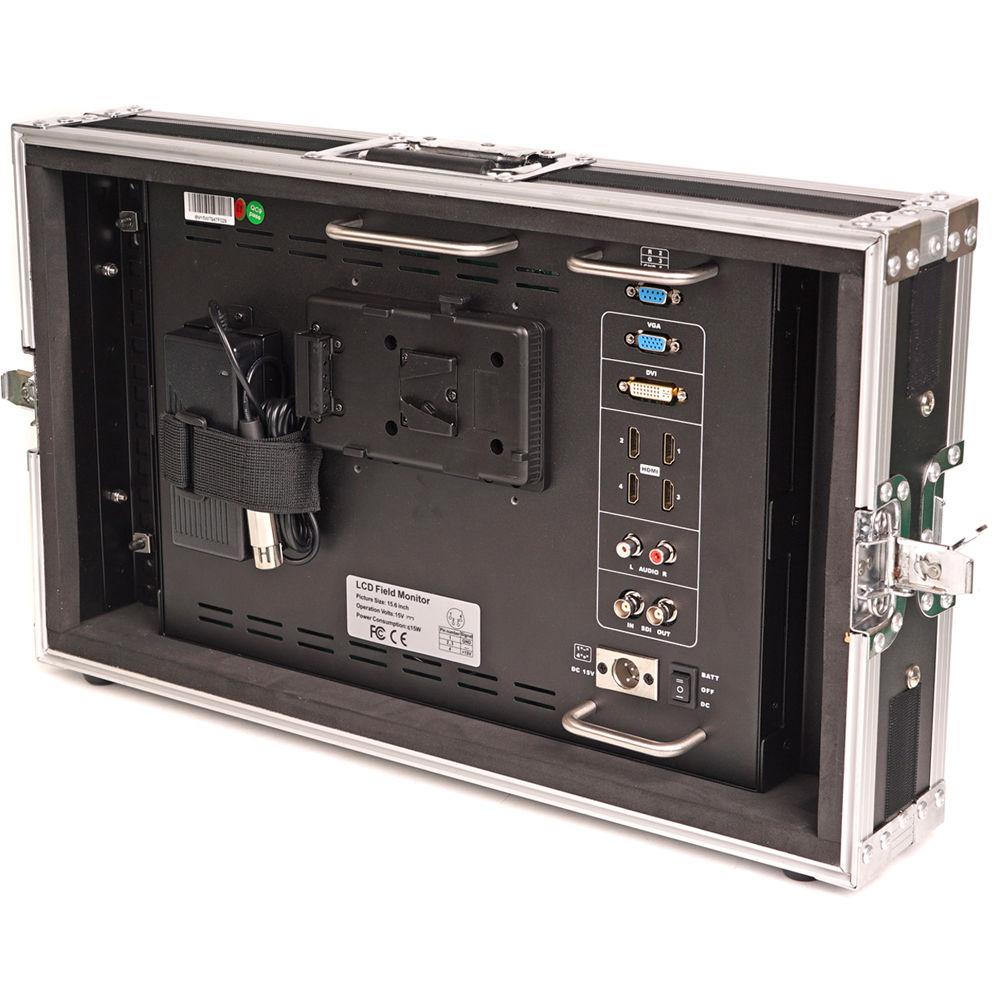

Product description The 15.6" UHD 4K Broadcast Director Rackmount Monitor from CAME TV features Ultra HD (3840 x 2160) resolution, and supports quad view from four HDMI signals being input simultaneously. It also features four user-definable buttons which can be used as shortcuts.The monitor comes with a carry-on flight case to improve robustness and portability. The aluminum body protects the monitor from damage. It features various mounting options for use as a live broadcast monitor or on-site monitoring screen. The monitor is also rack-mountable (6 RU) for better viewing from all angles. There are multiple input and output connections including 3G-SDI, HDMI, VGA, DVI, tally, and RCA audio. - Image flip allows you to view the monitor correctly regardless of the mounting angle
- Rack-mountable with separately available 6 RU rack
UPC: 602668721121 In the Box CAME-TV 15.6" UHD 4K Broadcast Director Rackmount Monitor Folding Sunshade Power Cord Flight Case V-Mount Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV 15.6" UHD 4K Broadcast Director Rackmount Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV BM150 Specs | | | Display Screen | 15.6" (39.6 cm) 8-bit | | Resolution | 3840 x 2160, UHD 4K | | Aspect Ratio | 16:9 | | Brightness | 330 cd/m² | | Contrast | 1000:1 | | Viewing Angle | 176 °/176 ° | | | | SDI | SMPTE-125M:
1080p (30/29.97/25/24/23.98)
1080PsF (24/23.98)
1080i (60/59.94/50)
480i (59.94)
SMPTE-292M:
1080p (30/29.97/25/24/23.98)
1080PsF (24/23.98)
SMPTE-296M:
720p (60/59.94/50)
SMPTE-372M:
1080p (60/59.94/50/30/29.97/25/24/23.98)
1080i (29.97/25/24/23.98)
SMPTE-425M-AB:
1080p (60/59.94/50)
Level A & Level B:
720p (60/59.94/50/30/29.97/25/24/23.98)
Level B 2x:
1080i (60/59.94/50)
ITU-R BT.656:
576i (50) | | | | HDMI | 4K, 1080p, 1080i, 1035i, 720p, 576p, 576i, 480p, 486i | | | | 3G-SDI | 1 | | HDMI | 1 x HDMI 2.0 (4K at 60 Hz)
3 x HDMI 1.4 (4K at 30 Hz) | | DVI | 1 | | VGA | 1 | | Audio | 2 | | Tally | 1 | | | | Speaker | 1 | | Earphone Jack | 1 | | | | Current | 1 A (15 V) | | Input Voltage | 12 to 24 VDC | | Battery Plate | V-Mount / Gold Mount | | Power Consumption | ≤15 W | | | | Operating Temperature | 32 to 140°F (0 to 60°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | | | Dimensions | 15.3 x 10.5 x 1.5" (38.9 x 26.7 x 3.8 cm)
With Case: 20.6 x 12 x 6.7" (52.4 x 30.5 x 17 cm) | | Weight | 7.5 lb (3.4 kg)
With Case: 26.5 lb (12 kg) | | | | Package Weight | 25.5 lb | | Box Dimensions (LxWxH) | 23.0 x 15.5 x 10.0" |
