User Manual for CAME-TV 17.3" 4K UHD IPS Broadcast Monitor Click to enlarge the picture
Contents of the user manual for the CAME-TV 17.3" 4K UHD IPS Broadcast
- Product category: Production Monitors CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV Production Monitors
 |
User manual for the CAME-TV 17.3" 4K UHD IPS Broadcast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

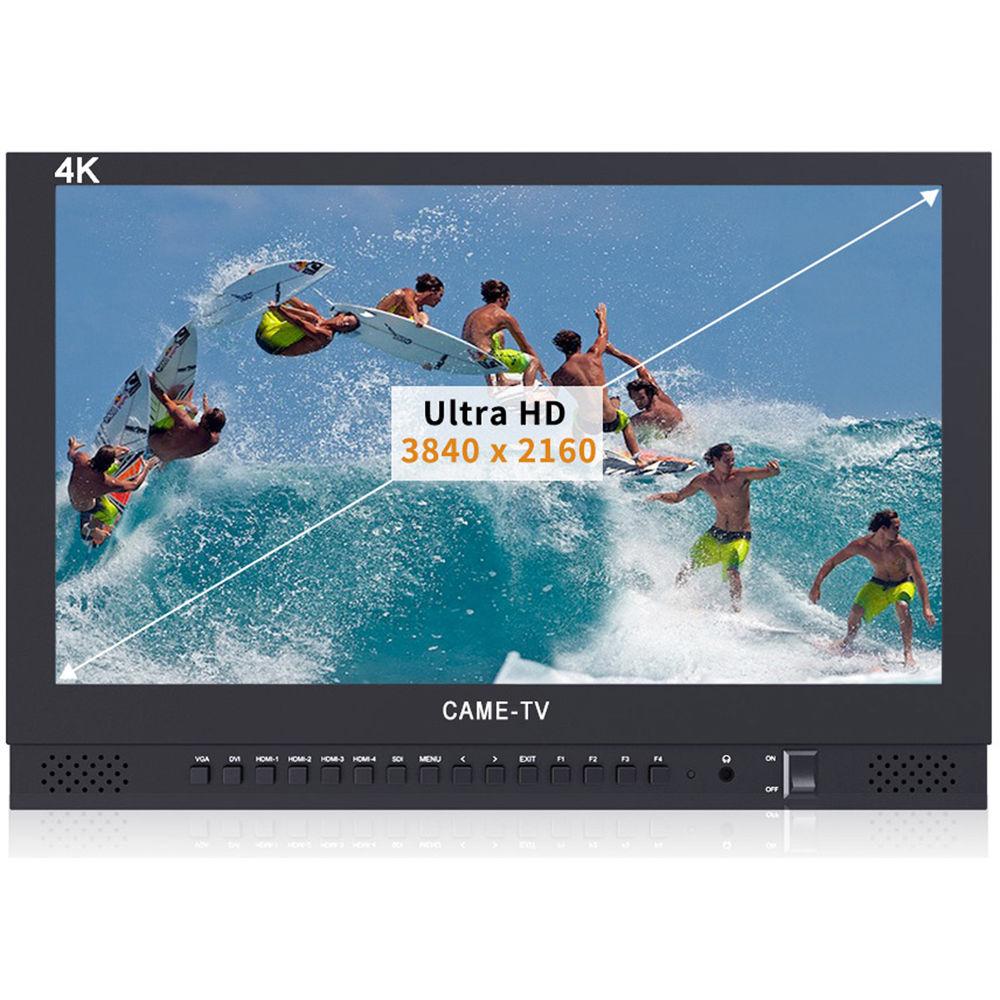

Product description Designed for multi-camera studio production, the 17.3" 4K IPS Broadcast Monitor from CAME-TV offers Ultra HD 3840 x 2160 image resolution. The monitor's connectivity interface includes four 4K HDMI inputs, as well as SDI, DVI, and VGA inputs and an SDI output. A built-in control panel allows access to features such as quad view, peaking filter, check field, image freeze, overscan, zoom, image flip, center markers, screen markers, pixel-to-pixel, and color temperature. Via the control panel, you can also easily check focus and watch for color consistency across all connected cameras. - UHD Resolution
- The 4K-MT17 handles monitoring from SD, HD-SDI, 3G-SDI, and 4K HDMI 2160p sources. With a native resolution of 3840 x 2160, it allows you to see every single pixel of a UHD-resolution HDMI input, even when running at faster 60p frame rates. Fast frame rates are not only good for displaying fast motion, but also make your investment more future-proof.

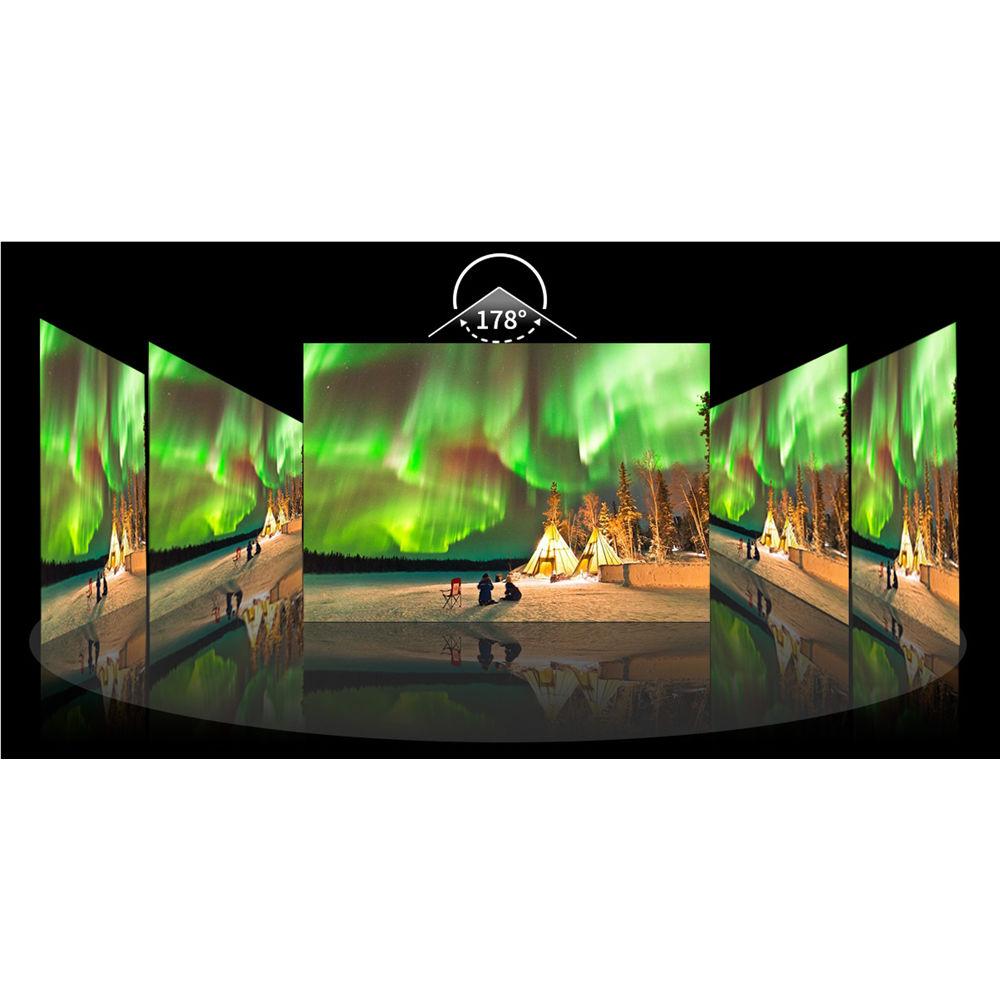

- Better Monitoring with IPS, 178° View Angle & Precise Color Restoration
- The 4K-MT17's wide 178° viewing angle makes it easy to see the displayed content even when several crew members are watching. The 4K Ultra HD IPS LCD panel ensures precise color restoration and high image quality with richer color.

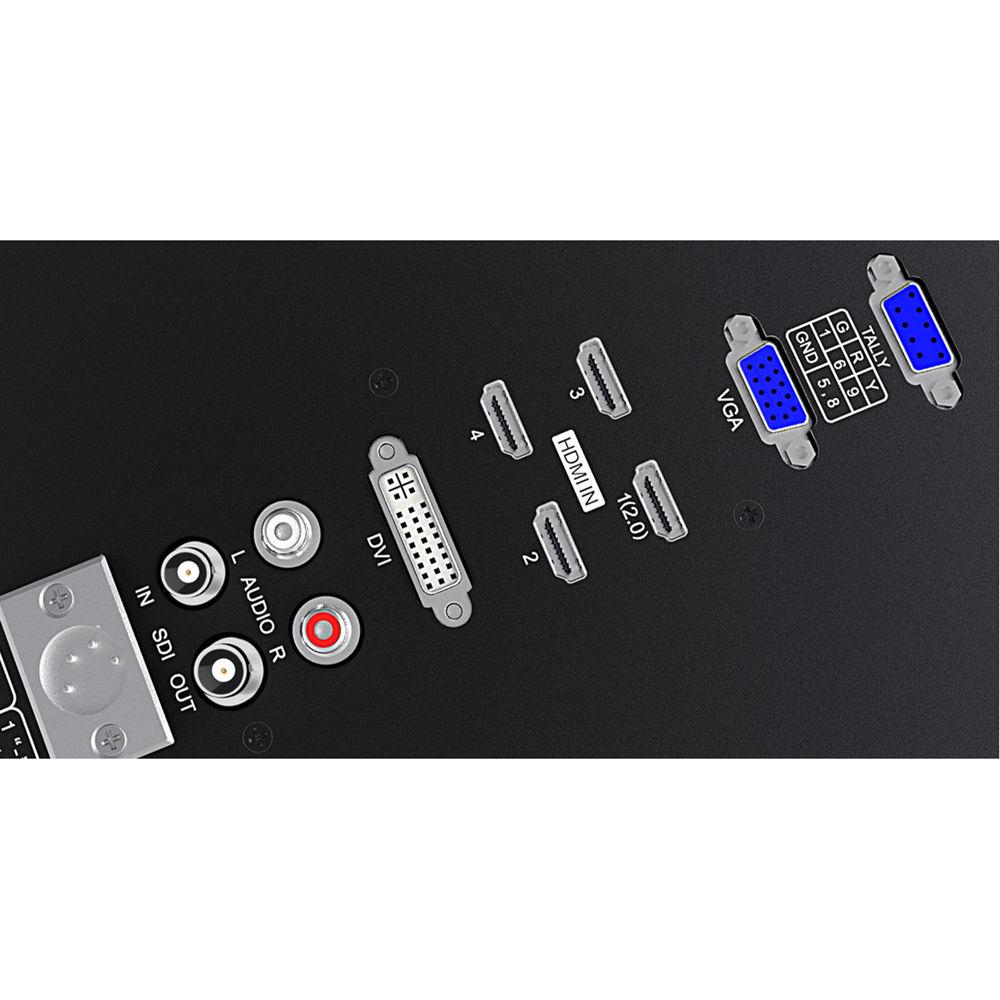

- Professional Connections
- With four HDMI inputs and one 3G-SDI input, the 4K-MT17 enables you to connect up to five cameras, computers, or other sources and work in SD and HD formats up to 1080p at 60 Hz. That means you can start with affordable HDMI consumer cameras, or work with professional SDI broadcast cameras. The monitor also has an analog audio input.

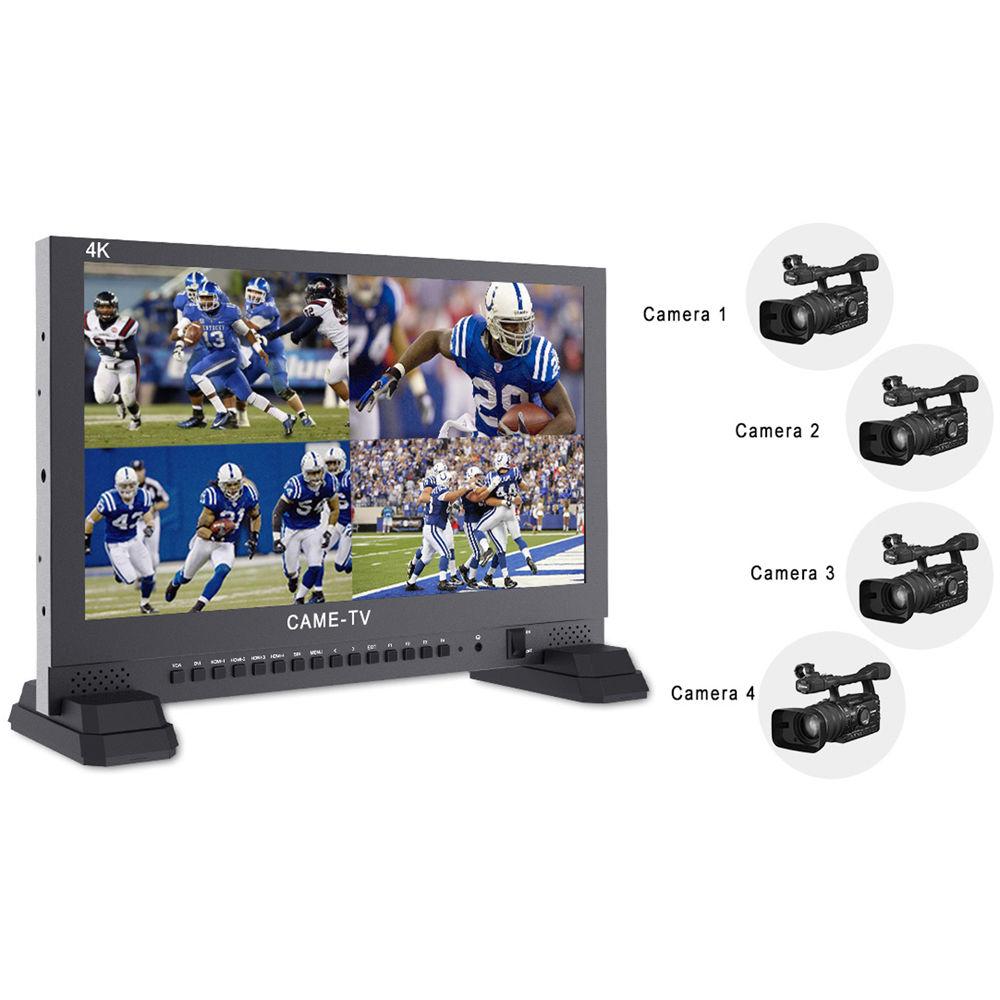

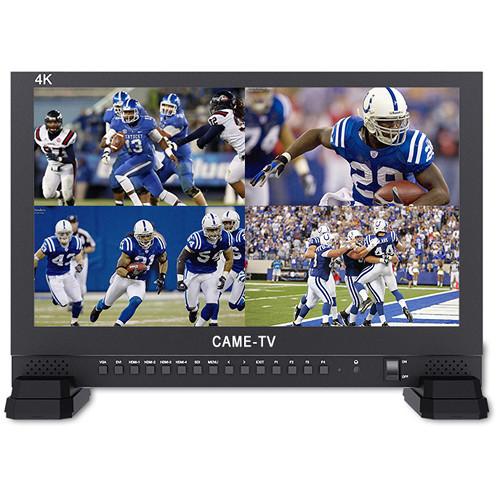

- See Four Video Sources on a Single Monitor in Quad View
- When you're creating a live program from multiple cameras, it's important to be able to see more video sources at the same time. 4K-MT17 has four 4K HDMI inputs, one SDI input, one SDI loop output, and DVI and VGA inputs. Toggle between quad-, dual-, and single-view modes for perfect multi-camera monitoring in any location.

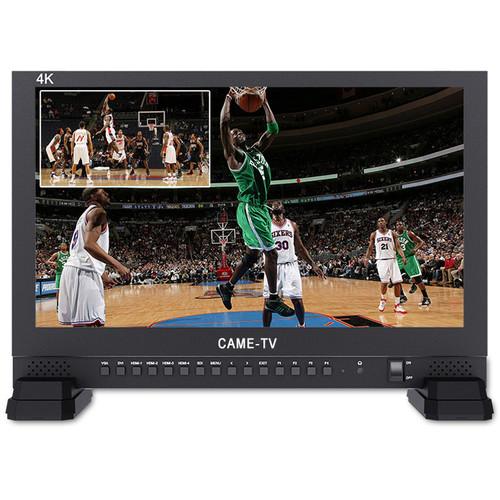

- Built-In Picture-In-Picture Dual View
- The PIP function lets you display live content from one of the connected sources in a floating window while content from a different source plays on the full screen, all in real time. Brightness, contrast, hue, saturation, sharpness, and backlight can be adjusted to make your picture-in-picture effects professional. PiP can be used to superimpose a commentator in training videos, sport events, and gaming competitions.

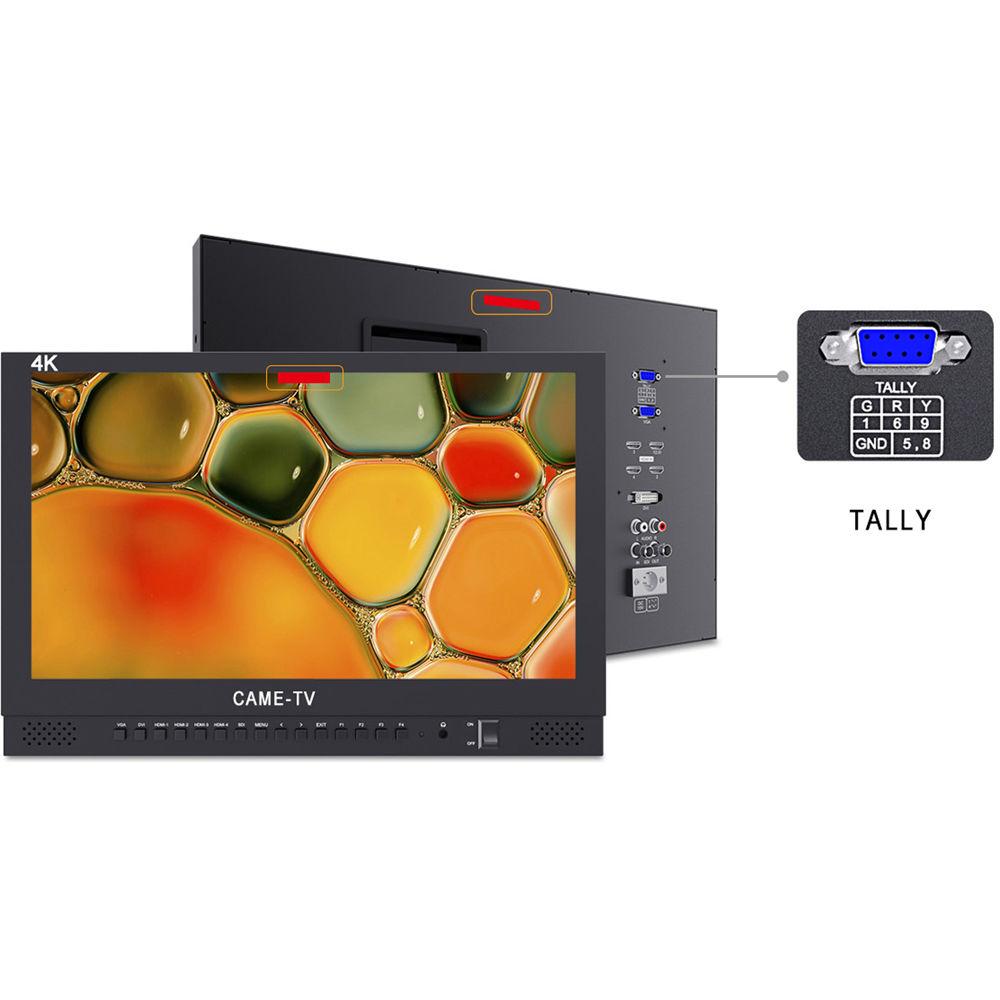

- Three-Color Tally Light
- Designed for live broadcasting, the 4K-MT17 offers green, red, and yellow tally signals. This means that during live production the film crew always knows when they're on-air, and can see which camera is cued up on the switcher's preview output. The tally light is connected via an industry-standard parallel-pin connector on the rear panel so you get full compatibility with switchers and automation systems.
- Uninterrupted Power—Plug It In or Go Mobile

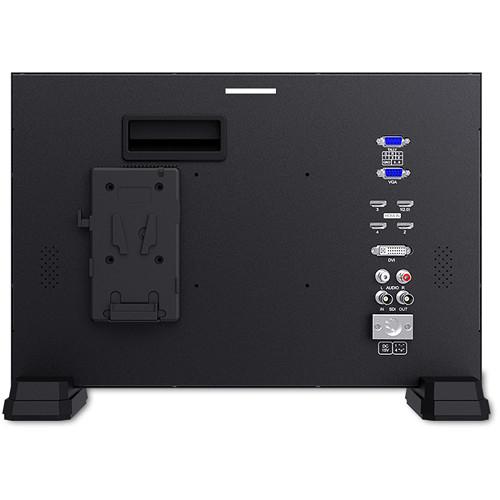

- Use the 4K-MT17 with external batteries on set, or power it via XLR in your news rooms, vans, and post-production facilities.
UPC: 614993189378 In the Box CAME-TV 17.3" 4K UHD IPS Broadcast Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV 17.3" 4K UHD IPS Broadcast Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV 4K-MT17 Specs | Screen Size | 17.3" / 43.94 cm IPS | | Color Depth | 16.7 million colors (8-bit) | | Resolution | 3840 x 2160 | | Pixel Pitch | 0.0995 x 0.0995 mm | | Aspect Ratio | 16:9 | | Brightness | 400 cd/m
