User Manual for CAME-TV 2500W HMI Fresnel Light and Electronic Ballast Click to enlarge the picture
Contents of the user manual for the CAME-TV 2500W HMI Fresnel Light and
- Product category: HMI & Plasma Lights CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV HMI & Plasma Lights
 |
User manual for the CAME-TV 2500W HMI Fresnel Light and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

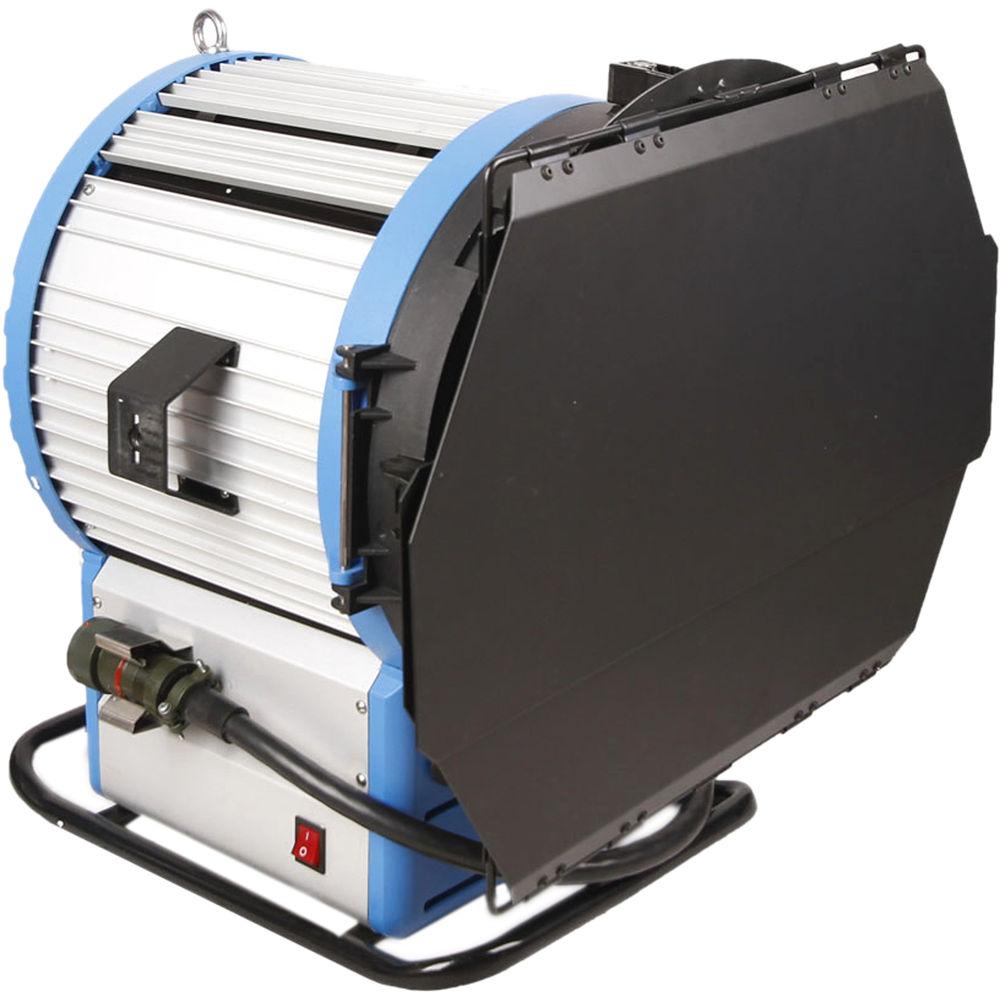

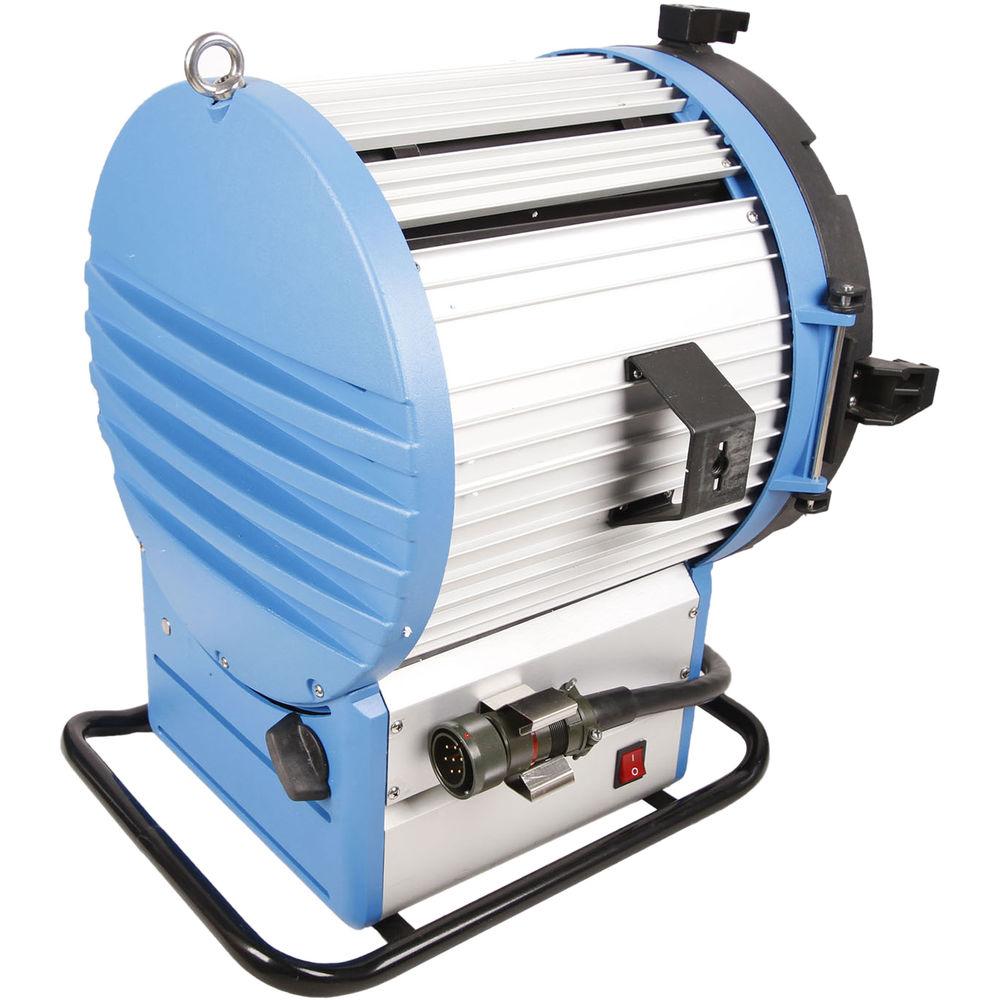

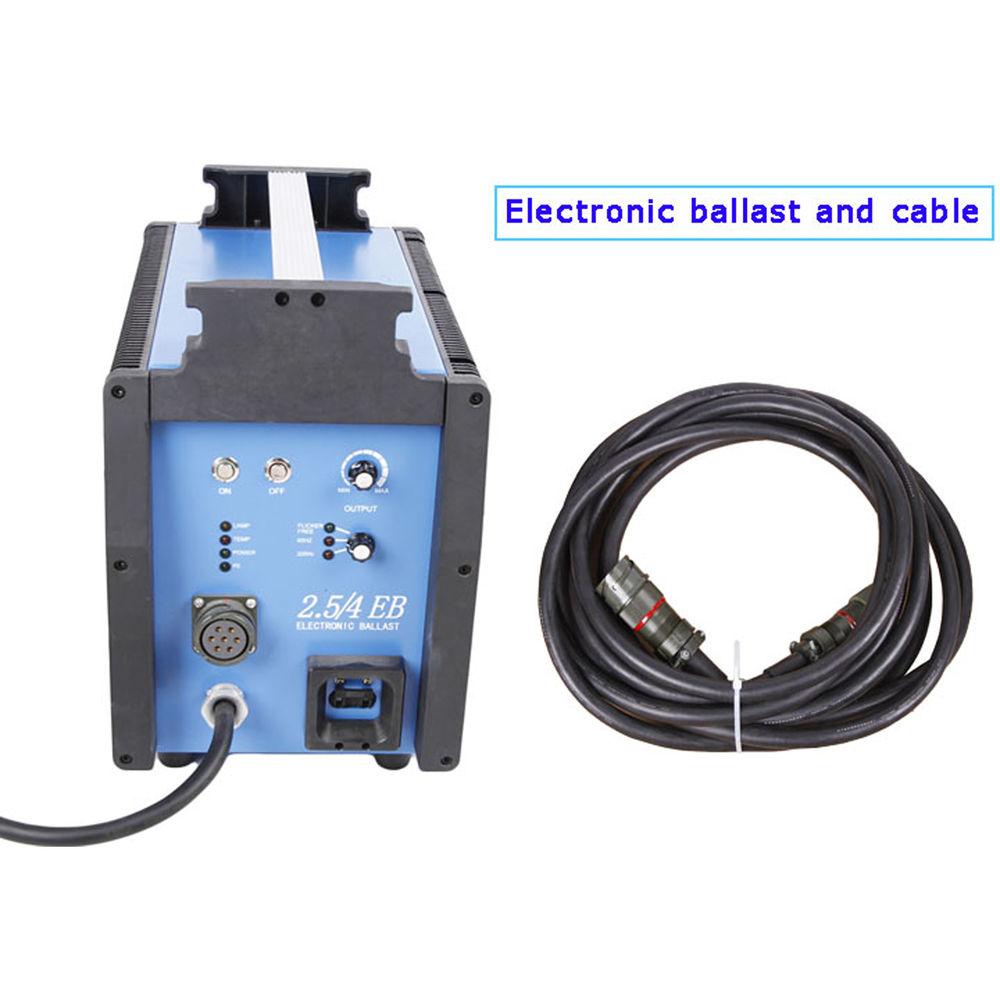

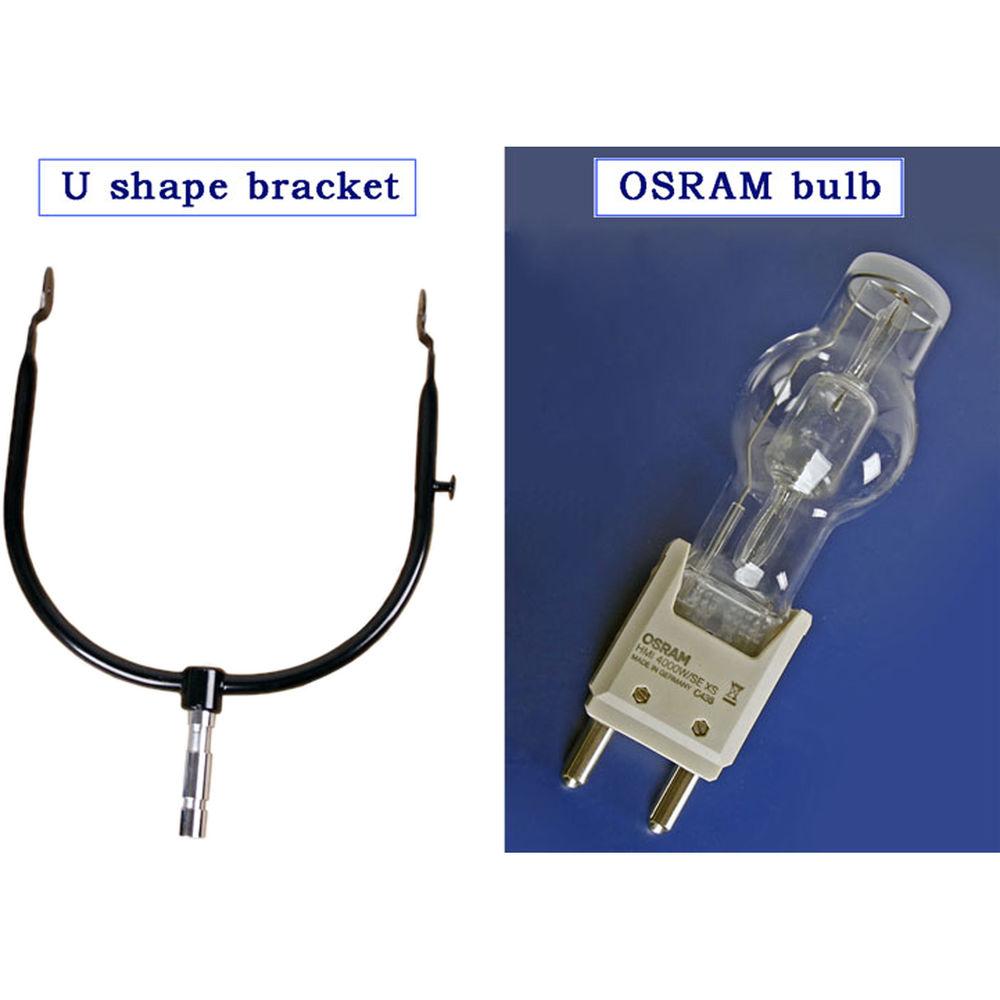

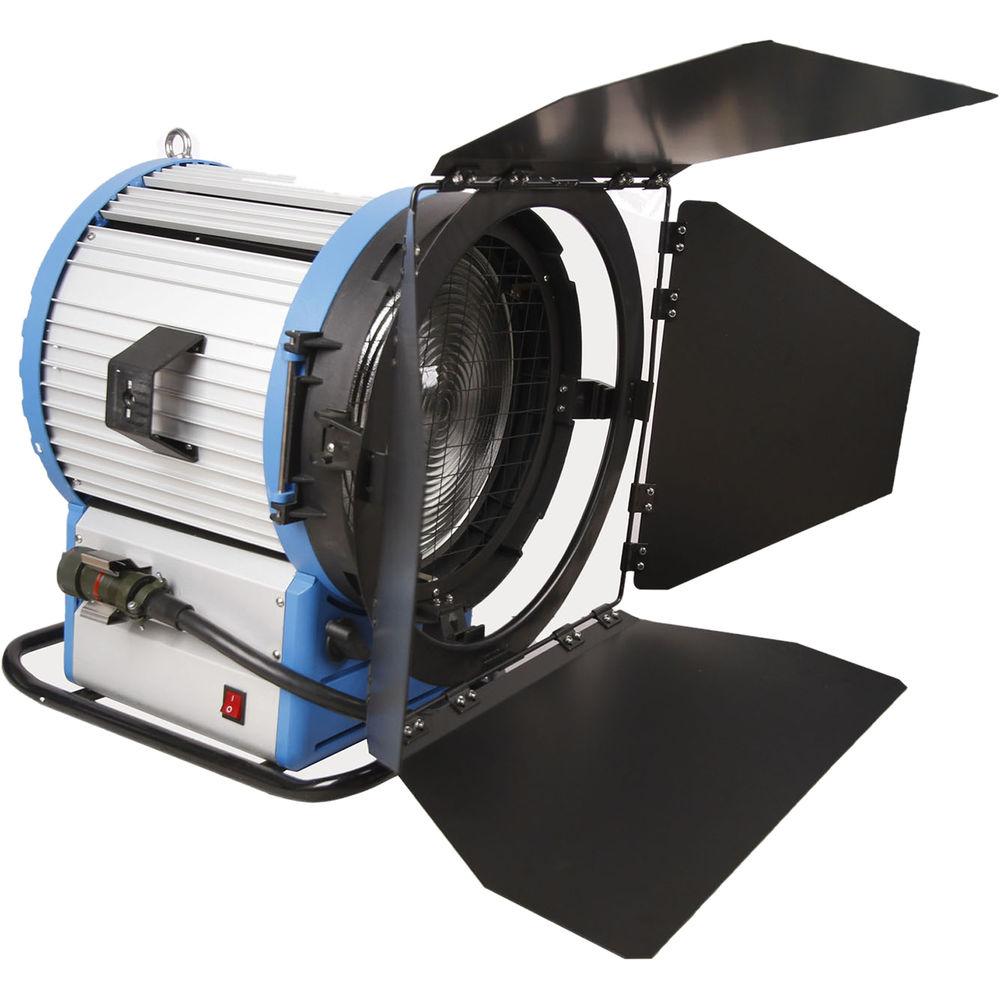

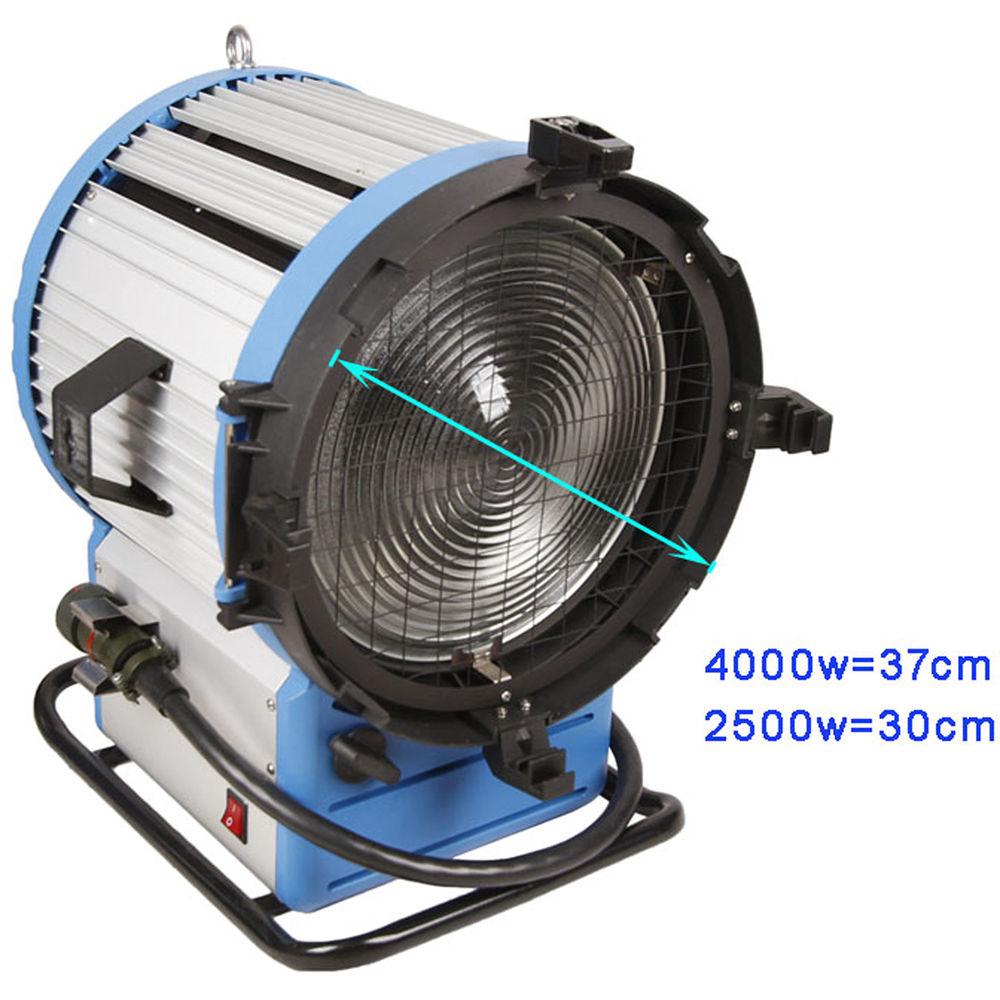

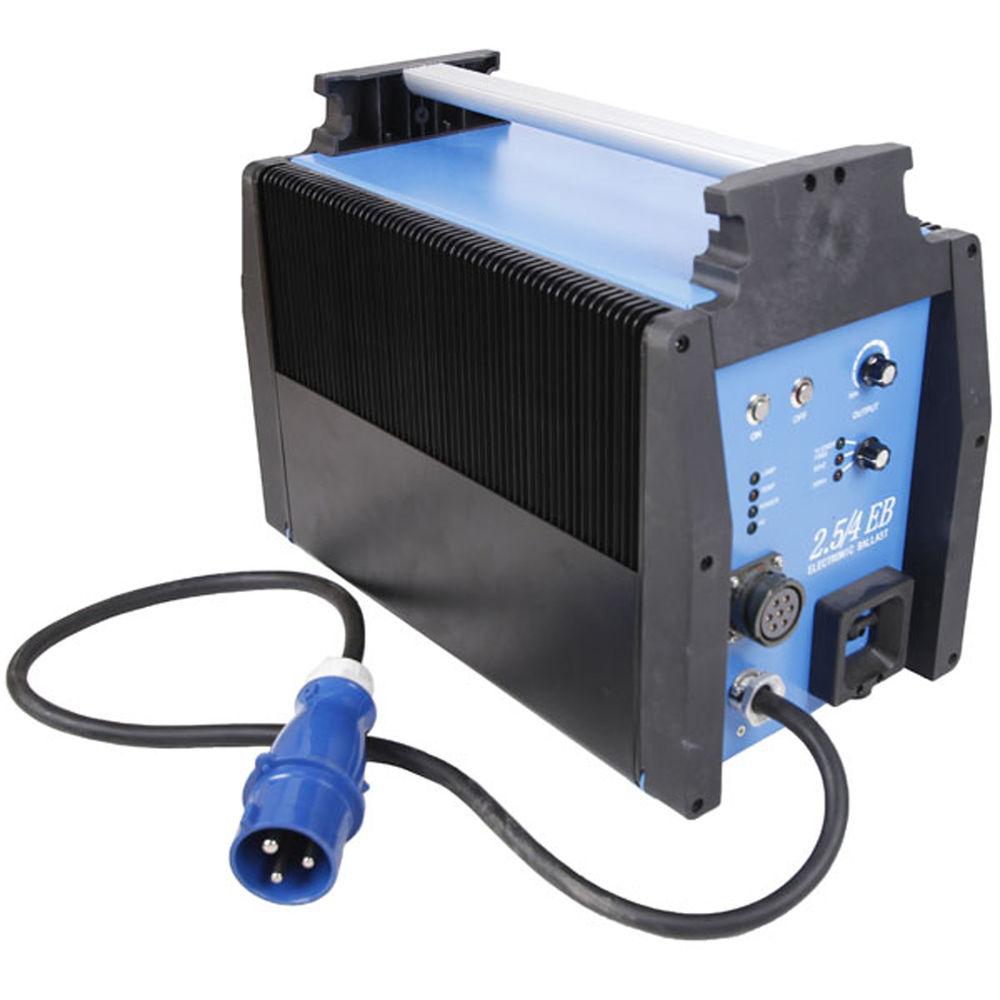

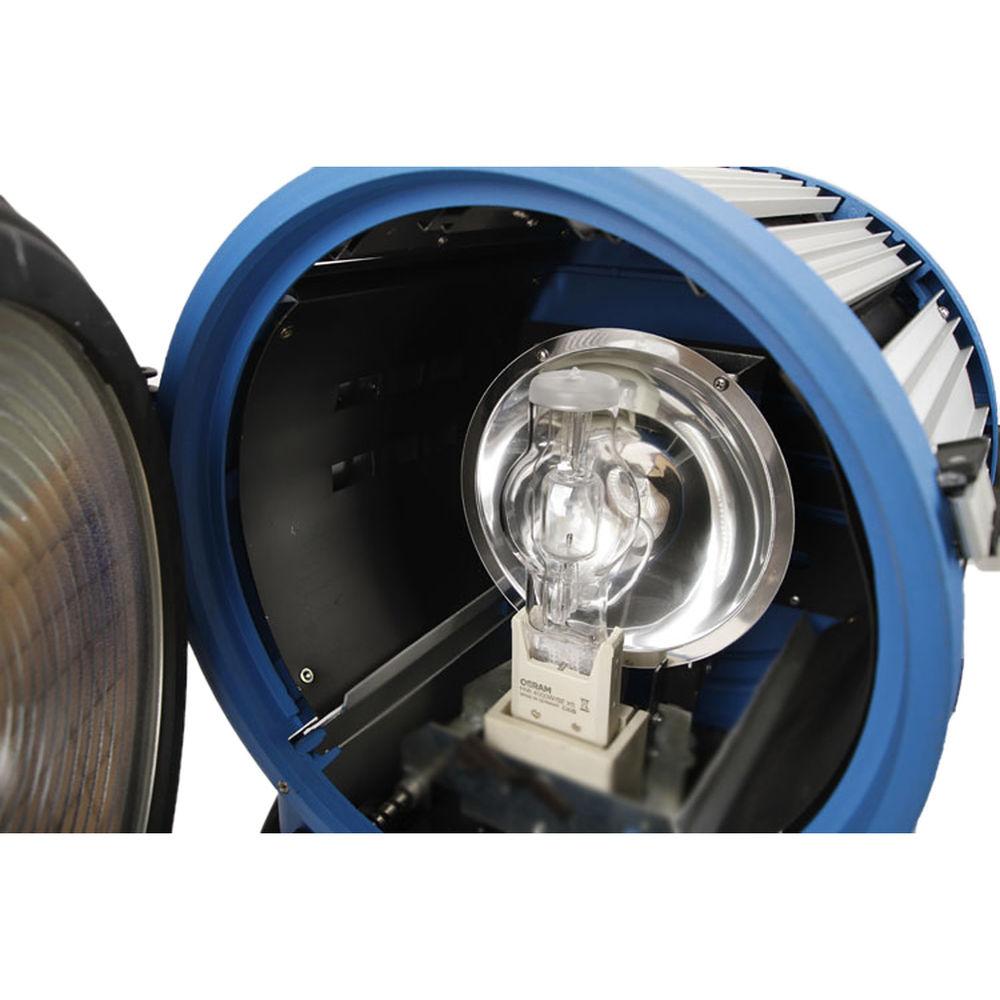

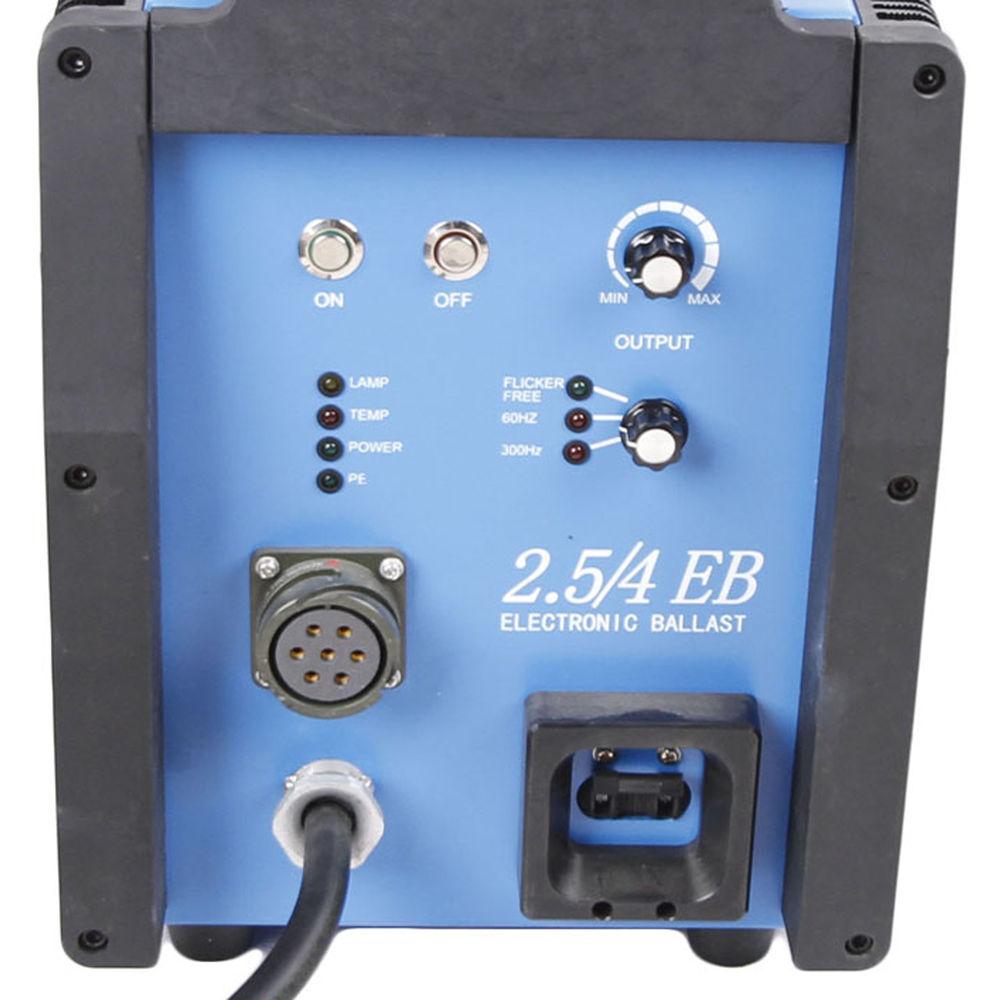

Product description The 2500W HMI Fresnel Light and Electronic Ballast from Came-TV are a staple of any film set or location. The kit includes a Fresnel head with 2500W Osram HMI lamp, 4-leaf barndoors, 2.5/4K electronic ballast, head-to-ballast cable, power cable, and 2 aluminum travel cases.The Fresnel head has a 1-1/8" spigot for stand-mounting or hanging, a G38 lamp base and pigtail captive power lead. The Fresnel is a 9.84" lens for flood-to-spot beam variation. Four-way barndoors allow you to shape the fixture's beam spread for precise lighting. The 2.5/4K electronic ballast is 220 VAC mains compatible and dims from full to 50% power without flicker. The ballast incorporates over-voltage, over-temperature and short-circuit protection, as well as A.L.F. and P.F.C. to ensure consistent and accurate color regardless of voltage fluctuations. In the Box CAME-TV 2500W HMI Fresnel Light and Electronic Ballast 2500W HMI Fresnel Light Head 4-Leaf Barndoors Yoke with 1-1/8" Spigot 2.5 / 4K Electronic Ballast (220 VAC) Head-to-Ballast Cable Power Cable 2500W Osram HMI Bulb 2 x Aluminum Travel Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV 2500W HMI Fresnel Light and Electronic Ballast in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV 2500EB220V Specs | | | Rating | 2500 W HMI | | Material | Aluminum alloy | | Socket (Lampholder) | G38 | | Color Temperature | Approx. 6000K | | Lens (Condenser) | 9.84" (250 mm) Fresnel | | Mounting | 1-1/8" (28 mm) Spigot | | Dimensions | 33.8 x 18.9 x 14.2" (860 x 480 x 360 mm)
Head case: 24.4 x 18.9 x 25.6" (620 x 480 x 650 mm) | | Weight | 39.7 lb (18 kg) | | | | Rating | 2.5 / 4K | | Power | 52-19 A | | Power Factor | cosφ≥0.98 | | Voltage | 220 VAC | | Dimming | 0 - 50% | | Material | Aluminum alloy | | Dimensions | Ballast: 9.5 x 14.5 x 17.7" (243 x 370 x 450 mm)
Ballast case: 5.9 x 12.2 x 17.7" (150 x 310 x 450 mm) | | Weight | 44 lb (20 kg) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
