Product description The 4K-MT7S 7" 3G-SDI & HDMI 4K On-Camera Monitor from CAME-TV features a 1920 x 1200 high-resolution display and supports up to 4096 x 2160 DCI 4K input. The 4K-MT7S has an IPS LCD screen with a 160° viewing angle and 16:10 aspect ratio. It has 3G-SDI and HDMI inputs and outputs, a headphone jack, and a built-in speaker. The video outputs allow you to loop out the video signal to other monitors while maintaining the image quality of the original signal. The monitor uses the Rec. 709 color standard and offers a comprehensive set of monitoring features including brightness histogram, zebra exposure, peaking, false color, and pixel-to-pixel.

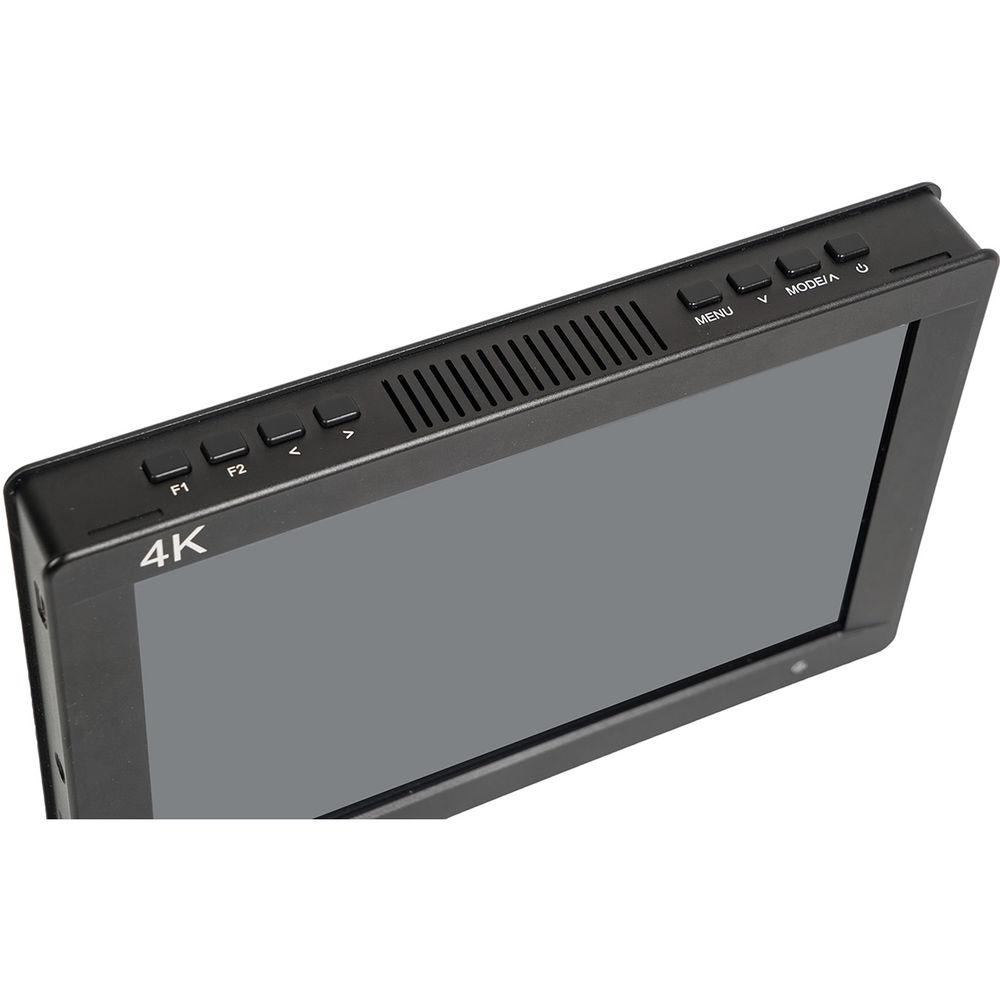

The 4K-MT7S comes with a pre-installed L-series battery plate, a shoe mount ball head, and an HDMI cable. The monitor is lightweight and measures under 1" in thickness. The front of the monitor is clean, with all buttons neatly positioned on top including two custom shortcut function keys. Monitoring Features - For up to 4K Signals
-
- Brightness histogram
- Peaking focus assist (red, green, blue)
- False colors
- Zebra exposure (1-100 IRE adjustable)
- Check field (red, green, blue, mono)
- Camera mode
- Anamorphic mode (1.3x, 2.0x, 2.0x mag)
- Image flip (H, V, H/V)
- Image freeze
- Center marker
- Screen marker (80/85/90/93/96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Color temperature adjustment
- Up to 1080p Signals
-
- Nine grid (zoom in on an image to full screen)
- Zoom (4x, 9x, 16x)
- Aspect ratio
- Pixel-to-pixel
- Zoom-all
- U/D zoom
- L/R zoom

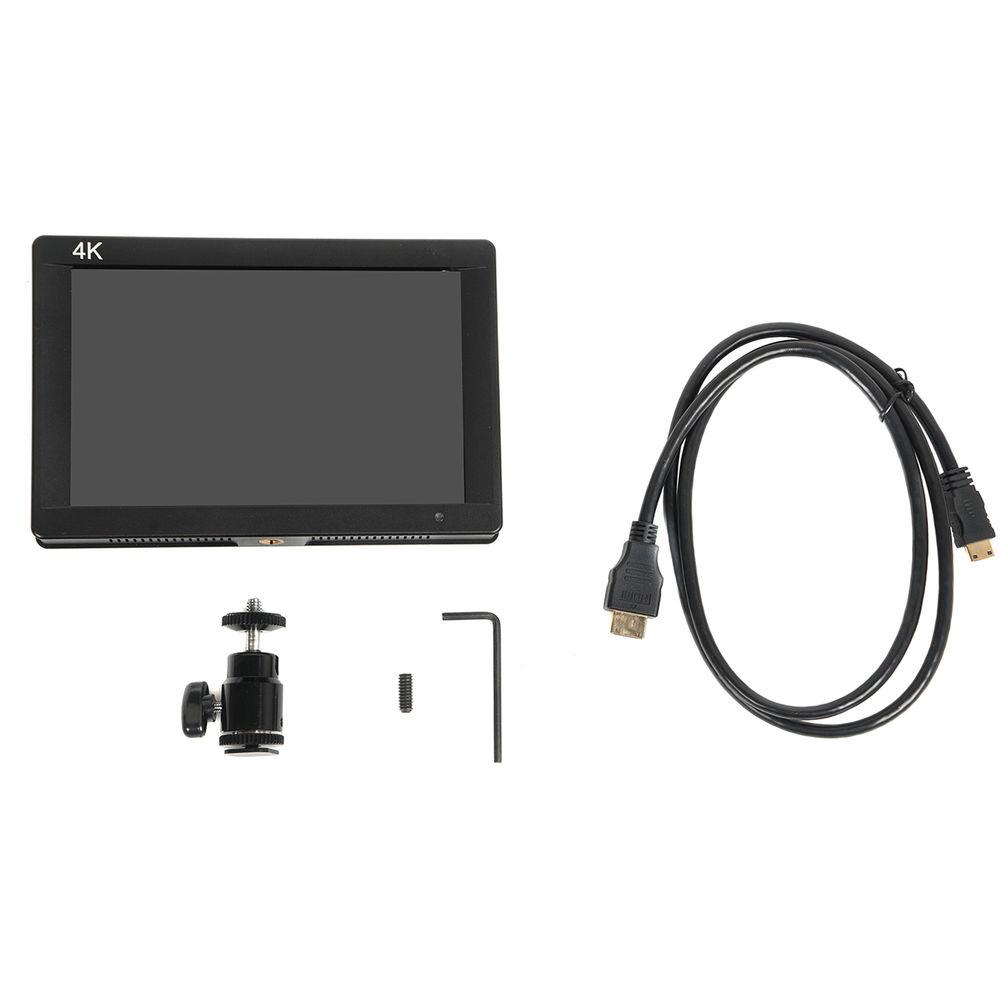

UPC: 614993190299 In the Box CAME-TV 4K-MT7S 7" 3G-SDI & HDMI 4K On-Camera Monitor HDMI Cable Shoe Mount Ball Head Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV 4K-MT7S 7" 3G-SDI & HDMI 4K On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

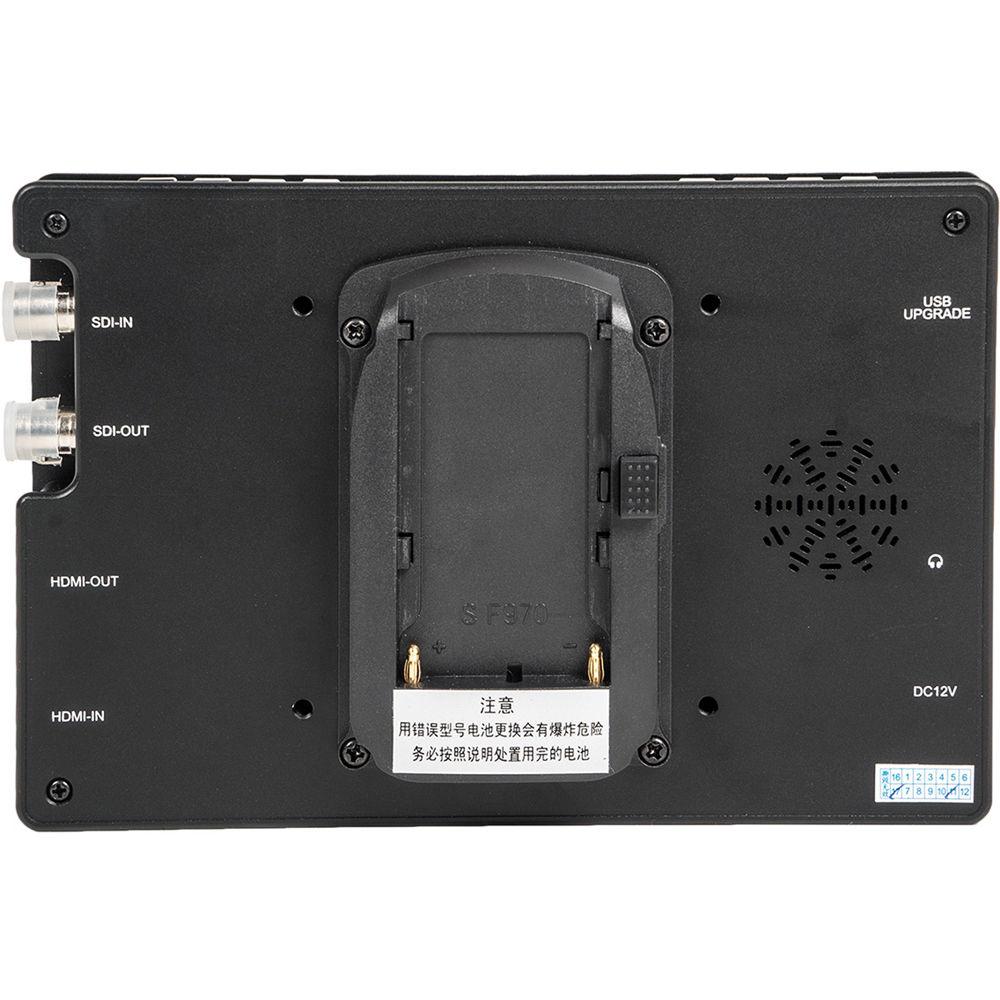

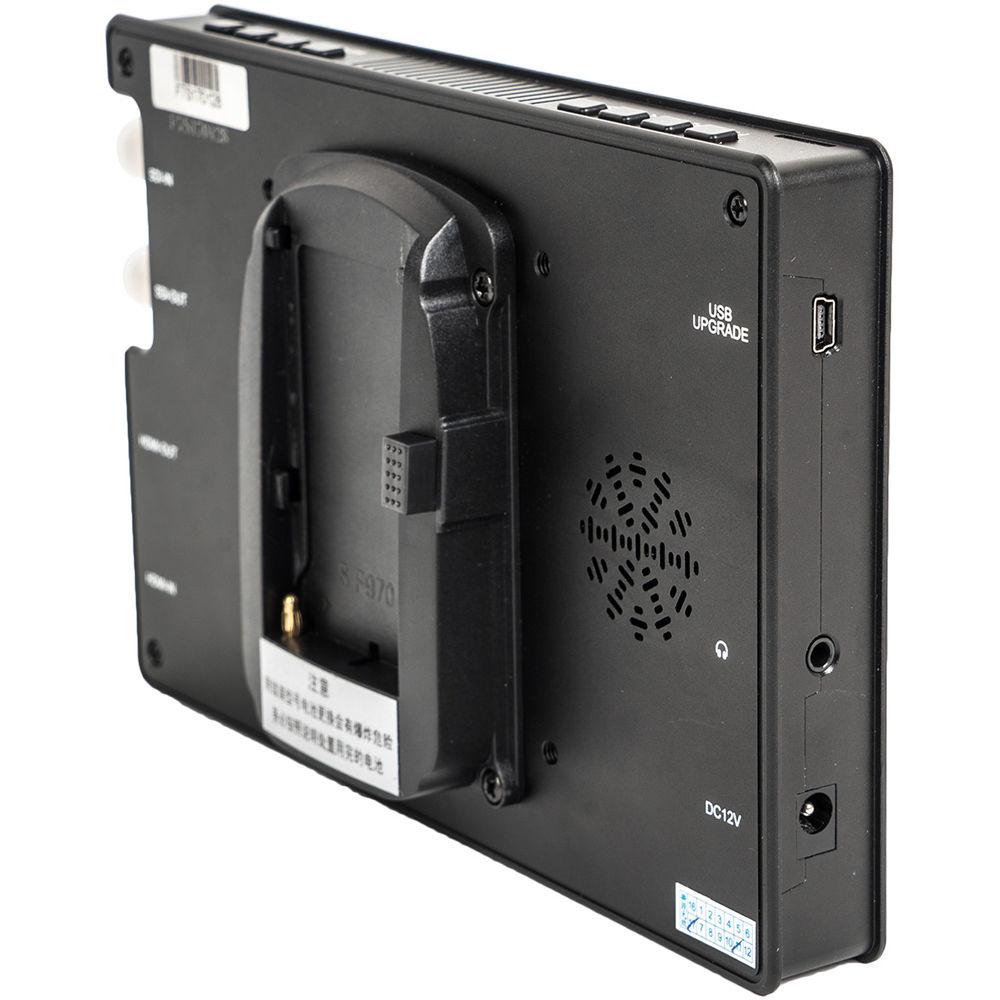

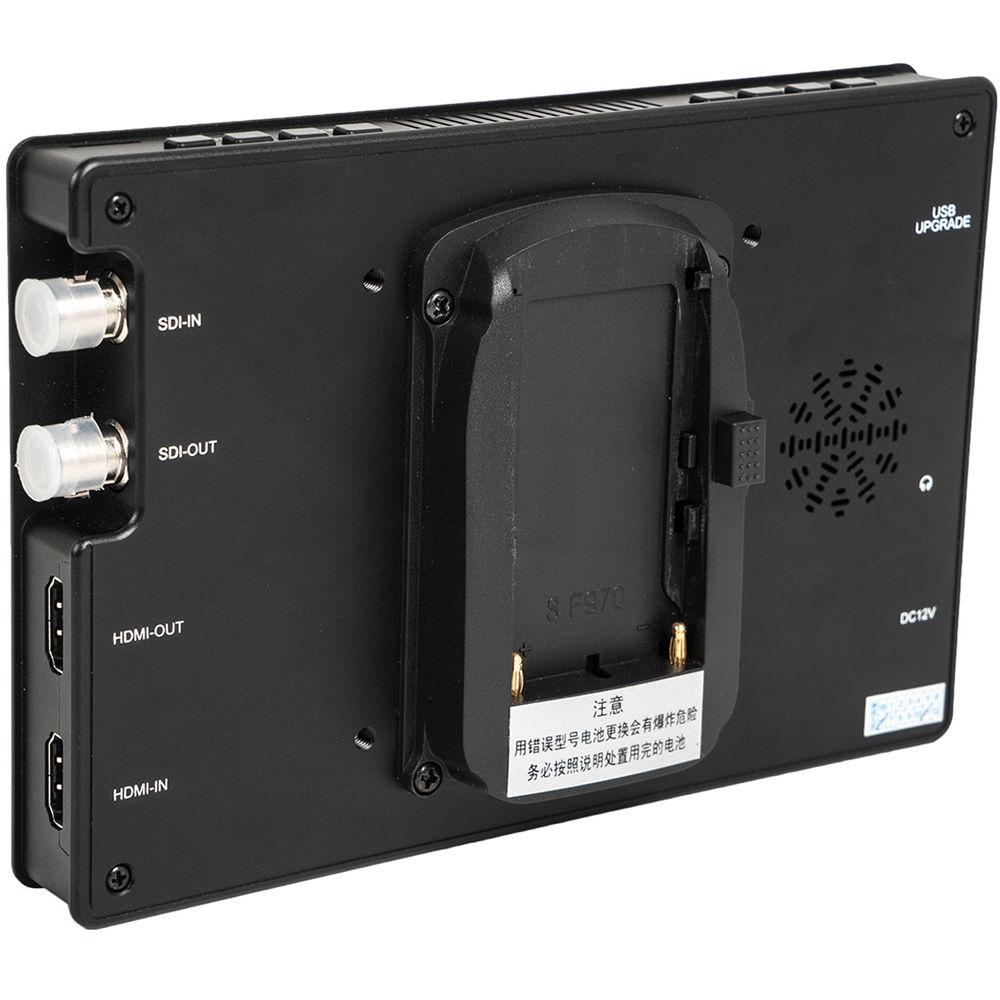

Technical parametersCAME-TV 4K-MT7S Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 160° (80/80) | | Touchscreen | No | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1200:1 | | Dot Pitch | 0.07875 x 0.07875 mm | | Real-Time LUT Monitoring | No | | | | Video | 1 x BNC (3G-SDI) Input
1 x HDMI Type A Input
1 x BNC (3G-SDI) Output
1 x HDMI Type A Output | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Power | 1 x Barrel Input | | Other I/O | None | | Card Slot | None | | | | Video Format | SDI
1080p: 24/25/30/50/60
1080PsF: 24
1080i: 50/60
720p: 24/25/30/50/60
NTSC
PAL
HDMI
DCI 4K: 24
UHD 4K: 24/25/30
1080p: 24/25/30/50/60
1080i: 50/60
1080PsF: 24
720p: 24/25/30/50/60
480p
576p
NTSC
PAL | | | | DC Input Power | 6.5 to 24 VDC | | Battery Type | 1 x L-Series | | Power Consumption | 9 W (Typical) | | | | Mounting | 1 x 1/4"-20 Female | | | | Operating Temperature | -4 to 131°F / -20 to 55°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | | | Dimensions (W x H x D) | 7.09 x 4.72 x 0.79" / 18 x 12 x 2 cm | | Weight | 0.98 lb / 445 g
1.05 lb / 475 g, Including Battery Plate | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 9.0 x 6.25 x 3.0" |
