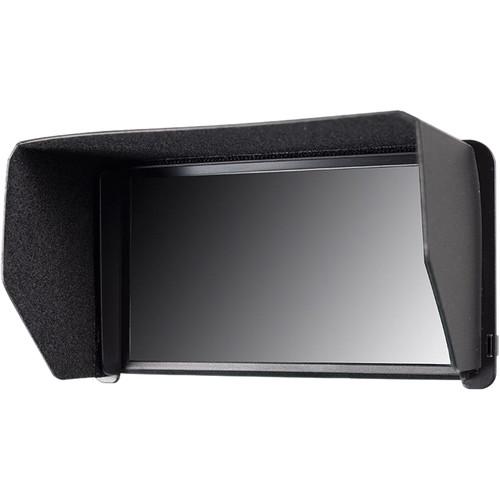

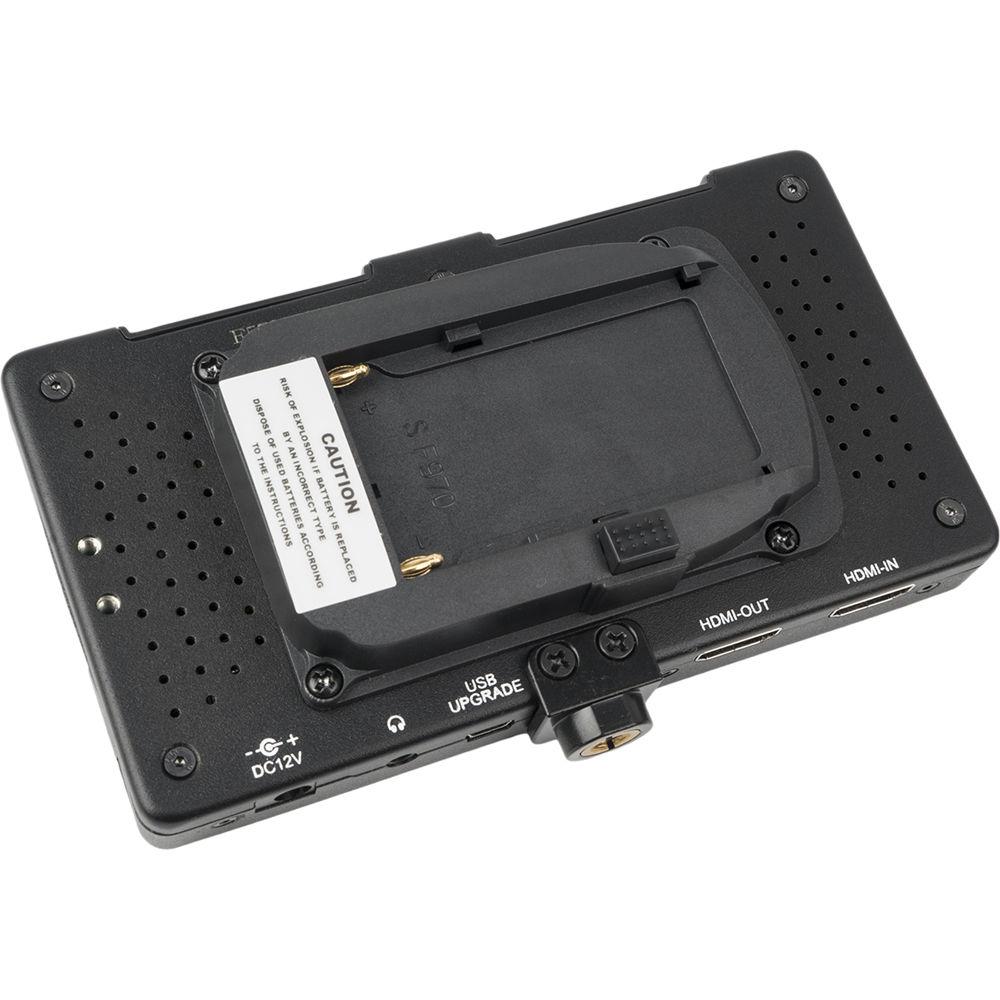

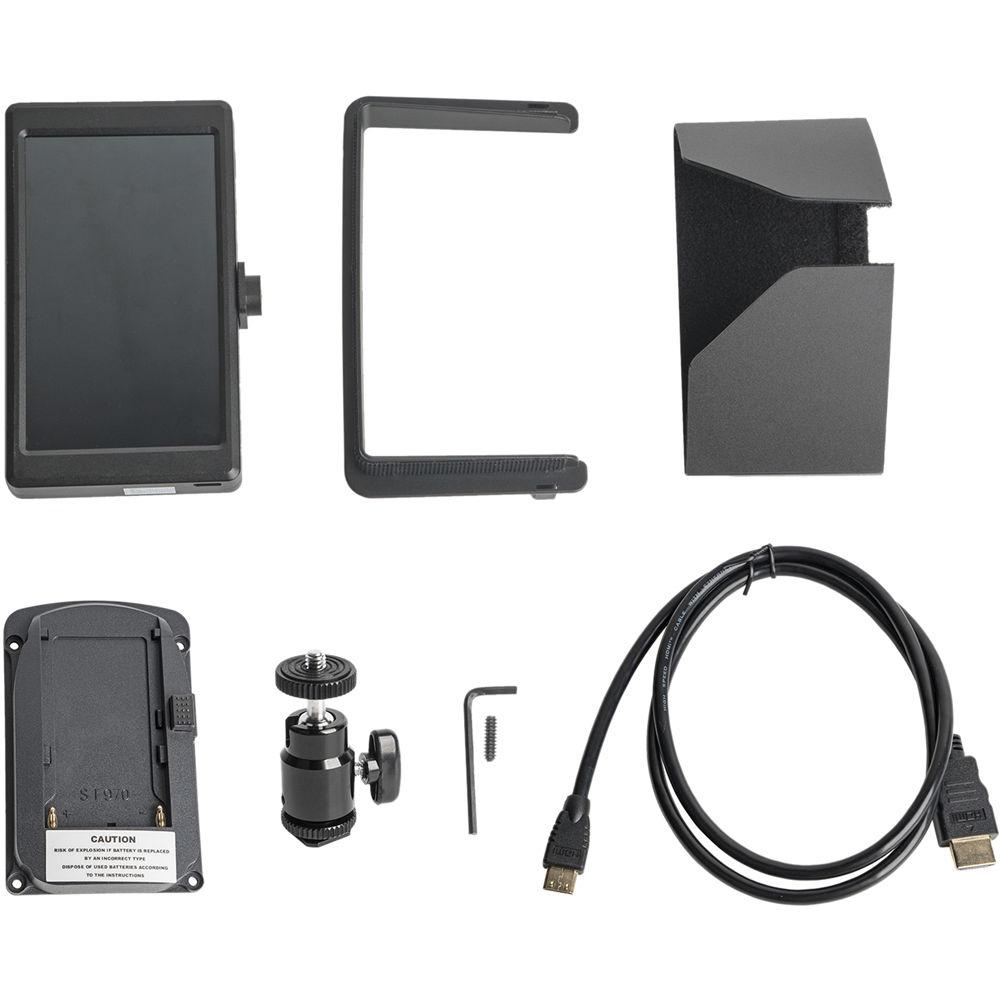

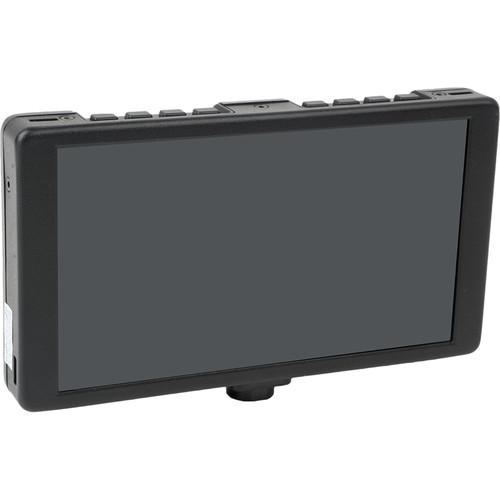

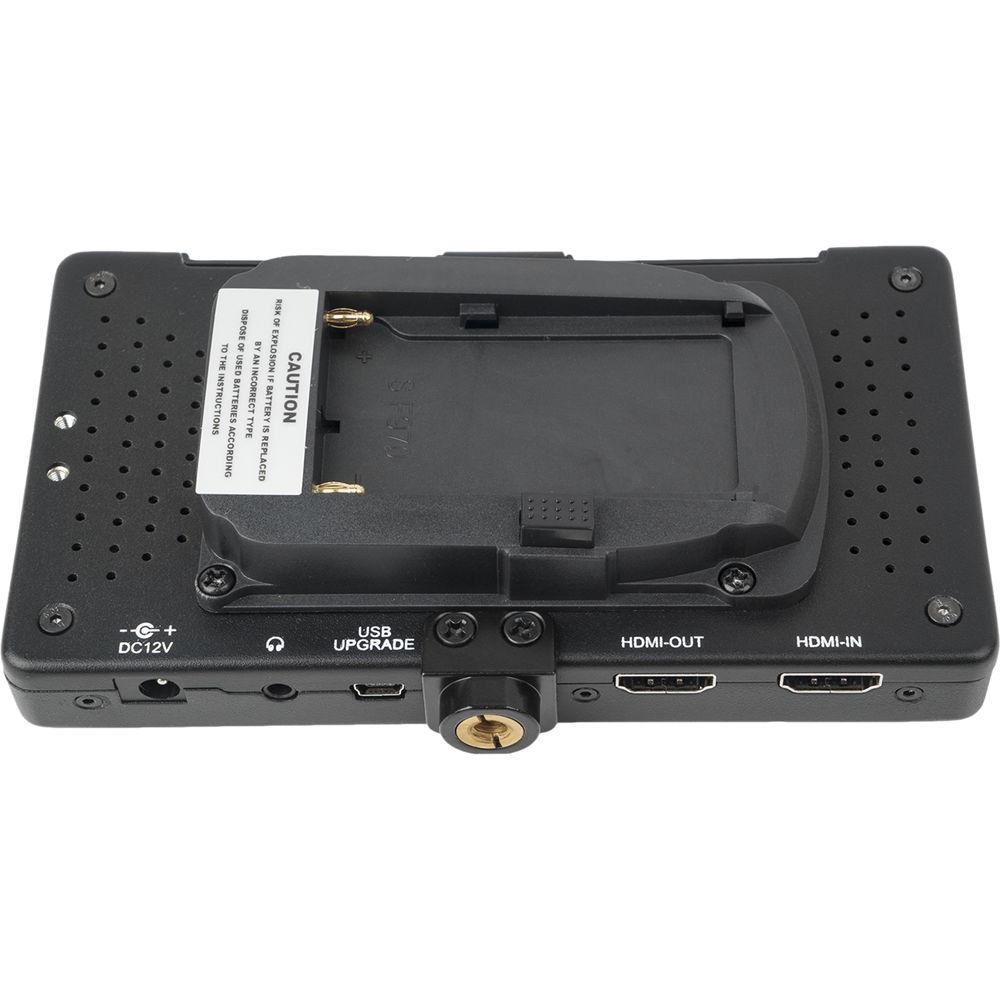

Product description The 5.7" Full HD On-Camera IPS Monitor from CAME-TV offers 1920 x 1080 native resolution and uses LED backlight technology to deliver brighter images using less power. It features 1400:1 contrast ratio, 460 cd/m² brightness, and a 170° wide viewing angle that makes it easy to see the displayed content even when several people are watching at the same time. The monitor's connectivity interface includes HDMI input and output, a USB upgrade port, a 3.5mm earphone port, and a 12 VDC power input. Included are a standard F970 plate for battery operation, a shoe mount for attaching the monitor onto a camera or rig assembly, and sun hood for blocking out stray reflections and reducing glare when viewing footage in the field. UPC: 614993189415 In the Box CAME-TV 5.7" Full HD 1920 x 1080 On-Camera IPS Monitor with HDMI In/Out Bracket Sun Hood F970 Battery Plate Shoe Mount Screw & Wrench USB Upgrade Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV 5.7" Full HD 1920 x 1080 On-Camera IPS Monitor with HDMI In Out in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV 4K-S57 Specs | Screen Size | 5.7" / 14.48 cm | | Screen Type | IPS | | Native Resolution | 1920 x 1080 | | Pixel Pitch | 0.0657 x 0.0219 mm | | Aspect Ratio | 16:9 | | Brightness | 460 cd/m² | | Contrast Ratio | 1400:1 | | Backlight | LED | | Viewing Angle | 85/85° (L/R)
85/85° (U/D) | | Input | 1 x HDMI | | Output | 1 x HDMI | | Audio Connector | 1 x 3.5 mm stereo headphone | | HDMI Input & Output Support Format | 480i/576i/480p/576p
1080i: 60/59.94/50
720p: 60/59.94/50/30/29/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF
4K UHD 3840 × 2160p: 30/29.97/25/24/23.98, 4096 × 2160p24 | | Input Voltage | 7-24 VDC | | Maximum Power Consumption | 8 W | | Working Temperature | -4 to 131°F / -20 to 55°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | Mounting | 1/4"-20 thread socket | | Battery Plate | F970 (included)
D28S/D54, LP-E6, U60 (available separately) | | Advanced Functions | Brightness histogram, peaking focus assist (red, green, and blue with optional highlight over parts of the image in focus), false colors, zebra exposure (1-100 IRE adjustable), check field (red, green, blue, and mono), camera mode, anamorphic mode (1.3x, 2.0x, and 2.0x mag), image flip (H, V, and H/V), image freeze, center marker, screen marker (80, 85, 90, 93 & 96%, and 2.35:1), ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, and 2.35:1), color temperature adjustment
Additional Functions (Not Supported in 4K Input):
Nine grid (zoom one of the images to realize the full screen), zoom (4x, 9x, and 16x), aspect ratio, pixel to pixel, zoom all, U/D zoom, and L/R zoom | | Dimensions | 5.83 x 3.23 x 0.71" / 14.8 x 8.2 x 1.8 cm | | Weight | 0.617 lb / 280 g without F970 plate
0.684 lb / 310 g with F970 plate |
