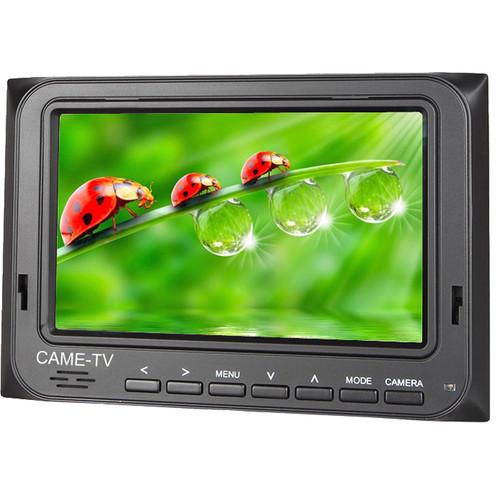

Product description The 501-HDMI 5" HDMI AV Field Monitor from CAME-TV is a backlit LED monitor with 800 x 480 resolution. It offers a high contrast ratio of 500:1 and total horizontal viewing angle of 140°. Designed for professional video applications, the 501-HDMI supports video signals up to 1920 x 1080p60 through the HDMI. - Function key for easy operation
- Supports 4:3 and 16:9 aspect ratio (image adjustable)
- Supports focus peaking, camera 5D II mode, and field checking (red, green, blue, mono)

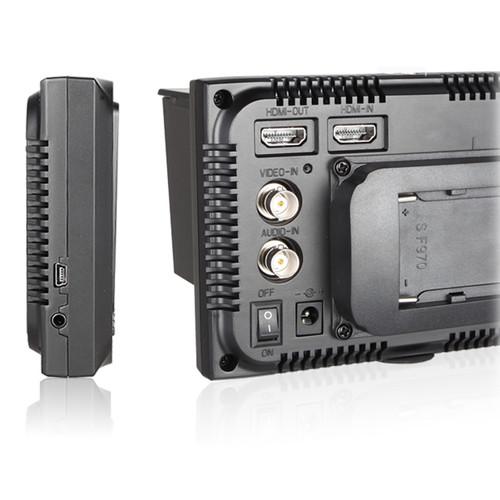

- Headphone jack on the side
- Daisy-chain live displays

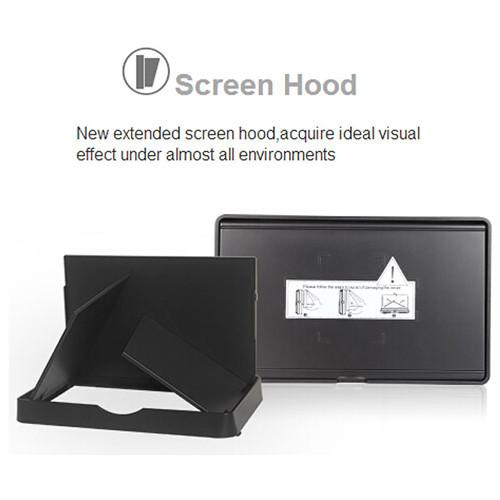

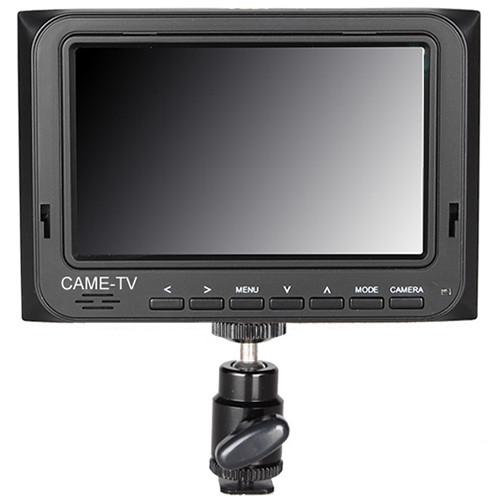

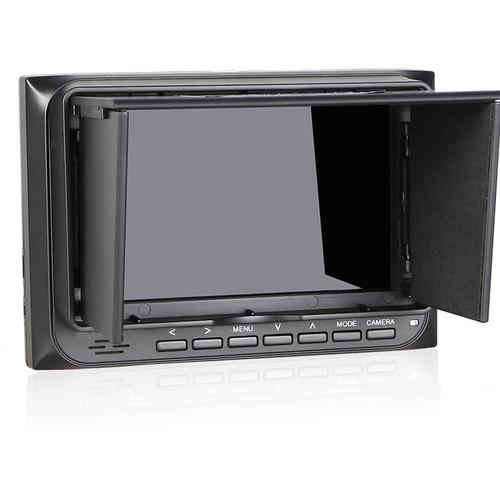

UPC: 717080142789 In the Box CAME-TV 501-HDMI 5" HDMI AV Field Monitor with Peaking Focus Assist Screen Hood HDMI Cable Hot Shoe Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV 501-HDMI 5" HDMI AV Field Monitor with Peaking Focus Assist in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV 501-HDMI Specs | | | Screen Size | 5" (12.7 cm) | | Resolution | 800 x 480 Pixels (up to 1920 x 1440) | | Dot Pitch | W x H: 0.05 x 0.14 | | Aspect Ratio | 16:9 | | Brightness | 350 cd/m2 | | Contrast | 500:1 | | Viewing Angle | L/R: 70°/70°
U/D: 50°/70° | | Backlight | LED | | | | HDMI | 1080p60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
1080i60 / 59.94 / 50
720p60 / 59.94 / 50 / 30 / 29 / 25 / 24 / 23.98
576p / 576i

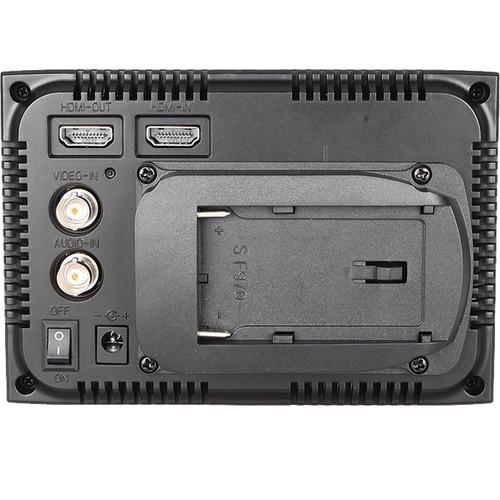

480p / 480i | | | | Input | 1 x HDMI
1 x BNC | | Output | 1 x HDMI | | | | Audio | 1 x Speaker
1 x 3.5 mm Headphone slot | | Input Voltage | 6 to 24 VDC | | Power Consumption | ≤ 6 W | | Operating Temperature | -4 to 131°F (-20 to 55°C) | | Storage Temperature | -22 to 149°F (-30 to 65°C) | | Installation | 1/4"-20 Thread socket on top and bottom | | Dimensions | 5.7 x 3.9 x 1.1" (14.6 x 10.0 x 2.9 cm) | | Weight | Without Sunshade: 9 oz (260 g)
With Sunshade: 12 oz (340 g) | | | | Package Weight | 1.56 lb | | Box Dimensions (LxWxH) | 10.9 x 6.05 x 3.7" |
