User Manual for CAME-TV 576B Bi-Color LED 3 Light Kit with NP-F Mounts Click to enlarge the picture
Contents of the user manual for the CAME-TV 576B Bi-Color LED 3 Light
- Product category: LED Lights CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV LED Lights
 |
User manual for the CAME-TV 576B Bi-Color LED 3 Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

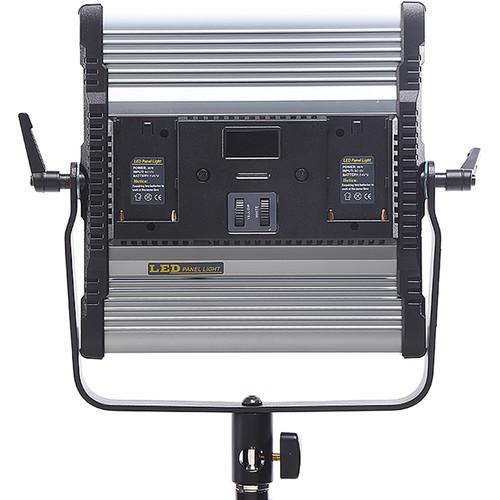

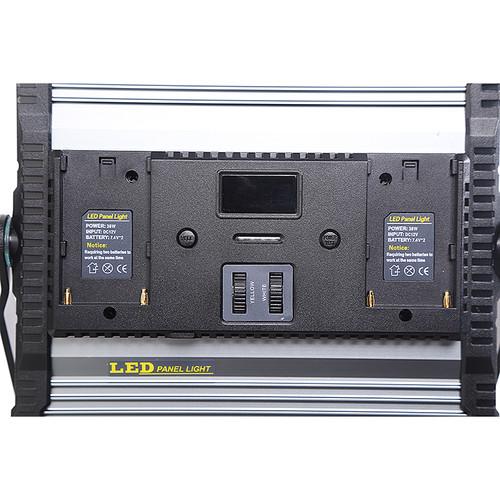

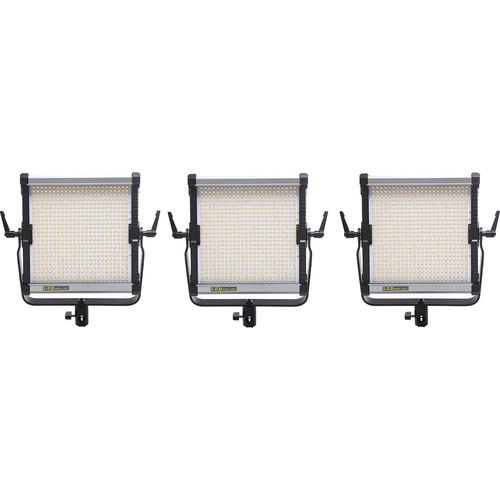

Product description The 576B Bi-Color LED 3 Light Kit with NP-F Mounts from CAME-TV is a great core lighting kit in the studio or on the road. The kit includes 3 LED 576B bi-color dimmable lights with multi-voltage AC adapters, NP-F batteries, chargers and battery mounts, and yokes with stand mounts. Each light also includes a light stand, a tungsten conversion filter, and a removable diffusion filter. A padded carrying case completes the kit.Featuring an array of 576 LEDs, the fixture provides a bright, soft light well-suited to video production. This model offers a high CRI for accurate color reproduction along with CCT that's variable from 3200 to 5600K or anywhere in between. Instead of accumulating downtime while you tape gels to the light, you can balance the output with ambient lighting conditions or other fixtures for the shortest distance between setup and capture. Flexibility is also extended to light intensity. The 576 Bi-Color's wide beam ensures an even spread of illumination across your scene that can be dimmed from 10-100%. Adjustments are clearly displayed on the back panel digital LCD screen.The 576B bi-color kit includes a yoke with 5/8" receiver for mounting on a light stand. Power input is handled via 4-pin XLR connection and the included multi-voltage AC adapter or the kit's NP-F batteries. - Benefits
-
- Flicker-free
- 10-100% dimmable
- Runs on included AC adapter or batteries
- High brightness, low heat, low power consumption
UPC: 717080142420 In the Box CAME-TV 576B Bi-Color LED 3 Light Kit with NP-F Mounts 3 x NP-F-Type Battery Plates 6 x NP-F-Type Batteries 3 x Battery Chargers 3 x Light Stands 3 x Worldwide AC Adapter: 100-240 VAC 3 x Yoke with Stand Mount 3 x Removable Soft Diffusion Panel 3 x Removable Tungsten Conversion Panel Carry Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV 576B Bi-Color LED 3 Light Kit with NP-F Mounts in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV 576B Specs | | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 96 | | Cooling System | None | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Housing Material | Aluminum | | Number of LEDs | 576 | | Fixture Dimensions | 11.4 x 11.8 x 2.2" / 29.0 x 30.0 x 5.5 cm | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 11 to 16 VDC | | Power Source | AC Adapter, External Battery | | | | Package Weight | 25.8 lb | | Box Dimensions (LxWxH) | 36.5 x 17.25 x 6.25" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 90 owners. Add your rating and experience with the product.
