User Manual for CAME-TV 576D Daylight LED 3-Panel Light Kit P688 Click to enlarge the picture
Contents of the user manual for the CAME-TV 576D Daylight LED 3-Panel Light
- Product category: LED Lights CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV LED Lights
 |
User manual for the CAME-TV 576D Daylight LED 3-Panel Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

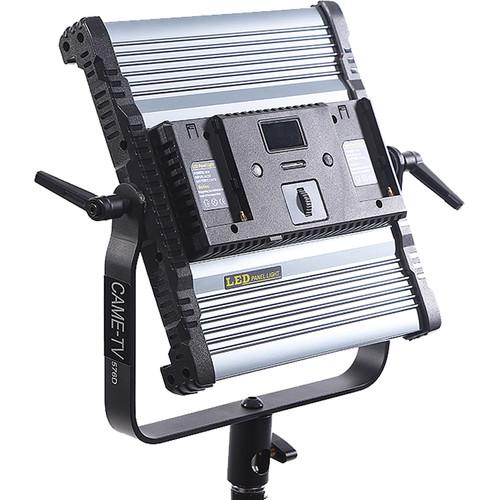

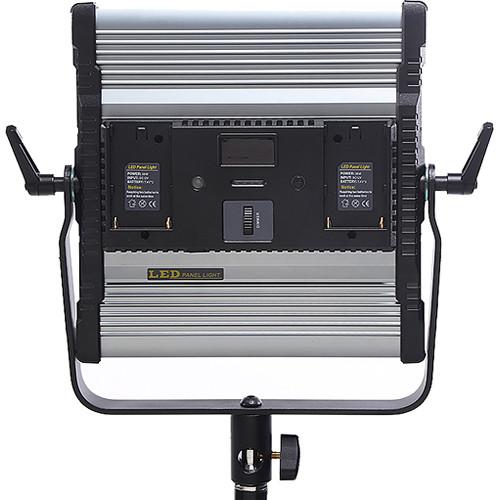

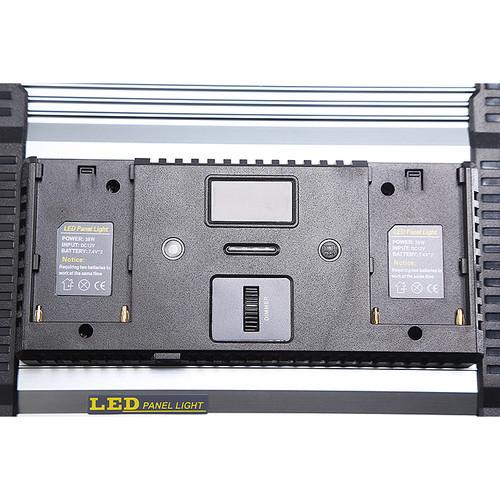

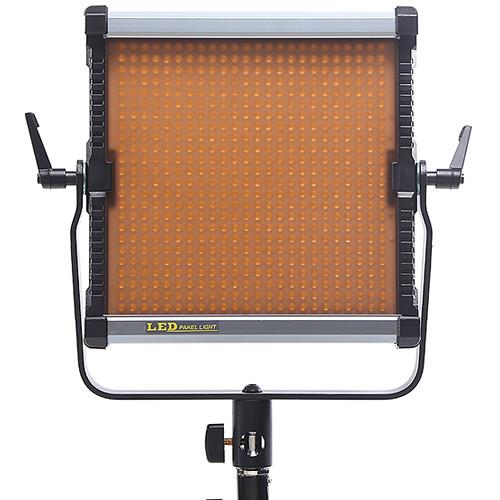

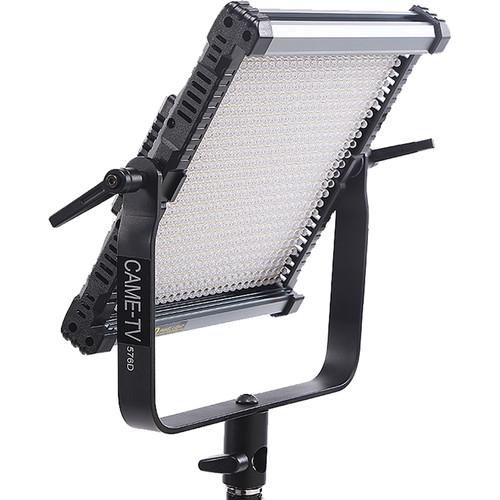

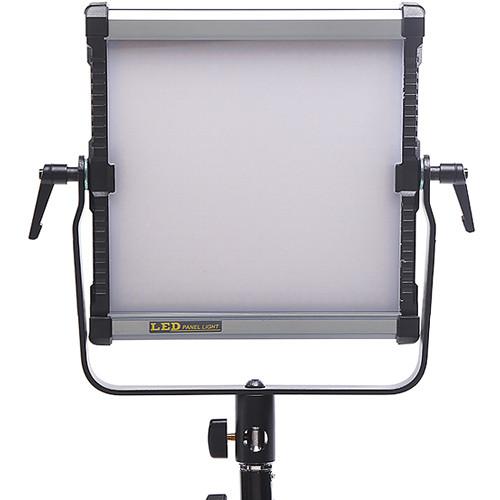

Product description The 576D Daylight LED Three Panel Light Kit from CAME-TV is a great tool for core lighting in the studio or on the road. The kit includes three LED 576D daylight dimmable lights with multi-voltage AC adapters, NP-F battery plates, six batteries, light stands, and yokes with stand mounts. Each light also includes a tungsten conversion and a removable diffusion filter. Two padded carrying cases complete the kit.Featuring an array of 576 LEDs, the fixture provides a bright, soft light well-suited to video production. This model offers a high CRI for accurate color reproduction along with daylight-balanced color temperature of 5600K for matching natural light. It has a wide beam angle for an even spread of illumination across your scene and can be dimmed from 10-100%. Adjustments are clearly displayed on the back panel digital LCD screen.The 576D daylight kit includes a yoke with 5/8" receiver for mounting on a light stand. - Benefits
-
- Flicker-free
- 10-100% dimmable
- Runs on included AC adapter or batteries
- High brightness, low heat, low power consumption

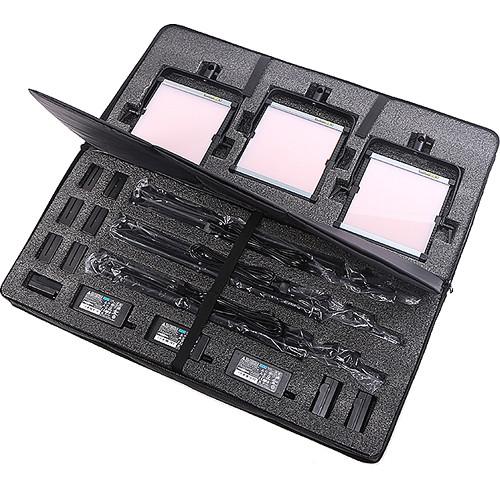

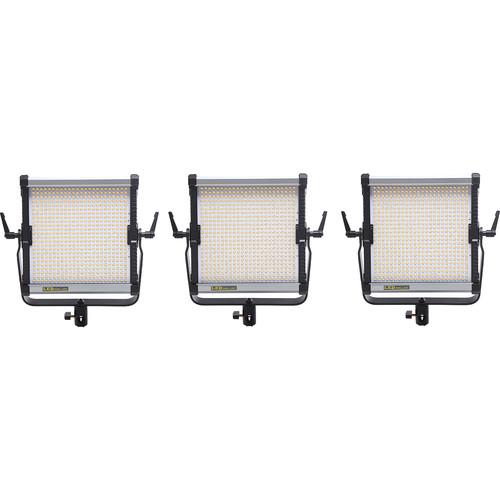

UPC: 717080142390 In the Box CAME-TV 576D Daylight LED 3-Panel Light Kit P688 3 x LED 576 Daylight 5600K Lights 3 x Sony NP-F-Type Battery Plates 6 x NP-F-Type Batteries 3 x Worldwide AC Adapter: 100-240 VAC 3 x Yoke with Stand Mount 3 x Light Stands 3 x Removable Soft Diffusion Panel 3 x Removable Tungsten Conversion Panel Carry Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV 576D Daylight LED 3-Panel Light Kit P688 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV 576D Specs | | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Housing Material | Aluminum | | Number of LEDs | 576 | | Fixture Dimensions | 11.4 x 11.8 x 2.2" / 29.0 x 30.0 x 5.5 cm | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 11 to 16 VDC | | Power Source | AC Adapter, External Battery | | | | Package Weight | 27.0 lb | | Box Dimensions (LxWxH) | 36.0 x 16.5 x 6.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
