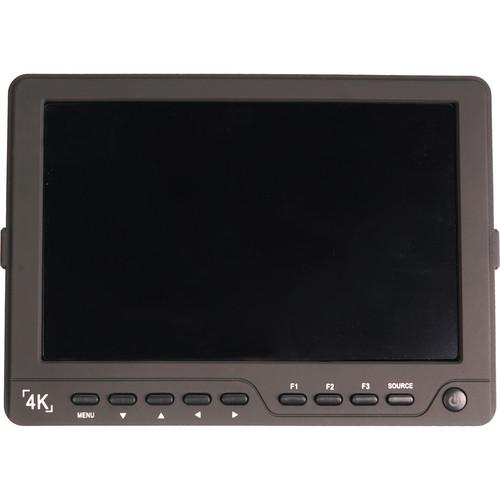

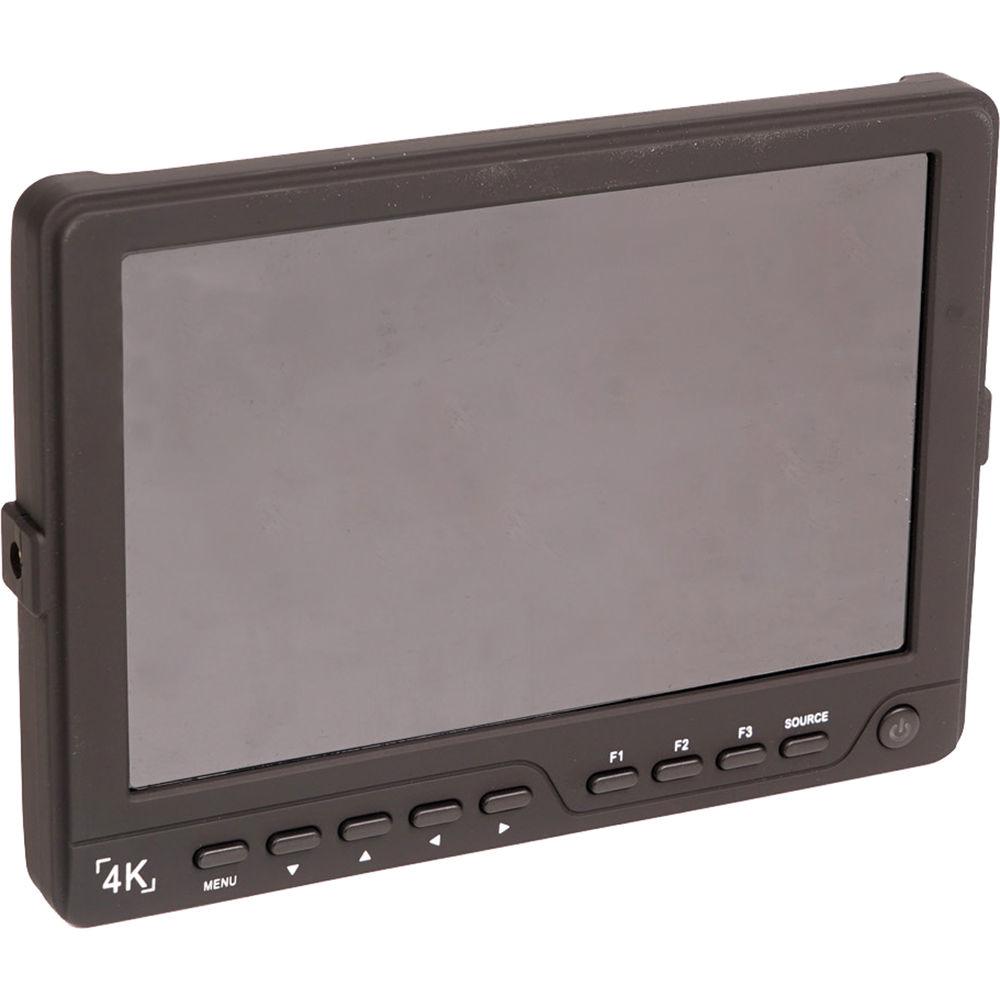

Product description The 7" 4K 10-Bit IPS Field Monitor from CAME-TV is a multiple signal support monitor with 10-bit process display. It offers a high contrast ratio of 1100:1, and a wide viewing angle of 178°. The monitor supports video input resolutions up to 4096 x 2160p @ 24 Hz via HDMI. - Easy access to the menu via the front panel menu button and scroll function
- Switch between HDMI and AV with the source button
- Keep exposure under control via histogram, false color, and zebra
- Use the RGB peaking filter for focus assist
- Check field function with four color modes
- Image field up/down, left/right flip function
- Safe area and center mark
- Display ratios: Auto / 16:10 / 16:9 / 4:3 / 1.85:1 / 2.35:1

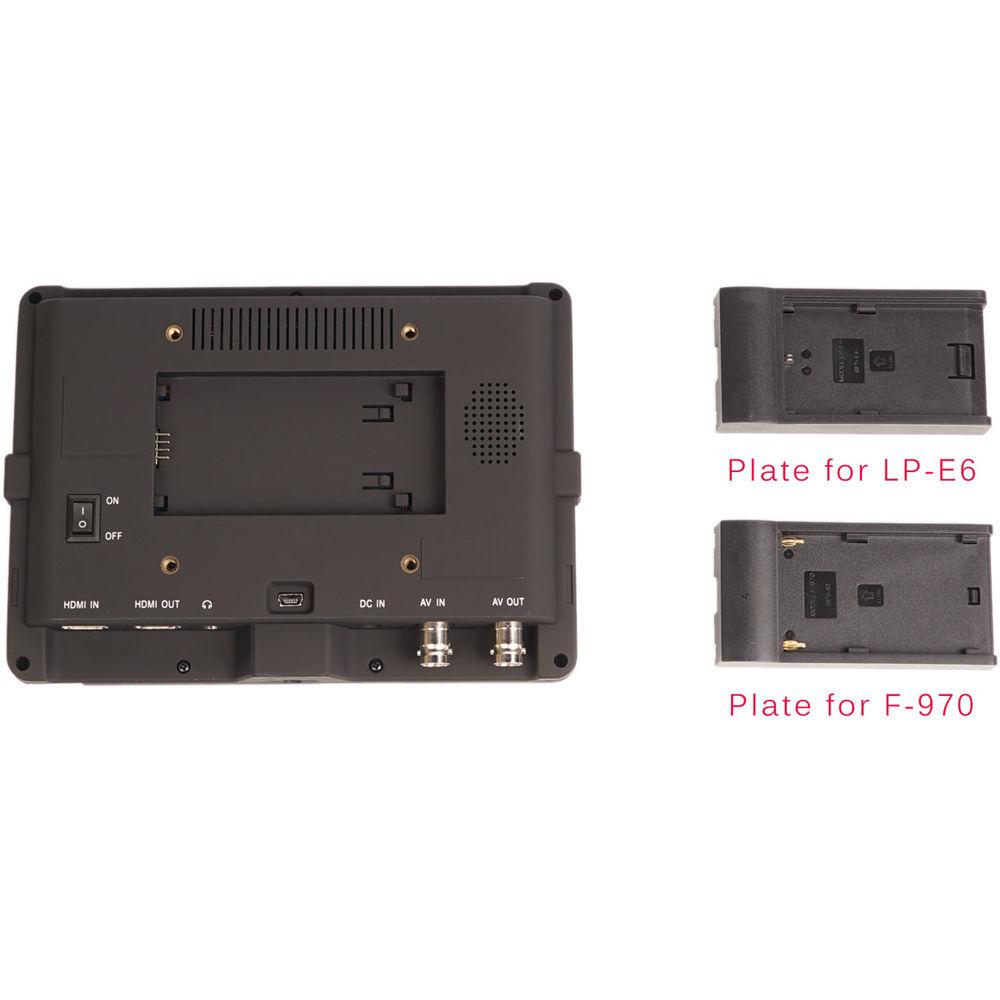

- Power supply via LP-E6 and L-Series battery plate

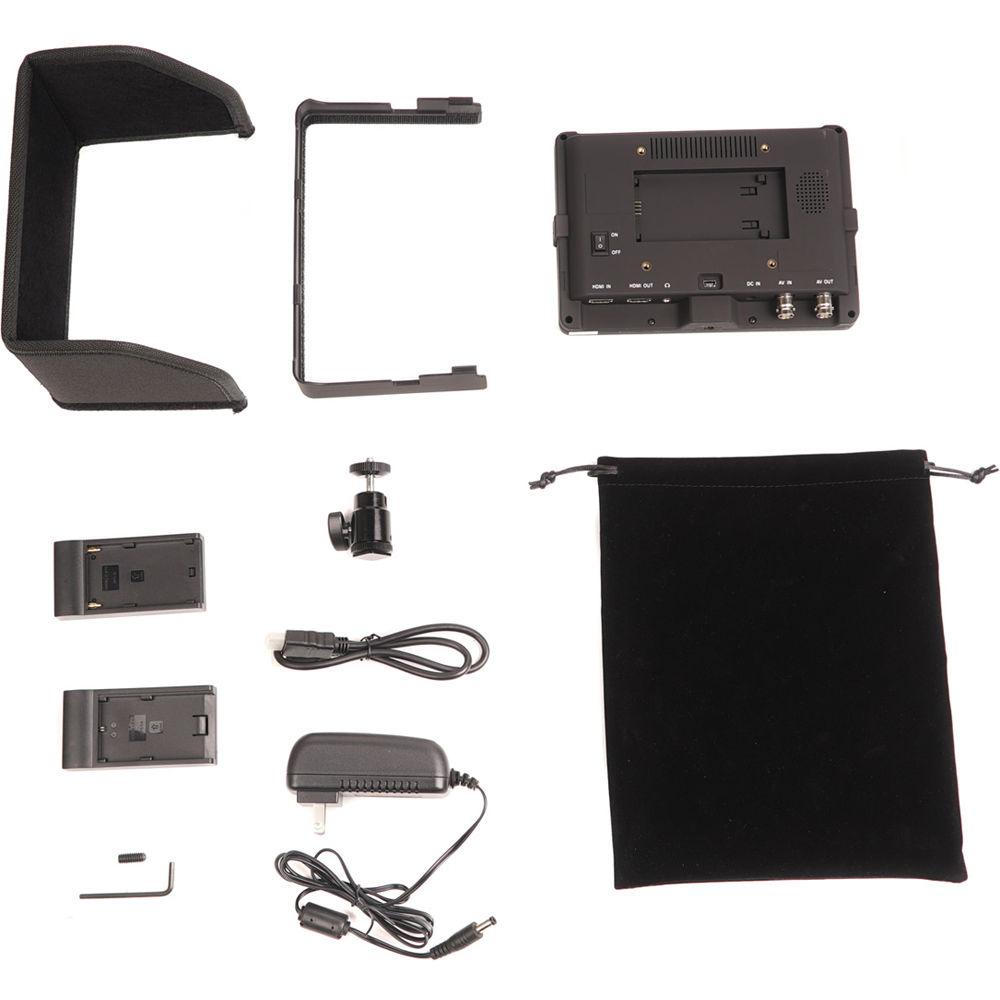

UPC: 602668721084 In the Box CAME-TV 7" 4K 10-Bit IPS Field Monitor Sun Hood LP-E6 Battery Plate L-Series Battery Plate Power Adapter Carry Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV 7" 4K 10-Bit IPS Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

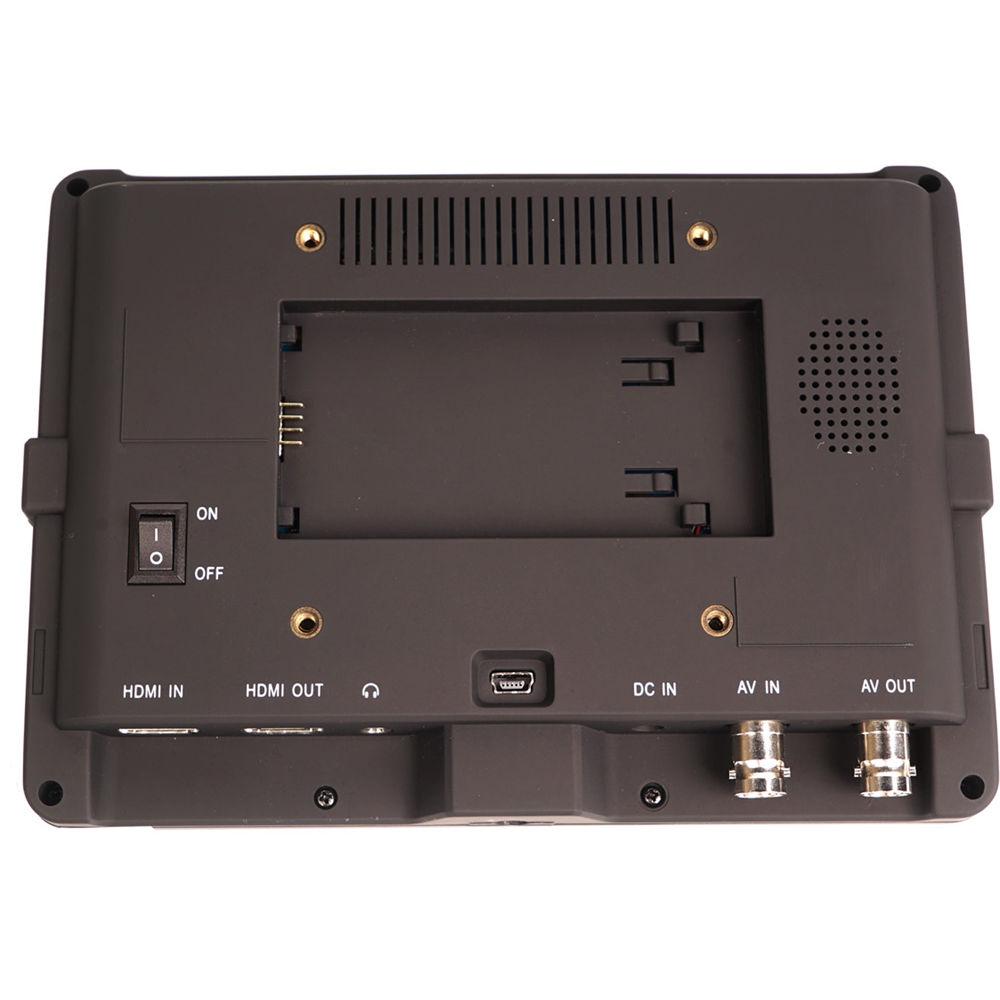

Technical parametersCAME-TV 4K-S7 Specs | Display Size | 7" (18 cm) | | Display Area | 5.95 x 3.72" (15.1 x 9.44 cm) | | Resolution | 1920 x 1200 | | Aspect Ratios | 16:10, 16:9, 4:3, 2.35:1, 1.85:1 | | Brightness | 450 cd/m2 | | Contrast Ratio | 1100:1 | | Viewing Angle | LIP: 1780 (890/890)
U/D: 178° (39°/89°) | | Inputs | 1 x HDMI
1 x AV | | Supported Video Signals | HDMI:
4096 x 2160p @ 24 Hz
3840 x 2160p @ 24, 25, 30 Hz
1920 x 1080PsF @ 23.93, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
1920 x 1080PsF @ 24, 25, 29.97, 30 Hz
1920 x 1080i @ 50, 59.94, 60 Hz
1280 x 720p @ 50, 59.94, 60 Hz
720 x 576p/i @ 50 Hz
720 x 480p/i @ 59.94, 60 Hz
Composite:
NTSC-M, NTSC-J, NTSC 4.43, PAL B/G H I D, PAL M, PAL N, SECAM | | Audio Output | 1 x Built-in speaker
1 x Headphone | | Power Input | 12 VDC via DC Adapter (included) | | Power Consumption | < 11 W | | Dimensions | 7 x 5.1 x 1" (18 x 13 x 2.5 cm) | | Weight | 0.8 lb (0.4 kg) | | | | Package Weight | 2.97 lb | | Box Dimensions (LxWxH) | 11.95 x 9.65 x 2.85" |
