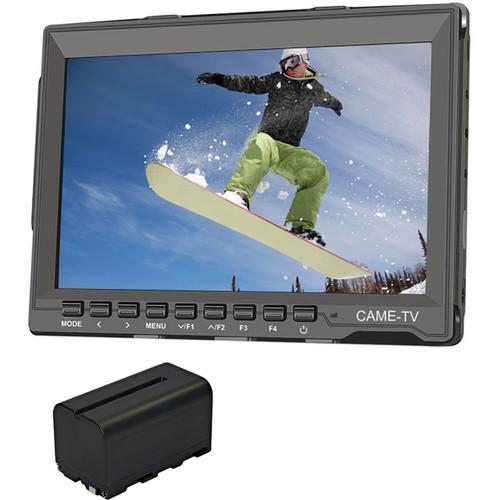

User Manual for CAME-TV 7" HDMI Field Monitor & 4000mAh Lithium-Ion Battery Click to enlarge the picture
Contents of the user manual for the CAME-TV 7" HDMI Field Monitor &
- Product category: On Camera Monitors CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV On Camera Monitors
|
User manual for the CAME-TV 7" HDMI Field Monitor & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|
Product description Combining the CAME-TV 7" HDMI Field Monitor with a 4000mAh ikan Lithium-Ion Battery, this B&H kit provides a ready-to-go solution for your monitoring needs. The monitor features a 1280 x 800 resolution, sharp 800:1 contrast ratio, and wide 178° viewing angle. It comes with an HDMI lock to safely keep your HDMI cable in place, and a sun hood to keep unwanted light out. The monitor also features focus peaking, pixel-to-pixel, camera 5D II mode, image freezing, and field-checking confidence features. - CAME-TV 701-HDMI Field Monitor with Peaking Focus Assist (7") The 7" 701-HDMI Field Monitor from CAME-TV is an LED-backlit monitor with HDMI connection. It offers high contrast ratio of 800:1 and total horizontal viewing angle of 178°. Designed for pro-video applications, 501-HDMI Monitor supports video inputs of up to 1920 x 1080 through HDMI.
- Wide color gamut LCD panel
- HDMI lock to keep the cable in place
- Supports 4:3 and 16:9 aspect ratio (image adjustable)
- Supports focus peaking, pixel-to-pixel, camera 5D II mode, image freezing, and field checking (red, green, blue, mono)
UPC: 717080142796 - ikan NP-F750 L-Series Compatible Battery (7.4V, 5800 mAh) The NP-F750 L-Series Compatible Lithium-Ion Battery from ikan features a 7.4V output and 5800mAh capacity. It can be used with any device that accepts NP-F750 batteries. Compatible ikan devices include the iLED6, iLED144, iLED312 (-v2), ID508, and IB508. UPC: 847983008049
In the Box - 701-HDMI Field Monitor with Peaking Focus Assist (7")
- Screen Hood
- Limited 1-Year Warranty
- ikan - NP-F750 L-Series Compatible Battery (7.4V, 5800 mAh) ccqycraaztytxwtuutsw
Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV 7" HDMI Field Monitor & 4000mAh Lithium-Ion Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CAME-TV 701-HDMI Field Monitor with Peaking Focus Assist (7")
| | | Screen Size | 7.0" (17.8 cm) | | Type | IPS | | Resolution | 1280 x 800 | | Dot Pitch | W x H: 0.11775 x 0.11775 | | Aspect Ratio | 16:10 | | Brightness | 400 cd/m2 | | Contrast | 800:1 | | Viewing Angle | L/R: 89°/89°
U/D: 89°/89° | | Backlight | LED | | | | HDMI | 480i/480p/576i/576p
720p (60/59.94/50/30/29/25/24/23.98)
1080i (60/59.94/50); 1080p (60/59.94/5030/29.97/25/24/24/23.98/23.98 fps) | | | | Input | 1 x HDMI | | Output | 1 x HDMI | | | | Audio | 1 x Speaker
1 x Earphone out | | Input Voltage | 5.5 to 35 VDC | | Power Consumption | 5 W | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Installation | 1/4"-20 thread socket on top and bottom | | Dimensions | 6.9 x 5.1 x 6.7" (17.6 x 13.0 x 17.0 cm) | | Weight | 0.9 lb (0.4 kg) | | | | Box Dimensions (LxWxH) | 8.7 x 7.6 x 2.5" | - ikan NP-F750 L-Series Compatible Battery (7.4V, 5800 mAh)
| Mount / Series Type | Sony L-Series | | Chemistry | Lithium-Ion | | Capacity (Wh) | 43 Wh | | Amp-Hours | 5800 mAh | | Output Voltage | 7.4 VDC | | Dimensions (W x H x D) | 2.8 x 1.5 x 1.5" / 7.1 x 3.8 x 3.8 cm | | Weight | 0.4 lb / 181.4 g | | | | Box Dimensions (LxWxH) | 3.0 x 2.05 x 1.55" |
