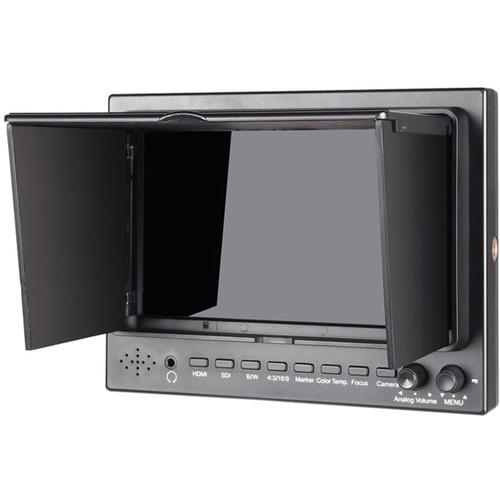

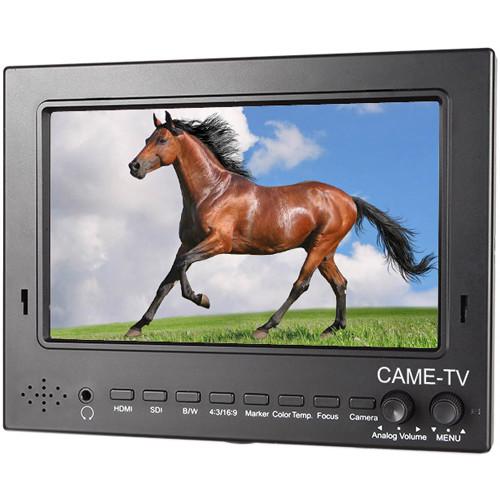

Product description The 7" 702-SDI Pro-Broadcast HD-SDI/HDMI Monitor from CAME-TV is an LED backlit monitor with HDMI and SDI connections. It offers a high contrast ratio of 700:1 and total horizontal viewing angle of 150°. Designed for professional video applications, the 702-SDI Monitor supports video inputs up to 1920 x 1080p via HDMI. - Menu selection and volume control knobs
- Supports 4:3 and 16:9 aspect ratios (image adjustable)
- Supports color temperature adjustment
- Supports focus peaking, camera 5D II mode, and field checking (red, green, blue, mono)

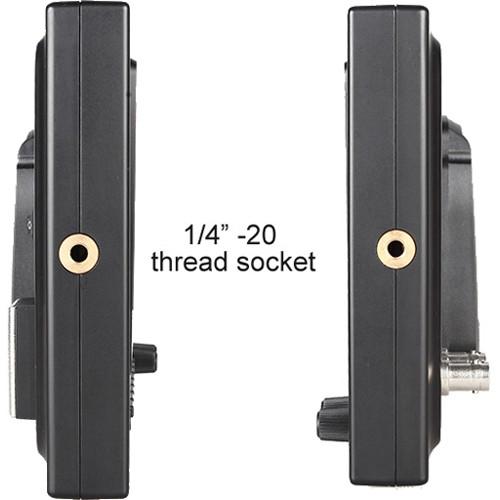

- 1/4"-20 Thread socket for convenient installation
UPC: 717080142802 In the Box CAME-TV 702-SDI Pro-Broadcast HD-SDI/HDMI Monitor (7") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV 702-SDI Pro-Broadcast HD-SDI HDMI Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV 702-SDI Specs | | | Screen Size | 7" (17.8 cm) | | Resolution | 1024 x 600 | | Dot Pitch | W x H: 0.05 x 0.15 | | Aspect Ratio | 16:9 | | Brightness | 450 cd/m2 | | Contrast | 700:1 | | Viewing Angle | L/R: 75° / 75°
U/D: 70° / 75° | | Backlight | LED | | | | SDI | 1080p60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps
1080i60 / 59.94 / 50
720p60 / 59.94 / 50 / 30 / 29 / 25 / 24 / 23.98
576i
480i | | HDMI | 1080p60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps
1080i60 / 59.94 / 50
720p60 / 59.94 / 50 / 30 / 29 / 25 / 24 / 23.98
576p / 576i

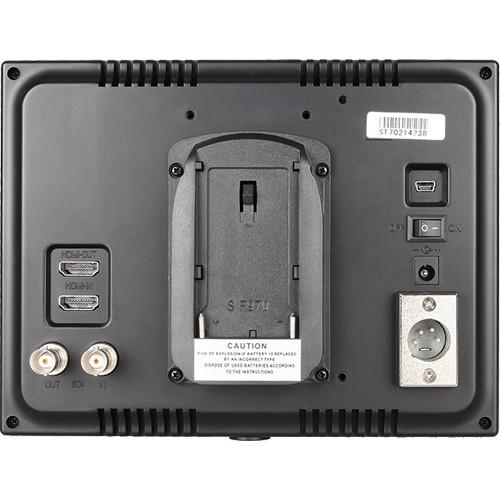

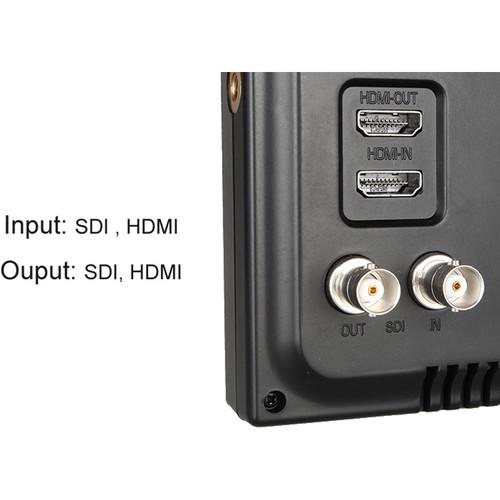

480p / 480i | | | | Input | 1 x SDI
1 x HDMI | | Output | 1 x SDI
1 x HDMI | | | | Audio | 1 x Speaker
1 x 3.5 mm Headphone jack | | Power | Via 4-pin XLR | | Input Voltage | 6 to 24 VDC (Battery not included) | | Power Consumption | ≤9 W | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Storage Temperature | -22 to 149°F (-30 to 65°C) | | Installation | 1/4"-20 Thread socket on all four sides | | Dimensions | Without Sunshade: 7.6 x 5.8 x 1.1" (19.4 x 14.8 x 2.9 cm)
With Sunshade: 7.6 x 5.9 x 2.4" (19.4 x 15.0 x 6.2 cm) | | Weight | With Battery Plate: Approximately 18 oz (521 g)
With Battery Plate & Sunshade: Approximately 24 oz (669 g) | | | | Package Weight | 2.465 lb | | Box Dimensions (LxWxH) | 11.5 x 9.0 x 3.45" |
