User Manual for CAME-TV Accordion Crane Jib Click to enlarge the picture
Contents of the user manual for the CAME-TV Accordion Crane Jib
- Product category: Cranes & Jibs CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV Cranes & Jibs
 |
User manual for the CAME-TV Accordion Crane Jib contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

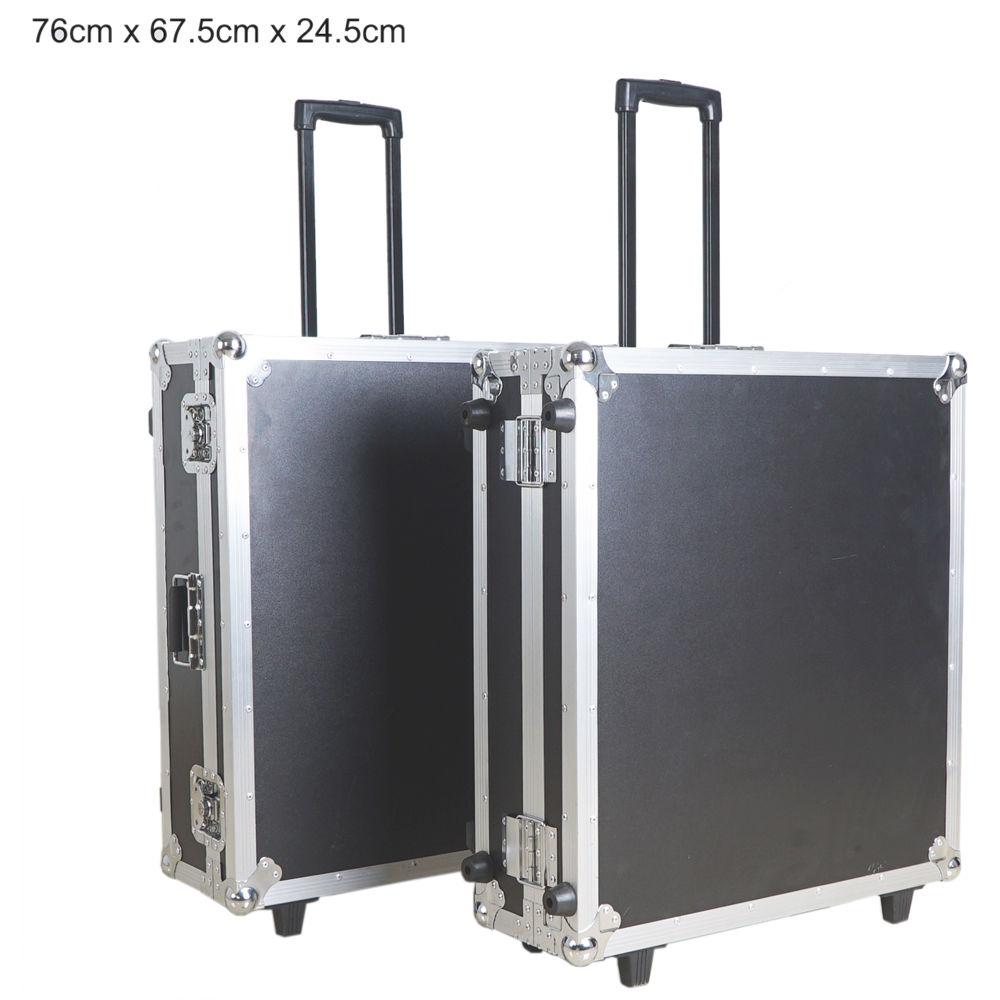

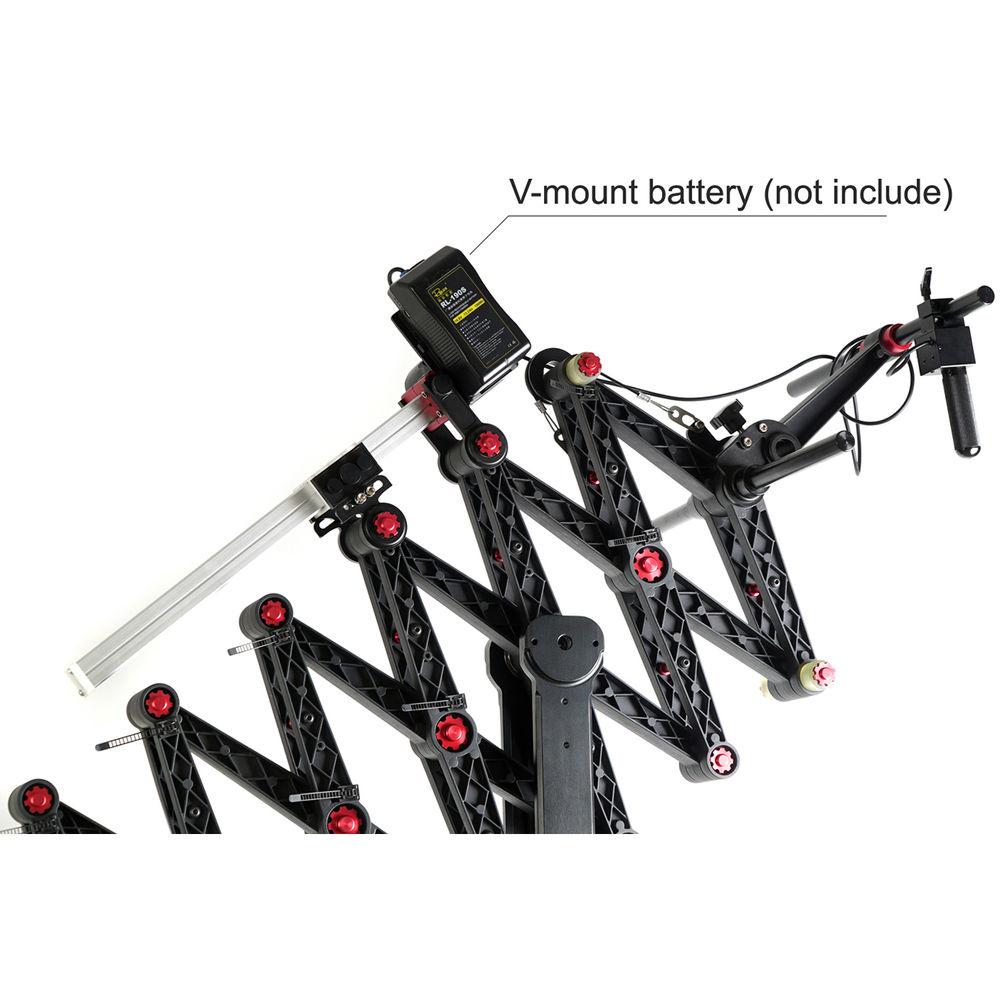

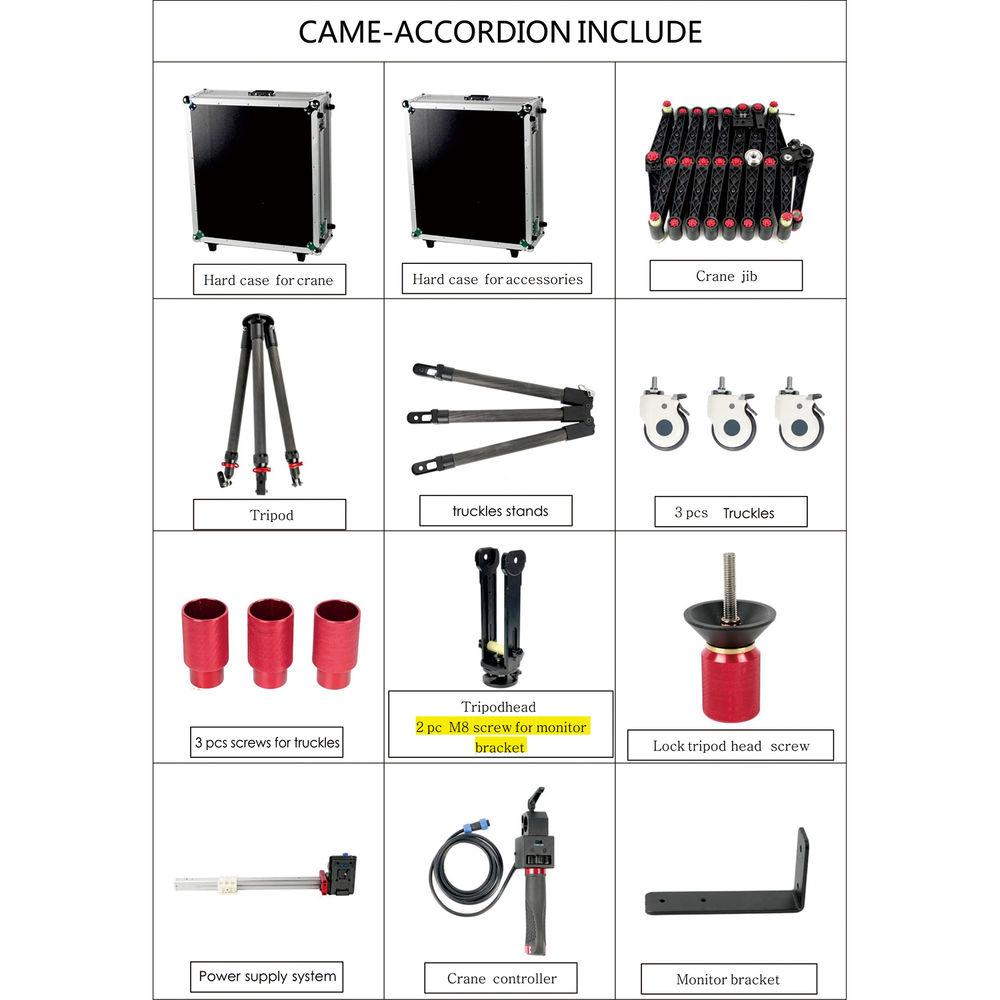

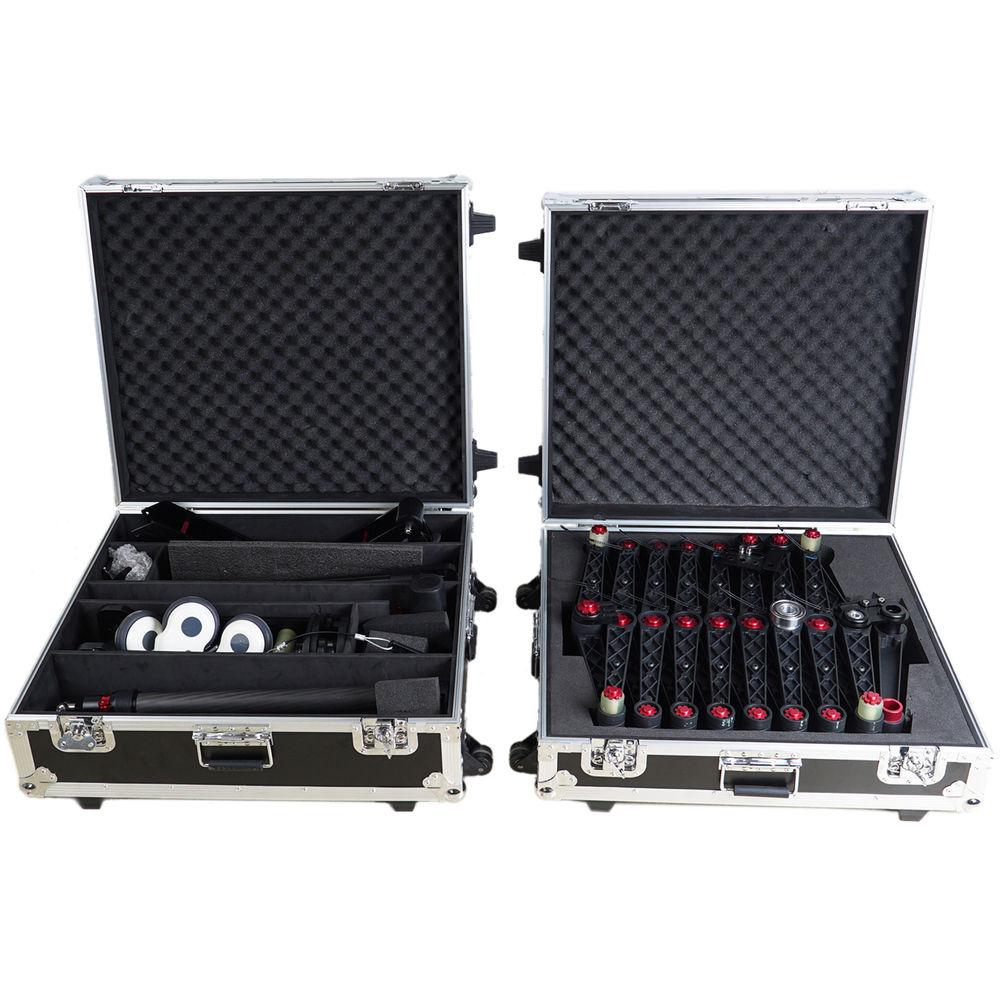

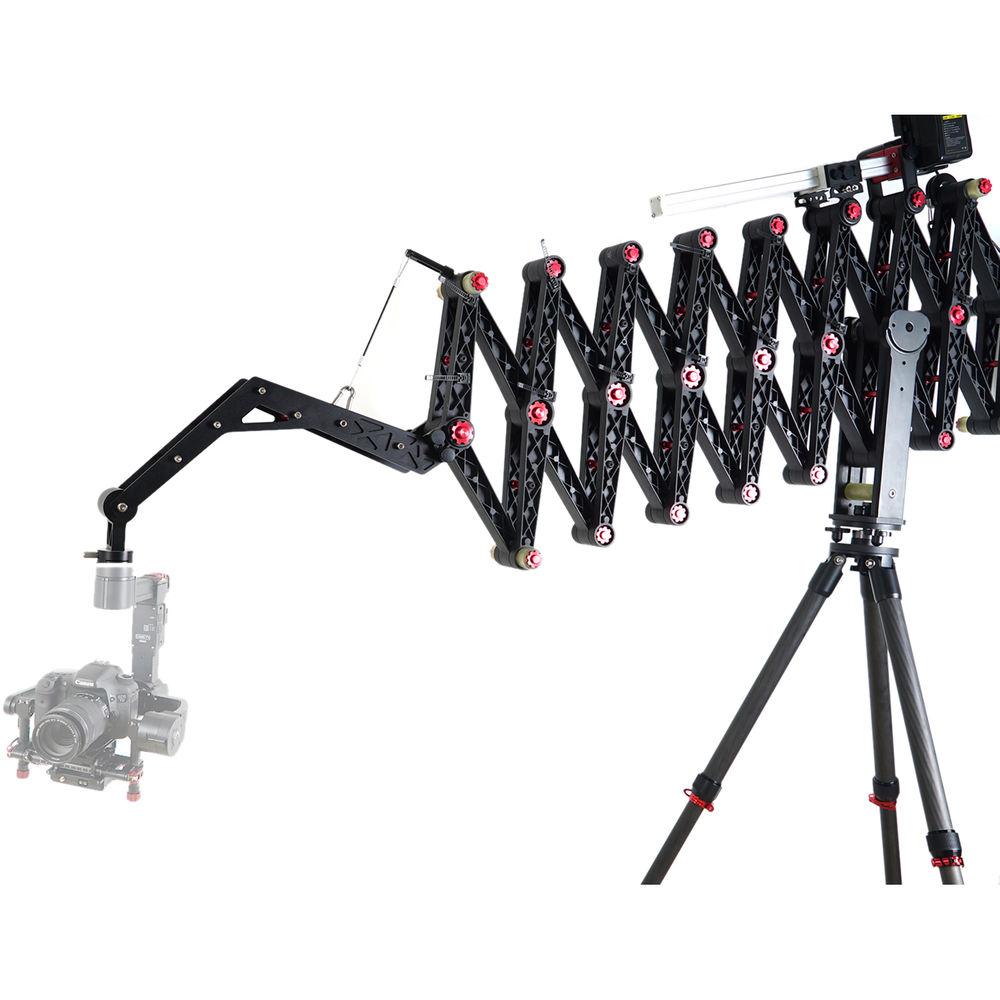

Product description The CAME-TV Accordion Crane Jib features an extending scissor arm that puts the camera right where you need it. The accordion motion allows the arm to extend 15’ out and then retract back in. The drive is powered by a V-Mount battery (sold separately) and is controlled by a rocker switch. The max payload is 33 lb and works well when paired with the Argo, Prodigy, or Mini 3 gimbal. These gimbals can be remote controlled with the Bluetooth joystick for controlling of the camera. The kit weighs in at 77 lb and includes tripod, wheels, and aluminum cases. UPC: 602668720704 In the Box CAME-TV Accordion Crane Jib Hard Case for Accordion Hard Case for Accessories Carbon Fiber Tripod Spreader 3 x Caster Caster Lock Screws Tripod Head 2 x M8 screw for Monitor Bracket Tripod Head Locking Screw Motor System Accordion Controller Monitor Bracket 2 x Jib Lock 4 x M8 Screw Accordion Head with 4 M8 Screws Controller Bar (Long) 2 x Counterweight Bar 4 x M6 Motor System Screw 4 x M10 Motor System Screw Handle Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Accordion Crane Jib in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV CAME-ACCORDION Specs | Stretch | Time for the Stretch Duration from 4.9 to 15.4' (1.5 to 4.7 m): 40 s | | Power | Load Voltage and Power of the Electric Machine: 12 V, 30 W | | Payload | 33 lb (15 kg) | | Battery Life | Pinch Plate: > 8 hours | | Length | Crane Jib: 4.9 to 15.4' (1.5 to 4.7 m) | | Weight | Crane Jib: 35.2 lb (16 kg)
Accessories: 35.2 lb (16 kg)
Flight Cases: 39.6 lb (18 kg) | | | | Package Weight | 85.0 lb | | Box Dimensions (LxWxH) | 28.0 x 26.0 x 9.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
