Product description

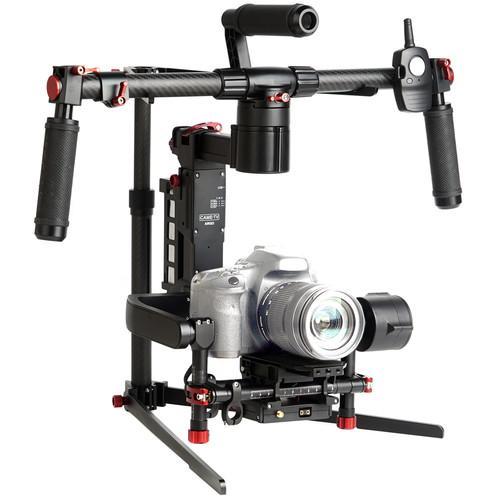

• Argo 3-Axis Handheld Gimbal Stabilizer Featuring tool-less adjustment and a 32-bit Alexmos board, the CAME-TV Argo is a motorized 3-axis handheld gimbal that lets you capture smooth and precise free-floating stabilized camera shots. The gimbal supports loads up to 6.6 lb, making it most suitable for DSLR and mirrorless camera setups, and sports a modular design that allows the gimbal unit to be attached to an included top handle bar assembly for two-handed operation, or to other support devices such as a jib, slider, or drone using a supplied adapter plate. Both handles on the top bar attach via thumbscrews for quick position and angle adjustment, with a center handle useful for low angle shooting or simply carrying the stabilizer between shots.

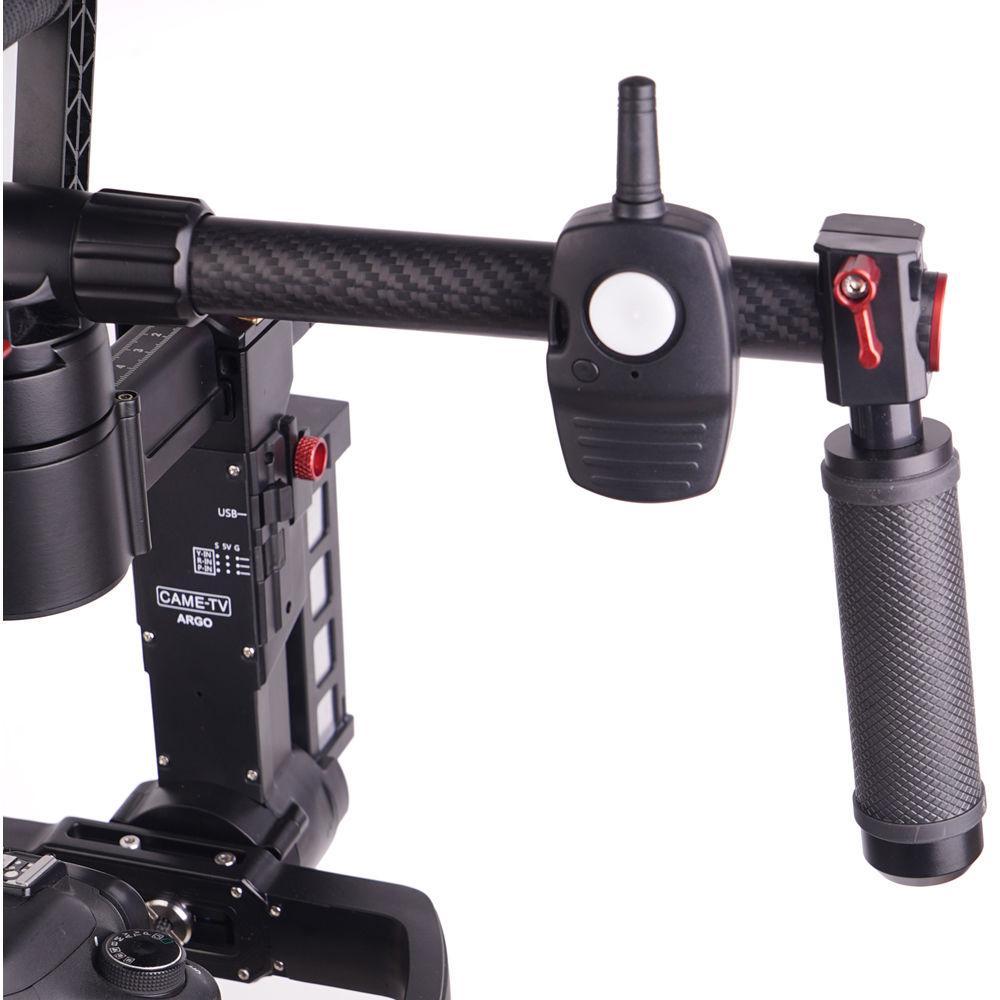

  Gimbal operating mode selection and pan/tilt angle adjustments is performed using a wireless joystick remote. The remote can be mounted directly to the handle bar and placed near one of the handles for thumb control of the joystick, or used detached from the stabilizer by a second operator. As with sled-and-vest-style stabilizers, motorized gimbal systems require balancing. Argo uses a quick release camera plate and index markings for its tool-less position adjustment, making it easier to find optimal balance point and to recall settings for different camera and lens combinations.

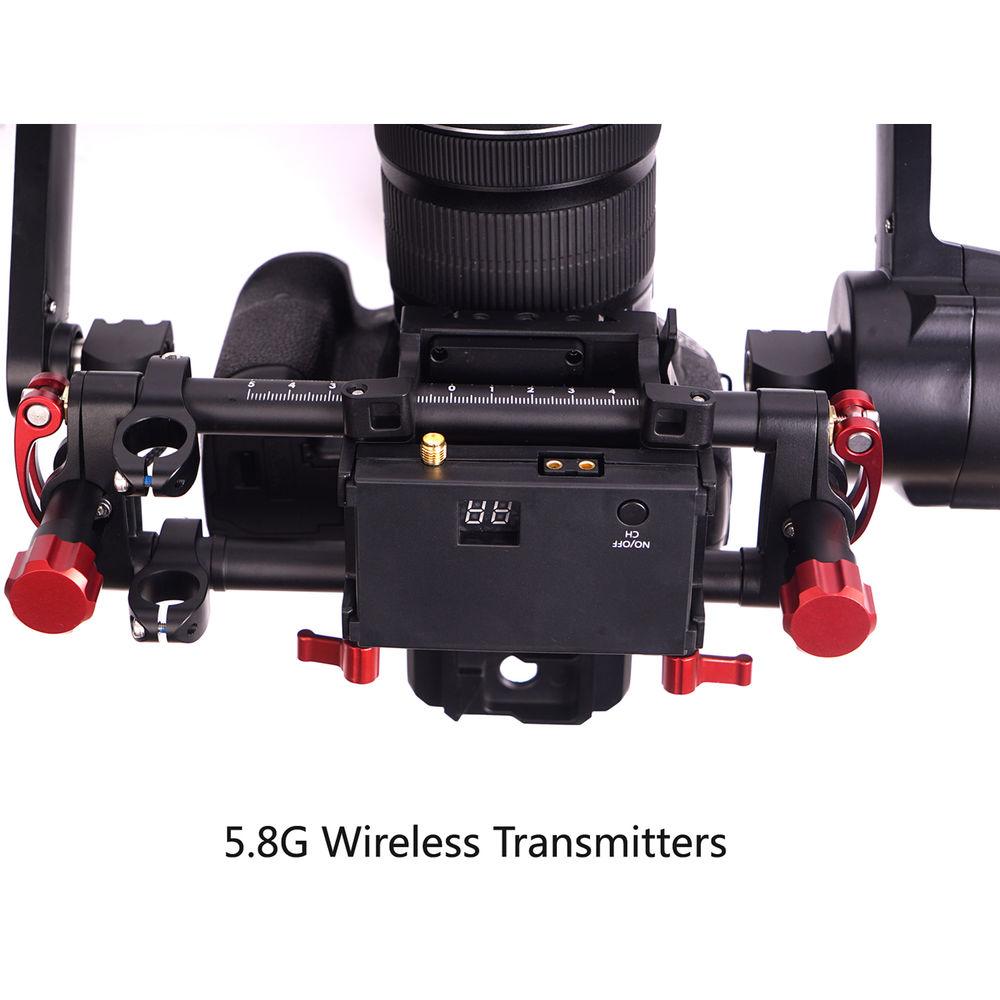

  A quick release LiPo battery attaches to the gimbal to provide up to 15 hours of power. Beneath the camera baseplate is a 5.8 GHz wireless video transmitter with micro-HDMI input to take the output from your camera and send it to a wireless monitor. Also located beneath the baseplate is a 12V D-tap output to power an optional accessory from the gimbal battery, such as a wireless follow focus motor, which can be mounted using an included single 15mm rod clamp and 3.9" long rod.
  Features
  • • Supports loads up to 6.6 lb
    • Pre-calibrated 32-bit Alexmos board
    • All motors equipped with encoders for increased accuracy and smoothness, while also benefiting battery life
    • Tool-less adjustment/balancing
    • Handle bar with removable and adjustable handles
    • Center top handle for low-angle shooting
    • Operating Modes: Follow Mode, Tilt Follow/Pan Lock Mode, All Lock Mode
    • Wireless joystick remote for gimbal control and switching between operating modes

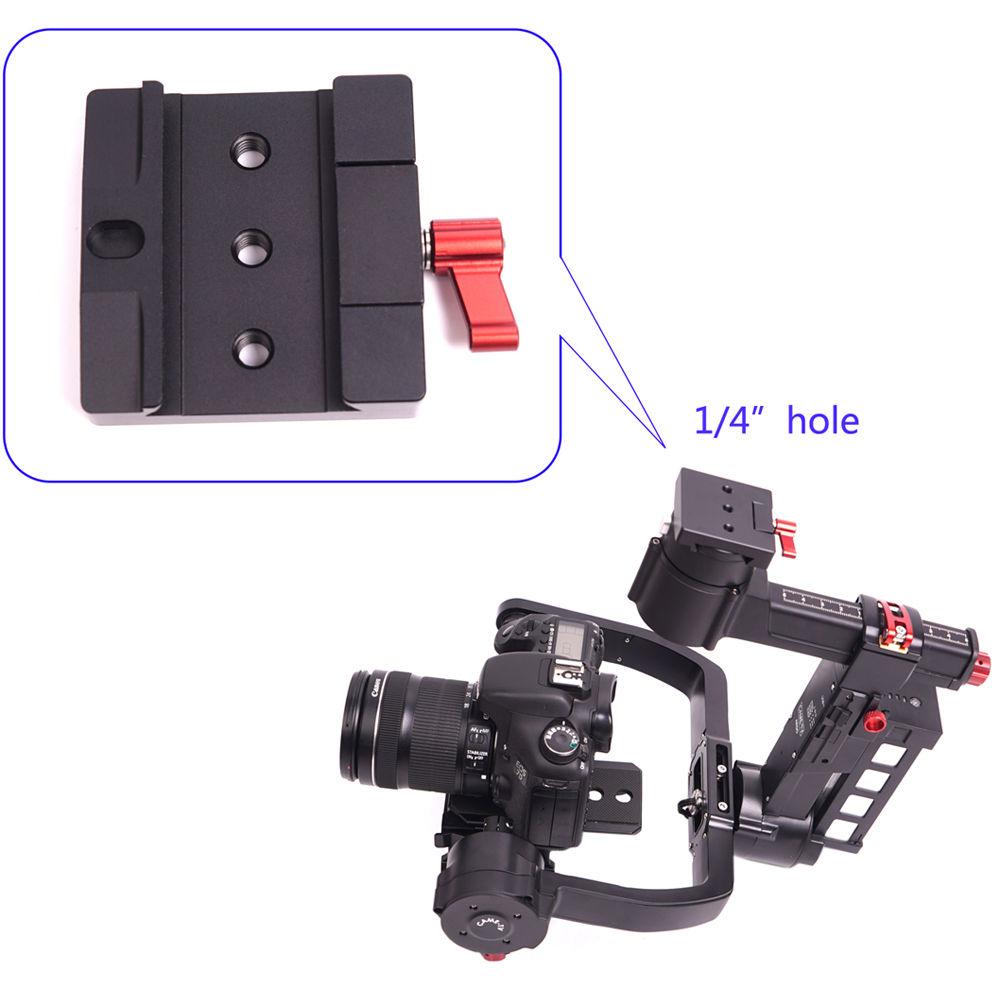

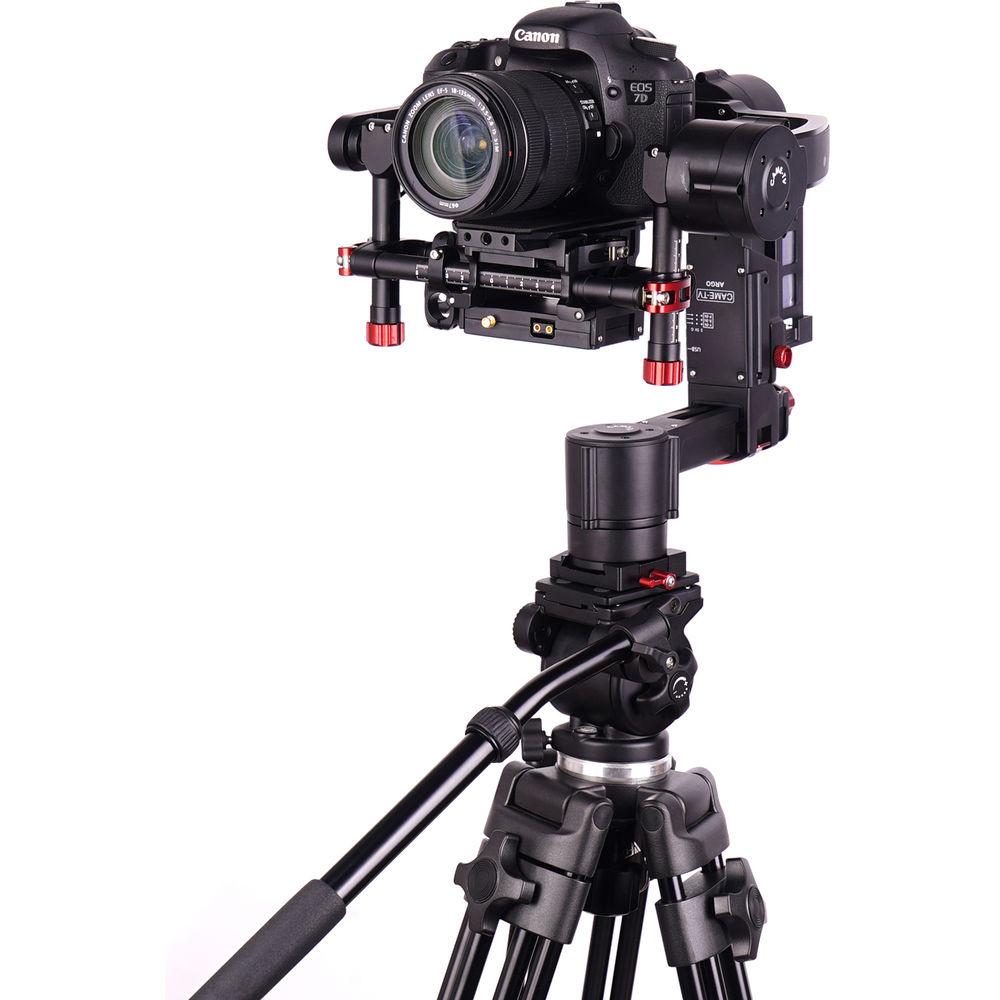

    • Handle bar removable to attach gimbal unit to jib, slider, drone, or other support device using an included adapter plate

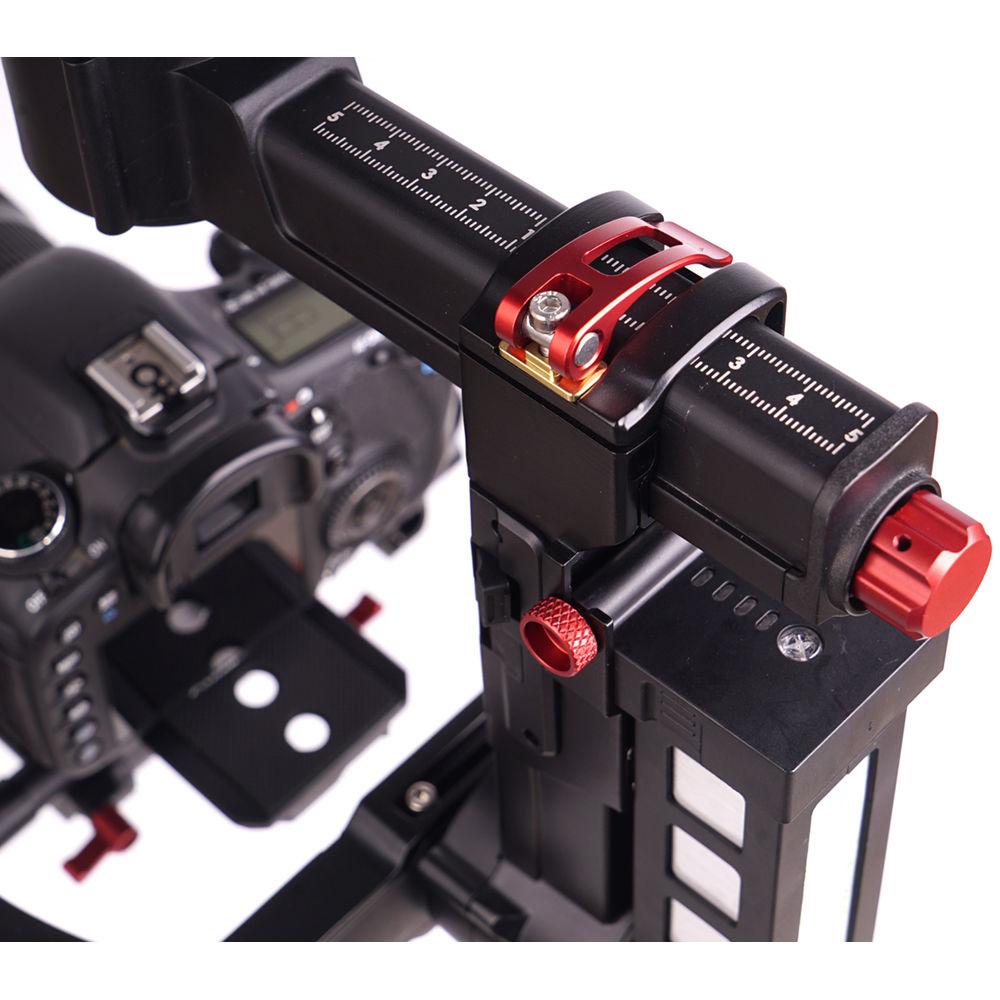

    • Quick release camera plate and index markings for balancing
    • 12V D-Tap power output to power optional accessory
    • 5.8 GHz wireless video transmitter with micro-HDMI input
    • USB port and RC connector
    • 15mm rod clamp and 3.9" rod for attaching optional wireless follow focus gear drive motor or other accessory
    • Foldable carbon fiber tuning stand
    • Hard case
  UPC: 602668719616

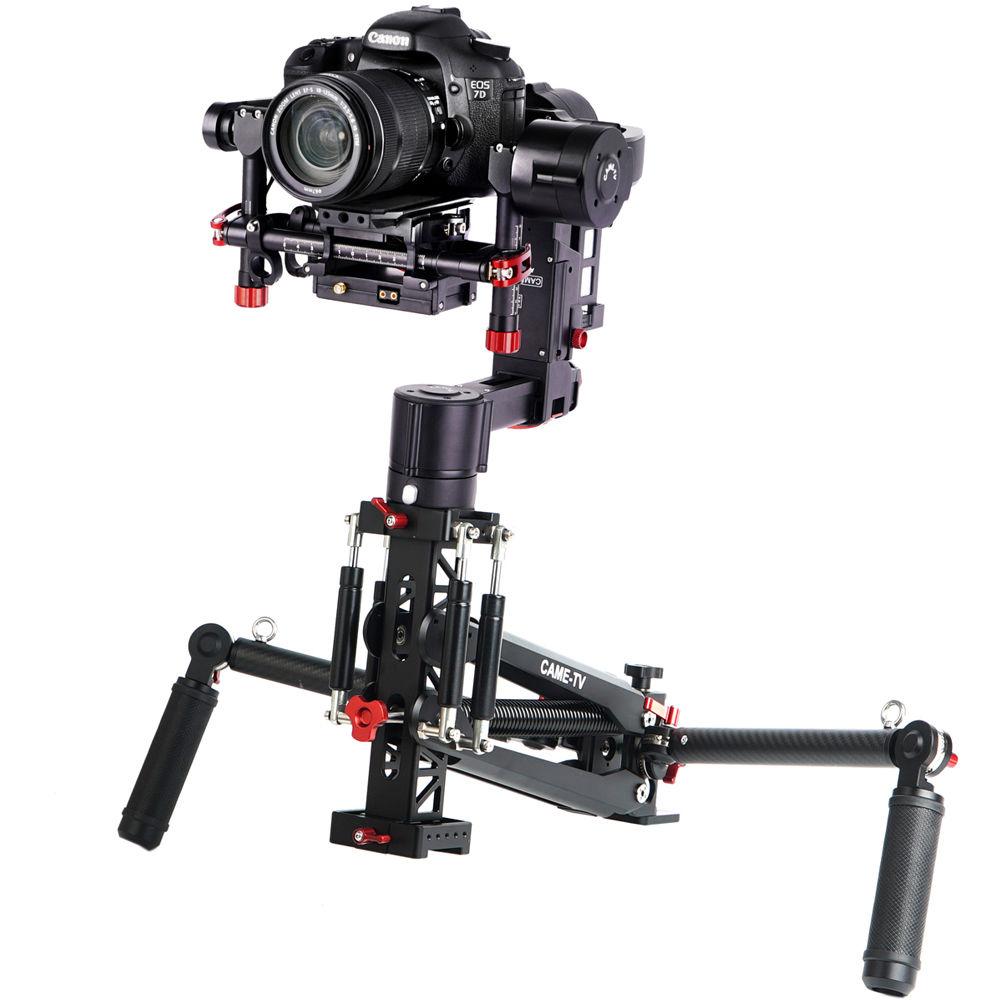

• ELASTIX Support System for ARGO 3-Axis Gimbal The CAME-TV ELASTIX Support System is designed specifically for the CAME-TV ARGO 3-Axis Gimbal, sold separately. Featuring a spring-resistance mechanism, angle-adjustable handles, and shoulder and waist straps, the ELASTIX replaces the ARGO's standard handles and allows you to achieve highly enhanced stability with the gimbal.

  The ARGO can be attached on the top or bottom of the main spring-loaded component, allowing for overhead or underhand operation. At the same time, the handgrips and handgrip arms are adjustable at multiple points via rosette adapters to provide you with the best handling in different applications, whether the gimbal is secured from the top or bottom. UPC: 602668719647

• Handle Bar Assembly

• 2 x Handles

• Adapter Plate

• Wireless Remote

• LiPo Battery

• Battery Charger & Cable

• Plug Converter

• Quick Release Plate

• 15mm Rod Clamp

• 15mm Rod (3.9")

• 5.8 GHz Transmitter Antenna

• Lens Support

• 4-Pin Cable

• Micro-HDMI to Mini HDMI Cable

• Micro-HDMI Female to Mini-HDMI Male Adapter

• Carbon Fiber Stand

• Hard Case

• Limited 1-Year Warranty

• Shoulder/Waist Strap Set

• Carry Case

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Argo 3-Axis Handheld Gimbal Stabilizer

  Number of Axes	3-Axis
  Rotation Range	Yaw (Pan): 360 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 32 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
